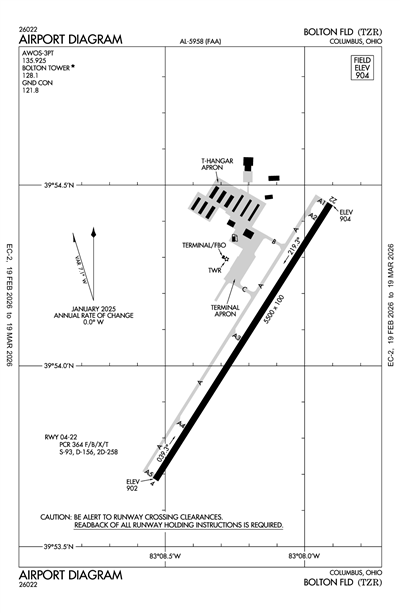

BOLTON FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTZR
ICAO KTZRIATA TZRLocal TZR
BOLTON FLD
PublicPUB

8 miles SW of COLUMBUS, OH, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 54' 04"N 83° 08' 13"W
Elevation
904' MSL
Pattern Alt
1704' MSL
Mag Variation
7°W
Declination
5°W
Fuel
JET A-1+, 100LL
FSS
DAYTON (DAY)
Sectional
CINCINNATI
ARTCC
INDIANAPOLIS (ZID)
Data Effective
2/19/26-3/19/26
KTZR LIFR
4:55 AM EST
Mist
Overcast 1,500'
Broken 400'
3sm
46°F
46°F
30.17"Hg
330° 4kts
AO2 T00780078
METAR KTZR 040955Z AUTO 33004KT 3SM BR BKN004 OVC015 08/08 A3017 RMK AO2 T00780078
+ Add Your Business

KTZR FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 135.925
(614) 878-1722, FREQ UNAVBL 0730-1930 CTC GND CTL 121.8 FOR WX.

Common

CTAF 128.1
WHEN ATCT CLSD ACTVT MALSR RWY 04; REIL RWY 22; MIRL RWY 04/22 - CTAF.

Ground

BOLTON GROUND 121.8
0730-1930

Tower

BOLTON TOWER 128.1
0730-1930

Arrival

CBUSS STAR 125.95
DUBLN STAR 125.95

Approach

COLUMBUS APPROACH 134.0
Initial Contact
COLUMBUS APPROACH 132.3
Secondary - 100-279

Departure

COLUMBUS DEPARTURE 134.0
Initial Contact
COLUMBUS DEPARTURE 132.3
Secondary - 100-279

Other

CLASS C/S 132.3
Secondary - 100-279

Terminal Area Forecast

KLCK (11nm)
Wed, 3/4 12:46 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 1:00 AM EST
LIFR
1:00 AM EST - 4:00 AM EST
Mist
Broken 400'
3sm
VRB° 3kts
LIFR
4:00 AM EST - 8:00 AM EST
Light Showers and Rain and Mist
Overcast 200'
1sm
VRB° 3kts
LIFR
8:00 AM EST - 12:00 PM EST
Mist
Overcast 400'
3sm
090° 5kts
IFR
12:00 PM EST - 8:00 PM EST
Mist
Broken 600'
5sm
110° 5kts
LIFR
8:00 PM EST - 11:00 PM EST
Thunderstorm and Rain
Overcast 400'
2sm
Calm
IFR
8:00 PM EST - 1:00 AM EST
Showers and Rain and Mist
Overcast 600'
3sm
130° 3kts
TAF KLCK 040546Z 0406/0506 VRB03KT 3SM BR BKN004
   FM040900 VRB03KT 1SM -SHRA BR OVC002
   FM041300 09005KT 3SM BR OVC004
   FM041700 11005KT 5SM BR BKN006
   FM050100 13003KT 3SM SHRA BR OVC006
   PROB30 0501/0504 2SM TSRA OVC004CB
KTZR
EffectiveExpiresCategoryNOTAM
Domestic
2/27/26
0213Z
!TZR 02/091 TZR NAV ILS RWY 04 OM U/S 2602270213-2606262000EST
2/26/26
1905Z
3/13/26
1905Z
!TZR 02/090 TZR AD AP ABN NOT STD WHITE ONLY 2602261905-2603131905
2/26/26
1900Z
3/31/26
2359Z
Runway!TZR 02/089 TZR RWY 22 PAPI U/S 2602261900-2603312359
2/2/26
2228Z
3/19/26
2227Z
!TZR 02/012 TZR OBST TOWER LGT (ASR 1231947) 395800.00N0830628.00W (4.2NM NNE TZR) 1153.9FT (298.9FT AGL) U/S 2602022228-2603192227
1/13/26
2039Z
4/13/26
2359Z
!TZR 01/020 TZR OBST TOWER LGT (ASR 1013785) 395328.00N0830251.00W (4.1NM E TZR) 1046.6FT (274.0FT AGL) U/S 2601132039-2604132359
FDC
3/3/26
1410Z
!FDC 6/2496 TZR IAP BOLTON FLD, COLUMBUS, OH.
ILS OR LOC RWY 4, AMDT 5B...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
BOUTN (BU) LOM OUT OF SERVICE AND COURT HOUSE (CSS) NDB OUT OF SERVICE.
2603031410-2610131410EST
Yes
0730-1930
COLUMBUS REGIONAL ARPT AUTH
4600 INTERNATIONAL GTWY
COLUMBUS, OH 43219
Phone: 614-239-4000
CHARLIE GOODWIN
2000 NORTON RD
COLUMBUS, OH 43228
Phone: 614-851-9900
DAYTON FSS (DAY)
Toll Free: 1-800-WX-BRIEF
TZR
--
WHEN ATCT CLSD ACTVT MALSR RWY 04; REIL RWY 22; MIRL RWY 04/22 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
None
Charter Service
Pilot Instruction
Aircraft Rental
Annual Surveying

Runway 04/22

5500 ft. x 100 ft.
ASPH
Fair
NONE
MED

93,000lbs
156,000lbs
258,000lbs
--
  Runway 04 Runway 22
True Heading 32°212°
Traffic Pattern Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 53' 41"N 39° 54' 27"N
Longitude 83° 08' 32"W 83° 07' 54"W
Elevation 902' 904'
Threshold Crossing Height 25 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1HIGH TENSION PLINES/TOWERS NE-SE.
A110-2BLN & BANNER ACT ON & INVOF ARPT.
A110-3BIRDS & OTR WILDLIFE ON & INVOF ARPT.
A110-6FOR FUEL & ACFT SVCS CTC FBO ON 123.3.
A110-7FOR CD WHEN ATCT IS CLSD CTC COLUMBUS APCH AT 614-338-8537.
A16H24 EMERG OPS 614-239-4029.
A30A-04CALM WIND RWY.
A39-04/22PCR VALUE: 364/F/B/X/T
A70-100LL100LL AVBL H24 SELF SVC VIA CREDIT CARD.
A75-HPPR CTC AMGR FOR INFO.
A81-APTWHEN ATCT CLSD ACTVT MALSR RWY 04; REIL RWY 22; MIRL RWY 04/22 - CTAF.
BOLTON FLD (ICAO: KTZR, IATA: TZR) is a public airport located in COLUMBUS, OH, US.
