iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTYR
TYLER POUNDS RGNL
PublicPUB

3 miles W of TYLER, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 21' 13"N 95° 24' 11"W
544' MSL
1544' MSL
03E
JET A, 100LL
FORT WORTH (FTW)
DALLAS-FT WORTH
FORT WORTH (ZFW)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KTYR FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 120.1

ATIS

ATIS
 126.25

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 120.1

FAA A/FD Pages

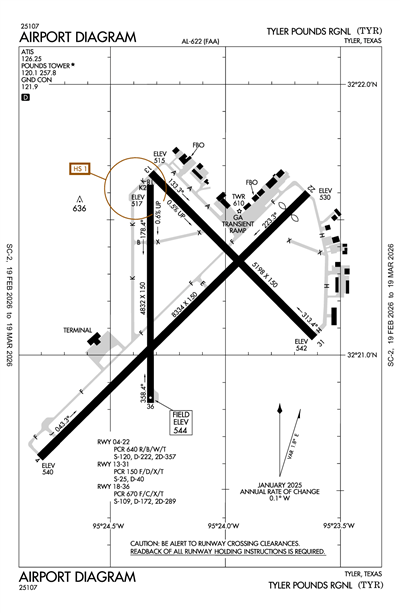

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KTYR
Domestic
1/15/251400Z !TYR 01/011 TYR NAV ILS RWY 04 DME U/S 2501151400-2501151700
1/13/251519Z !TYR 01/009 TYR OBST TOWER LGT (ASR 1002460) 322801.00N0951955.90W (7.7NM NNE TYR) 1040.0FT (503.9FT AGL) U/S 2501131519-2504140500
12/29/241050Z !TYR 12/039 TYR OBST TOWER LGT (ASR 1245307) 323115.80N0952058.70W (10.4NM NNE TYR) 765.1FT (253.9FT AGL) U/S 2412291050-2503290500
12/22/241204Z !TYR 12/025 TYR OBST TOWER LGT (ASR 1222061) 322328.50N0952005.10W (4.2NM ENE TYR) 692.9FT (256.9FT AGL) U/S 2412221204-2503220500
12/16/241913Z !TYR 12/016 TYR OBST TOWER LGT (ASR 1271580) 323056.50N0952656.90W (9.9NM NNW TYR) 934.7FT (460.0FT AGL) U/S 2412161913-2503162359
8/26/241608Z !TYR 08/030 TYR OBST TOWER LGT (ASR 1052570) 322621.30N0954050.10W (15.0NM WNW TYR) 945.2FT (410.1FT AGL) U/S 2408261608-2508312359
FDC
1/14/251915Z !FDC 5/3442 TYR IAP TYLER POUNDS RGNL, TYLER, TX.
VOR RWY 31, AMDT 3B...
ZONAP FIX MINIMUMS (DME REQUIRED): CIRCLING CAT A/B MDA 1060/HAA 516. TEMPORARY CRANE 710 MSL 2228FT NE OF TYR AIRPORT (2024-ASW-7901-NRA).
2501141915-2501301915EST
1/14/251915Z !FDC 5/3441 TYR IAP TYLER POUNDS RGNL, TYLER, TX.
ILS OR LOC RWY 4, ORIG-A...
RNAV (GPS) RWY 4, AMDT 4B...
RNAV (GPS) RWY 18, AMDT 1A...
RNAV (GPS) RWY 31, AMDT 3A...
RNAV (GPS) RWY 36, AMDT 1A...
VOR RWY 4, AMDT 5C...
CIRCLING CAT A/B MDA 1060/HAA 516. TEMPORARY CRANE 710 MSL 2228FT NE OF TYR AIRPORT (2024-ASW-7901-NRA).
2501141915-2501301915EST
1/14/251915Z !FDC 5/3440 TYR IAP TYLER POUNDS RGNL, TYLER, TX.
RNAV (GPS) RWY 22, AMDT 3A...
LPV DA 837/HAT 298 ALL CATS, VIS 7/8 ALL CATS. LNAV/VNAV DA 921/HAT 382 ALL CATS, VIS 1 1/8 ALL CATS. CIRCLING CAT A/B MDA 1060/HAA 516. TEMPORARY CRANE 710 MSL 1204FT W OF RWY 22 (2024-ASW-7901-NRA).
2501141915-2501301915EST
1/14/251915Z !FDC 5/3439 TYR IAP TYLER POUNDS RGNL, TYLER, TX.
RNAV (GPS) RWY 13, AMDT 3A...
LPV DA 804/HAT 265 ALL CATS, VIS 7/8 ALL CATS. CIRCLING CAT A/B MDA 1060/HAA 516. TEMPORARY CRANE 710 MSL 2026FT E/SE OF RWY 13 (2024-ASW-7901-NRA).
2501141915-2501301915EST
1/14/251300Z !FDC 5/3159 TYR IAP TYLER POUNDS RGNL, TYLER, TX.
RNAV (GPS) RWY 18, AMDT 1A...
LNAV/VNAV DA 907/HAT 369 ALL CATS. LNAV MDA 1000/HAT 462 ALL CATS. VIS CATS C/D 1 3/8. CIRCLING CATS A/B MDA 1060/HAA 516. VDP 1.37NM TO RW18. TEMPORARY CRANE, 696 MSL, 2473FT EAST OF RWY 18 (2024-ASW-7747-OE). TEMPORARY CRANE 710 MSL 2228FT NE OF TYR AIRPORT (2024-ASW-7901-NRA).
2501141300-2501301220EST
1/14/251300Z !FDC 5/3158 TYR IAP TYLER POUNDS RGNL, TYLER, TX.
VOR RWY 31, AMDT 3B...
ZONAP FIX MINIMUMS (DME REQUIRED): CIRCLING CATS A/B MDA 1060/HAA 516. TEMPORARY CRANE, 696 MSL, 3667FT NE OF KTYR AIRPORT (2024-ASW-7747-OE). TEMPORARY CRANE 710 MSL 2228FT NE OF TYR AIRPORT (2024-ASW-7901-NRA).
2501141300-2501301220EST
1/14/251300Z !FDC 5/3157 TYR IAP TYLER POUNDS RGNL, TYLER, TX.
ILS OR LOC RWY 4, ORIG-A...
RNAV (GPS) RWY 4, AMDT 4B...
RNAV (GPS) RWY 31, AMDT 3A...
RNAV (GPS) RWY 36, AMDT 1A...
VOR RWY 4, AMDT 5C...
CIRCLING CATS A/B MDA 1060/HAA 516. TEMPORARY CRANE, 696 MSL, 3667FT NE OF KTYR AIRPORT (2024-ASW-7747-OE). TEMPORARY CRANE 710 MSL 2228FT NE OF TYR AIRPORT (2024-ASW-7901-NRA).
2501141300-2501301220EST
1/14/251300Z !FDC 5/3156 TYR IAP TYLER POUNDS RGNL, TYLER, TX.
RNAV (GPS) RWY 22, AMDT 3A...
LPV DA 837/HAT 298 ALL CATS, VIS 7/8 ALL CATS. LNAV/VNAV DA 921/HAT 382 ALL CATS. VIS 1 1/8 ALL CATS. CIRCLING CATS A/B MDA 1060/HAA 516. TEMPORARY CRANE 710 MSL 1204FT W OF RWY 22 (2024-ASW-7901-NRA). TEMPORARY CRANE, 696 MSL, 1597FT NW OF RWY 22 (2024-ASW-4474-OE).
2501141300-2501301220EST
1/14/251300Z !FDC 5/3155 TYR IAP TYLER POUNDS RGNL, TYLER, TX.
RNAV (GPS) RWY 13, AMDT 3A...
LPV DA 804/HAT 265 ALL CATS, VIS 7/8 ALL CATS. LNAV/VNAV DA 907/HAT 368 ALL CATS. VIS 1 ALL CATS. LNAV MDA 1120/HAT 516 ALL CATS. VIS CATS C/D 1 3/4. CIRCLING CAT A/B MDA 1120/HAA 576. DISREGARD WURLO FIX AND WURLO FIX ALTITUDE. VDP NA. TEMPORARY CRANE, 696 MSL, 2379FT EAST OF RWY 13 (2024-ASW-7747-OE). TEMPORARY CRANE 710 MSL 2026FT SE OF RWY 13 (2024-ASW-7901-NRA).
2501141300-2501301220EST
12/18/241319Z !FDC 4/8272 TYR ODP TYLER POUNDS RGNL, TYLER, TX.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3A...
TAKEOFF OBSTACLE NOTES RWY 31, TEMPORARY EQUIPMENT, BEGINNING 32FT FROM DER, BEGINNING 277FT RIGHT OF CENTERLINE, 20 AGL/UP TO 534MSL (2022-ASW-5490-NRA), RWY 36, TEMPORARY EQUIPMENT, BEGINNING 179FT FROM DER, BEGINNING 164FT RIGHT OF CENTERLINE, 20 AGL/ UP TO 536 MSL (2023-ASW-5501-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2412181319-2503281318EST
6/3/241541Z !FDC 4/2182 TYR IAP TYLER POUNDS RGNL, TYLER, TX.
RNAV (GPS) RWY 31, AMDT 3A...
LNAV HAT 376 ALL CATS.
2406031541-2606031541EST
Yes
0500-2200
CITY OF TYLER
PO BOX 2039
TYLER, TX 75710
Phone: 903-531-9825
STEVE M. THOMPSON
700 SKYWAY BLVD, SUITE 201
TYLER, TX 75704
Phone: 903-531-2343
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
TYR
--
WHEN ATCT CLSD ACTVT MALSR RWY 04; REIL RWY 22; HIRL RWY 04/22; MIRL RWY 18/36; TWY LGTS - CTAF. HIRL RWY 13/31 PRESET MED INTST, TO INCR INTST ACTVT - CTAF. PAPI RWYS 04 & 22, VASI RWY 31 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High Pressure
High Pressure
Air Freight
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 04/22

8334 ft. x 150 ft.
CONC
Excellent
GRVD
HIGH

120,000lbs
222,000lbs
357,000lbs
--
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 20' 37"N 32° 21' 36"N
Longitude 95° 24' 48"W 95° 23' 39"W
Elevation 540' 530'
Threshold Crossing Height 55 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No Yes

Runway 13/31

5198 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH

25,000lbs
40,000lbs
--
--
  Runway 13 Runway 31
True Heading 135°315°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 21' 40"N 32° 21' 04"N
Longitude 95° 24' 19"W 95° 23' 37"W
Elevation 515' 542'
Threshold Crossing Height -- 54 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

4832 ft. x 150 ft.
ASPH
Good
GRVD
MED

109,000lbs
172,000lbs
289,000lbs
--
  Runway 18 Runway 36
True Heading 180°0°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 21' 37"N 32° 20' 49"N
Longitude 95° 24' 20"W 95° 24' 20"W
Elevation 517' 544'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3HELICOPTERS OPERATING INBOUND OR OUTBOUND TO/FROM THE DOWNTOWN HOSPITALS STATE INTENTION ON 123.075.
A110-6WEST SIDE PSGR TERMINAL RAMP ACCESS RSTD TO ACR.
A110-7NOISE ABATEMENT PROCEDURES IN EFFECT CALL 903-590-3048.
A110-8CONDS NOT MNTD BTN THE HRS OF 9:30 PM AND 6:30 AM LOCAL.
A110-9FOR CD IF UNA TO CTC ON FSS FREQ, CTC FORT WORTH ARTCC AT 817-858-7584.
TYLER POUNDS RGNL (ICAO: KTYR, IATA: TYR) is a public airport located in TYLER, TX.
