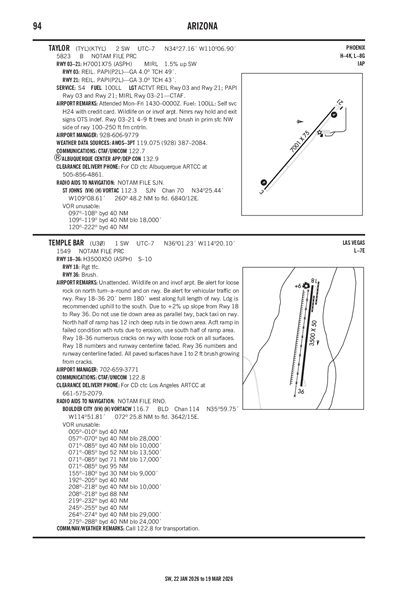

TAYLOR - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTYL
ICAO KTYLIATA TYZLocal TYL
TAYLOR
PublicPUB

2 miles SW of TAYLOR, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 27' 10"N 110° 06' 54"W
Elevation
5823' MSL
Pattern Alt
6823' MSL
Mag Variation
9°E
Declination
9°E
Fuel
100LL
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KTYL VFR
4:55 AM MST
Clear
10sm
27°F
16°F
30.16"Hg
190° 4kts
AO2
METAR KTYL 041155Z AUTO 19004KT 10SM CLR M03/M09 A3016 RMK AO2
+ Add Your Business

KTYL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.075
(928) 387-2084

Common

CTAF 122.7
ACTVT REIL RWY 03 & 21; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF.
UNICOM 122.7

Center

ALBUQUERQUE CENTER 132.9
LOW/HIGH, APCH/DEP SVC PRVDD BY ALBUQUERQUE ARTCC (ZAB) ON FREQS 132.9/239.05 (ZUNI RCAG).

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KINW (46nm)
Wed, 3/4 4:20 AM MST
Wed, 3/4 5:00 AM MST - Thu, 3/5 5:00 AM MST
VFR
5:00 AM MST - 1:00 PM MST
Few 25,000'
6sm
VRB° 5kts
VFR
1:00 PM MST - 7:00 PM MST
Sky Clear
6sm
220° 10kts
Gusts 18kts
VFR
7:00 PM MST - 2:00 AM MST
Few 25,000'
6sm
200° 9kts
VFR
2:00 AM MST - 5:00 AM MST
Scattered 20,000'
6sm
150° 7kts
TAF KINW 041120Z 0412/0512 VRB05KT P6SM FEW250
   FM042000 22010G18KT P6SM SKC
   FM050200 20009KT P6SM FEW250
   FM050900 15007KT P6SM SCT200
KTYL
EffectiveExpiresCategoryNOTAM
FDC
8/12/25
1712Z
!FDC 5/6071 TYL IAP TAYLOR, TAYLOR, AZ.
RNAV (GPS) RWY 21, AMDT 1...
CHANGE CHART NOTE TO READ: FOR UNCOMPENSATED BARO-VNAV SYSTEMS, LNAV/VNAV NA BELOW -26C OR ABOVE 54C.
2508121712-2708121712EST
No
MON-FRI 0730-1700
TOWN OF TAYLOR
BOX 158
TAYLOR, AZ 85939
Phone: 520-536-7366
RAY WEBBER
BOX 158
TAYLOR, AZ 85939
Phone: 928-606-9779
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
ACTVT REIL RWY 03 & 21; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 03/21

7001 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 03 Runway 21
True Heading 42°222°
Traffic Pattern Left Left
Markings BSC NPI
Markings Condition GOOD GOOD
Latitude 34° 26' 44"N 34° 27' 36"N
Longitude 110° 07' 22"W 110° 06' 26"W
Elevation 5,823' 5,720'
Threshold Crossing Height 49 ft. AGL 43 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-6WILDLIFE ON OR INVOF ARPT.
A110-7NMRS RWY HOLD & EXIT SIGNS OTS INDEF.
A110-8FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A14GUS LUNDBERG 928-536-7366.
A30-03/214-9 FT TREES & BRUSH IN PRIM SFC NW SIDE OF RWY 100-250 FT FM CNTRLN.
A70-100LLSELF SVC H24 WITH CREDIT CARD.
A81-APTACTVT REIL RWY 03 & 21; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF.
TAYLOR (ICAO: KTYL, IATA: TYL) is a public airport located in TAYLOR, AZ, US.
