iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTXK
TEXARKANA RGNL-WEBB FLD
PublicPUB

3 miles NE of TEXARKANA, AR
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 27' 13"N 93° 59' 28"W
390' MSL
1590' MSL
05E
JET A, 100LL
JONESBORO (JBR)
MEMPHIS
FORT WORTH (ZFW)
7/11/24-8/8/24
KTXK VFR
5:53 AM CDT
Clear
8sm
71°F
68°F
29.92"Hg
Calm
AO2 SLP126 T02170200
KTXK 191053Z 00000KT 8SM CLR 22/20 A2992 RMK AO2 SLP126 T02170200
Add Your Business

KTXK FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 123.875

ATIS

ATIS
 120.2

ASOS

ASOS
870-774-0404
 120.2

Emergency

EMERG
 121.5

Ground

GND/P
 119.225

Tower

LCL/P
 123.875

FAA A/FD Pages

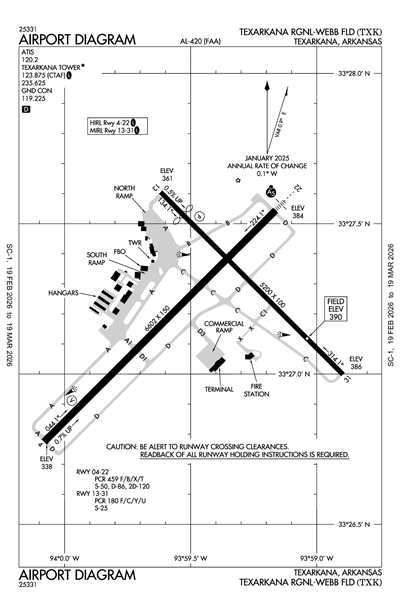

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KTXK
Thu, 9/19 12:20 AM CDT
Thu, 9/19 1:00 AM CDT - Fri, 9/20 1:00 AM CDT
VFR
1:00 AM CDT - 10:00 AM CDT
Few 25,000'
6sm
120° 3kts
MVFR
Temporary 5:00 AM CDT - 8:00 AM CDT
Mist
No Clouds
5sm
Calm
VFR
10:00 AM CDT - 1:00 PM CDT
Scattered 25,000'
Few 3,000'
6sm
VRB° 4kts
VFR
1:00 PM CDT - 7:00 PM CDT
Scattered 25,000'
Scattered 4,500'
6sm
VRB° 5kts
VFR
7:00 PM CDT - 1:00 AM CDT
Scattered 25,000'
Few 5,000'
6sm
130° 4kts
KTXK 190520Z 1906/2006 12003KT P6SM FEW250
   TEMPO 1910/1913 5SM BR
   FM191500 VRB04KT P6SM FEW030 SCT250
   FM191800 VRB05KT P6SM SCT045 SCT250
   FM200000 13004KT P6SM FEW050 SCT250
KTXK
Domestic
9/8/241221Z !TXK 09/010 TXK OBST TOWER LGT (ASR 1063362) 332556.30N0940522.00W (5.1NM WSW TXK) 800.9FT (501.0FT AGL) U/S 2409081221-2410231221
9/6/240453Z !TXK 09/007 TXK OBST TOWER LGT (ASR 1061401) 332658.10N0940818.20W (7.4NM W TXK) 563.0FT (230.0FT AGL) U/S 2409060453-2409210353
9/5/241730Z !TXK 09/005 TXK OBST TOWER LGT (ASN 2016-ASW-3728-OE) 332112N0935522W (6.9NM SSE TXK) 714FT (350FT AGL) U/S 2409051730-2410201729
8/22/242203Z !TXK 08/040 TXK TWY B HLDG PSN MARKINGS FOR RWY 13/31 EAST SIDE NOT STD 2408222203-2409302359
8/22/242202Z !TXK 08/039 TXK TWY A1 SFC PAINTED HLDG PSN SIGNS FOR RWY 04/22 NOT STD 2408222202-2409302359
8/22/242202Z !TXK 08/038 TXK TWY B HLDG PSN MARKINGS FOR APCH END RWY 22 NOT STD 2408222202-2409302359
8/22/242159Z !TXK 08/037 TXK TWY C SFC PAINTED HLDG PSN SIGNS FOR APCH END RWY 31 NOT STD 2408222159-2409302359
8/22/242158Z !TXK 08/036 TXK TWY A HLDG PSN MARKINGS FOR APCH END RWY 13 NOT STD 2408222158-2409302359
8/22/242157Z !TXK 08/035 TXK TWY C SFC PAINTED HLDG PSN SIGNS FOR RWY 04/22 WEST SIDE NOT STD 2408222157-2409302359
8/22/242157Z !TXK 08/034 TXK TWY A SFC PAINTED HLDG PSN SIGNS FOR APCH END RWY 13 NOT STD 2408222157-2409302359
8/22/242155Z !TXK 08/033 TXK TWY B HLDG PSN MARKINGS FOR RWY 13/31 WEST SIDE NOT STD 2408222155-2409302359
8/22/242154Z !TXK 08/032 TXK TWY A HLDG PSN MARKINGS FOR APCH END RWY 04 NOT STD 2408222154-2409302359
8/22/242154Z !TXK 08/031 TXK TWY C1 HLDG PSN MARKINGS FOR RWY 13/31 FADED 2408222154-2409302359
8/22/242153Z !TXK 08/030 TXK TWY A1 HLDG PSN MARKINGS FOR RWY 04/22 NOT STD 2408222153-2409302359
8/22/242152Z !TXK 08/029 TXK TWY C HLDG PSN SIGN EAST SIDE LGT U/S 2408222152-2409302359
8/22/242150Z !TXK 08/028 TXK TWY C1 SFC PAINTED HLDG PSN SIGNS FOR RWY 13/31 NOT STD 2408222150-2409302359
8/19/241251Z !TXK 08/024 TXK OBST TOWER LGT (ASR 1291526) 332630.90N0934740.50W (9.9NM E TXK) 497.7FT (260.2FT AGL) U/S 2408191251-2410031251
7/3/242250Z !TXK 07/003 TXK OBST TOWER LGT (ASR 1310100) 333008.90N0940705.80W (7.02NM WNW TXK) 654FT (310FT AGL) U/S 2407032250-2409262359
6/29/240411Z !TXK 06/062 TXK TWY D1 HLDG PSN SIGN FOR RWY 04/22 NOT LGTD 2406290411-2412312359
6/28/240142Z !TXK 06/058 TXK RWY 13/31 SW 450FT WIP CONST 2406280142-2412312359
6/28/240139Z !TXK 06/054 TXK RWY 31 PAPI U/S 2406280139-2412312359
FDC
3/18/241509Z !FDC 4/8313 TXK IAP TEXARKANA RGNL-WEBB FLD, TEXARKANA, AR.
RNAV (GPS) RWY 13, ORIG-D...
RNAV (GPS) RWY 22, ORIG-B...
VOR RWY 13, AMDT 16C...
ILS OR LOC RWY 22, AMDT 17...
CIRCLING CAT A MDA 900/HAA 510.
TEMPORARY CRANES 534 MSL BEGINNING 1070FT SE OF TXK AIRPORT (2021-ASW-6277 THRU 6281-NRA).
2403181509-2410281509EST
Yes
0600-2200
TEXARKANA AIRPORT AUTHORITY
201 AIRPORT DR
TEXARKANA, AR 71854
Phone: 870-774-2171
FERDINAND PAUL MEHRLICH III, CM ACE
201 AIRPORT DR
TEXARKANA, AR 71854
Phone: 870-774-2171
JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF
TXK
--
WHEN ATCT CLSD ACTVT MALSR RWY 22; HIRL RWY 04/22; MIRL RWY 13/31 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
31
7
10
4
0
0
Major
Major
High Pressure
None
Air Freight
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

6602 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

50,000lbs
86,000lbs
120,000lbs
--
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 26' 47"N 33° 27' 33"N
Longitude 94° 00' 05"W 93° 59' 10"W
Elevation 338' 384'
Threshold Crossing Height 52 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator V4L --
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights

Runway 13/31

5200 ft. x 100 ft.
ASPH
Good
GRVD
MED

25,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 135°315°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 27' 36"N 33° 26' 60"N
Longitude 93° 59' 37"W 93° 58' 54"W
Elevation 361' 386'
Threshold Crossing Height 48 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1DEER ON & INVOF ARPT.
A110-2FOR CD IF UNA TO CTC ON FSS FREQ, CTC FORT WORTH ARTCC AT 817-858-7584.
A110-3BIRDS ON & INVOF ARPT.
TEXARKANA RGNL-WEBB FLD (ICAO: KTXK, IATA: TXK) is a public airport located in TEXARKANA, AR.
