KTWM
RICHARD B HELGESON
Public
PUB
4 miles NW of TWO HARBORS, MN
View on
Map
Status
Operational
Coordinates
47° 02' 57"N
91° 44' 43"W
Elevation
1073' MSL
Pattern Alt
2073' MSL
Mag Variation
01E
Fuel
JET A, 100LL, MOGAS
FSS
PRINCETON (PNM)
Sectional
GREEN BAY
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
12/26/24-1/23/25
No METAR is available for this location.
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KTWM FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
AWOS-3PT
AWOS-3PT
218-834-6591
119.325

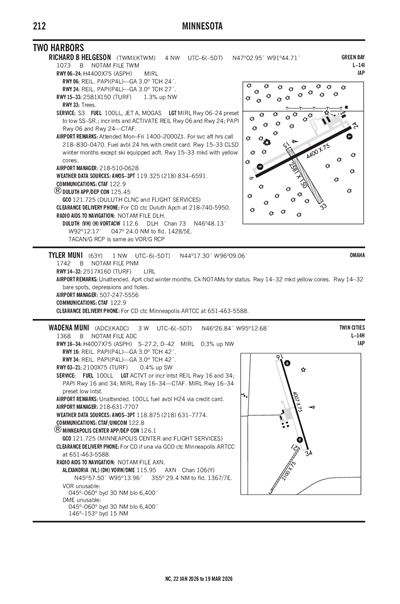

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 06
RNAV (GPS) RWY 24
Terminal Area Forecast
No TAF is available for this location.
KTWM
Domestic
1/11/25
0232Z
!TWM 01/001 TWM OBST TOWER LGT (ASR 1280261) 472309.10N0914940.30W (20.5NM N TWM) 2102.7FT (409.8FT AGL) U/S 2501110232-2501260132
8/26/24
1620Z
!TWM 08/002 TWM APRON MAIN APN WIP MEN AND EQPT 2408261620-2503152359
FDC
3/26/24
1148Z
!FDC 4/1816 TWM ODP RICHARD B HELGESON, TWO HARBORS, MN.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
TAKE-OFF MINIMUMS: RWY 24, 200-3 OR STD W/MIN CLIMB OF 210 FT PER NM TO 2100.
ALL OTHER DATA REMAINS AS PUBLISHED. 2403261148-2508241148EST
8/24/23
1537Z
!FDC 3/0722 TWM IAP RICHARD B HELGESON, TWO HARBORS, MN.
RNAV (GPS) RWY 6, ORIG-D...
WIZNU FIX MINIMUMS: 1940 WHEN USING DULUTH INTL ALIMETER SETTING.
2308241537-2508241536EST
ATC Tower
No
Attendance
NOV-APR MON-FRI 0800-1700
MAY-OCT SUN-SAT 0800-1700
FOR SVC AFT HRS CALL (218) 830-0470
Owner
CITY OF TWO HARBORS
CITY HALL, 522 1ST AVE
TWO HARBORS, MN 55616-1535
Phone: 218-834-5631
Manager
CASEY KOMAREK
522 1ST AVE
TWO HARBORS, MN 55616-1535
Phone: 218-510-0628
FSS
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
NOTAM
TWM
Light Schedule
--
Lights
MIRL RWY 6/24 PRESET TO LOW SS-SR. INCR INTST AND ACTVT REIL RWY 06, 24; PAPI RWY 6, 24 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Minor
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Aircraft Sales
Annual Surveying
Runway 06/24
Dimensions
4400 ft. x 75 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 06
Runway 24
True Heading
62°
242°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
FAIR
FAIR
Latitude
47° 02' 50"N
47° 03' 11"N
Longitude
91° 45' 11"W
91° 44' 15"W
Elevation
1,073'
1,070'
Threshold Crossing Height
24 ft. AGL
27 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P4L
P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
Runway 15/33
Dimensions
2581 ft. x 150 ft.
Surface Type
TURF
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 15
Runway 33
True Heading
149°
329°
Traffic Pattern
Markings
Markings Condition
Latitude
47° 03' 02"N
47° 02' 40"N
Longitude
91° 44' 52"W
91° 44' 33"W
Elevation
1,072'
1,040'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
GCO AVBL ON FREQ 121.725 THRU DLH CD & FLT SVCS.
A110-2
FOR CD CTC DULUTH APCH AT 218-740-5950.
RICHARD B HELGESON (ICAO: KTWM, IATA: TWM) is a public airport located in TWO HARBORS, MN.
