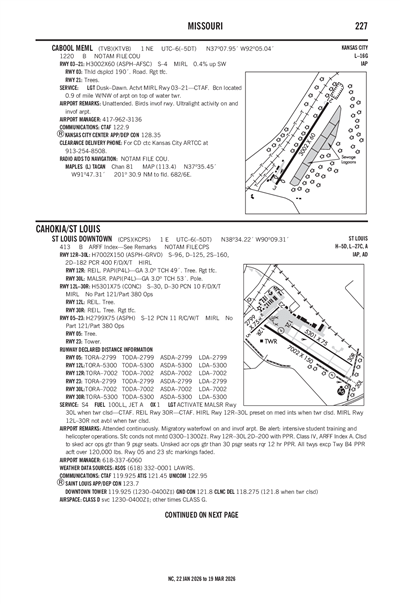

CABOOL MEML - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTVB
ICAO KTVBLocal TVB
CABOOL MEML
PublicPUB

1 miles NE of CABOOL, MO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 07' 57"N 92° 05' 02"W
Elevation
1220' MSL
Pattern Alt
2220' MSL
Mag Variation
0°
Declination
3°E
Fuel
None Listed
FSS
COLUMBIA (COU)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KUNO (17nm) VFR
10:53 PM CST
Clear
10sm
65°F
57°F
30.06"Hg
180° 5kts
AO2 SLP174 T01830139
METAR KUNO 040453Z AUTO 18005KT 10SM CLR 18/14 A3006 RMK AO2 SLP174 T01830139
+ Add Your Business

KTVB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
DUSK-DAWN. ACTVT MIRL RY 03/21 - CTAF.

Center

KANSAS CITY CENTER 128.35
LOW, APCH/DEP SVC PRVDD BY KANSAS CITY ARTCC ON FREQS 128.35/284.675 (RICHLAND RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KTBN (37nm)
Tue, 3/3 4:00 PM CST
Tue, 3/3 4:00 PM CST - Wed, 3/4 10:00 PM CST
VFR
4:00 PM CST - 7:00 PM CST
Broken 14,000'
Scattered 6,000'
6sm
29.91"Hg
230° 10kts
VFR
Becoming 7:00 PM CST - 10:00 PM CST
Broken 4,000'
Scattered 2,000'
6sm
30.00"Hg
170° 6kts
IFR
Becoming 10:00 PM CST - 2:00 AM CST
Overcast 2,000'
Broken 700'
6sm
30.00"Hg
190° 6kts
IFR
Becoming 2:00 AM CST - 9:00 AM CST
Light Showers and Rain and Mist
Overcast 2,000'
Broken 700'
4.97sm
30.00"Hg
210° 6kts
MVFR
Becoming 9:00 AM CST - 6:00 PM CST
Light Thunderstorm and Rain
Overcast 5,000'
Broken 1,200'
4.97sm
29.94"Hg
310° 10kts
Gusts 15kts
IFR
Becoming 6:00 PM CST - 10:00 PM CST
Light Showers and Rain
Overcast 600'
5.59sm
29.91"Hg
070° 3kts
TAF KTBN 032200Z 0322/0504 23010KT 9999 SCT060 BKN140 QNH2990INS
   BECMG 0401/0402 17006KT 9999 SCT020 BKN040 QNH3000INS
   BECMG 0404/0405 19006KT 9999 BKN007 OVC020 QNH3001INS
   BECMG 0408/0409 21006KT 8000 -SHRA BR BKN007 OVC020 QNH3000INS
   BECMG 0415/0416 31010G15KT 8000 -TSRA BKN012CB OVC050 QNH2995INS
   BECMG 0500/0501 07003KT 9000 -SHRA OVC006 QNH2991INS TX22/0322Z TN13/0414Z LAST NO AMDS AFT 0422 NEXT 0414
KTVB
EffectiveExpiresCategoryNOTAM
Domestic
2/22/26
0739Z
5/1/26
0137Z
!COU 02/389 TVB OBST TOWER LGT (ASR 1006842) 370907.70N0920727.40W (2.3NM WNW TVB) 1744.1FT (249.0FT AGL) U/S 2602220739-2605010137
2/19/26
1440Z
4/5/26
1439Z
!COU 02/352 TVB OBST TOWER LGT (ASR 1307988) 371237.50N0920143.14W (5.4NM NNE TVB) 1573FT (247FT AGL) U/S 2602191440-2604051439
2/1/26
1347Z
6/1/26
1347Z
!COU 02/004 TVB OBST TOWER LGT (ASR 1240370) 370838.60N0920928.80W (3.6NM W TVB) 1840.6FT (347.8FT AGL) U/S 2602011347-2606011347
FDC
9/26/25
1522Z
!FDC 5/0919 TVB ODP CABOOL MEML, CABOOL, MO.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
TAKE-OFF MINIMUMS RWY 03: 300-1 1/8 OR STANDARD WITH MINIMUM CLIMB OF 461 FT/NM TO 1600.
ALL OTHER DATA REMAINS AS PUBLISHED. 2509261522-2709261522EST
No
UNATNDD
CITY OF CABOOL
BOX 710 618 MAIN ST.
CABOOL, MO 65689
Phone: 417-962-3136
RON SCHEETS
BOX 710 618 MAIN ST
CABOOL, MO 65689
Phone: 417-962-3136
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
COU
--
DUSK-DAWN. ACTVT MIRL RY 03/21 - CTAF.
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Aircraft Sales

Runway 03/21

3002 ft. x 60 ft.
ASPH
Good
AFSC
MED

4,000lbs
--
--
--
  Runway 03 Runway 21
True Heading 33°213°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 07' 44"N 37° 08' 09"N
Longitude 92° 05' 12"W 92° 04' 52"W
Elevation 1,220' 1,209'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1BIRDS INVOF RY.
A110-2ULTRALIGHT ACTIVTY ON & INVOF ARPT.
A110-4BCN LOCATED .9 OF MI W/NW OF ARPT ON TOP OF WATER TWR.
A110-5FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
A58-03RY 03 +1-27 FT BRUSH & TREES, 120-200 FT FM RY END, 115-150 FT R; +35 FT TREES, 180-200 FT FM RY END 150-250 FT R.
A58-21RWY 21 +28 FT TREES 120 FT FM RY END 200-250 FT L; +1-32 FT BRUSH & RR 0-200 FT FM RY END 200-250 FT R.
A81-APTDUSK-DAWN. ACTVT MIRL RY 03/21 - CTAF.
E111EXISTED PRIOR TO 1959.
CABOOL MEML (ICAO: KTVB, IATA: TVB) is a public airport located in CABOOL, MO, US.
