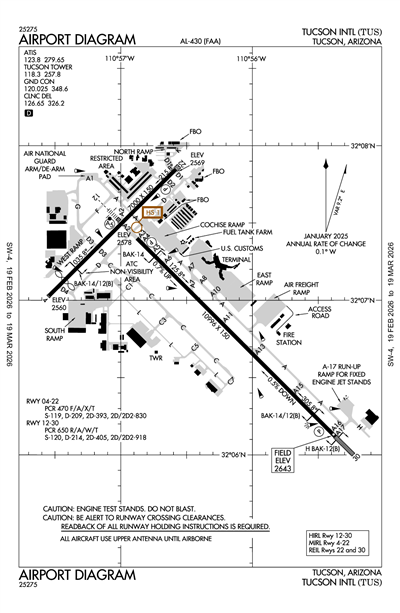

TUCSON INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTUS
ICAO KTUSIATA TUSLocal TUS
TUCSON INTL
PublicPUB

6 miles S of TUCSON, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 07' 01"N 110° 56' 29"W
Elevation
2643' MSL
Pattern Alt
3443' MSL
Mag Variation
9°E
Declination
9°E
Fuel
JET A, JET A+, CILI, 100LL
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KTUS VFR
2:53 AM MST
Clear
10sm
54°F
23°F
30.02"Hg
150° 8kts
AO2 SLP132 T01221050 $
METAR KTUS 040953Z 15008KT 10SM CLR 12/M05 A3002 RMK AO2 SLP132 T01221050 $
+ Add Your Business

KTUS FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 123.8
(520) 295-4089
ASOS (520) 355-5542

Common

UNICOM 122.95

Clearance

Clearance Delivery 126.65

Ground

TUCSON GROUND 120.025

Tower

TUCSON TOWER 118.3
TUCSON TOWER 119.0
Secondary

Arrival

DINGO STAR 119.4
RWY 12
DINGO STAR 125.1
RWY 30

Approach

TUCSON APPROACH 119.4
Initial Contact - RWY 12 286-089 TUS
TUCSON APPROACH 119.4
RWY 30 066-274 TUS
TUCSON APPROACH 125.1
RWY 30 275-065 TUS
TUCSON APPROACH 125.1
RWY 12 090-285 TUS
TUCSON APPROACH 128.5
Secondary

Departure

BURRO DP 125.1
RWY 12
TUCSON DEPARTURE 119.4
RWY 30 066-274 TUS
TUCSON DEPARTURE 119.4
Initial Contact - RWY 12 286-089 TUS
TUCSON DEPARTURE 125.1
RWY 12 090-285 TUS
TUCSON DEPARTURE 125.1
RWY 30 275-065 TUS
TUCSON DP 125.1
WLDKT DP 125.1
RWY 30

Operations

Operations 140.55

Flight Service

Flight Service 122.2
(PRC)

Emergency

Emergency 121.5

Other

CLASS C 119.4
RWY 12, 286-089 TUS
CLASS C 119.4
RWY 30 066-274 TUS
CLASS C 125.1
RWY 12 090-285 TUS
CLASS C 125.1
RWY 30 275-065 TUS

Terminal Area Forecast

KTUS
Tue, 3/3 10:20 PM MST
Tue, 3/3 11:00 PM MST - Wed, 3/4 11:00 PM MST
VFR
11:00 PM MST - 12:00 AM MST
Sky Clear
6sm
250° 6kts
VFR
12:00 AM MST - 1:00 PM MST
Sky Clear
6sm
140° 7kts
VFR
1:00 PM MST - 11:00 PM MST
Broken 25,000'
6sm
310° 19kts
TAF KTUS 040520Z 0406/0506 25006KT P6SM SKC
   FM040700 14007KT P6SM SKC
   FM042000 31019KT P6SM BKN250
KTUS
EffectiveExpiresCategoryNOTAM
Domestic
3/5/26
1430Z
3/5/26
1900Z
!TUS 03/002 TUS TWY C5 BTN TWY C AND TXL L CLSD 2603051430-2603051900
3/5/26
1430Z
3/5/26
1900Z
!TUS 02/094 TUS TWY C3 BTN TWY C AND TXL L CLSD 2603051430-2603051900
3/4/26
0331Z
3/4/26
1500Z
!TUS 03/004 TUS TWY A4 HLDG PSN SIGN NORTHEAST SIDE FOR RWY 12/30 LGT U/S 2603040331-2603041500
3/3/26
1725Z
5/15/26
1500Z
!TUS 03/003 TUS TWY C CLSD TO ACFT WINGSPAN MORE THAN 118FT AND TAIL HGT MORE THAN 45FT 2603031725-2605151500
3/2/26
1400Z
3/16/26
0100Z
!TUS 02/093 TUS OBST CRANE (ASN 2025-AWP-4962-OE) 315924N1105014W (9.3NM SE TUS) 3167FT (235FT AGL) FLAGGED 2603021400-2603160100
2/27/26
1902Z
3/4/26
2300Z
!TUS 02/096 TUS OBST RIG (ASN 2025-AWP-4175-NRA) 320724N1105716W (0.8NM WNW TUS) 2603FT (32FT AGL) FLAGGED 2602271902-2603042300
2/26/26
2046Z
3/4/26
2300Z
Runway!TUS 02/091 TUS RWY 12 RTHL U/S 2602262046-2603042300
2/20/26
0824Z
4/6/26
0823Z
!TUS 02/072 TUS OBST TOWER LGT (ASR 1002135) 321637.00N1105852.00W (9.8NM NNW TUS) 2570.9FT (246.1FT AGL) U/S 2602200824-2604060823
2/6/26
1600Z
3/31/26
2359Z
!TUS 02/025 TUS OBST TOWER LGT (ASR 1031550) 315545.00N1105949.00W (11.5NM SSW TUS) 3135.8FT (205.1FT AGL) U/S 2602061600-2603312359
2/3/26
2015Z
8/31/26
2300Z
!TUS 02/015 TUS OBST BLDG (ASN 2025-AWP-3558-NRA) 320612N1105544W (1.1NM SE TUS) 2664FT (30FT AGL) FLAGGED AND LGTD 2602032015-2608312300
1/4/26
1100Z
12/31/26
1100Z
!TUS 01/002 TUS AIRSPACE SEE ZAB 01/007 PJE 2601041100-2612311100
FDC
1/30/26
1900Z
!FDC 6/8569 TUS IAP TUCSON INTL, TUCSON, AZ.
RNAV (GPS) Z RWY 30, ORIG...
LNAV ALL CATS MDA 3400/HAT 757. CIRCLING CATS A/B/C MDA 3400/HAA 757.
TEMPORARY CRANES 3084 MSL 5.4NM SE OF RWY 30 (2024-ASW-3546 THRU 3556-OE).
2601301900-2605141528EST
1/5/26
1741Z
!FDC 6/0598 TUS IAP TUCSON INTL, TUCSON, AZ.
RNAV (RNP) Y RWY 12, ORIG...
RNP 0.30 DA 3061/HAT 462 ALL CATS, VIS ALL CATS RVR 5000. TEMPORARY CRANE 2841 MSL 3460FT W OF RWY 12 (2024-AWP-7465-NRA).
2601051741-2608171741EST
1/5/26
1740Z
!FDC 6/0595 TUS IAP TUCSON INTL, TUCSON, AZ.
VOR OR TACAN RWY 12, ORIG...
S-12 MDA 3100/HAT 501 ALL CATS, VIS CAT C/D RVR 5500. VDP AT 3.79 DME; DISTANCE VDP TO THLD 1.40 NM. TEMPORARY CRANE 2841 MSL 3460FT W OF RWY 12 (2024-AWP-7465-NRA).
2601051740-2608171740EST
1/5/26
1731Z
!FDC 6/0593 TUS IAP TUCSON INTL, TUCSON, AZ.
RNAV (GPS) Z RWY 12, ORIG...
LPV DA 2986/HAT 387 ALL CATS, VIS ALL CATS RVR 3500. LNAV/VNAV DA 3052/HAT 453 ALL CATS, VIS ALL CATS RVR 4500. TEMPORARY CRANE 2720 MSL 3321FT NW OF RWY 12 (2024-AWP-1734-NRA), TEMPORARY CRANE 2841 MSL 3460FT W OF RWY 12 (2024-AWP-7465-NRA).
2601051731-2608171731EST
1/5/26
1730Z
!FDC 6/0589 TUS IAP TUCSON INTL, TUCSON, AZ.
ILS OR LOC RWY 12, ORIG...
S-ILS 12* DA 2986/HAT 387, VIS ALL CATS RVR 3500. LIBRE FIX MINIMUMS: S-LOC 12 MDA 3020/HAT 421, VIS CAT A/B RVR 3000, CAT C/D 4000. VDP AT I-TUS 3.29 DME; DISTANCE VDP TO THLD 1.15NM. DISREGARD NOTE: *RVR 1800 AUTHORIZED WITH USE OF FD OR AP OR HUD TO DA. TEMPORARY CRANE 2720 MSL 3321FT NW OF RWY 12 (2024-AWP-1734-NRA).
2601051730-2608171730EST
1/6/25
1850Z
!FDC 5/0734 TUS SID TUCSON INTL, TUCSON, AZ.
TUCSON NINE DEPARTURE...
GILA BEND TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH TACAN OR WITH SUITABLE RNAV SYSTEMS WITH GPS. TUS VOR R-280 UNUSABLE.
2501061850-2701061850EST
Military
12/29/25
1508Z
3/31/26
2359Z
Runway!KTUS M0023/25 TUS RWY 12 BAK-12 ARST SYSTEM NOT STD OPERATIONAL NOT CERTIFIED. EMERGENCY USE ONLY LOCATED ON RWY12 OVERRUN. 2512291508-2603312359
Yes
ALL
TUCSON AIRPORT AUTHORITY
7250 SOUTH TUCSON BLVD SUITE 300
TUCSON, AZ 85756
Phone: 520-573-8100
DANETTE BEWLEY
TUCSON APT AUTH 7250 S TUCSON BLVD SUITE 300
TUCSON, AZ 85756
Phone: 520-573-4820
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
TUS
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 04/22

7000 ft. x 150 ft.
ASPH
Good
GRVD
MED

119,000lbs
209,000lbs
393,000lbs
830,000lbs
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 07' 02"N 32° 07' 51"N
Longitude 110° 57' 33"W 110° 56' 35"W
Elevation 2,560' 2,569'
Threshold Crossing Height -- 53 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 12/30

10996 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
214,000lbs
405,000lbs
918,000lbs
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern Right
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 32° 07' 24"N 32° 06' 07"N
Longitude 110° 56' 52"W 110° 55' 22"W
Elevation 2,578' 2,643'
Threshold Crossing Height 73 ft. AGL 81 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1CTN: NW ARR & DEP DO NOT MISTAKE TWY A FOR LNDG SFC; TWY A N & PARL TO RWY 30.
A110-17GROUP V TAX WITH INBOARD ENG ONLY. TRML RAMP CLSD TO ADG IV & ABV WO PPR.
A110-2PTNS TWY D NOT VIS FM ATCT.
A110-26A GEAR - BAK-14 BAK-12B APCH END RWY 12, BAK-14 BAK-12B APCH END RWY 30 & BAK-14 BAK-12B APCH END RWY 22 AVBL DURG ANG DUTY HR: 5 MIN PN.
A110-28TWY A5 LTD 70000 LB OR LESS.
A110-29MIL: ANG OFFL BUS ONLY; 72 HR PPR - D844-6731/C520-295-6731; FAX EXTN 6732. BASE OPS 1300Z-2300Z MON-FRI & DRILL WKEND 1300Z-2130Z; CLSD OTR WKENDS, HOL & SKED OFF DAYS. TRAN ALERT MAINT NA. TSNT SI FSL ONLY. CONTR FUEL NA.
A110-30USE UPPER ANT UNTIL AIRBORNE.
A110-37CHARTER, SPORT TEAM, CARGO & MIL PPR - FBO. LNDG & PRKG FEE 12500 LBS & UP.
A110-39MIL/COMM/BASE OPS ARR CTC TITAN OR PUMA - ANG BASE OPS/COMD POST FREQ.
A110-40MIL: BIRD ACT PHASE II IN EFCT 1 JUL-31 AUG.
A110-42USCBP INSP RAMP RFLG NA EXC MED EMERG.
A110-43GEN INFO - 520-573-8182.
A110-44CTN: REVIEW ARPT DIAGRAM HOT SPOT INFO.
A110-45OPR PARROT ALL SFCS, PUSHBACK & GATE ARR.
A110-46N RAMP CLSD TO WINGSPAN GTR THAN 79 FT.
A110-47TXL K CLSD TO WINGSPAN GTR THAN 104 FT.
A110-7FLT TRNG 2200-0600 NA EXC PPR - 520-573-8190.
A14ADAM MERRILL 520-573-5112.
A30-12/30FIXED WING JET VSTOL/VTOL OPS NA. DSTC RMNG MKRS NE SIDE.
A30A-30CTN: ENSURE DEP RWY; DO NOT MISTAKE FOR DEMOL RWY.
A39-04/22PCR VALUE: 470/F/A/X/T
A39-12/30PCR VALUE: 650/R/A/W/T
A40-12/30EXCEEDS 200 FT SPACING AT TWY INTXN ON N & S SIDE OF RWY.
E147TPA 800 FT AGL SMALL ACFT; 1400 FT AGL LARGE/HEAVY TURBOJET ACFT.
E60-04_BAK-12BBAK-14 BAK-12B(B) (1500).
E60-12_BAK-14BAK-14 BAK-12B(B) (1000).
E60-30_BAK-12BBAK-14 BAK-12(B) (1215) HOOK BAK 12B(B) (128 OVRN).
TUCSON INTL (ICAO: KTUS, IATA: TUS) is a public airport located in TUCSON, AZ, US.
