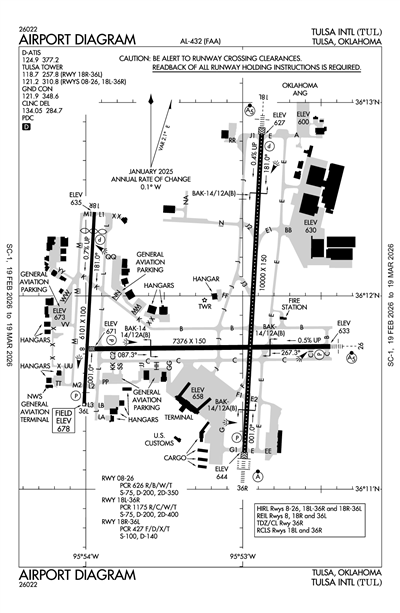

TULSA INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTUL
ICAO KTULIATA TULLocal TUL
TULSA INTL
PublicPUB

5 miles NE of TULSA, OK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 11' 54"N 95° 53' 17"W
Elevation
678' MSL
Pattern Alt
1678' MSL
Mag Variation
2°E
Declination
3°E
Fuel
JET A, 100LL
FSS
MC ALESTER (MLC)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KTUL IFR
4:53 AM CST
Mist
Overcast 1,000'
Broken 600'
5sm
49°F
47°F
30.06"Hg
350° 9kts
AO2 SLP176 T00940083
METAR KTUL 041053Z 35009KT 5SM BR BKN006 OVC010 09/08 A3006 RMK AO2 SLP176 T00940083
+ Add Your Business

KTUL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

Digital ATIS 124.9
(918) 831-6718
ASOS (539) 399-0187

Common

UNICOM 122.95

Clearance

TULSA CLEARANCE DELIVERY 134.05

Ground

TULSA GROUND 121.9

Tower

Tower Final Control 119.85
When assigned On approach - 355-174
Tower Final Control 132.1
When assigned On approach - 175-354
TULSA TOWER 118.7
RWY 18R/36L
TULSA TOWER 121.2
RWY 08/26, 18L/36R

Arrival

VINTA STAR 119.1

Approach

TULSA APPROACH 119.1
355-174
TULSA APPROACH 124.0
Initial Contact - 175-354

Departure

TULSA DEPARTURE 119.1
355-174
TULSA DEPARTURE 124.0
Initial Contact - 175-354
TULSA DP 124.0

Flight Service

Flight Service 122.2
(MLC)

Emergency

Emergency 121.5

Military

NG OPS 46.9

Other

CLASS C 119.1
355-174
CLASS C 124.0
175-354

Terminal Area Forecast

KTUL
Tue, 3/3 11:20 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
VFR
12:00 AM CST - 4:00 AM CST
Broken 5,000'
6sm
350° 10kts
MVFR
Temporary 2:00 AM CST - 4:00 AM CST
Broken 1,500'
N/A
Calm
MVFR
4:00 AM CST - 7:00 AM CST
Light Rain and Mist
Broken 1,000'
5sm
Calm
MVFR
4:00 AM CST - 7:00 AM CST
Broken 5,000'
Broken 1,500'
6sm
350° 7kts
IFR
7:00 AM CST - 3:00 PM CST
Light Showers and Rain and Mist and Thunderstorm in vicinity
Broken 1,500'
Broken 800'
4sm
340° 7kts
IFR
Temporary 8:00 AM CST - 12:00 PM CST
Thunderstorm and Rain and Mist
Broken 700'
2sm
VRB° 11kts
IFR
3:00 PM CST - 10:00 PM CST
Broken 700'
6sm
320° 6kts
MVFR
5:00 PM CST - 10:00 PM CST
Light Thunderstorm and Rain and Mist
Broken 1,000'
4sm
Calm
MVFR
10:00 PM CST - 12:00 AM CST
Broken 1,200'
6sm
VRB° 3kts
TAF KTUL 040520Z 0406/0506 35010KT P6SM BKN050
   TEMPO 0408/0410 BKN015
   FM041000 35007KT P6SM BKN015 BKN050
   PROB30 0410/0413 5SM -RA BR BKN010
   FM041300 34007KT 4SM -SHRA BR VCTS BKN008CB BKN015
   TEMPO 0414/0418 VRB11KT 2SM TSRA BR BKN007CB
   FM042100 32006KT P6SM BKN007
   PROB30 0423/0504 4SM -TSRA BR BKN010CB
   FM050400 VRB03KT P6SM BKN012
KTUL
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
1200Z
3/4/26
2200Z
Runway!TUL 02/081 TUL RWY 08/26 CLSD 2603041200-2603042200
3/4/26
0154Z
Runway!TUL 03/010 TUL RWY 18L RVRR U/S 2603040154-2603112000EST
3/4/26
0153Z
Runway!TUL 03/009 TUL RWY 36R RVRT U/S 2603040153-2603112000EST
3/3/26
2348Z
5/29/26
2000Z
!TUL 03/006 TUL NAV VORTAC NOT MNT 2603032348-2605292000
3/2/26
1300Z
4/30/26
2000Z
!TUL 02/076 TUL TWY MM CLSD 2603021300-2604302000
3/2/26
1300Z
4/30/26
2000Z
!TUL 02/075 TUL TWY K BTN TWY NN AND TWY B CLSD 2603021300-2604302000
3/2/26
1300Z
4/30/26
2000Z
!TUL 02/074 TUL TWY B BTN TWY J AND TWY K CLSD 2603021300-2604302000
3/2/26
1204Z
4/16/26
1203Z
!TUL 03/005 TUL OBST TOWER LGT (ASR 1011429) 361410.80N0955718.50W (4.0NM NW TUL) 864.8FT (220.8FT AGL) U/S 2603021204-2604161203
2/21/26
1626Z
3/21/26
2359Z
!TUL 02/069 TUL OBST TOWER LGT (ASR 1280577) 360940.30N0955930.60W (5.5NM WSW TUL) 1020.7FT (304.5FT AGL) U/S 2602211626-2603212359
2/20/26
0343Z
!TUL 02/067 TUL NAV VORTAC NOT MNT 2602200343-2605202000EST
2/19/26
1804Z
3/6/26
2300Z
!TUL 02/066 TUL TWY QQ CLSD BARRICADED 2602191804-2603062300
2/19/26
1802Z
3/6/26
2300Z
!TUL 02/064 TUL TWY L1, L RUNUP PAD AND COMPASS ROSE CLSD BARRICADED 2602191802-2603062300
2/19/26
1801Z
3/6/26
2300Z
!TUL 02/063 TUL TWY L BTN TWY L1 AND TWY K CLSD BARRICADED 2602191801-2603062300
2/18/26
2039Z
!TUL 02/061 TUL NAV ILS RWY 36R CAT II NA 2602182039-2603062000EST
2/18/26
1939Z
Runway!TUL 02/060 TUL RWY 36R ALSF-2 NOW SSALR 2602181939-2603062000EST
2/17/26
1704Z
12/31/26
2359Z
!TUL 02/056 TUL AIRSPACE UAS WI AN AREA DEFINED AS 1.5NM RADIUS OF 361702N0952154W (3.8NM NNW H71) SFC-225FT AGL 2602171704-2612312359
2/12/26
1410Z
4/12/26
2359Z
!TUL 02/044 TUL OBST TOWER LGT (ASR 1312179) 362156.20N0961421.40W (8.51NM ESE H92) 1160FT (305FT AGL) U/S 2602121410-2604122359
1/18/26
0205Z
8/3/26
2359Z
!TUL 01/024 TUL OBST TOWER LGT (ASR 1047280) 361214.00N0955701.00W (3.0NM W TUL) 915.4FT (262.5FT AGL) U/S 2601180205-2608032359
1/13/26
1010Z
!TUL 01/016 TUL NAV TACAN AZM U/S 2601131010-2604302000EST
FDC
2/6/26
1516Z
!FDC 6/1064 TUL IAP TULSA INTL, TULSA, OK.
VOR/DME RWY 8, AMDT 4B...
PROCEDURE NA.
2602061516-2802051516EST
12/19/25
1200Z
!FDC 5/1593 TUL IAP TULSA INTL, TULSA, OK.
RADAR-1, AMDT 19...
CIRCLING CAT A/B MDA 1360/HAA 682.
TEMPORARY CRANES, 1005 MSL, BEGINNING 1706FT NW OF KTUL AIRPORT (2024-ASW-8599 THRU 8602-NRA), TEMPORARY CRANE, 1005 MSL, 1637FT NW OF KTUL AIRPORT (2024-ASW-8598-NRA), TEMPORARY CRANE, 946 MSL, 1582FT NW OF KTUL AIRPORT (2024-ASW-8513-NRA).
2512191200-2611150519EST
12/19/25
1200Z
!FDC 5/1592 TUL IAP U.S. DOD TULSA INTL, TULSA, OK.
HI - VOR Z OR TACAN Z RWY 26, AMDT 3B...
S-26 CAT C/D/E MDA 1200/HAT 548 ALL CATS. VIS CATS C/D/E 1 1/8.
VDP NA.
DISREGARD HUKDO FIX.
WHEN ALS INOP, INCREASE S-26 CATS C/D/E VISIBILITY TO 1 5/8 SM.
TEMPORARY CRANES, 1005 MSL, 5221FT WEST OF RWY 26 (2024-ASW-8599 THRU 8602-NRA), TEMPORARY CRANE, 1005 MSL, 5686FT NW OF RWY 26 (2024-ASW-8598-NRA).
2512191200-2611150519EST
12/19/25
1200Z
!FDC 5/1591 TUL IAP TULSA INTL, TULSA, OK.
RNAV (GPS) RWY 36L, AMDT 2...
LPV DA 1000/HAT 322 ALL CATS. VIS 1 ALL CATS.
CIRCLING CAT A/B MDA 1360/HAA 682.
TEMPORARY CRANES, 1005 MSL, BEGINNING 4317FT NE OF RWY 36L (2024-ASW-8599 THRU 8602-NRA), TEMPORARY CRANE, 1005 MSL, 4809FT NE OF RWY 36L (2024-ASW-8598-NRA).
2512191200-2611150519EST
12/19/25
1200Z
!FDC 5/1588 TUL IAP TULSA INTL, TULSA, OK.
VOR Y OR TACAN Y RWY 26, AMDT 24F...
CIRCLING CAT A/B MDA 1360/HAA 682.
HUKDO FIX MINIMUMS NA.
TEMPORARY CRANES, 1005 MSL, BEGINNING 5221FT WEST OF RWY 26 (2024-ASW-8599 THRU 8602-NRA), TEMPORARY CRANE, 1005 MSL, 5686FT NW OF RWY 26 (2024-ASW-8598-NRA).
2512191200-2611150519EST
12/19/25
1200Z
!FDC 5/1587 TUL IAP TULSA INTL, TULSA, OK.
VOR/DME RWY 8, AMDT 4B...
S-8 MDA 1260/HAT 589 ALL CATS. VIS CAT C/D/E 1 3/4.
CIRCLING CAT A/B MDA 1360/HAA 682.
VDP NA.
TEMPORARY CRANES, 1005 MSL, BEGINNING 2641FT NE OF RWY 8 (2024-ASW-8599 THRU 8602-NRA), TEMPORARY CRANE, 1005 MSL, 3155FT NE OF RWY 8 (2024-ASW-8598-NRA).
2512191200-2611150519EST
12/19/25
1200Z
!FDC 5/1585 TUL IAP TULSA INTL, TULSA, OK.
RNAV (GPS) RWY 26, AMDT 3D...
LPV DA 984/HAT 332 ALL CATS.
CIRCLING CAT A/B MDA 1360/HAA 682.
TEMPORARY CRANES, 1005 MSL, BEGINNING 5221FT WEST OF RWY 26 (2024-ASW-8599 THRU 8602-NRA), TEMPORARY CRANE, 1005 MSL, 5686FT NW OF RWY 26 (2024-ASW-8598-NRA), TEMPORARY CRANE, 946 MSL, 5682FT WEST OF RWY 26 (2024-ASW-8513-NRA).
2512191200-2611150519EST
12/19/25
1200Z
!FDC 5/1584 TUL IAP TULSA INTL, TULSA, OK.
ILS RWY 36R (SA CAT I), AMDT 29H ...
ILS RWY 36R (CAT II) AMDT 29H ...
PROCEDURE NA.
TEMPORARY CRANES, 1005 MSL, BEGINNING 5625FT NW OF RWY 36R (2024-ASW-8599 THRU 8602-NRA) 2512191200-2611150519EST
12/19/25
1200Z
!FDC 5/1583 TUL IAP TULSA INTL, TULSA, OK.
ILS OR LOC RWY 18L, AMDT 16A...
S-ILS 18L DA 962/HAT 321 ALL CATS.
CIRCLING CAT A/B MDA 1360/HAA 682.
PALIY FIX MINIMUMS NA.
TEMPORARY CRANES, 1005 MSL, 4885FT SW OF RWY 18L (2024-ASW-8599 THRU 8602-NRA).
2512191200-2611150519EST
12/19/25
1200Z
!FDC 5/1582 TUL IAP TULSA INTL, TULSA, OK.
ILS OR LOC RWY 18R, AMDT 9...
S-ILS 18R DA 1039/HAT 370 ALL CATS. VIS 1 ALL CATS.
CIRCLING CAT A/B MDA 1360/HAA 682.
TEMPORARY CRANES, 1005 MSL, 2102FT SE OF RWY 18R (2024-ASW-8599 THRU 8602-NRA).
2512191200-2611150519EST
12/19/25
1200Z
!FDC 5/1579 TUL IAP TULSA INTL, TULSA, OK.
RNAV (GPS) RWY 36R, AMDT 1C...
LPV DA 975/HAT 325 ALL CATS. VIS RVR 2600 ALL CATS.
CIRCLING CAT A/B MDA 1360/HAA 682.
FOR INOP ALSF-2, INCREASE LPV ALL CATS VISIBILITY TO RVR 5000, REST OF NOTE UNCHANGED.
TEMPORARY CRANES, 1005 MSL, BEGINNING 5625FT NW OF RWY 36R (2024-ASW-8599 THRU 8602-NRA), TEMPORARY CRANE, 1005 MSL, 1637FT NW OF KTUL AIRPORT (2024-ASW-8598-NRA), TEMPORARY CRANE, 946 MSL, 1582FT NW OF KTUL AIRPORT (2024-ASW-8513-NRA).
2512191200-2611150519EST
12/19/25
1200Z
!FDC 5/1578 TUL IAP TULSA INTL, TULSA, OK.
RNAV (GPS) RWY 18R, AMDT 2A...
LPV DA 1040/HAT 371 ALL CATS. VIS 1 ALL CATS.
LNAV/VNAV DA 1216/HAT 548 ALL CATS. VIS 1 5/8 ALL CATS.
LNAV MDA 1320/HAT 652 ALL CATS. VIS CATS C/D/E 1 7/8.
CIRCLING CAT A/B MDA 1360/HAA 682.
MISSED APPROACH : CLIMB TO 3500 DIRECT SUSNE AND HOLD. CONTINUE CLIMB-IN-HOLD TO 3500.
VDP 2.16 NM TO RW18R.
TEMPORARY CRANES, 1005 MSL, BEGINNING 2102FT SE OF RWY 18R (2024-ASW-8599 THRU 8602-NRA), TEMPORARY CRANE, 1005 MSL, 2595FT SE OF RWY 18R (2024-ASW-8598-NRA), TEMPORARY CRANE, 946 MSL, 2982FT SE OF RWY 18R (2024-ASW-8513-NRA).
2512191200-2611150519EST
12/19/25
1200Z
!FDC 5/1577 TUL IAP TULSA INTL, TULSA, OK.
RNAV (GPS) RWY 18L, AMDT 2...
LPV DA 979/HAT 338 ALL CATS. VIS RVR 2600 ALL CATS.
LNAV/VNAV DA 1087/HAT 446 ALL CATS. VIS RVR 4500 ALL CATS.
LNAV MDA 1160/HAT 519 ALL CATS. VIS CATS C/D/E RVR 5500.
CIRCLING CAT A/B MDA 1360/HAA 682.
VDP 1.63 NM TO RW18L.
MISSED APPROACH: CLIMB TO 3500 DIRECT ICECE AND HOLD, CONTINUE CLIMB-IN-HOLD TO 3500.
FOR INOP ALS, INCREASE LPV ALL CATS VISIBILITY TO RVR 5000, LNAV/VNAV ALL CATS VISIBILITY AND LNAV CATS C/D/E VISIBILITY TO 1 3/8 SM.
TEMPORARY CRANES, 1005 MSL, BEGINNING 4885FT SW OF RWY 18L (2024-ASW-8599 THRU 8602-NRA), TEMPORARY CRANE, 1005 MSL, 5390FT SW OF RWY 18L (2024-ASW-8598-NRA).
2512191200-2611150519EST
12/19/25
1200Z
!FDC 5/1572 TUL IAP TULSA INTL, TULSA, OK.
RNAV (GPS) RWY 8, AMDT 3...
LPV DA 1043/HAT 372 ALL CATS. VIS 1 ALL CATS.
LNAV/VNAV DA 1216/HAT 545 ALL CATS. VIS 1 5/8 ALL CATS.
LNAV MDA 1320/HAT 649 ALL CATS. VIS CATS C/D/E 1 7/8.
CIRCLING CAT A/B MDA 1360/HAA 682.
VDP NA.
TEMPORARY CRANES, 1005 MSL, BEGINNING 2641FT NE OF RWY 8 (2024-ASW-8599 THRU 8602-NRA), TEMPORARY CRANE, 1005 MSL, 3155FT NE OF RWY 8 (2024-ASW-8598-NRA).
2512191200-2611150519EST
12/19/25
1200Z
!FDC 5/1571 TUL IAP TULSA INTL, TULSA, OK.
ILS OR LOC RWY 36R, AMDT 29H...
S-ILS 36R DA 974/HAT 324 ALL CATS. VIS RVR 2600 ALL CATS.
CIRCLING CAT A/B MDA 1360/HAA 682.
YEPUT FIX MINIMUMS (DME REQUIRED):
S-LOC 36R MDA 1180/HAT 530 ALL CATS. VIS CATS C/D/E RVR 5500.
CIRCLING CAT A/B MDA 1360/HAA 682.
VDP NA.
MISSED APPROACH: CLIMB TO 2000 THEN CLIMBING RIGHT TURN TO 2500 DIRCT TUL VORTAC AND HOLD, CONTINUE CLIMB-IN-HOLD TO 2500. REST OF MISSED APPROACH UNCHANGED.
FOR INOP ALS, INCREASE S-ILS 36R ALL CATS VISIBILITY TO RVR 5000. FOR INOP ALS, INCREASE S-LOC 36R CAT E VISIBILITY TO 1 7/8 SM. YEPUT FIX MINIMUMS: FOR INOP ALS INCREASE S-LOC 36R CATS C/D/E VISIBILITY TO 1 1/2 SM.
TEMPORARY CRANES, 1005 MSL, BEGINNING 5625FT NW OF RWY 36R (2024-ASW-8599 THRU 8602-NRA), TEMPORARY CRANE, 1005 MSL, 1.01 NM NW OF RWY 36R (2024-ASW-8598-NRA).
2512191200-2611150519EST
Military
2/26/26
2256Z
3/31/26
2359Z
OKLAHOMA AIR NTL GUARD RAMP TOWER OBST LGT OUT ON CENTRAL RADIO TOWER, BLDG OBST LGT OUT ON MAIN HANGER
Yes
ALL
CITY OF TULSA
TULSA ARPT AUTH. BOX 581838
TULSA, OK 74158
Phone: 918-838-5000
ALEXIS HIGGINS
PO BOX 581838
TULSA, OK 74158
Phone: 918-838-5000
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
TUL
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 08/26

7376 ft. x 150 ft.
CONC
Fair
GRVD
HIGH

75,000lbs
200,000lbs
350,000lbs
--
  Runway 08 Runway 26
True Heading 89°269°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 11' 44"N 36° 11' 44"N
Longitude 95° 53' 57"W 95° 52' 27"W
Elevation 671' 633'
Threshold Crossing Height 52 ft. AGL 57 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes No

Runway 18L/36R

10000 ft. x 150 ft.
CONC
Excellent
GRVD
HIGH

75,000lbs
200,000lbs
400,000lbs
--
  Runway 18L Runway 36R
True Heading 183°3°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 12' 50"N 36° 11' 11"N
Longitude 95° 52' 53"W 95° 52' 59"W
Elevation 627' 644'
Threshold Crossing Height 56 ft. AGL 52 ft. AGL
Visual Glide Path Angle 2.75° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 18R/36L

6101 ft. x 100 ft.
ASPH
Good
GRVD
HIGH

100,000lbs
140,000lbs
--
--
  Runway 18R Runway 36L
True Heading 183°3°
Traffic Pattern Right Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 36° 12' 26"N 36° 11' 26"N
Longitude 95° 53' 57"W 95° 54' 01"W
Elevation 635' 677'
Threshold Crossing Height 42 ft. AGL 45 ft. AGL
Visual Glide Path Angle 2.75° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-3CTN: 4000 FT BLACKTOP TRACK 1.5 NM E RWY 26; DO NOT MISTAKE FOR RWY.
A110-41TXLS LA, LB, NN & QQ NOT VSB FM ATCT.
A110-43BIRDS ON & INVOF ARPT.
A110-44APVD ACFT RUN UP AREA: 2300-0600 N END TWY J ACFT ORIENTATION N & S. 24 HR APCH END RWY 26 ACFT ORIENTATION E & W. 0600-2300 N END TWY L ACFT ORIENTATION N & S.
A110-45TWY L SOUTH OF TWY L3 NOT VSB TO ATCT.
A110-46TXL LB NOT VSB TO ATCT.
A110-5WT RSTRD AREAS: TWY JJ S-35; TWY M2 S-81/D-140/DT-186; TWY HH S-55/D-60; TWY L NORTH OF RWY 08/26 S-93/D-140/DT 209; TWY L BTN TWY C & TWY L2 S-120/D-250/DT 372; TWY L2 S-70/D-100/DT-166.
A110-7NOISE ABATEMENT ALL RWYS: CLIMB TO 3000 FT ASAP AFT TKOF.
A30A-18RIREG WIND PAT.
A39-08/26PCR VALUE: 626/R/B/W/T
A39-18L/36RPCR VALUE: 1175/R/C/W/T
A39-18R/36LPCR VALUE: 427/F/D/X/T
A43-08PAPI UNUSBL BYD 8 DEGS LEFT & RIGHT OF RWY CNTRLN.
A43-26PAPI UNUSBL BYD 7 DEGS RIGHT & 9 DEGS LEFT OF CNTRLN.
E60-08_BAK-14BAK-14 BAK-12A(B) (1500 FT).
E60-18L_BAK-14BAK-14 BAK-12A(B) (1500 FT).
E60-26_BAK-14BAK-14 BAK-12A(B) (1500 FT).
E60-36R_BAK-14BAK-14 BAK-12A(B) (1500 FT).
TULSA INTL (ICAO: KTUL, IATA: TUL) is a public airport located in TULSA, OK, US.
