iFlightPlanner



...

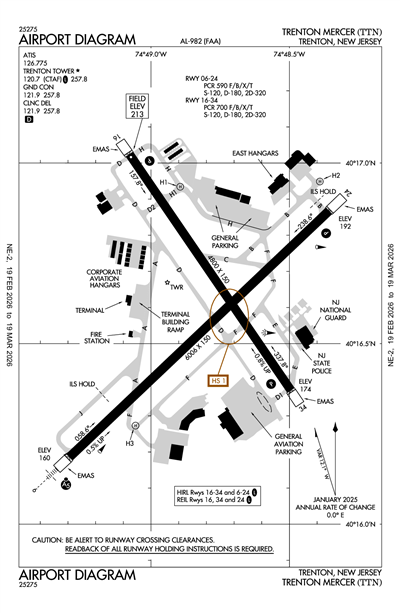

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTTN
TRENTON MERCER
PublicPUB

4 miles NW of TRENTON, NJ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 16' 36"N 74° 48' 48"W
213' MSL
1213' MSL
12W
JET A, 100LL
MILLVILLE (MIV)
NEW YORK
WASHINGTON (ZDC)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KTTN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 120.7

ATIS

ATIS
 126.775

ASOS

ASOS
609-538-8690
 126.775

Clearance Delivery

CD/P
 121.9

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 120.7

Other

ARNG OPS
 46.725
NG OPS
 121.95

Terminal Area Forecast

No TAF is available for this location.
KTTN
Domestic
1/16/251200Z !TTN 01/086 TTN OBST CRANE (ASN UNKNOWN) 401704N0744744W (0.5NM ESE APCH END RWY 24)
UNKNOWN (100FT AGL) FLAGGED AND LGTD 2501161200-2501161500
1/15/250509Z !TTN 01/088 TTN NAV ILS RWY 06 GP U/S 2501150509-2502282000EST
1/12/251224Z !TTN 01/085 TTN RWY 06/24 SAFETY AREA NOT STD 24IN SNOWBANKS 2501121224-2501192200
1/12/251224Z !TTN 01/084 TTN APRON SIGNATURE WEST RAMP FICON 6FT SNOWBANKS OBS AT 2501121224. 2501121224-2501192200
1/11/250815Z !TTN 01/065 TTN TWY H BTN TWY B AND TWY H1 FICON 3FT SNOWBANKS OBS AT 2501110815. 2501110815-2501182200
1/8/251138Z !TTN 01/043 TTN RWY 06 HLDG PSN SIGN AT RWY 16/34 E SIDE LGT U/S 2501081138-2501151700
1/7/250030Z !TTN 01/029 TTN OBST TOWER LGT (ASR 1044426) 401405.00N0744600.60W (3.3NM SE TTN) 569.9FT (457.0FT AGL) U/S 2501070030-2504080500
1/6/252206Z !TTN 01/028 TTN AD AP ABN NOT STD GREEN ONLY 2501062206-2501212206
1/5/251052Z !TTN 01/009 TTN RWY 06 HLDG PSN SIGN AT RWY 16/34 LGT U/S 2501051052-2503312100
12/31/242139Z !TTN 12/108 TTN OBST TOWER LGT (ASR 1049863) 401719.00N0745220.00W (2.7NM WNW TTN) 362.2FT (303.1FT AGL) U/S 2412312139-2503312359
12/31/242139Z !TTN 12/107 TTN OBST TOWER LGT (ASR 1049866) 401716.00N0745222.00W (2.8NM WNW TTN) 362.2FT (303.1FT AGL) U/S 2412312139-2503312359
12/31/242138Z !TTN 12/106 TTN OBST TOWER LGT (ASR 1049864) 401718.00N0745218.00W (2.7NM WNW TTN) 362.2FT (303.1FT AGL) U/S 2412312138-2503312359
12/31/242138Z !TTN 12/105 TTN OBST TOWER LGT (ASR 1049865) 401717.00N0745224.00W (2.8NM WNW TTN) 362.2FT (303.1FT AGL) U/S 2412312138-2503312359
12/31/242039Z !TTN 12/104 TTN TWY E CLSD TO ACFT WINGSPAN MORE THAN 110FT EXC 24HR PPR 2412312039-2506302200
12/31/242028Z !TTN 12/098 TTN RWY 06 LOCATION SIGN AT TWY D LEFT SIDE LGT U/S 2412312028-2506302200
12/31/242023Z !TTN 12/097 TTN RWY 16 ENGINEERED MATERIALS ARST SYSTEM U/S 2412312023-2506302200
12/31/242022Z !TTN 12/103 TTN RWY 16 ENGINEERED MATERIAL ARST SYSTEM SFC MARKING NOT STD 2412312022-2506302200
12/31/242021Z !TTN 12/096 TTN RWY 16/34 SAFETY AREA NOT STD SE END 10IN LIP 2412312021-2506302200
12/31/242020Z !TTN 12/095 TTN RWY 16/34 SAFETY AREA NOT STD W EDGE BTN TWY D2 AND RWY 06/24 2412312020-2502282200
12/31/242018Z !TTN 12/094 TTN TWY A HLDG PSN MARKINGS FOR RWY 06/24 NOT STD 2412312018-2502282200
12/31/242016Z !TTN 12/101 TTN TWY C BTN RWY 06/24 AND RWY 16/34 CLSD TO ACFT MORE THAN 40000LB 2412312016-2506302200
12/31/242014Z !TTN 12/093 TTN RWY 06 TWY DIRECTION SIGN AT TWY D LEFT SIDE NOT STD 2412312014-2506302100
12/31/242012Z !TTN 12/099 TTN TWY G NOW TWY D 2412312012-2506302100
12/29/241830Z !TTN 12/088 TTN OBST TOWER (ASN UNKNOWN) 401704N0744824W (.20NM NNW APCH END RWY 24)
UNKNOWN (100FT AGL) NOT LGTD 2412291830-2501312030
12/19/241647Z !TTN 12/030 TTN RWY 34 CLSD TO TKOF EXC ACFT LESS THAN 12500LB 2412191647-2503312100
10/29/242207Z !TTN 10/092 TTN OBST TOWER LGT (ASR UNKNOWN) 401058.90N0744512.70W (7NM ESE TTN) 215FT (194FT AGL) U/S 2410292207-2504292359
FDC
11/13/241701Z !FDC 4/3437 TTN IAP TRENTON MERCER, TRENTON, NJ.
RNAV (GPS) Z RWY 6, ORIG-E...
LPV DA 440/HAT 254 ALL CATS. VISIBILITY ALL CATS 3/4.
LNAV/VNAV DA 718/HAT 532 ALL CATS. VISIBILITY ALL CATS 1 5/8.
FOR INOPERATIVE ALS, INCREASE LPV VISIBILITY ALL CATS TO 1 1/4, LNAV/VNAV VISIBILITY ALL CATS TO 2, AND LNAV CATS C/D TO 1 3/8.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE NORTHEAST PHILADELPHIA ALTIMETER SETTING AND INCREASE LPV DA TO 673 FEET AND ALL VISIBILITIES 1/4 SM. INCREASE LNAVVNAV DA TO 951 FEET AND ALL VISIBILITIES 1/8 SM. INCREASE ALL MDAS 60 FEET AND LNAV VISIBILITY CAT C/D 1/4 SM, AND CIRCLING VISIBILITY CAT C 1/4 SM.
FOR INOPERATIVE ALS WHEN USING NORTHEAST PHILADELPHIA ALTIMETER SETTING INCREASE LPV VISIBILITY ALL CATS TO 1 3/8 SM, LNAV/VNAV VISIBILITY ALL CATS TO 2 1/2 SM, AND LNAV VISIBILITY CATS C/D TO 1 5/8 SM.
TEMPORARY CRANE 358FT MSL 2782FT EAST OF RWY 6 (2021-AEA-1167-NRA).
2411131701-2506251701EST
1/17/242121Z !FDC 4/4673 TTN IAP TRENTON MERCER, TRENTON, NJ.
RNAV (GPS) RWY 34, ORIG-E...
DISREGARD NOTE: (DO NOT EXCEED 250K UNTIL ZUBAX) IN MISSED APPROACH DESCRIPTION..
2401172121-2601172121EST
9/18/231419Z !FDC 3/1405 TTN IAP TRENTON MERCER, TRENTON, NJ.
ILS OR LOC RWY 6, AMDT 10F...
EMUNY FIX MINIMUMS NA.
2309181419-2509181419EST
Yes
ALL
COUNTY OF MERCER
640 S BROAD ST
TRENTON, NJ 08650
Phone: 609-989-6518
MELINDA MONTGOMERY
340 SCOTCH ROAD, SUITE 200
EWING, NJ 08628
Phone: 609-882-1601
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
TTN
--
WHEN ATCT CLSD ACTVT HIRL RY 06/24; HIRL RY 16/34; MALSR RY 06; PAPI RYS 24; 16; 34; REIL RYS 24; 16; 34 & TWY LGTS - CTAF.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
Low Pressure
Low Pressure
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 06/24

6006 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
24 /F/A/X/T
120,000lbs
180,000lbs
320,000lbs
--
  Runway 06 Runway 24
True Heading 46°226°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 16' 11"N 40° 16' 52"N
Longitude 74° 49' 18"W 74° 48' 21"W
Elevation 160' 192'
Threshold Crossing Height -- 42 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 16/34

4800 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
41 /F/A/X/T
120,000lbs
180,000lbs
320,000lbs
--
  Runway 16 Runway 34
True Heading 146°326°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 17' 01"N 40° 16' 22"N
Longitude 74° 49' 05"W 74° 48' 30"W
Elevation 213' 174'
Threshold Crossing Height 40 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway H1

64 ft. x 64 ft.
ASPH
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading 100°280°
Traffic Pattern
Markings BSC
Markings Condition GOOD
Latitude 40° 16' 56"N N/A
Longitude 74° 48' 54"W N/A
Elevation 204' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

64 ft. x 64 ft.
ASPH
Good
NONE


--
--
--
--
  Runway H2 Runway
True Heading 100°280°
Traffic Pattern
Markings BSC
Markings Condition GOOD
Latitude 40° 16' 57"N N/A
Longitude 74° 48' 23"W N/A
Elevation 191' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H3

64 ft. x 64 ft.
ASPH
Good
NONE


--
--
--
--
  Runway H3 Runway
True Heading 100°280°
Traffic Pattern
Markings BSC
Markings Condition GOOD
Latitude 40° 16' 16"N N/A
Longitude 74° 49' 03"W N/A
Elevation 170' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1GEESE & FLOCKS OF SEA GULLS & DEER ON & INVOF ARPT.
A110-2NOISE ABATEMENT PROCS IN EFCT; DEPS OVER 12500 LBS FLY RY HEADING UNTIL 1700 FT MSL; DEPS UNDER 12500 LBS FLY RY HEADING UNTIL 1200 FT MSL.
A110-3NO TGL OR TRAINING OPNS 2200-0700.
A110-4FOR CD WHEN ATCT IS CLSD CTC PHL APCH AT (800) 354-9884.
A110-5VOLUNTARY CURFEW 0000-0600 LCL.
A110-6TWR VIEW OF TWY J OBSC CTN ADZ.
A110-7ARFF MNTS GND AND ATCT FREQS DURG ATC ZERO EVENTS.
TRENTON MERCER (ICAO: KTTN, IATA: TTN) is a public airport located in TRENTON, NJ.
