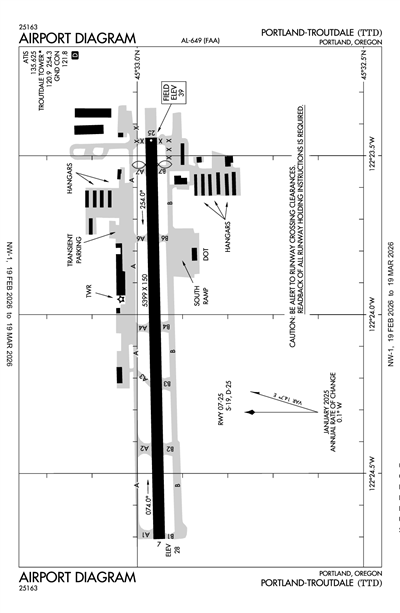

PORTLAND-TROUTDALE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTTD
ICAO KTTDIATA TTDLocal TTD
PORTLAND-TROUTDALE
PublicPUB

10 miles E of PORTLAND, OR, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
45° 32' 58"N 122° 24' 05"W
Elevation
39' MSL
Pattern Alt
1039' MSL
Mag Variation
15°E
Declination
16°E
Fuel
JET A, 100LL
FSS
MC MINNVILLE (MMV)
Sectional
SEATTLE
ARTCC
SEATTLE (ZSE)
Data Effective
2/19/26-3/19/26
KTTD VFR
7:53 PM PST
Overcast 8,000'
Broken 5,000'
Broken 4,300'
10sm
53°F
48°F
30.04"Hg
Calm
AO2 SLP173 T01170089
METAR KTTD 040353Z 00000KT 10SM BKN043 BKN050 OVC080 12/09 A3004 RMK AO2 SLP173 T01170089
+ Add Your Business

KTTD FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 135.625
(503) 492-7634
ASOS 135.625
(503) 492-2887

Common

CTAF 120.9
ACTVT MIRL RY 07/25 - CTAF. RY 07 VASI & RY 25 PAPI OPER CONT.
UNICOM 122.95

Ground

TROUTDALE GROUND 121.8
0700-2200

Tower

TROUTDALE TOWER 120.9
0700-2200

Arrival

HELNS STAR 124.35
OCITY STAR 124.35

Approach

PORTLAND APPROACH 118.1
100-279, HIGH
PORTLAND APPROACH 124.35

Departure

PORTLAND DEPARTURE 124.35

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KTTD
Tue, 3/3 3:28 PM PST
Tue, 3/3 4:00 PM PST - Wed, 3/4 4:00 PM PST
VFR
4:00 PM PST - 11:00 PM PST
Overcast 4,500'
Scattered 2,500'
6sm
210° 8kts
MVFR
11:00 PM PST - 3:00 AM PST
Light Rain
Overcast 2,500'
Scattered 2,100'
6sm
200° 6kts
MVFR
3:00 AM PST - 4:00 PM PST
Light Rain
Overcast 1,800'
6sm
200° 11kts
TAF KTTD 032328Z 0400/0424 21008KT P6SM SCT025 OVC045
   FM040700 20006KT P6SM -RA SCT021 OVC025
   FM041100 20011KT P6SM -RA OVC018
KTTD
EffectiveExpiresCategoryNOTAM
Domestic
1/16/26
0610Z
3/2/26
1112Z
!TTD 01/009 TTD OBST TOWER LGT (ASN 2020-ANM-6295-OE) 453404N1222452W (1.2NM NNW TTD) 278FT (271FT AGL) U/S 2601160610-2603021112
1/5/26
1928Z
7/9/26
2359Z
!TTD 01/005 TTD OBST TOWER LGT (ASR UNKNOWN) 453335.55N1222420.53W (.2NM E TTD) UNKNOWN (210FT AGL) U/S 2601051928-2607092359
1/5/26
1415Z
Runway!TTD 01/003 TTD RWY 25 RWY END ID LGT U/S 2601051415-2604072000EST
11/20/25
1748Z
6/1/26
2359Z
Runway!TTD 11/011 TTD RWY 07/25 CHANGED TO 5046FT X 150FT. DECLARED DIST: RWY 07 TORA 5046FT TODA 5046FT ASDA 5046FT LDA 5046FT. RWY 25 TORA 5046FT TODA 5046FT ASDA 5046FT LDA 5046FT. 2511201748-2606012359
10/3/25
1707Z
3/31/26
2359Z
!TTD 10/003 TTD OBST STACK (ASN UNKNOWN) 453502N1222438W (2NM N TTD) 296FT (243FT AGL) NOT LGTD 2510031707-2603312359
FDC
3/19/25
1330Z
!FDC 5/5065 TTD ODP PORTLAND-TROUTDALE, PORTLAND, OR.
DIVERSE VECTOR AREA ORIG ...
CHANGE RWY 25 NOTE TO READ: HEADING AS ASSIGNED BY ATC; REQUIRES MINIMUM CLIMB OF 380 FT PER NM TO 4300 2503191330-2703191330EST
Yes
0700-2200
THE PORT OF PORTLAND
BOX 3529
PORTLAND, OR 97208
Phone: 503-944-7000
KAMA SIMONDS
PORT OF PORTLAND BOX 3529
PORTLAND, OR 97208
Phone: 503-415-6119
MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF
TTD
--
ACTVT MIRL RY 07/25 - CTAF. RY 07 VASI & RY 25 PAPI OPER CONT.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High Pressure
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 07/25

5399 ft. x 150 ft.
ASPH
Good
NONE
MED

19,000lbs
25,000lbs
--
--
  Runway 07 Runway 25
True Heading 89°269°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 32' 57"N 45° 32' 58"N
Longitude 122° 24' 42"W 122° 23' 27"W
Elevation 28' 39'
Threshold Crossing Height 50 ft. AGL 31 ft. AGL
Visual Glide Path Angle 3° 3.1°
Visual Slope Indicator V4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1MIGRATORY FLOCKSOF WATERFOWL ON & INVOF ARPT.
A110-10FOR CD CTC PORTLAND APCH AT 503-493-7545.
A110-2PORTLAND INTL ARPT RY 10L/28R EXTNDD CENTERLINE CROSSES ARPT, ATCT MAY ISSUE RESTRICCTIONS DUE TO PDX TFC.
A110-3NOISE ABATEMENT PROCEDURES IN EFFECT. CALL 503-460-4100 OR 800-938-6647.
A110-4NOISE SENSITIVE AREAS BORDER THE ARPT WEST AND SOUTH.
A110-5AVOID LOW-LEVEL OVERFLIGHTS OF RESIDENTIAL AREAS.
A110-6RECOMMEND BETWEEN SS AND SR, RY 7 LEFT TFC AND RY 25 RIGHT TFC DUE TO BLUFF 5000 FT SOUTH OF ARPT.
A110-7EXTENSIVE HELICOPTER OPS ON AND ADJACENT TO WEST ENDS OF THE PARALLEL TWYS, NO EARLY TURNOUTS.
A110-9MULTIPLE CONST CRANES 110 FT AGL OR BLO LOCATED 2700 FT SW OF RY 25 THLD.
A24COMMERCIAL ACFT & OPERATORS OF ACFT WITH AN FAA CERTIFIED MAX GROSS LANDING WEIGHT THAT EXCEEDS 10000 LBS ARE REQUIRED TO PAY A LANDING FEE.
A43-25RY 25 PAPI IS BAFFLED 08 DEG L AND R OF CNTRLN.
A52-25APCH RATIO 27:1; DIKE AT 588' LGTD.
A57-07APCH CLNC SLOPE FROM DTHR IS 45:1 BASED ON 21' ROAD AT 817'.
A81-APTACTVT MIRL RY 07/25 - CTAF. RY 07 VASI & RY 25 PAPI OPER CONT.
E111ESTABD PRIOR TO 1959.
PORTLAND-TROUTDALE (ICAO: KTTD, IATA: TTD) is a public airport located in PORTLAND, OR, US.
