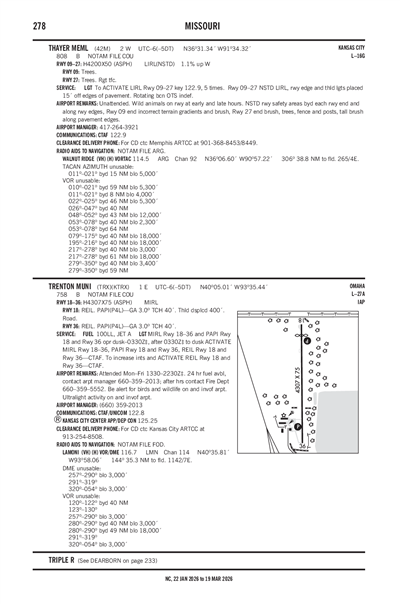

TRENTON MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTRX
ICAO KTRXIATA TRXLocal TRX
TRENTON MUNI
PublicPUB

1 miles E of TRENTON, MO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 05' 01"N 93° 35' 26"W
Elevation
758' MSL
Pattern Alt
1758' MSL
Mag Variation
1°E
Declination
3°E
Fuel
JET A, 100LL
FSS
COLUMBIA (COU)
Sectional
OMAHA
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KCDJ (16nm) VFR
10:51 PM CST
No Clouds
N/A
43°F
41°F
30.14"Hg
030° 3kts
AO1 SLP214 T00610050
METAR KCDJ 040451Z AUTO 03003KT 06/05 A3014 RMK AO1 SLP214 T00610050
+ Add Your Business

KTRX FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
MIRL RY 18/36 & PAPI RYS 18 & 36 OPER DUSK-2130; AFT 2130 TO DUSK ACTVT MIRL RY 18/36, PAPI RYS 18 & 36, REIL RYS 18 & 36 - CTAF. TO INCR INTST & ACTVT REIL RYS 18 & 36 - CTAF.
UNICOM 122.8

Center

KANSAS CITY CENTER 125.25
LOW, APCH/DEP SVC PRVDD BY KANSAS CITY ARTCC ON FREQS 125.25/235.975 (CHILLICOTHE RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSTJ (64nm)
Tue, 3/3 5:32 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
MVFR
6:00 PM CST - 11:00 PM CST
Mist
Overcast 1,000'
6sm
040° 7kts
IFR
11:00 PM CST - 12:00 PM CST
Mist
Overcast 700'
6sm
040° 6kts
MVFR
12:00 PM CST - 6:00 PM CST
Overcast 1,500'
6sm
VRB° 4kts
TAF KSTJ 032332Z 0400/0424 04007KT 6SM BR OVC010
   FM040500 04006KT 6SM BR OVC007
   FM041800 VRB04KT P6SM OVC015
KTRX
No NOTAM Available
No
MON-FRI 0730-1630
CITY OF TRENTON
1100 MAIN ST. PO BOX 188
TRENTON, MO 64683
Phone: 660-359-2013
WESLEY BARONE
1100 MAIN ST. PO BOX 188
TRENTON, MO 64683
Phone: (660) 359-2013
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
COU
--
MIRL RY 18/36 & PAPI RYS 18 & 36 OPER DUSK-2130; AFT 2130 TO DUSK ACTVT MIRL RY 18/36, PAPI RYS 18 & 36, REIL RYS 18 & 36 - CTAF. TO INCR INTST & ACTVT REIL RYS 18 & 36 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 18/36

4307 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 05' 22"N 40° 04' 39"N
Longitude 93° 35' 27"W 93° 35' 26"W
Elevation 757' 755'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1BE ALERT FOR BIRDS & WILDLIFE ON AND INVOF ARPT.
A110-2FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
A57-1842:1 TO DTHR.
A70-100LL24 HR FUEL AVBL; CTC AMGR (660)359-2013; AFTER HRS CTC FIRE DEPT (660)359-5552.
A81-APTMIRL RY 18/36 & PAPI RYS 18 & 36 OPER DUSK-2130; AFT 2130 TO DUSK ACTVT MIRL RY 18/36, PAPI RYS 18 & 36, REIL RYS 18 & 36 - CTAF. TO INCR INTST & ACTVT REIL RYS 18 & 36 - CTAF.
A96ULTRALIGHT ACTIVITY ON & INVOF ARPT.
TRENTON MUNI (ICAO: KTRX, IATA: TRX) is a public airport located in TRENTON, MO, US.
