KTOL
EUGENE F KRANZ TOLEDO EXPRESS
PublicPUB

10 miles SW of TOLEDO, OH
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 35' 13"N 83° 48' 28"W
684' MSL
1684' MSL
05W
JET A, JET A+, CILI, 100LL
CLEVELAND (CLE)
DETROIT
CLEVELAND (ZOB)
7/11/24-8/8/24
KTOL LIFR
6:52 AM EDT
Fog
Obscured
0.25sm
61°F
61°F
29.98"Hg
330° 3kts
AO2 SLP149 T01610161 $
KTOL 191052Z 33003KT 1/4SM R25/2200V2800FT FG VV002 16/16 A2998 RMK AO2 SLP149 T01610161 $
Add Your Business

KTOL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

ATIS
 118.75

Approach/Departure

APCH/P DEP/P
360-179
 126.1
APCH/P DEP/P IC
180-359
 134.35
APCH/S DEP/S
 123.975

Clearance Delivery

CD/P
 121.75

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 118.1

Other

CLASS C
360-179
 126.1
CLASS C
180-359
 134.35

FAA A/FD Pages

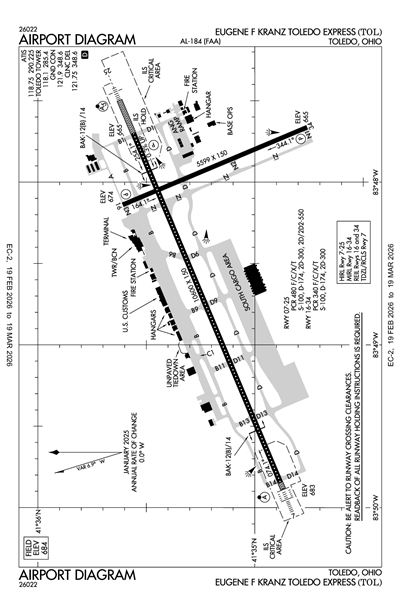

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KTOL
Thu, 9/19 4:26 AM EDT
Thu, 9/19 4:00 AM EDT - Fri, 9/20 2:00 AM EDT
LIFR
4:00 AM EDT - 9:00 AM EDT
Fog
Overcast 100'
0.5sm
VRB° 3kts
VFR
9:00 AM EDT - 10:00 AM EDT
Mist
Scattered 4,000'
6sm
VRB° 3kts
VFR
10:00 AM EDT - 2:00 AM EDT
Scattered 25,000'
6sm
060° 7kts
KTOL 190826Z 1908/2006 VRB03KT 1/2SM FG OVC001
   FM191300 VRB03KT 6SM BR SCT040
   FM191400 06007KT P6SM SCT250
KTOL
Domestic
9/18/241230Z !TOL 09/028 TOL NAV ILS RWY 07 UNUSABLE DA TO TDZ 2409181230-2409182000
9/18/241230Z !TOL 09/027 TOL NAV ILS RWY 25 U/S 2409181230-2409182000
9/4/241114Z !TOL 09/005 TOL OBST TOWER LGT (ASR 1015795) 413651.00N0835422.00W (4.7NM WNW TOL) 912.4FT (204.7FT AGL) U/S 2409041114-2410191113
9/1/241230Z !TOL 09/003 TOL RWY 34 PAPI U/S 2409011230-2410012300
9/1/241229Z !TOL 09/001 TOL OBST POLE LGT (ASN UNKNOWN) 413445N0834917W (0.4NM SE APCH END RWY 07)
803FT (120FT AGL) U/S 2409011229-2410012300
FDC
8/3/231335Z !FDC 3/7668 TOL IAP U.S. DOD EUGENE F KRANZ TOLEDO EXPRESS, TOLEDO, OH.
HI - TACAN RWY 25, AMDT 4C...
S-25* MDA 1080/HAT 402; VIS RVR 4000.
2308031335-2508031335EST
8/3/231335Z !FDC 3/7667 TOL IAP U.S. DOD EUGENE F KRANZ TOLEDO EXPRESS, TOLEDO, OH.
HI - ILS Y OR LOC Y RWY 25, AMDT 6B...
S-ILS 25* DA 945/HAT 267, VIS RVR 2000.
S-LOC 25** MDA 1200/HAT 522; RVR 5500.
2308031335-2508031335EST
8/3/231335Z !FDC 3/7666 TOL IAP U.S. DOD EUGENE F KRANZ TOLEDO EXPRESS, TOLEDO, OH.
HI - ILS Y OR LOC Y RWY 7, AMDT 8B...
S-ILS 7* DA 886/HAT 203.
S-LOC 7** MDA 1140/HAT 457; RVR 4500.
2308031335-2508031335EST
Military
7/23/241404Z !KTOL M0076/24 TOL RWY 25 BAK-12 ARST SYSTEM NOT STD POTENTIAL HOOK SKIP LOCATED ON DEPARTURE END OF RWY 25 1/8-INCH-DEEP SPALLING LOCATED ON CENTERLINE 4-8FT FROM CABLE. 2407231404-2410231400
Yes
ALL
TOLEDO LUCAS COUNTY PORT AUTHORITY
11013 AIRPORT HWY
SWANTON, OH 43558-9321
Phone: 419-865-2351
TIM O'DONNELL
11013 AIRPORT HWY
SWANTON, OH 43558-9321
Phone: 567-703-8631
CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF
TOL
Sunset to Sunrise
--
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
27
10
19
3
21
0
Major
Major
High Pressure
None
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 07/25

10600 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
67 /F/B/W/T
100,000lbs
174,000lbs
300,000lbs
550,000lbs
  Runway 07 Runway 25
True Heading 67°247°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 34' 53"N 41° 35' 34"N
Longitude 83° 49' 51"W 83° 47' 42"W
Elevation 682' 665'
Threshold Crossing Height -- 69 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No No

Runway 16/34

5599 ft. x 150 ft.
ASPH
Good
GRVD
MED
52 /F/B/W/T
100,000lbs
174,000lbs
300,000lbs
--
  Runway 16 Runway 34
True Heading 157°337°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 35' 37"N 41° 34' 46"N
Longitude 83° 48' 08"W 83° 47' 40"W
Elevation 674' 665'
Threshold Crossing Height 48 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-10MILITARY: ANG: TWY D INT TWY D1, HVY ACFT USE MNM PWR TO RDC FOD ON ANG RAMP; FOR QNS CTC COMMAND POST OR AIRFIELD OPS ON 338.15.
A110-11ATIS RECEPTION INTMT 270-320 DEGS, BYD 35 NM.
A110-12MILITARY: ANG: AIRFIELD MGMT DOES NOT ISSUE/STORE COMSEC; FOR COMSEC STORAGE CTC COMMAND POST DSN 580-4035.
A110-13MILITARY: ANG: BIRD HAZ WILDLIFE ACT DURG MIGRATION; BASH PHASE II IN EFF MAR-MAY & AUG-OCT. NSTD BLACK/YELLOW EQPT TOOL BOX LCTN PAINTED ON ANG RAMP.
A110-2CUST: SAT-SUN REQ MUST BE MADE BFR 1700 FRI - CALL 419-732-4446.
A110-4BIRDS ON & INVOF ARPT.
A110-6TWY N3 & RAMP BTN TWY B9 & B13 NOT VSB FM ATCT.
A110-9MILITARY: ANG: PPR - OFFL BUS, ACFT WITH WINGSPANS GTR THAN 75 FT CAN EXP PRKG ON TWY D OR THE SOUTH CARGO RAMP, CTC AIRFIELD OPS DSN 580-4084/4036, C800-495-4250 EXTN 868-4084/868-4036 OR 180.FW.AIRFIELD.MANAGEMENT@US.AF.MIL. 180TH COMMAND POST H24 DSN 580-4035. ALL INBD TSNT ACFT CTC COMMAND POST.
EUGENE F KRANZ TOLEDO EXPRESS (ICAO: KTOL, IATA: TOL) is a public airport located in TOLEDO, OH.
