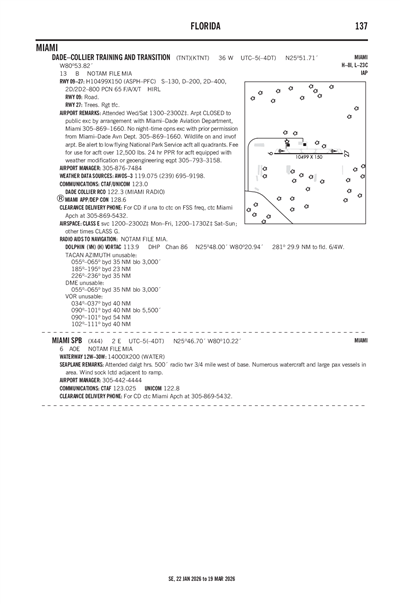

DADE-COLLIER TRAINING AND TRANSITION - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTNT
ICAO KTNTIATA TNTLocal TNT
DADE-COLLIER TRAINING AND TRANSITION
PublicPUB

36 miles W of MIAMI, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
25° 51' 42"N 80° 53' 49"W
Elevation
13' MSL
Pattern Alt
1013' MSL
Mag Variation
7°W
Declination
5°W
Fuel
None Listed
FSS
MIAMI (MIA)
Sectional
MIAMI
ARTCC
MIAMI (ZMA)
Data Effective
2/19/26-3/19/26
KTMB (28nm) MVFR
8:53 PM EST
Broken 1,000'
10sm
74°F
69°F
30.17"Hg
080° 10kts
AO2 SLP216 T02330206
METAR KTMB 040153Z 08010KT 10SM BKN010 23/21 A3017 RMK AO2 SLP216 T02330206
+ Add Your Business

KTNT FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 119.075
(239) 695-9198

Common

CTAF 123.0
UNICOM 123.0

Approach

MIAMI APPROACH 128.6

Departure

MIAMI DEPARTURE 128.6

Flight Service

Flight Service 122.3
(MIA)

FAA A/FD Pages

Instrument Approach

Terminal Area Forecast

KTMB (28nm)
Tue, 3/3 6:20 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
VFR
7:00 PM EST - 10:00 AM EST
Showers in vicinity
Scattered 5,000'
Scattered 2,500'
6sm
080° 12kts
VFR
10:00 AM EST - 3:00 PM EST
Scattered 5,000'
Scattered 3,000'
6sm
090° 13kts
Gusts 23kts
MVFR
3:00 PM EST - 7:00 PM EST
Broken 5,000'
Broken 3,000'
6sm
080° 12kts
Gusts 22kts
TAF KTMB 032320Z 0400/0424 08012KT P6SM VCSH SCT025 SCT050
   FM041500 09013G23KT P6SM SCT030 SCT050
   FM042000 08012G22KT P6SM BKN030 BKN050
KTNT
EffectiveExpiresCategoryNOTAM
Domestic
2/12/26
0156Z
3/29/26
0156Z
!MIA 02/224 TNT OBST TOWER LGT (ASR 1220218) 255200.40N0810645.70W (11.8NM W TNT) 229.0FT (220.1FT AGL) U/S 2602120156-2603290156
1/28/26
1705Z
4/28/26
0500Z
!MIA 01/542 TNT OBST TOWER LGT (ASR 1020924) 261603.30N0805728.20W (24.3NM N TNT) 214.2FT (198.2FT AGL) U/S 2601281705-2604280500
12/26/25
0459Z
7/2/26
0359Z
!MIA 12/381 TNT AIRSPACE SEE FDC 5/2858 ZMP 99.7 SECURITY 2512260459-2607020359
10/28/25
2111Z
!MIA 10/419 TNT COM REMOTE COM OUTLET 122.3 U/S 2510282111-PERM
9/30/25
1248Z
9/30/26
1230Z
!MIA 09/526 TNT TWY ALL NONMOVEMENT AREA 2509301248-2609301230
9/30/25
1242Z
9/30/26
1230Z
!MIA 09/525 TNT AD AP CLSD EXC SKED ACFT 4HR
PPR 850-756-2499 2509301242-2609301230
9/30/25
1241Z
9/30/26
1230Z
Runway!MIA 09/524 TNT RWY 09/27 CLSD EXC SKED ACFT 4HR PPR 850-756-2499 2509301241-2609301230
7/8/25
1509Z
7/8/26
2359Z
!MIA 07/116 TNT AIRSPACE UAS WI AN AREA DEFINED AS 5NM RADIUS OF TNT SFC-400FT AGL 2507081509-2607082359
No
WED SAT 0800-1800
MIAMI-DADE COUNTY
MIAMI-DADE AVIATION DEPARTMENT PO BOX 025504
MIAMI, FL 33102
Phone: 305-876-7038
JOSEPH KINNEBREW
PO BOX 025504
MIAMI, FL 33102
Phone: 305-876-7484
MIAMI FSS (MIA)
Toll Free: 1-800-WX-BRIEF
MIA
--
--
N/A
Yes - Lighted
Yes
Yes
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 09/27

10499 ft. x 150 ft.
ASPH
Fair
PFC
HIGH
65/F/A/X/T
130,000lbs
200,000lbs
400,000lbs
800,000lbs
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 25° 51' 42"N 25° 51' 42"N
Longitude 80° 54' 47"W 80° 52' 52"W
Elevation 13' 12'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A100ACR TRNG OPNS ONLY.
A110-1THREE 8IN WELLS FLUSH MTD BTN RWY AND TWY.
A110-2FEE FOR USE FOR ACFT OVER 12500 LBS.
A110-5BE ALERT TO LOW FLYING NATIONAL PARK SVC ACFT ALL QUADRANTS.
A110-6NO NGT TIME OPNS EXC WITH PRIOR PMSN FM MIAMI-DADE AVN DEPT 305-869-1660.
A110-7FOR CD IF UNA TO CTC ON FSS FREQ, CTC MIAMI APCH AT 305-869-5432.
A110-8WILDLIFE ON AND INVOF ARPT.
A110-924 HR PPR FOR ACFT EQUIPPED WITH WEATHER MODIFICATION OR GEOENGINEERING EQPT 305-793-3158.
A14AIRPORT PHYSICAL ADDRESS: 54757 EAST TAMIAMI TRAIL, OCHOPPI, FL 34141 239-695-3300, FAX: 305-876-0565
A18ARPT CLSD TO PUBLIC EXCP BY ARRANGEMENT WITH MIAMI-DADE AVIATION DEPT MIAMI 305-869-1660.
A5-SAND COLLIER CO.
DADE-COLLIER TRAINING AND TRANSITION (ICAO: KTNT, IATA: TNT) is a public airport located in MIAMI, FL, US.
