KTNP
TWENTYNINE PALMS
PublicPUB

6 miles E of TWENTYNINE PALMS, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 07' 54"N 115° 56' 45"W
1888' MSL
2888' MSL
12E
100LL
RIVERSIDE (RAL)
LOS ANGELES
LOS ANGELES (ZLA)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KTNP FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

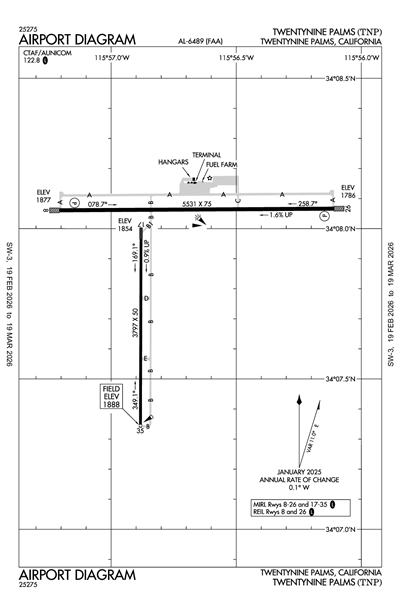

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KTNP
FDC
11/6/241947Z !FDC 4/9994 TNP IAP TWENTYNINE PALMS,
TWENTYNINE PALMS, CA.
VOR RWY 26, AMDT 2C...
CHANGE CIRCLING NA AT NIGHT NOTE TO READ: CIRCLING RWY 8, 17 NA AT
NIGHT.
CHANGE ALTIMETER SETTING NOTE TO READ: USE PSP ALTIMETER SETTING;
WHEN NOT RECEIVED, PROCEDURE NA.
DELETE CHART NOTE: USE PALM SPRINGS INTL ALTIMETER SETTING.
THIS IS VOR RWY 26, AMDT 2D. 2411061947-PERM
11/6/241947Z !FDC 4/9993 TNP IAP TWENTYNINE PALMS,
TWENTYNINE PALMS, CA.
RNAV (GPS) RWY 26, AMDT 2B...
CHANGE CIRCLING NA AT NIGHT NOTE TO READ: CIRCLING RWY 8, 17 NA AT
NIGHT.
CHANGE ALTIMETER SETTING NOTE TO READ: USE PSP ALTIMETER SETTING;
WHEN NOT RECEIVED, PROCEDURE NA.
DELETE NOTE: DME/DME RNP-03 NA.
PBN REQUIREMENTS NOTE: RNP APCH-GPS.
THIS IS RNAV (GPS) RWY 26, AMDT 2C. 2411061947-PERM
No
UNATNDD
COUNTY OF SAN BERNARDINO
777 EAST RIALTO AVENUE
SAN BERNARDINO, CA 92415
Phone: 909-387-8810
MAUREEN A. SNELGROVE
777 E. RIALTO AVE.
SAN BERNARDINO, CA 92415
Phone: 909-387-8810
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
RAL
--
ACTVT MIRL RY 08/26 AND 17/35; REIL RY 08 AND RY 26 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Minor
None
None
Charter Service
Pilot Instruction
Aircraft Rental
Glider Towing

Runway 08/26

5531 ft. x 75 ft.
ASPH
Fair
NONE
MED

--
--
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings BSC NPI
Markings Condition GOOD GOOD
Latitude 34° 08' 04"N 34° 08' 04"N
Longitude 115° 57' 12"W 115° 56' 07"W
Elevation 1,877' 1,786'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 17/35

3797 ft. x 50 ft.
ASPH
Fair
NONE
MED

--
--
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 34° 07' 58"N 34° 07' 20"N
Longitude 115° 56' 53"W 115° 56' 53"W
Elevation 1,854' 1,888'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-2TWY LGTS ON TWY CONNECTING RWY 08/26 & RWY 17/35; PLUS BLUE REFLECTORS ON PARALLEL TWY SERVING RWY 17/35.
A110-3BE ALERT FOR AEROBATIC ACTIVITY SOUTH OF RY 17/35.
A110-4FOR CD IF UNA TO CTC ON FSS FREQ, CTC LOS ANGELES ARTCC AT 661-575-2079.
TWENTYNINE PALMS (ICAO: KTNP, IATA: TNP) is a public airport located in TWENTYNINE PALMS, CA.
