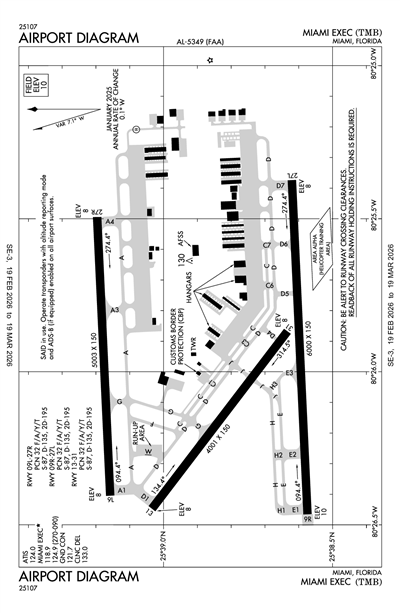

MIAMI EXEC - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTMB
ICAO KTMBIATA TMBLocal TMB
MIAMI EXEC
PublicPUB

13 miles SW of MIAMI, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
25° 38' 51"N 80° 25' 60"W
Elevation
10' MSL
Pattern Alt
1010' MSL
Mag Variation
7°W
Declination
6°W
Fuel
JET A, 100LL
FSS
MIAMI (MIA)
Sectional
MIAMI
ARTCC
MIAMI (ZMA)
Data Effective
2/19/26-3/19/26
KTMB VFR
3:53 AM EST
No Clouds
10sm
71°F
69°F
30.14"Hg
080° 7kts
AO2 SLP205 T02170206 56010
METAR KTMB 040853Z AUTO 08007KT 10SM 22/21 A3014 RMK AO2 SLP205 T02170206 56010
+ Add Your Business

KTMB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.0
VFR Advisory 118.9
ASOS 124.0
(305) 235-1332

Common

CTAF 118.9
WHEN ATCT CLSD ACTVT MALSR RWY 09R; HIRL RWY 09R/27L; MIRL RWY 13/31; TWY - CTAF. ; US CBP AND EAPIS AVBL. 1500-0100Z++-305-969-7511. OPS. MNT FREQ 118.9 DURING CTAF OPS.

Clearance

Clearance Delivery 133.0

Ground

MIAMI EXEC GROUND 121.7
0700-2300

Tower

MIAMI EXEC TOWER 118.9
Initial Contact, 0700-2300
MIAMI EXEC TOWER 124.9
0700-2300 - 270-090

Arrival

BNFSH STAR 124.85
CSTAL STAR 124.85
FOWEE STAR 120.5
FROGZ STAR 120.5
LUUCE STAR 126.05
9000 FT
LUUCE STAR 133.775
7000 FT
PALMZ STAR 120.5
SNDBR STAR 120.5
TARPN STAR 124.6
12000 FT
TARPN STAR 126.05
9000 FT
TARPN STAR 133.775
7000 FT
VIICE STAR 120.5

Approach

MIAMI APPROACH 125.5

Departure

ALTNN DP 125.5
BNGOS DP 125.5
DORRL DP 125.5
FLMGO DP 125.5
FOLZZ DP 125.5
HURCN DP 125.5
LIFRR DP 125.5
MAYNR DP 125.5
MELLZ DP 125.5
MIAMI DEPARTURE 125.5
MIAMI DP 125.5
GWAVA, KETLL, MAYNR TRANSITIONS
MIAMI DP 126.85
ALTNN,BEECH,BNGOS,DORRL,FLMGO,HURCN,FOLZZ,ZFP
VACAY DP 125.5

Flight Service

Flight Service 122.2
(MIA)

Terminal Area Forecast

KTMB
Wed, 3/4 3:53 AM EST
Wed, 3/4 4:00 AM EST - Thu, 3/5 1:00 AM EST
VFR
4:00 AM EST - 10:00 AM EST
Showers in vicinity
Scattered 5,000'
Scattered 2,500'
6sm
080° 12kts
VFR
10:00 AM EST - 3:00 PM EST
Scattered 5,000'
Scattered 3,000'
6sm
090° 13kts
Gusts 23kts
MVFR
3:00 PM EST - 9:00 PM EST
Broken 5,000'
Broken 3,000'
6sm
080° 12kts
Gusts 22kts
VFR
9:00 PM EST - 1:00 AM EST
Broken 6,000'
Scattered 3,500'
6sm
100° 12kts
TAF KTMB 040853Z 0409/0506 08012KT P6SM VCSH SCT025 SCT050
   FM041500 09013G23KT P6SM SCT030 SCT050
   FM042000 08012G22KT P6SM BKN030 BKN050
   FM050200 10012KT P6SM SCT035 BKN060
KTMB
EffectiveExpiresCategoryNOTAM
Domestic
2/4/26
1717Z
5/5/26
0500Z
!TMB 02/003 TMB OBST TOWER LGT (ASR 1058718) 253819.40N0802547.10W (0.6NM SSE TMB) 126.0FT (117.1FT AGL) U/S 2602041717-2605050500
2/2/26
1743Z
!TMB 02/002 TMB OBST TOWER LGT (ASR 1283784) 253956.80N0801921.90W (6.2NM E TMB) 171.3FT (160.1FT AGL) U/S 2602021743-2603041700EST
1/13/26
1543Z
4/14/26
0500Z
!TMB 01/009 TMB OBST TOWER LGT (ASR 1007433) 253814.00N0802546.90W (0.6NM SSE TMB) 115.8FT (107.9FT AGL) U/S 2601131543-2604140500
9/24/25
1650Z
Runway!TMB 09/034 TMB RWY 31 DECLARED DIST: TORA 3801FT TODA 3801FT ASDA 3801FT LDA 3801FT. 2509241650-PERM
9/24/25
1649Z
Runway!TMB 09/033 TMB RWY 13 DECLARED DIST: TORA 3801FT TODA 3801FT ASDA 3801FT LDA 3801FT. 2509241649-PERM
FDC
3/3/26
1427Z
4/8/26
1427Z
!FDC 6/2522 TMB IAP MIAMI EXEC, MIAMI, FL.
ILS OR LOC RWY 9R, AMDT 11E...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
VKZ VOR/DME UNMONITORED. 2603031427-2604081427EST
2/18/26
1457Z
3/25/26
1457Z
!FDC 6/5752 TMB SID MIAMI EXEC, MIAMI, FL.
MIAMI TWO DEPARTURE...
KETLL TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
VKZ VOR/DME OUT OF SERVICE. 2602181457-2603251457EST
2/18/26
1457Z
3/25/26
1457Z
!FDC 6/5746 TMB IAP MIAMI EXEC, MIAMI, FL.
ILS OR LOC RWY 9R, AMDT 11E...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
VKZ VOR/DME OUT OF SERVICE. 2602181457-2603251457EST
2/17/26
2331Z
!FDC 6/5543 TMB IAP MIAMI EXEC, MIAMI, FL.
RNAV (GPS) RWY 27L, AMDT 2E...
LPV DA 326/HAT 318 ALL CATS, VIS ALL CATS 7/8. LNAV/VNAV DA 376/HAT 368 ALL CATS. CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECIEVED, USE MIAMI INTL ALTIMETER SETTING AND INCREASE LPV DA TO 351 FEET, LNAV/VNAV DA TO 401 FEET AND ALL MDA 40 FEET, INCREASE LNAV CATS C/D VISIBILITY 1/4 SM. TEMPORARY CRANE 157 MSL 1237FT SE OF RWY 27L (2025-ASO-21803-OE).
2602172331-2604242331EST
2/12/26
1303Z
!FDC 6/3057 TMB IAP MIAMI EXEC, MIAMI, FL.
ILS OR LOC RWY 9R, AMDT 11E...
NOTE: FOR INOP ALS WHEN USING MIAMI INTL ALTIMETER SETTING, INCREASE S-LOC 9R CATS C/D VISIBILITY TO 1 3/8 SM.
2602121303-2802121303EST
Yes
0600-2100
MIAMI-DADE COUNTY
MIAMI -DADE AVIATION DEPT. P.O. BOX 025504
MIAMI, FL 33102
Phone: 305-876-7038
HEIDI ANTHONY
12800 SW 145TH AVE
MIAMI, FL 33186
Phone: 305-869-1702
MIAMI FSS (MIA)
Toll Free: 1-800-WX-BRIEF
TMB
--
WHEN ATCT CLSD ACTVT MALSR RWY 09R; HIRL RWY 09R/27L; MIRL RWY 13/31; TWY - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
Low Pressure
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 09L/27R

5003 ft. x 150 ft.
ASPH
Fair
GRVD
MED
32/F/A/Y/T
87,000lbs
135,000lbs
195,000lbs
--
  Runway 09L Runway 27R
True Heading 87°267°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 25° 39' 09"N 25° 39' 12"N
Longitude 80° 26' 24"W 80° 25' 30"W
Elevation 8' 8'
Threshold Crossing Height 53 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 09R/27L

6000 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH
32/F/A/Y/T
87,000lbs
135,000lbs
195,000lbs
--
  Runway 09R Runway 27L
True Heading 87°267°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 25° 38' 34"N 25° 38' 37"N
Longitude 80° 26' 28"W 80° 25' 22"W
Elevation 10' 8'
Threshold Crossing Height 55 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights

Runway 13/31

4001 ft. x 150 ft.
ASPH
Excellent
GRVD
MED
32/F/A/Y/T
87,000lbs
135,000lbs
195,000lbs
--
  Runway 13 Runway 31
True Heading 127°307°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 25° 39' 02"N 25° 38' 38"N
Longitude 80° 26' 27"W 80° 25' 52"W
Elevation 8' 8'
Threshold Crossing Height 40 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway H1

75 ft. x 75 ft.
ASPH
Fair
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition GOOD
Latitude 25° 39' 05"N N/A
Longitude 80° 25' 13"W N/A
Elevation 9' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A11CTC PERSON: LIONEL BECKLES, 305-876-7038.
A110-1ARPT CLSD TO NON-ENG ACFT.
A110-10NOISE SENSITIVE ARPT; FLT TRNG LTD WKDAY 1200-0400Z ; WKEND & OBSERVED HOL 1400-0200Z.
A110-11FOR CD IF UNA TO CTC ON FSS FREQ, CTC MIAMI APCH AT 305-869-5432.
A110-12US CBP AND EAPIS AVBL. 1500-0100Z++-305-969-7511. OPS. MNT FREQ 118.9 DURING CTAF OPS.
A110-14US CBP EXTD HRS AVBL UPON REQ, EMAIL KTMB-ARRIVALS@CBP.DHS.GOV PRIOR TO 2300Z++.
A110-15RWY 9L/27R AND RWY 13/31 CLSD DLY 0400-1200Z++ WHEN RWY 9R/27L IS IN USE.
A110-1624 HR PPR FOR ACFT EQUIPPED WITH WEATHER MODIFICATION OR GEOENGINEERING EQPT 305-869-1700.
A110-3BIRDS & AGRICULTURAL OPS BLW 200 FT AGL SR TO SS ON AND INVOF ARPT.
A110-6PTNS OF TWY A BTN SPOTS 1 & 2 & PTNS OF TWY D BTN SPOTS 14 & 17 & PTNS OF TWY C BTN SPOTS 13 &14 NOT VSB FM ATCT. SIMUL MOV OF ACFT WITH WINGSPANS IN EXCESS OF 95 FT ARE PRECLUDED FM USING PARL TWY C AND TWY D.
A110-8NOISE ABATEMENT PROC IN EFCT; NO TURNS BLW 1000 FT - 305-869-1700.
A43-27RPAPI UNUSBL BYD 9 DEGS LEFT & 7 DEGS RIGHT OF CNTRLN.
A75-HCTC AMGR.
A81-APTWHEN ATCT CLSD ACTVT MALSR RWY 09R; HIRL RWY 09R/27L; MIRL RWY 13/31; TWY - CTAF.
E147HEL TFC PAT RWY 09R WI FIXED WING PAT AT OR BLW 500 FT AGL.
E80US CBP 0900-2400 - 305-969-7511.
MIAMI EXEC (ICAO: KTMB, IATA: TMB) is a public airport located in MIAMI, FL, US.
