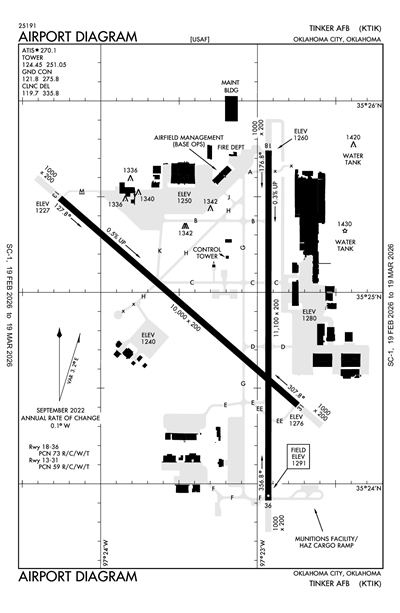

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTIK
TINKER AFB
PrivatePVT

8 miles SE of OKLAHOMA CITY, OK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 24' 53"N 97° 23' 12"W
1291' MSL
2291' MSL
03E
None Listed
MC ALESTER (MLC)
DALLAS-FT WORTH
FORT WORTH (ZFW)
10/31/24-11/28/24
KTIK VFR
5:55 AM CST
Clear
10sm
42°F
39°F
29.95"Hg
200° 9kts
AO2 SLP143 70131 T00560039 10101 20056 56003
KTIK 091155Z AUTO 20009KT 10SM CLR 06/04 A2995 RMK AO2 SLP143 70131 T00560039 10101 20056 56003
Add Your Business

KTIK FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

Clearance Delivery

CD/P
 119.7

Emergency

EMERG
 121.5

Ground

GND/P
 121.8

Tower

LCL/P
 124.45

Other

AMC/ATOC
 119.15
COMD POST
ARROW CTL
 139.95
COMD POST
CALL RAYMOND 24
 141.65
PTD
 134.1

Terminal Area Forecast

KTIK
Sat, 11/9 4:00 AM CST
Sat, 11/9 4:00 AM CST - Sun, 11/10 10:00 AM CST
MVFR
4:00 AM CST - 11:00 AM CST
Broken 2,000'
6sm
30.00"Hg
220° 9kts
VFR
Becoming 11:00 AM CST - 5:00 PM CST
Scattered 15,000'
6sm
29.94"Hg
210° 10kts
Gusts 20kts
VFR
Becoming 5:00 PM CST - 10:00 AM CST
Sky Clear
6sm
29.94"Hg
VRB° 6kts
TAF KTIK 091000Z 0910/1016 22009KT 9999 BKN020 QNH2999INS
   BECMG 0917/0918 21010G20KT 9999 SCT150 QNH2993INS
   BECMG 0923/0924 VRB06KT 9999 SKC QNH2994INS TX16/0920Z TN05/0911Z
KTIK
Military
11/7/242359Z !KTIK M0609/24 TIK AERODROME OFFICIAL BUSINESS ONLY , RESTRICTED LOW APPROACHES AUTHORIZED FOR LOCALLY ASSIGNED AIRCRAFT. 2411072359-2411121400
11/7/242359Z !KTIK M0608/24 TIK RWY 13/31 CLSD 2411072359-2412022359
11/6/240314Z AERODROME TWY G LOCATION/DIRCETIONAL SIGN SOUTHWEST OF THE INTERSECTION OF TWY G AND TWY H OTS.
11/5/241935Z M0607/24 NOTAMC M0606/24
11/4/242253Z M0605/24 NOTAMC M0603/24
11/4/241740Z M0604/24 NOTAMC M0602/24
10/29/242117Z !KTIK M0592/24 TIK TWY M CLSD TO ACFT LGTD AND BARRICADED. 2410292117-2501262359
10/29/242116Z 552 ACW RAMP 552 ACW RAMP CAUTION MEN AND CONSTRUCTION EQUIPMENT OPERATING ON EAST HALF OF RAMP. AIRCRAFT PARKING SPOTS A5-A9 AND B5-B9 CLOSED. SPOTS A4 AND B4 ARE TAXI OUT/TOW IN ONLY. AIRCRAFT NOT AUTHORIZED TO TAXI EAST OF SPOT A-3 AND B-3 WHEN PARKING. ENTRY/EXIT PATH TO THE RAMP USING TWY J IS CLOSED.
9/28/241703Z AERODROME WEST RAMP OPEN EXCAVATION MEN AND EQUIPMENT. PARKING SPOTS W1, W2, AND W3 CLSD TO ALL AIRCRAFT, LGTD AND BARRICADED
9/28/241652Z 552 ACW RAMP SOUTH EDGE RAMP LIGHTS O/S
9/28/241650Z ECHO RAMP ENTRY/EXIT RESTRICTED TO TWY J AND TOW ONLY.
9/27/241428Z !KTIK V0238/24 TIK AERODROME INSTRUMENT APPROACH PROCEDURE NOT AUTHORIZED VOR/DME RWY 13 OUT OF SERVICE 2409271428-2501312359
8/20/241735Z 507 ARW RAMP PARKING SPOT D-3 AND EAST TAXILANE BEHIND SPOT D-3 CLOSED. ACFT PARKING ON D-1 OR D-2 MAY TAXI SOUTH ON CENTER TAXILANE AND BE PUSHED BACK INTO SPOTS OR TAXI THROUGH ADJACENT PARKING SPOT IF VACANT.
Yes
ALL
U.S. AIR FORCE
2854TH AIR BASE GP(AFLC)
TINKER AFB,OK.CITY, OK 73145
CHIEF AIRFIELD MANAGEMENT
2854TH AIR BASE GP(AFLC)
TINKER AFB OK. CITY, OK 73145
Phone: 405-732-1110
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
MLC
Sunset to Sunrise
--
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
Low Pressure
High & Low Pressure
Cargo Handling

Runway 13/31

10000 ft. x 200 ft.

PEM
NONE
HIGH
59 /R/C/W/T
--
--
--
--
  Runway 13 Runway 31
True Heading 131°311°
Traffic Pattern Right Left
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 35° 25' 29"N 35° 24' 25"N
Longitude 97° 24' 16"W 97° 22' 44"W
Elevation 1,227' 1,276'
Threshold Crossing Height 47 ft. AGL 71 ft. AGL
Visual Glide Path Angle 2.8° 3°
Visual Slope Indicator P4L P4L
Approach Lights SALS SALS
Centerline Lights No No
Runway End Identifier Lights

Runway 18/36

11100 ft. x 200 ft.

PEM
NONE
HIGH
73 /R/C/W/T
--
--
--
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 25' 44"N 35° 23' 55"N
Longitude 97° 22' 56"W 97° 22' 56"W
Elevation 1,260' 1,291'
Threshold Crossing Height 51 ft. AGL 52 ft. AGL
Visual Glide Path Angle 2.8° 2.6°
Visual Slope Indicator P4L P4L
Approach Lights SALSF ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-1NS ABTMT: PRACTICE CIR APCH TO RWY 18 PROH. NGT QUIET HR IN EFF 0500-1200Z++, PRACTICE APCH ARE RSTD.
A110-11TFC PAT: USE 124.45 WHILE IN TFC PAT, MNT 251.05 TO MAX EXTENT POSSIBLE.
A110-13SERVICE-LGT: ALS RWY 18 NSTD FOR CAT I ILS. ALS RWY 13-31 NSTD.
A110-18CAUTION: UNLGTD BLDGS NW, W, SW AND E OF RWY 18-36.
A110-19JASU: 1(MC-1A) 1(MC-2A) 10(A/M32A-86) 6(AM32A-95) 8(AM32A-60).
A110-2CAUTION: EXER CTN WHILE TAX; PORTIONS OF ALC RAMP, KC-46 RAMP, AND MUNITIONS FAC NOT VIS FM TWR. . HOLD SHORT OF RAMP FOR INDIVIDUAL ACFT FLW-ME ASSISTANCE.
A110-21FLUID: PRESAIR LHOX LOX LHNIT.
A110-22OIL: 7808, 23699 HYD FLUID-5606, 83282 SOAP-RESULTS AVBL 1345-1730Z++, 1830-0600Z++ WKD EXC HOL, RESULTS NOT AVBL OT.
A110-23TRAN ALERT: OPR 1400-0530Z++. LTD FLEET SVC (LAVATORY AND WATER ONLY).
A110-31SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
A110-34CAUTION: UNLGTD SECURITY FENCES SURROUND AIRFIELD.
A110-39CSTMS/AG/IMG: SEE FCG KTIK ENTRY.
A110-45SERVICE-FUEL: A++.
A110-46RSTD: PPR TRAN ACFT, CTC BASE OPS DSN 884-2191, C405-734-2191. NOTIFY BASE OPS OF 1 HR OR MORE ETA CHG AND PPR CNL. NO TRAN ACFT ARR/DEP 0530-1400Z++. TRAN ACFT MAY EXP ONLY ONE APCH DUR PERIODS OF INTS LCL TRNG.
A110-47MISC: VIP ACFT CTC BASE OPS 30 MIN PRIOR TO ETA WITH FIRM CHOCK TIME. RWY 13-31 APCH ENDS 1000' CONC; REMAINING RWY KEEL 75' CONC; NON-KEEL ASPHALT. RWY 18-36 APCH ENDS 1000' CONC, REMAINING RWY KEEL 75' CONC, NON-KEEL ASPHALT; MID 8100' RWY GROOVED. TWY A CLSD E SIDE RWY 18-36. TWY M NSTD DUE TO 50 WIDE. TWY C NSTD SHOULDERS BTN TRIM PAD AND RWY 13-31.HGR SPACE FOR TRAN ACFT DUR INCLEMENT WX EXTREMELY LTD. TRAN SVC FOR B52, B1, C5, C17, C130, KC10 AND C135 EXTREMELY LTD, ACFT SHOULD HAVE CREW CHIEF ON BOARD.
A110-48MISC: ANTI-ICING/DE-ICING CAPABILITIES FOR TRAN ACFT LIMITED, TRAN AIRCREWS MUST CTC BASE OPS WITH DEICING REQ PRIOR TO ARRIVAL.RWY COND CODE(RWYCC) AND FIELD CONDITION NOTAM (FICON) NOT DETERMINED/RPRTD. AIR TERMINAL SVC (ATOC) AND CONTINGENCY/DEPLOYMENT OPR AVBL 1300-0100Z++ DLY. ACFT LOADING/OFFLOADING REQ OUTSIDE PUBL TIMES CTC DSN 339-5553, C405-734-2751. STD USAF RSRS APPLIED.
A110-9CAUTION: N/S VFR CORRIDOR SFC - 3000' 1 NM OFF DEP END RWY 31.
TINKER AFB (ICAO: KTIK, IATA: TIK) is a private airport located in OKLAHOMA CITY, OK.
