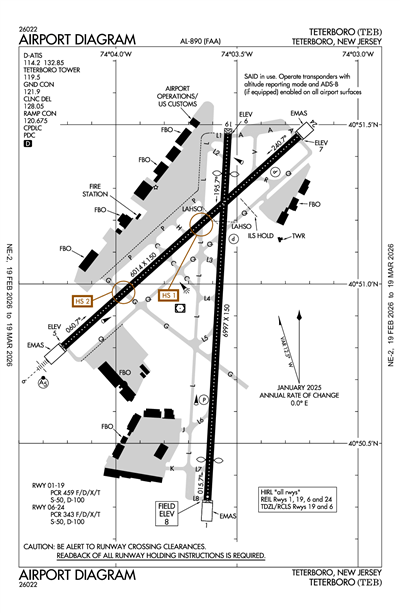

TETERBORO - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTEB
ICAO KTEBIATA TEBLocal TEB
TETERBORO
PublicPUB

1 miles SW of TETERBORO, NJ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 51' 00"N 74° 03' 39"W
Elevation
8' MSL
Pattern Alt
1008' MSL
Mag Variation
13°W
Declination
12°W
Fuel
JET A, 100LL
FSS
MILLVILLE (MIV)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
2/19/26-3/19/26
KTEB VFR
7:51 AM EST
Shallow Fog
Clear
10sm
39°F
36°F
30.26"Hg
Calm
AO2 SLP247 T00390022 $
METAR KTEB 041251Z 00000KT 10SM MIFG CLR 04/02 A3026 RMK AO2 SLP247 T00390022 $
+ Add Your Business

KTEB FBOs

Promote Listing
KTEB Test FBO
ASRI: 124.75, UNICOM: 121.5
Phone: (212) 545-5555
Fax: (212) 555-7777
Other: (212) 555-6777
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 2/12
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.99 8.14
Fuel Notes
Prices include tax
Call ahead for uplift over 1000 gallons.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

Digital ATIS 114.2
12014269510
Digital ATIS 132.85
12014269510
VFR Advisory 119.5
ASOS (201) 473-3130

Clearance

Clearance Delivery 128.05

Ground

Ramp Control 120.675
TETERBORO GROUND 121.9

Tower

TETERBORO TOWER 119.5
TETERBORO TOWER 125.1
Secondary

Arrival

JAIKE STAR 124.35
MAZIE STAR 119.75
MAZIE STAR 124.55
WILKES-BARRE STAR 127.6

Approach

NEWARK APPROACH 127.6

Departure

NEWARK DEPARTURE 119.2
NEWARK DEPARTURE 126.7

Operations

Operations 130.575

Flight Service

Flight Service 122.2
(MIV)

Emergency

Emergency 121.5

Terminal Area Forecast

KTEB
Wed, 3/4 6:23 AM EST
Wed, 3/4 7:00 AM EST - Thu, 3/5 1:00 PM EST
VFR
7:00 AM EST - 9:00 AM EST
Broken 6,000'
6sm
VRB° 5kts
VFR
9:00 AM EST - 3:00 PM EST
Broken 6,000'
6sm
360° 4kts
VFR
3:00 PM EST - 7:00 PM EST
Broken 6,000'
6sm
VRB° 4kts
MVFR
7:00 PM EST - 12:00 AM EST
Broken 2,500'
6sm
VRB° 2kts
IFR
12:00 AM EST - 7:00 AM EST
Mist
Broken 700'
3sm
VRB° 2kts
IFR
7:00 AM EST - 1:00 PM EST
Light Rain and Mist
Broken 500'
2sm
070° 4kts
TAF KTEB 041123Z 0412/0518 VRB05KT P6SM BKN060
   FM041400 36004KT P6SM BKN060
   FM042000 VRB04KT P6SM BKN060
   FM050000 VRB02KT P6SM BKN025
   FM050500 VRB02KT 3SM BR BKN007
   FM051200 07004KT 2SM -RA BR BKN005
KTEB
EffectiveExpiresCategoryNOTAM
Domestic
3/6/26
1330Z
3/6/26
1800Z
!TEB 03/020 TEB OBST CRANE (ASN 2025-AEA-11074-OE) 405201N0740332W (1.0NM NE TEB) 65FT (62FT AGL) FLAGGED AND LGTD 2603061330-2603061800
3/4/26
0516Z
3/5/26
0516Z
Runway!TEB 03/024 TEB RWY 24 FICON 5/5/5 100 PCT WET OBS AT 2603040516. 2603040516-2603050516
3/4/26
0516Z
3/5/26
0516Z
Runway!TEB 03/023 TEB RWY 19 FICON 5/5/5 100 PCT WET OBS AT 2603040516. 2603040516-2603050516
3/3/26
1241Z
3/4/26
1241Z
!TEB 03/017 TEB TWY A HOLD PAD FICON 3FT SNOWBANKS OBS AT 2603031241. 2603031241-2603041241
3/3/26
1110Z
3/10/26
0359Z
Runway!TEB 03/014 TEB RWY 06/24 EDGE MARKINGS OBSC 2603031110-2603100359
3/3/26
1110Z
3/10/26
0359Z
Runway!TEB 03/013 TEB RWY 01/19 EDGE MARKINGS OBSC 2603031110-2603100359
3/3/26
0239Z
4/1/26
0359Z
!TEB 03/012 TEB TWY ALL FICON 6IN SNOWBANKS OBS AT 2603030239. 2603030239-2604010359
3/2/26
1554Z
3/5/26
1700Z
!TEB 03/008 TEB TWY L EDGE LGT BTN TWY L1 AND TWY L8 OBSC 2603021554-2603051700
3/1/26
1006Z
3/31/26
2359Z
Runway!TEB 03/003 TEB RWY 06 1000FT DIST REMAINING SIGN RIGHT SIDE NOT STD 2603011006-2603312359
3/1/26
1005Z
3/31/26
2359Z
!TEB 03/002 TEB AD AP WILDLIFE HAZARD DEER, FOX, BIRDS 2603011005-2603312359
3/1/26
1004Z
3/31/26
2359Z
!TEB 03/001 TEB AD AP BIRD ACT MIGRATORY 2603011004-2603312359
2/28/26
0310Z
4/13/26
2110Z
!TEB 02/246 TEB OBST TOWER LGT (ASR 1237849) 404747.40N0740526.50W (3.5NM SSW TEB) 674.5FT (668.6FT AGL) U/S 2602280310-2604132110
2/27/26
2044Z
4/1/26
0359Z
!TEB 02/238 TEB TWY Q HLDG PSN MARKINGS AT RWY 01/19 SOUTHWEST SIDE NOT STD 2602272044-2604010359
2/26/26
2138Z
3/31/26
0359Z
!TEB 02/232 TEB TWY G TWY DIRECTION SIGN EAST SIDE FOR RWY 01 MISSING 2602262138-2603310359
2/26/26
0329Z
4/1/26
0400Z
!TEB 02/216 TEB TWY Q LOCATION SIGN BTN TWY G AND SIGNATURE SOUTH APN LGT U/S 2602260329-2604010400
2/26/26
0323Z
4/1/26
0400Z
!TEB 02/215 TEB TWY L3 HLDG PSN SIGN FOR RWY 01/19 NOT STD 2602260323-2604010400
2/26/26
0131Z
4/12/26
0131Z
!TEB 02/214 TEB OBST TOWER LGT (ASR 1237850) 404753.40N0740525.50W (3.4NM SSW TEB) 674.5FT (668.6FT AGL) U/S 2602260131-2604120131
2/25/26
1254Z
!TEB 02/209 TEB NAV ILS RWY 06 NOT MNT 2602251254-2604292359EST
2/25/26
1248Z
!TEB 02/208 TEB NAV ILS RWY 19 NOT MNT 2602251248-2604292359EST
2/19/26
2357Z
3/20/26
2359Z
!TEB 02/105 TEB OBST TOWER LGT (ASR 1042784) 404813.00N0740626.00W (3.5NM SW TEB) 413.1FT (410.1FT AGL) U/S 2602192357-2603202359
2/18/26
0410Z
4/4/26
0409Z
!TEB 02/090 TEB OBST TOWER LGT (ASR 1237848) 404754.40N0740521.50W (3.4NM SSW TEB) 674.5FT (668.6FT AGL) U/S 2602180410-2604040409
2/17/26
1043Z
4/3/26
0600Z
!TEB 02/085 TEB OBST WATERTOWER LGT (ASN 2025-AEA-8476-OE) 405112N0740612W (1.9NM W TEB) 203FT (90FT AGL) U/S 2602171043-2604030600
1/30/26
1406Z
3/30/26
2359Z
!TEB 01/377 TEB OBST TOWER LGT (ASR 1040101) 404914.80N0740404.00W (1.8NM S TEB) 237.9FT (237.9FT AGL) U/S 2601301406-2603302359
1/28/26
1612Z
7/31/26
2359Z
!TEB 01/343 TEB AIRSPACE UAS WI AN AREA DEFINED AS 1.5NM RADIUS OF 405314N0740023W (3.4NM NE TEB) SFC-300FT AGL (2025-ESA-16553-COA) 2601281612-2607312359
12/26/25
0205Z
!TEB 12/308 TEB COM REMOTE COM OUTLET 122.2 U/S 2512260205-2603262000EST
FDC
2/19/26
2347Z
10/1/26
2347Z
!FDC 6/7271 TEB SID TETERBORO, TETERBORO, NJ.
TETERBORO FOUR ...
DEPARTURE PROCEDURE NOTE: BREZY DEPARTURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, IGN VOR OUT OF SERVICE. 2602192347-2610012347EST
2/17/26
1423Z
9/29/26
1423Z
!FDC 6/4757 TEB SID TETERBORO, TETERBORO, NJ.
TETERBORO FOUR DEPARTURE...
COATE, ELIOT, NEWEL, ZIMMZ DEPARTURES: NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, SAX VORTAC OUT OF SERVICE. 2602171423-2609291423EST
1/27/26
2039Z
!FDC 6/7629 TEB IAP TETERBORO, TETERBORO, NJ.
RNAV (GPS) X RWY 6, AMDT 3A...
TDZE 5. LPV DA 458, LNAV/VNAV DA 671, LNAV HAT 655.
2601272039-2801272039EST
1/22/26
0901Z
!FDC 6/5457 TEB IAP TETERBORO, TETERBORO, NJ.
RNAV (RNP) Z RWY 6, AMDT 1...
TDZE 5. RNP 0.30 DA 678.
2601220901-2801210900EST
1/22/26
0901Z
!FDC 6/5455 TEB IAP TETERBORO, TETERBORO, NJ.
COPTER ILS Y OR LOC Y RWY 6, AMDT 3...
TDZE 5. H-ILS 6 DA 205, H-LOC 6 HAT 575.
2601220901-2801210900EST
10/11/25
2320Z
!FDC 5/9976 TEB ODP TETERBORO, TETERBORO, NJ.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 8A...
ADD TAKEOFF OBSTACLE NOTE: RWY 19, TEMPORARY CRANE 590FT FROM DER, 2FT LEFT OF CENTERLINE, 30FT AGL/ 35FT MSL (2021-AEA-2062-NRA).
ALL OTHER DATA REMAINS AS PUBLISHED. 2510112320-2605232320EST
9/8/25
1353Z
!FDC 5/9346 TEB SID TETERBORO, TETERBORO, NJ.
TETERBORO FOUR DEPARTURE...
NOTE: PARKE DEPARTURE VIA BWZ R-250 NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BWZ VOR/DME OUT OF SERVICE. 2509081353-2604201353EST
3/12/24
1412Z
3/12/26
1412Z
!FDC 4/6151 TEB SID TETERBORO, TETERBORO, NJ.
TETERBORO FOUR DEPARTURE...
DIXIE AND WHITE DEPARTURES: NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, COL VOR OUT OF SERVICE. 2403121412-2603121412EST
Yes
ALL
PORT AUTHORITY OF NY & NJ
4 WORLD TRADE CENTER
NEW YORK, NY 10006
Phone: 212-435-3640
SHERRI SMITH
90 MOONACHIE AVE
TETERBORO, NJ 07608
Phone: 201-807-4019
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
TEB
Sunset to Sunrise
--
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Avionics
Cargo Handling
Charter Service
Aircraft Sales

Runway 01/19

6997 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

50,000lbs
100,000lbs
--
--
  Runway 01 Runway 19
True Heading 3°183°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 50' 19"N 40° 51' 28"N
Longitude 74° 03' 37"W 74° 03' 32"W
Elevation 8' 6'
Threshold Crossing Height 56 ft. AGL 57 ft. AGL
Visual Glide Path Angle 3.1° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights Yes Yes
Runway End Identifier Lights Yes Yes

Runway 06/24

6014 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

50,000lbs
100,000lbs
--
--
  Runway 06 Runway 24
True Heading 48°228°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 50' 48"N 40° 51' 28"N
Longitude 74° 04' 13"W 74° 03' 15"W
Elevation 5' 7'
Threshold Crossing Height -- 46 ft. AGL
Visual Glide Path Angle -- 3.2°
Visual Slope Indicator -- P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights Yes Yes
A110-1CLSD TO MOTORLESS ACFT - UNCTLD ACFT & ULTRALIGHT ACTIVITY EXCEP BY PRIOR PERMISSION.
A110-10DLY CONS CONST ACT ALL QUADRANTS.
A110-14ACFT CAPABLE OF OPERATING ABV 100,000 POUNDS MUST SUBMIT CERTIFICATION TO AMGR VERIFYING AIRCRAFT OPERATING WEIGHT IS LESS THAN 100,000 LBS. CONTACT AIRPORT OPERATIONS AT 201-288-1775 FOR FORMS.
A110-15TEB RNAV (GPS) X RWY 06 IS PRIM RNAV APCH TO RWY 06.
A110-2ALL ACFT AVOID HOSPITAL 1.7 MILE NORTH OF RWY 01/19.
A110-3DEER AND BIRD ACT ON AND INVOF ARPT.
A110-4HEL OPNS OVER RESIDENTIAL AREAS BLO 1000 FT MSL SHOULD BE AVOIDED.
A110-5ACFT & HELICOPTER NOISE ABATEMENT RULES IN EFF; CTC ARPT NOISE ABATEMENT OFC 201-393-0399/288-1775 FOR COPY OF PROCEDURES & RULES PRIOR TO ARR. RY 24 NOISE CRITICAL RY MAX NOISE LIMIT OF 80 DB BETWEEN 2200-0700 & 90 DB ALL OTR HRS.
A110-7STAGE 1 ACFT NOT PERMITTED TO OPR AT TETERBORO ARPT.
A26ARFF INDEX B EQUIPMENT COVERAGE PRVDD.
A39-01/19PCR VALUE: 459/F/D/X/T
A39-06/24PCR VALUE: 343/F/D/X/T
A46-01RWY 01/19 DTHR CNTRLN LGTS OTS INDEFLY.
A57-01RWY 01 67 FT TREE DIST 1200 FT, 400 FT RIGHT, 16:1 BASED ON DTHR.
A57-19RWY 19 APCH RATIO 25:1 TO DTHR.
A82ARPT OPS FREQUENCY 130.575.
E147TPA 1500 FT MSL FOR LARGE/TURBINE ACFT; 1000 FT MSL FOR ALL OTHERS.
E60-06_EMASEMAS NON-STD ARRESTING GEAR/SYSTEM: ENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 250 FT IN LENGTH BY 170 FT WIDTH LCTD AT DEP END RWY 06.
E60-19_EMASENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 355 FT IN LENGTH BY 162 FT WIDTH LCTD AT DEP END RWY 19.
E60-24_EMASENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 348 FT IN LENGTH BY 162 FT WIDTH LCTD AT DEP END RWY 24.
TETERBORO (ICAO: KTEB, IATA: TEB) is a public airport located in TETERBORO, NJ, US.
