iFlightPlanner



...

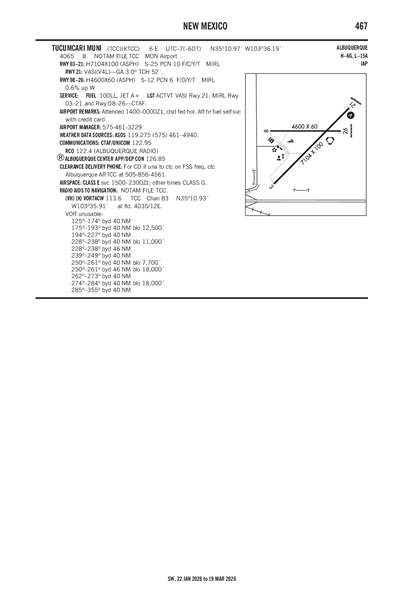

TUCUMCARI MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTCC
ICAO KTCCIATA TCCLocal TCC
TUCUMCARI MUNI
PublicPUB

6 miles E of TUCUMCARI, NM, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 10' 58"N 103° 36' 11"W
Elevation
4065' MSL
Pattern Alt
5065' MSL
Mag Variation
7°E
Declination
12°E
Fuel
JET A (FSII), 100LL
FSS
ALBUQUERQUE (ABQ)
Sectional
ALBUQUERQUE
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KTCC VFR
6:53 PM MST
Clear
10sm
59°F
26°F
29.91"Hg
170° 9kts
AO2 SLP110 T01501033
METAR KTCC 050153Z AUTO 17009KT 10SM CLR 15/M03 A2991 RMK AO2 SLP110 T01501033
+ Add Your Business

KTCC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 119.275
(575) 461-4940

Common

CTAF 122.95
ACTVT VASI RWY 21; MIRL RWY 03/21 & 08/26 - CTAF.
UNICOM 122.95

Center

ALBUQUERQUE CENTER 126.85
LOW, APCH/DEP SVC PRVDD BY ALBUQUERQUE ARTCC (ZAB) ON FREQS 126.85/285.6 (TUCUMCARI RCAG).

Flight Service

Flight Service 122.4
(ABQ)

Terminal Area Forecast

KCVS (50nm)
Wed, 3/4 11:00 AM MST
Wed, 3/4 11:00 AM MST - Thu, 3/5 5:00 PM MST
VFR
11:00 AM MST - 2:00 PM MST
Sky Clear
6sm
30.00"Hg
040° 6kts
VFR
Becoming 2:00 PM MST - 6:00 AM MST
Scattered 25,000'
6sm
29.88"Hg
160° 10kts
MVFR
Becoming 6:00 AM MST - 8:00 AM MST
Mist
Scattered 400'
4.97sm
29.88"Hg
170° 6kts
VFR
Becoming 8:00 AM MST - 12:00 PM MST
Sky Clear
6sm
29.79"Hg
190° 12kts
Gusts 18kts
VFR
Becoming 12:00 PM MST - 5:00 PM MST
Sky Clear
6sm
29.70"Hg
200° 15kts
Gusts 30kts
Light Turbulence: 300 - 9,000'
TAF KCVS 041800Z 0418/0524 04006KT 9999 SKC QNH3000INS
   BECMG 0421/0422 16010KT 9999 SCT250 QNH2987INS
   BECMG 0513/0515 17006KT 8000 BR SCT004 QNH2987INS
   BECMG 0515/0517 19012G18KT 9999 NSW SKC QNH2980INS
   BECMG 0519/0520 20015G30KT 9999 SKC 510009 QNH2971INS TX20/0423Z TN09/0512Z
KTCC
EffectiveExpiresCategoryNOTAM
Domestic
3/10/26
0600Z
3/10/26
1200Z
!TCC 03/001 TCC COM CONCHAS LAKE REMOTE COM OUTLET 122.6 U/S 2603100600-2603101200
3/4/26
1500Z
3/4/26
2200Z
!TCC 02/015 TCC AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF TCC SFC-3500FT AGL ACFT CS FLC68
2603041500-2603042200
2/27/26
2104Z
6/2/26
2359Z
!TCC 02/016 TCC OBST TOWER LGT (ASR 1300622) 344916.60N1034435.40W (22.7NM SSW TCC) 5150.9FT (250.0FT AGL) U/S 2602272104-2606022359
2/25/26
2048Z
3/31/26
2359Z
!TCC 02/013 TCC AD AP JET A FUEL NOT AVBL 2602252048-2603312359
2/25/26
2048Z
3/31/26
2359Z
!TCC 02/012 TCC AD AP 100LL FUEL NOT AVBL 2602252048-2603312359
2/12/26
0025Z
3/31/26
2300Z
!TCC 02/007 TCC NAV TACAN U/S 2602120025-2603312300
2/6/26
0308Z
5/5/26
2359Z
!TCC 02/005 TCC OBST TOWER LGT (ASR 1310143) 344830.30N1033601.80W (22.35NM SSE TCC) 4953FT (199FT AGL) U/S 2602060308-2605052359
FDC
10/9/25
1559Z
!FDC 5/8863 TCC IAP TUCUMCARI MUNI, TUCUMCARI, NM.
VOR RWY 21, AMDT 6A...
FETUR FIX MINIMUMS NA. MSA FROM TCC VORTAC 25 NM 360 CW 090 MINIMUM ALTITUDE 5700.
2510091559-2710091559EST
4/23/24
1702Z
!FDC 4/4153 TCC IAP TUCUMCARI MUNI, TUCUMCARI, NM.
RNAV (GPS) RWY 21, ORIG-A...
MSA RW21 25 NM MINIMUM ALTITUDE 6600.
WIND TURBINES, UP TO 5554 MSL, BEGINNING 15.4 NM SE OF RWY 21 (2022-WTW-5563 THRU 5568, 5571 THRU 5575, 5585 THRU 5588, 5592 THRU 5595, 5600, 5604, 5605, 5611, 5613, 5614, 5616-OE).
2404231702-2604231702EST
No
0700-1700
CLSD FED HOL.
CITY OF TUCUMCARI
BOX 1188
TUCUMCARI, NM 88401
Phone: 575-461-3451
JIM SEWELL
6352 QRA1 ROAD
TUCUMCARI, NM 88401
Phone: 575-461-3229
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
TCC
--
ACTVT VASI RWY 21; MIRL RWY 03/21 & 08/26 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Air Ambulance

Runway 03/21

7104 ft. x 100 ft.
ASPH
Good
NONE
MED
10/F/C/Y/T
25,000lbs
--
--
--
  Runway 03 Runway 21
True Heading 45°225°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 35° 10' 30"N 35° 11' 19"N
Longitude 103° 36' 40"W 103° 35' 40"W
Elevation 4,040' 4,047'
Threshold Crossing Height -- 52 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 08/26

4600 ft. x 60 ft.
ASPH
Good
NONE
MED
6/F/D/Y/T
12,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 35° 11' 04"N 35° 11' 04"N
Longitude 103° 36' 42"W 103° 35' 46"W
Elevation 4,065' 4,036'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2FOR CD IF UNA TO CTC ON FSS FREQ, CTC ALBUQUERQUE ARTCC AT 505-856-4561.
A110-3AFT HR FUEL SELF SVC WITH CREDIT CARD.
A16EMERG - 575-461-2280.
A17-D2CLSD FED HOL.
A75-HFOR AVBL - AMGR.
A81-APTACTVT VASI RWY 21; MIRL RWY 03/21 & 08/26 - CTAF.
TUCUMCARI MUNI (ICAO: KTCC, IATA: TCC) is a public airport located in TUCUMCARI, NM, US.
