KSZL
WHITEMAN AFB
PrivatePVT

2 miles S of KNOB NOSTER, MO
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 43' 49"N 93° 32' 52"W
871' MSL
1871' MSL
01E
None Listed
COLUMBIA (COU)
KANSAS CITY
KANSAS CITY (ZKC)
10/31/24-11/28/24
KSZL MVFR
5:55 AM CST
Rain
Overcast 4,000'
Broken 2,400'
Scattered 700'
5sm
51°F
46°F
30.03"Hg
130° 5kts
AO2 RAE10DZB10E31RAB37 CIG 024V040 SLP171 P0004 60004 70004 T01060080 10130 20106 53004 $
KSZL 091155Z AUTO 13005KT 5SM RA SCT007 BKN024 OVC040 11/08 A3003 RMK AO2 RAE10DZB10E31RAB37 CIG 024V040 SLP171 P0004 60004 70004 T01060080 10130 20106 53004 $

KSZL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
Hours: OPR 24 HR FM MON 1300 THRU FRI 0500Z++; SAT-SUN 1400-2300Z++; CLSD HOL. SEE NOTAMS FOR MOST UP TO DATE OPR HR.
118.725

Approach

APCH/P
127.45

Departure

DEP/P
125.925

Clearance Delivery

CD/P
121.75

Emergency

EMERG
121.5

Ground

GND/P
119.125

Tower

LCL/P
132.4

Other

ARNG OPS
FM
41.0
ARNG OPS
49.65
ARNG OPS
139.0

FAA A/FD Pages

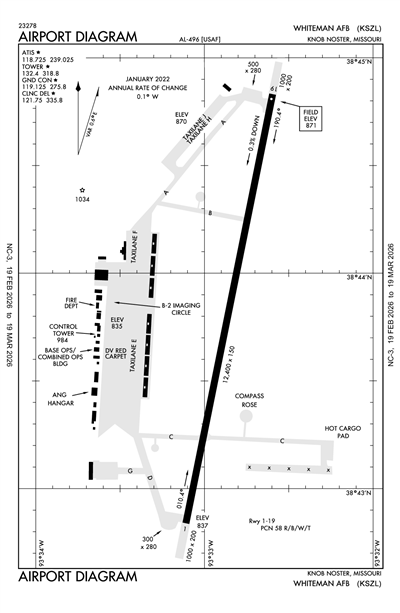

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Terminal Area Forecast

KSZL
Sat, 11/9 6:00 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 11:00 AM CST
MVFR
6:00 AM CST - 9:00 AM CST
Light Showers and Rain and Mist
Overcast 4,000'
4.97sm
29.97"Hg
130° 12kts
Light, In Cloud (Rime): 12,000-14,000'
MVFR
Temporary 6:00 AM CST - 8:00 AM CST
Light Rain
Broken 2,000'
3.73sm
Calm
MVFR
Becoming 9:00 AM CST - 2:00 PM CST
Overcast 2,000'
6sm
29.88"Hg
140° 12kts
Gusts 18kts
MVFR
Temporary 10:00 AM CST - 1:00 PM CST
Broken 1,000'
N/A
Calm
MVFR
Becoming 2:00 PM CST - 6:00 PM CST
Broken 2,500'
6sm
29.85"Hg
160° 12kts
Gusts 18kts
VFR
Becoming 6:00 PM CST - 9:00 AM CST
Few 4,000'
6sm
29.85"Hg
200° 9kts
VFR
Becoming 9:00 AM CST - 11:00 AM CST
Broken 5,000'
6sm
29.91"Hg
240° 10kts
Gusts 15kts
TAF AMD KSZL 091200Z 0912/1017 13012KT 8000 -SHRA BR OVC040 621202 QNH2997INS
   TEMPO 0912/0914 6000 -RA BKN020
   BECMG 0915/0916 14012G18KT 9999 NSW OVC020 QNH2989INS
   TEMPO 0916/0919 BKN010
   BECMG 0920/0921 16012G18KT 9999 BKN025 QNH2986INS
   BECMG 1000/1001 20009KT 9999 FEW040 QNH2984INS
   BECMG 1015/1016 24010G15KT 9999 BKN050 QNH2992INS TX16/0921Z TN09/1011Z
KSZL
Military
11/5/241941Z M1503/24 NOTAMC M1502/24
11/4/242142Z M1497/24 NOTAMC M1490/24
11/4/241720Z M1496/24 NOTAMC M1493/24
11/4/241526Z M1494/24 NOTAMC M1478/24
11/4/241441Z M1492/24 NOTAMC M1491/24
11/3/242028Z M1482/24 NOTAMC M1481/24
11/3/241721Z M1480/24 NOTAMC M1479/24
10/30/242312Z BASH PHASE II IN EFFECT. MIGRATING BIRDS ARE MOST ACTIVE FROM SUNSET TO MIDNIGHT, BUT MAY BE ACTIVE THROUGHOUT THE NIGHT. INCREASED BIRD ACTIVITY DURING PHASE II GENERALLY OCCURS ONE HOUR BEFORE SUNSET UNTIL ONE HOUR AFTER SUNRISE WITH PEAK ACTIVITY BETWEEN 0300Z-0700Z. HOWEVER, PEAK ACTIVITY CAN BE AFFECTED BY WEATHER CONDITIONS AND MAY OCCUR AT DIFFERENT TIMES. ALL 509 BW (INCLUDING THE 131 BW) ASSIGNED AIRCRAFT TAKEOFFS, LANDINGS, AND TRANSITIONS ONE HOUR BEFORE SUNSET UNTIL ONE HOUR AFTER SUNRISE DURING BASH PHASE II REQUIRES 509 OG/CC APPROVAL. OPERATIONS FOR NON-509 BW/131 BW AIRCRAFT REST WITH THE EXECUTING AUTHORITY IN ACCORDANCE WITH THEIR DIRECTIVES.
10/8/241307Z 8 FOOT TALL FACILITY LOCATED IN NORTHWEST CLEAR ZONE OF RWY 19 1268 FEET FROM RWY CENTERLINE (38.74907234680801, -93.54765981457419)
10/2/241444Z USE CAUTION: ALL TAXIWAY MARKINGS CHIPPED AND FADED
10/2/241239Z NON-FRANGIBLE VEHICLE GATE LOCATED IN MANDATORY FRANGIBILITY ZONE 1805 FEET NORTH OF RWY 19 THRESHOLD ( 38.75185280951969, -93.54233915238079)
9/20/241816Z TACAN GCP TAXIWAY CHARLIE EAST OF RUNWAY UNUSABLE
9/16/241856Z USE CAUTION: NO CENTERLINE MARKINGS ON COMPASS ROSE/ALTERNATE HAZARDOUS CARGO PAD
9/10/241938Z USE CAUTION: 3 FOOT TALL, NON-FRANGIBLE METAL STRUCTURE LOCATED 150 FEET EAST OF RUNWAY EDGE, 900 FEET SOUTH OF MIDFIELD RD.
Yes
ALL
USAF
WHITEMAN AFB
SEDALIA, MO 65301
BASE COMMANDER
WHITEMAN AFB
SEDALIA, MO 65301
Phone: 660-687-6185
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
COU
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
Low Pressure
Cargo Handling

Runway 01/19

12400 ft. x 150 ft.
CONC
Good
NONE
HIGH
58 /R/B/W/T
--
--
--
--
  Runway 01 Runway 19
True Heading 11°191°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 42' 49"N 38° 44' 49"N
Longitude 93° 33' 07"W 93° 32' 37"W
Elevation 837' 870'
Threshold Crossing Height 51 ft. AGL 45 ft. AGL
Visual Glide Path Angle 2.86°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-23RWY LOAD CAPACITY: TRT585
A110-25JASU: 2(A/M32A-86D) 1(AM32-95)
A110-26FUEL: A, A++, A++100.
A110-27FLUID: LPOX
A110-28OIL: SOAP
A110-29TRAN ALERT: OPR 1400-0400Z++ MON-THU; 1400-0300Z++ FRI; 1400-2300Z++ WKEND, CLSD HOL. LTD DE-ICING OF TRAN ACFT AVBL. FLEET SVC NOT AVBL.
A110-31RSTD: PPR FOR ALL TRAN ACFT, RQR APVL FR AFLD MGMT, DSN 975-3101 C660-687-3101, 48 HR PRIOR. ISSUED PPR VAILD 1 HR PRIOR/AFTER ETA. LATE/EARLY ARR/DEP MUST BE RE-COORD. B52 OPS RQR COORD WITH AFLD MGMT. PPR FOR ALL TRAN ACFT, RQR APVL FR AFLD MGMT, DSN 975-3101 C660-687-3101, 48 HR PRIOR. ISSUED PPR VAILD 1 HR PRIOR/AFTER ETA. LATE/EARLY ARR/DEP MUST BE RE-COORD. B52 OPS RQR COORD WITH AFLD MGMT. B52 RWY ACCESS LTD TO TWY D. NO OVFT WEAPONS STOR AREA LCTD ESE OF RWY AND CITY OF KNOB NOSTER LCTD 1.5 NM NNW OF FLD.
A110-32RSTD: ACFT WITH VIP CTC AFLD MGMT 30 MIN PRIOR TO LDG. CTC TWR 10 MIN PRIOR TO LDG.
A110-33CAUTION: 112 FT AGL TWR 4000 FT DIRECTLY WEST ABEAM RWY O1 THLD. POSSIBLE ILLUSION OF BEING HI ON FINAL DUR NGT VFR APCH TO RWY 01.
A110-34CAUTION: LCL ACFT FLY 300 KT IN OVERHEAD PAT. BIRD WATCH COND CHG RAPIDLY. BIRD AIRCRAFT STRIKE HAZARD (BASH) DISPERSAL METHODS USED INCL PYROTECHNICS AND PROPANE CANNON. CTC ATIS, TWR OR PTD FOR CURRENT BIRD HAZ INFO.
A110-35TFC PAT: COPTER 1400 FT; RECTANGULAR 1900 FT; OVERHEAD 2400 FT.
A110-38MISC: AFLD MGMT DSN 975-3101, C660-687-3101, FAX 660-687-2343.
A110-39ARNG: OPR 1300-2100Z++ MON; 1300-0400Z++ TUE-THURS; 1300-2100Z++ FRI; CLSD WKEND AND HOL. SEE NOTAMS FOR MOST UP TO DATE OPR HR, DSN 975-5768.
A110-41TRAN ALERT: TRANSIENT SVC AVBL FOR F16 ACFT, EXCEPT THE SENSOR CHIP INSPECTION UNAVBL.
A110-42MISC: WX OBS VIS RESTRICTIONS: DIRECT VIEW OF THE RY IS BLOCKED BY THE B-2 MAINT DOCKS. VIS IS FURTHER RESTRICTED BY BLDG 33 N ON W SIDE OF FLT LINE.
A110-43CAUTION: PHASE I REPRESENTS NORMAL BIRD ACTIVITY OUTSIDE MIGRATORY SEASON. PHASE II REPRESENTS HEAVY BIRD ACTIVITY; NORMALLY ASSOCIATED WITH MIGRATORY SEASON. THE PHASE II TIMEFRAME AT WHITEMAN IS FM 1 APR - 30 MAY (SPRING MIGTRATION) & 15 SEP - 30 NOV (FALL MIGRATION).
A110-4420 FT POLE 185 FT SOUTH OF TWY 'C' EAST.
A110-45MISC: DUR NOTAM SNOW REMOVAL OPR OR FCST WX EVENTS CTC AFLD MGMT DSN 975-3101 C660-687-3101 FOR MOST CURRENT AFLD STATUS.
A110-46MISC: WHEN AFLD CLSD RSC/RCR UNAVBL.
A110-48WHEN APP/DEP CLSD CTC GND.
A110-49MISC: ARFF CAPABILITIES AT PERM REDUCED LVL OF SVC FOR NFPA 403 CAT 9 (E-4, KC-10, VC-25 (747)) & CAT 10 (C-5) ACFT.
A110-51WX SVC AVBL H24 EXC DUR APVD HOL DSN 975-3062, C660-687-3062. H24 SBY AVBL DUR APVD HOL AND CLOSURE. WX OPS AIRCREWS CAN RCV WX BRFG FR OPS DESK DSN 975-3062, C660-687-3062. AFLD WX MNT BY AN/FMQ-19 ASOS AND AUGMENTED BY HUMAN OBSERVER ONLY DUR INDCD HR OF OPR.
A110-52RSTD: PPRS WILL NOT BE GIVEN MORE THAN 7 DAYS PRIOR.
A110-53CAUTION: FUEL TANKS BTN HANGER 6 AND HANGER 7 DO NOT HAVE OBSTRUCTION LIGHTS
A110-54EXTRMLY LTD DE-ICG CPBLTYS. COORD DE-ICG REQ THRU TSNT MAINT. DE-ICG TRUCK BOOM UNA TO RCH C-5 OR C-17 TAIL. C-5 AND C-17 AIRCREWS MUST BRING DE-ICG TAIL ADAPTER TO BE ABLE TO DE-ICE TAIL OF ACFT.
A110-55PMSV UNAVBL. ACFT IN NEED OF WX SUPPORT CTC 509 OSS/OSW VIA FONE PATCH 975-3061, C660-687-3061, OR 509 BW/CP 975-3778, C660-687-3778.
WHITEMAN AFB (ICAO: KSZL, IATA: SZL) is a private airport located in KNOB NOSTER, MO.
