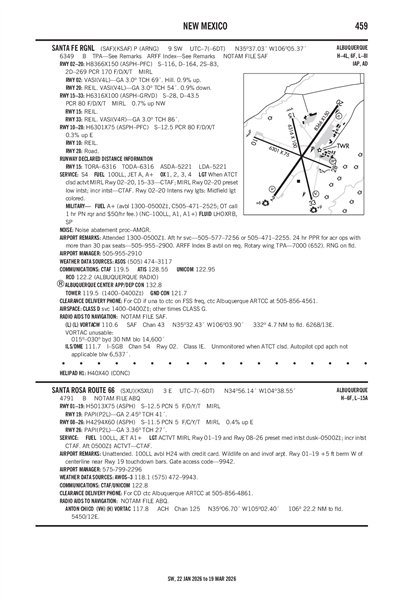

SANTA ROSA ROUTE 66 - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSXU
ICAO KSXULocal SXU
SANTA ROSA ROUTE 66
PublicPUB

3 miles E of SANTA ROSA, NM, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 56' 08"N 104° 38' 33"W
Elevation
4791' MSL
Pattern Alt
5791' MSL
Mag Variation
7°E
Declination
10°E
Fuel
JET A-1+, 100LL
FSS
ALBUQUERQUE (ABQ)
Sectional
ALBUQUERQUE
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KSXU VFR
5:35 AM MST
Clear
10sm
37°F
30°F
30.13"Hg
330° 2kts
AO2
METAR KSXU 041235Z AUTO 33002KT 10SM CLR 03/M01 A3013 RMK AO2
+ Add Your Business

KSXU FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 118.1
(575) 472-9943

Common

CTAF 122.8
ACTVT MIRL RWY 01/19 & 08/26 PRESET MED INTST DUSK-2200; INCR INTST CTAF. AFT 2200 ACTVT - CTAF.
UNICOM 122.8

FAA A/FD Pages

Terminal Area Forecast

KCVS (73nm)
Wed, 3/4 3:39 AM MST
Wed, 3/4 3:00 AM MST - Thu, 3/5 9:00 AM MST
VFR
3:00 AM MST - 12:00 PM MST
Sky Clear
6sm
30.12"Hg
020° 12kts
Gusts 18kts
VFR
Becoming 12:00 PM MST - 2:00 PM MST
Sky Clear
6sm
30.09"Hg
VRB° 6kts
VFR
Becoming 2:00 PM MST - 5:00 AM MST
Scattered 25,000'
6sm
30.06"Hg
160° 10kts
MVFR
Becoming 5:00 AM MST - 9:00 AM MST
Mist
Overcast 1,000'
3.73sm
29.91"Hg
170° 6kts
TAF COR KCVS 041039Z 0410/0516 02012G18KT 9999 SKC QNH3013INS
   BECMG 0419/0420 VRB06KT 9999 SKC QNH3010INS
   BECMG 0421/0422 16010KT 9999 SCT250 QNH3005INS
   BECMG 0512/0513 17006KT 6000 BR OVC010 QNH2992INS TX19/0423Z TN04/0414Z
KSXU
No NOTAM Available
No
UNATNDD
TOWN OF SANTA ROSA
244 S 5TH ST
SANTA ROSA, NM 88435
Phone: 575-472-3404
ANTHONY SENA
244 S 5TH ST
SANTA ROSA, NM 88435
Phone: 575-799-2296
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
ABQ
--
ACTVT MIRL RWY 01/19 & 08/26 PRESET MED INTST DUSK-2200; INCR INTST CTAF. AFT 2200 ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 01/19

5013 ft. x 75 ft.
ASPH
Good
NONE
MED
5/F/D/Y/T
12,000lbs
--
--
--
  Runway 01 Runway 19
True Heading 22°202°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 55' 34"N 34° 56' 20"N
Longitude 104° 38' 36"W 104° 38' 14"W
Elevation 4,779' 4,791'
Threshold Crossing Height -- 41 ft. AGL
Visual Glide Path Angle -- 2.45°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 08/26

4294 ft. x 60 ft.
ASPH
Fair
NONE
MED
5/F/C/Y/T
12,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 89°269°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 56' 21"N 34° 56' 22"N
Longitude 104° 39' 08"W 104° 38' 17"W
Elevation 4,767' 4,784'
Threshold Crossing Height -- 27 ft. AGL
Visual Glide Path Angle -- 3.36°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1WILDLIFE ON & INVOF ARPT.
A110-2GATE ACES - 9942.
A110-5FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A16EMERG - POLICE 575-472-3605.
A30-01/19+5 FT BERM W OF CNTRLN NEAR RWY 19 TOUCHDOWN BARS.
A58-01+3 FT BRUSH 0-130 FT FM THR 10 FT R & 80 FT L.
A58-08+10 FT ACES ROAD 10-200 FT FM RWY END ON CNTRLN; 2-3 FT BRUSH 20-200 FT FM RWY END 40-125 FT L & 50-125 FT R OF CNTRLN.
A70-100LLAVBL H24 WITH CREDIT CARD.
A75-HCALL AHEAD - AMGR.
A81-APTACTVT MIRL RWY 01/19 & 08/26 PRESET MED INTST DUSK-2200; INCR INTST CTAF. AFT 2200 ACTVT - CTAF.
SANTA ROSA ROUTE 66 (ICAO: KSXU, IATA: SXU) is a public airport located in SANTA ROSA, NM, US.
