No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSWO
STILLWATER RGNL
PublicPUB

3 miles NW of STILLWATER, OK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 09' 41"N 97° 05' 09"W
1000' MSL
1800' MSL
05E
JET A, 100LL
MC ALESTER (MLC)
WICHITA
KANSAS CITY (ZKC)
7/11/24-8/8/24
KSWO VFR
5:53 AM CDT
Clear
10sm
78°F
67°F
29.84"Hg
170° 13kts
Gusts 20kts
AO2 SLP090 T02560194
KSWO 191053Z AUTO 17013G20KT 10SM CLR 26/19 A2984 RMK AO2 SLP090 T02560194
Add Your Business

KSWO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 125.35

ASOS

ASOS
405-743-8150
 135.725

Ground

GND/P
 121.6

Tower

LCL/P
 125.35

FAA A/FD Pages

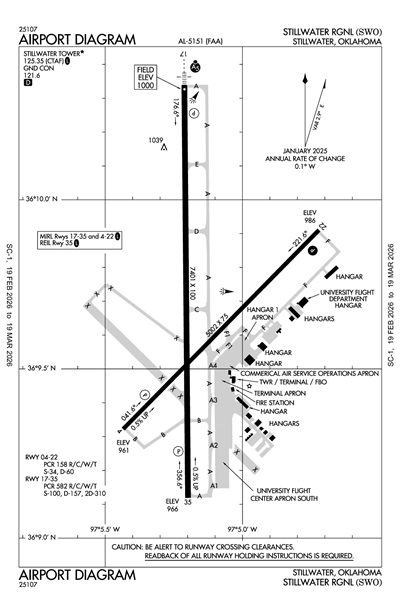

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSWO
Thu, 9/19 12:20 AM CDT
Thu, 9/19 1:00 AM CDT - Fri, 9/20 1:00 AM CDT
VFR
1:00 AM CDT - 10:00 AM CDT
Scattered 25,000'
6sm
150° 12kts
VFR
10:00 AM CDT - 12:00 AM CDT
Scattered 25,000'
Scattered 5,000'
6sm
190° 13kts
Gusts 20kts
MVFR
6:00 PM CDT - 12:00 AM CDT
Thunderstorm and Rain and Mist
Broken 5,000'
4sm
Calm
VFR
12:00 AM CDT - 1:00 AM CDT
Broken 25,000'
6sm
160° 10kts
KSWO 190520Z 1906/2006 15012KT P6SM SCT250
   FM191500 19013G20KT P6SM SCT050 SCT250
   PROB30 1923/2005 4SM TSRA BR BKN050CB
   FM200500 16010KT P6SM BKN250
KSWO
Domestic
9/20/240300Z !SWO 09/011 SWO AIRSPACE FLTCK UAS OPS WI AN AREA DEFINED AS 5NM RADIUS OF SWO SFC-4000FT AGL 2409200300-2409200900EST
9/19/240300Z !SWO 09/010 SWO AIRSPACE FLTCK UAS OPS WI AN AREA DEFINED AS 5NM RADIUS OF SWO SFC-400FT AGL 2409190300-2409190900EST
9/11/240304Z !SWO 09/005 SWO OBST TOWER LGT (ASR 1015926) 361259.80N0970310.20W (3.7NM NNE SWO) 1414.4FT (348.1FT AGL) U/S 2409110304-2410260303
7/1/241451Z !SWO 07/001 SWO OBST TOWER LGT (ASR 1062858) 360700.90N0971757.00W (10.7NM WSW SWO) 1298.9FT (209.0FT AGL) U/S 2407011451-2410291451
FDC
9/11/241343Z !FDC 4/3786 SWO IAP STILLWATER RGNL, STILLWATER, OK.
ILS OR LOC RWY 17, AMDT 3...
RNAV (GPS) RWY 35, AMDT 1C...
CIRCLING CAT A MDA 1480/HAA 480.
TEMPORARY RIG, 1127 MSL, 1.67 NM NORTH OF KSWO AIRPORT (2023-ASW-7577-OE).
2409111343-2504231343EST
9/11/241343Z !FDC 4/3783 SWO IAP STILLWATER RGNL, STILLWATER, OK.
RNAV (GPS) RWY 17, AMDT 1A...
LNAV/VNAV DA 1466/HAT 466 ALL CATS. VIS 1 ALL CATS.
CIRCLING CATS A/B MDA 1480/HAA 480.
FOR INOP ALS WHEN USING PONCA CITY ALTIMETER SETTING, INCREASE LPV VISIBILITY TO 7/8 SM, LNAV/VNAV VISIBILITY TO 1 3/8 SM AND LNAV CATS C/D VISIBILITY TO 1 3/8 SM. WHEN LOCAL ALTIMETER SETTING NOT RECEIEVED, USE PONCA CITY ALTIMETER SETTING: INCREASE LPV DA TO 1280 FEET; INCREASE LNAV/VNAV DA TO 1546 FEET AND ALL VISIBILITIES 1/8 SM, REST OF NOTE UNCHANGED. FOR INOP ALS, INCREASE LNAV/VNAV ALL CATS VISIBILITY TO 1 3/8 SM.
TEMPORARY RIG, 1127 MSL, 1.01 NM NORTH OF RWY 17 (2023-ASW-7577-OE).
2409111343-2504231343EST
9/11/241343Z !FDC 4/3781 SWO IAP STILLWATER RGNL, STILLWATER, OK.
VOR RWY 17, AMDT 14A...
VOR/DME RWY 35, AMDT 1B...
CIRCLING CATS A/B MDA 1480/HAA 480.
TEMPORARY RIG, 1127 MSL, 1.67 NM NORTH OF KSWO AIRPORT (2023-ASW-7577-OE).
2409111343-2504231343EST
Yes
0800-2200
AFT HR FUEL - 405-377-5326.
CITY OF STILLWATER
723 SOUTH LEWIS
STILLWATER, OK 74074
Phone: 405-372-0025
KELLIE REED
3304 N AIRPORT INDUSTRIAL ACCESS RD
STILLWATER, OK 74075
Phone: 405-533-8425
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
SWO
--
ACTVT MALSR RWY 17; REIL RWY 35; PAPI RWY 22; MIRL RWY 04/22 & 17/35 - CTAF. MIRL RWY 17/35 PRESET LOW INTST; INCR INTST - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
85
5
0
0
0
0
Major
Major
None
None
Air Freight
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

5002 ft. x 75 ft.
ASPH
Good
NONE
MED

34,000lbs
60,000lbs
--
--
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 36° 09' 19"N 36° 09' 55"N
Longitude 97° 05' 26"W 97° 04' 43"W
Elevation 961' 986'
Threshold Crossing Height 35 ft. AGL 39 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

7401 ft. x 100 ft.
CONC
Good
GRVD
MED

100,000lbs
157,000lbs
310,000lbs
--
  Runway 17 Runway 35
True Heading 179°359°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 10' 20"N 36° 09' 07"N
Longitude 97° 05' 13"W 97° 05' 12"W
Elevation 1,000' 966'
Threshold Crossing Height 50 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-10STUDENT OPS & BIRDS ON & INVOF ARPT.
A110-11ALL RAMPS UNCONTROLLED.
A110-12AFT HRS FUEL AVBL WITH PPR; CTC 405-624-5463.
A110-13FOR GA TSNT PRKG ON HANGAR 1 RAMP CTC FBO ON UNICOM OR FONE 405-624-5463.
A110-6ARFF INDEX B MAINTAINED; ARFF INDEX C PPR.
A110-7PTN OF TWY F NORTH OF T-HNGR 2 NOT VSBL FROM ATCT.
A110-8FOR CD IF UNA TO CTC ON FSS FREQ, CTC KANSAS CITY ARTCC AT 913-254-8508.
STILLWATER RGNL (ICAO: KSWO, IATA: SWO) is a public airport located in STILLWATER, OK.
