No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSVH
STATESVILLE RGNL
PublicPUB

3 miles SW of STATESVILLE, NC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 45' 54"N 80° 57' 14"W
968' MSL
1968' MSL
08W
JET A, JET A-1+, 100LL
RALEIGH (RDU)
CHARLOTTE
ATLANTA (ZTL)
7/11/24-8/8/24
KSVH IFR
6:45 AM EDT
Overcast 700'
10sm
68°F
67°F
29.96"Hg
050° 3kts
AO2 T02000193
KSVH 191045Z AUTO 05003KT 10SM OVC007 20/19 A2996 RMK AO2 T02000193
Add Your Business

KSVH FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.075 123.075

AWOS-3

AWOS-3
704-873-1978
 119.225

FAA A/FD Pages

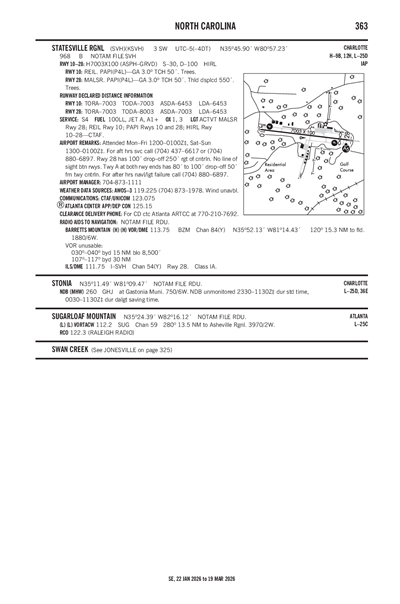

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KHKY (21nm)
Thu, 9/19 3:59 AM EDT
Thu, 9/19 4:00 AM EDT - Fri, 9/20 2:00 AM EDT
MVFR
4:00 AM EDT - 8:00 AM EDT
Mist
Overcast 4,000'
Scattered 2,000'
Few 400'
5sm
VRB° 3kts
LIFR
Temporary 4:00 AM EDT - 8:00 AM EDT
Mist
Overcast 4,000'
Broken 2,000'
Broken 400'
2sm
Calm
IFR
8:00 AM EDT - 10:00 AM EDT
Broken 700'
6sm
360° 3kts
MVFR
10:00 AM EDT - 12:00 PM EDT
Broken 1,100'
6sm
030° 4kts
MVFR
12:00 PM EDT - 2:00 PM EDT
Broken 2,200'
6sm
040° 4kts
VFR
2:00 PM EDT - 2:00 AM EDT
Scattered 3,500'
6sm
050° 3kts
MVFR
4:00 PM EDT - 8:00 PM EDT
Light Showers and Rain and Mist
Broken 6,000'
Broken 4,500'
4sm
Calm
KHKY 190759Z 1908/2006 VRB03KT 5SM BR FEW004 SCT020 OVC040
   TEMPO 1908/1912 2SM BR BKN004 BKN020 OVC040
   FM191200 36003KT P6SM BKN007
   FM191400 03004KT P6SM BKN011
   FM191600 04004KT P6SM BKN022
   FM191800 05003KT P6SM SCT035
   PROB30 1920/1924 4SM -SHRA BR BKN045 BKN060
KSVH
Domestic
9/17/240517Z !SVH 09/007 SVH OBST TOWER LGT (ASR 1033977) 354332.90N0805214.70W (4.6NM ESE SVH) 1278.2FT (365.2FT AGL) U/S 2409170517-2410022359
9/17/240444Z !SVH 09/006 SVH OBST TOWER LGT (ASR 1004687) 354304.90N0805144.60W (5.2NM ESE SVH) 1219.8FT (319.9FT AGL) U/S 2409170444-2501150444
9/5/241517Z !SVH 09/004 SVH OBST TOWER LGT (ASR 1005914) 354318.20N0805151.70W (5.0NM ESE SVH) 1201.1FT (305.1FT AGL) U/S 2409051517-2409200400
9/5/241100Z !SVH 09/003 SVH OBST TOWER LGT (ASR 1252224) 354927.00N0810031.90W (4.4NM NW SVH) 1208.0FT (253.9FT AGL) U/S 2409051100-2409191300
8/20/240358Z !SVH 08/009 SVH OBST TOWER LGT (ASR 1204135) 355350.30N0805110.80W (9.4NM NNE SVH) 1112.9FT (250.0FT AGL) U/S 2408200358-2412180358
7/18/240652Z !SVH 07/004 SVH OBST TOWER LGT (ASR 1000310) 354402.90N0805135.70W (4.9NM ESE SVH) 1102.7FT (281.8FT AGL) U/S 2407180652-2410160400
6/17/241507Z !SVH 06/008 SVH OBST TOWER LGT (ASR 1008245) 354959.70N0804214.00W (12.9NM ENE SVH) 2322.8FT (1504.9FT AGL) U/S 2406171507-2410151507
4/30/242350Z !SVH 04/007 SVH NAV ILS RWY 28 U/S 2404302350-2507302000EST
No
MON-FRI 0700-2000
SAT-SUN 0800-2000
FOR AFT HRS SVC CALL (704) 437-6617 OR (704) 880-6897.
CITY OF STATESVILLE
PO BOX 1111
STATESVILLE, NC 28687
Phone: 704-873-1111
JOHN M. FERGUSON
238 AIRPORT ROAD
STATESVILLE, NC 28677
Phone: 704-873-1111
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
SVH
--
ACTVT MALSR RWY 28; REIL RWY 10; PAPI RWY 10 & 28; HIRL RWY 10/28 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
44
13
29
0
1
0
Major
Major
High Pressure
High Pressure
Air Freight
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental

Runway 10/28

7003 ft. x 100 ft.
ASPH
Excellent
GRVD
HIGH

30,000lbs
100,000lbs
--
--
  Runway 10 Runway 28
True Heading 97°277°
Traffic Pattern
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 35° 45' 58"N 35° 45' 50"N
Longitude 80° 57' 56"W 80° 56' 32"W
Elevation 959' 957'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1RWY 28 HAS 100 FT DROP-OFF 250 FT RIGHT OF CNTRLN.
A110-2NO LINE OF SIGHT BTN RWYS.
A110-3FOR AFTER HRS NAVL/LGT FAILURE CALL 704-880-6897.
A110-4FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
A110-5TWY A AT BOTH RWY ENDS HAS 80 FT TO 100 FT DROP-OFF 50 FT FM TWY CNTRLN.
STATESVILLE RGNL (ICAO: KSVH, IATA: SVH) is a public airport located in STATESVILLE, NC.
