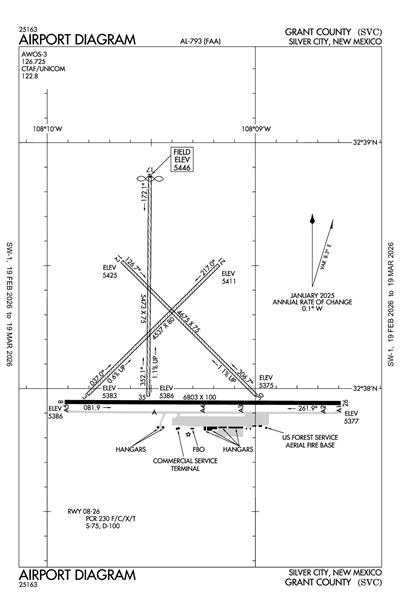

GRANT COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSVC
ICAO KSVCIATA SVCLocal SVC
GRANT COUNTY
PublicPUB

10 miles SE of SILVER CITY, NM, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 38' 12"N 108° 09' 23"W
Elevation
5446' MSL
Pattern Alt
6446' MSL
Mag Variation
8°E
Declination
8°E
Fuel
JET A-1, 100LL
FSS
ALBUQUERQUE (ABQ)
Sectional
ALBUQUERQUE
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KSVC VFR
8:35 PM MST
Clear
10sm
57°F
15°F
30.08"Hg
320° 10kts
AO2 T01381092
METAR KSVC 040335Z AUTO 32010KT 10SM CLR 14/M09 A3008 RMK AO2 T01381092
+ Add Your Business

KSVC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 126.725
(575) 388-5947, CEILING UNRELIABLE.

Common

CTAF 122.8
ACTVT MALS RWY 26; REIL RWY 08; MIRL RWY 08/26 - CTAF.
UNICOM 122.8

Center

ALBUQUERQUE CENTER 134.45
LOW, APCH/DEP SVC PRVDD BY ALBUQUERQUE ARTCC (ABQ) ON FREQS 134.45/327.15 (ANIMAS RCAG).

Flight Service

Flight Service 122.1
(ABQ)

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KDMN (32nm)
Tue, 3/3 4:31 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 8:00 PM MST
Few 25,000'
6sm
260° 15kts
Gusts 23kts
VFR
8:00 PM MST - 5:00 PM MST
Few 25,000'
6sm
290° 7kts
TAF KDMN 032331Z 0400/0424 26015G23KT P6SM FEW250
   FM040300 29007KT P6SM FEW250
KSVC
EffectiveExpiresCategoryNOTAM
Domestic
2/25/26
1500Z
2/25/26
2100Z
!SVC 02/019 SVC SVC AUTOMATED WX BCST SYSTEM U/S 2602251500-2602252100
12/30/25
1200Z
6/30/26
0200Z
!SVC 12/022 SVC AIRSPACE UAS WI AN AREA DEFINED AS .25NM RADIUS OF 323833N1080847W (1.2NM E SVC) SFC-400FT AGL DLY 1200-0200 2512301200-2606300200
FDC
2/25/26
1500Z
!FDC 6/9819 SVC IAP GRANT COUNTY, SILVER CITY, NM.
LOC RWY 26, AMDT 6...
RNAV (GPS) RWY 26, AMDT 1...
RNAV (GPS) RWY 8, AMDT 1...
VOR -A, AMDT 7D...
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, PROCEDURE NA. AWOS OUT OF SERVICE..
2602251500-2603040118EST
7/9/25
1846Z
!FDC 5/5287 SVC IAP GRANT COUNTY, SILVER CITY, NM.
VOR -A, AMDT 7D...
PROCEDURE TURN ENTRY MINIMUM ALTITUDE 7400.
2507091846-2707091800EST
6/30/25
1431Z
!FDC 5/0670 SVC ODP GRANT COUNTY, SILVER CITY, NM.
SILVER CITY TWO DEPARTURE ...
TAKEOFF MINIMUMS: RWY 8, 300/1 3/4 OR STANDARD WITH MINIMUM CLIMB OF 223FT PER NM TO 5700. TAKEOFF OBSTACLE NOTES: RWY 8, CRANE 1.45 NM FROM DER, 45FT LEFT OF CENTERLINE, 95FT AGL/5621FT MSL. ALL OTHER DATA REMAINS AS PUBLISHED. 2506301431-2706301431EST
No
0600-1700
GRANT COUNTY
P.O. BOX 6 188 AIRPORT RD.
HURLEY, NM 88043
Phone: 575-313-9784
REBEKAH WENGER
PO BOX 6 188 AIRPORT ROAD
HURLEY, NM 88043
Phone: 575-313-9784
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
SVC
--
ACTVT MALS RWY 26; REIL RWY 08; MIRL RWY 08/26 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Air Freight
Charter Service

Runway 03/21

4537 ft. x 80 ft.
DIRT
Fair
NONE


--
--
--
--
  Runway 03 Runway 21
True Heading 45°225°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 32° 37' 59"N 32° 38' 30"N
Longitude 108° 09' 48"W 108° 09' 11"W
Elevation 5,383' 5,411'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 08/26

6803 ft. x 100 ft.
ASPH
Good
GRVD
MED

75,000lbs
100,000lbs
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 37' 57"N 32° 37' 56"N
Longitude 108° 09' 55"W 108° 08' 35"W
Elevation 5,386' 5,376'
Threshold Crossing Height 44 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALS
Centerline Lights
Runway End Identifier Lights Yes

Runway 12/30

4675 ft. x 75 ft.
DIRT
Good
NONE


--
--
--
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 32° 38' 31"N 32° 37' 58"N
Longitude 108° 09' 38"W 108° 08' 60"W
Elevation 5,425' 5,375'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

5473 ft. x 75 ft.
DIRT
Good
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 32° 38' 52"N 32° 37' 58"N
Longitude 108° 09' 30"W 108° 09' 31"W
Elevation 5,446' 5,386'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-15621 FT CRANE NE OF ARPT 8800 FT FM RWY 26 ON CNTRLN.
A110-2FOR CD IF UNA TO CTC ON FSS FREQ, CTC ALBUQUERQUE ARTCC AT 505-856-4561.
A110-3TWY A2, A3 & A4 UNUSBL COCKPIT TO MAIN GEAR LEN OVR 40 FT.
A30-03/21DALGT VFR COND ONLY.
A30-12/30DALGT VFR COND ONLY.
A30-17/35DALGT VFR COND ONLY.
A39-08/26PCR VALUE: 230/F/C/X/T
A48-0839 IN TALL 9 FT FM EDGE OF TWY A9.
A51-17DTHR MKD BY TIRES.
A57-17APCH RATIO 16:1 FM DTHR.
A81-APTACTVT MALS RWY 26; REIL RWY 08; MIRL RWY 08/26 - CTAF.
GRANT COUNTY (ICAO: KSVC, IATA: SVC) is a public airport located in SILVER CITY, NM, US.
