iFlightPlanner



...

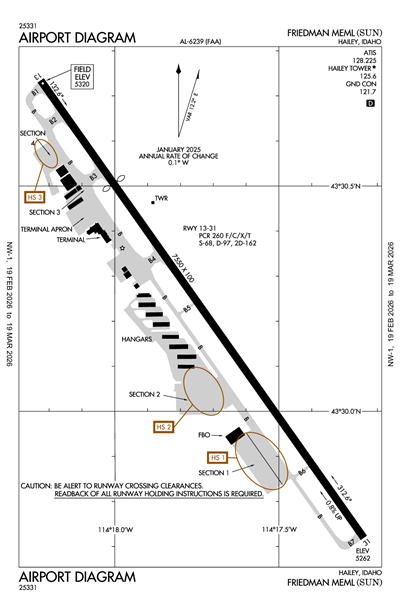

FRIEDMAN MEML - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSUN
ICAO KSUNIATA SUNLocal SUN
FRIEDMAN MEML
PublicPUB

1 miles SE of HAILEY, ID, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 30' 14"N 114° 17' 44"W
Elevation
5320' MSL
Pattern Alt
6320' MSL
Mag Variation
12°E
Declination
13°E
Fuel
JET A-1+, 100LL
FSS
BOISE (BOI)
Sectional
SALT LAKE CITY
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
2/19/26-3/19/26
KSUN VFR
10:47 PM MST
Clear
10sm
36°F
30°F
30.18"Hg
300° 5kts
METAR KSUN 040547Z 30005KT 10SM CLR 02/M01 A3018
+ Add Your Business

KSUN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 128.225
(208) 788-2108
AWOS-3 128.225
(208) 788-9213

Common

CTAF 125.6
WHEN ATCT CLSD ACTVT HIRL RWY 13/31 - CTAF. PAPI RWY 31 OPR CONSLY.
UNICOM 122.95

Ground

HAILEY GROUND 121.7
0700-2300

Tower

HAILEY TOWER 125.6
0700-2300

Center

SALT LAKE CENTER 118.05
LOW, APCH/DEP CTL SVC PRVDD BY SALT LAKE ARTCC (ZLC) ON FREQS 118.05/363.0 (BURLEY RCAG).

Flight Service

Flight Service 122.4
(BOI)

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Arrival Procedures

Instrument Approach

Hotspot

Terminal Area Forecast

KSUN
Tue, 3/3 10:20 PM MST
Tue, 3/3 11:00 PM MST - Thu, 3/5 5:00 AM MST
VFR
11:00 PM MST - 11:00 AM MST
Scattered 20,000'
6sm
320° 6kts
VFR
11:00 AM MST - 8:00 PM MST
Showers in vicinity
Overcast 7,000'
Broken 5,000'
Few 3,000'
6sm
150° 10kts
MVFR
8:00 PM MST - 5:00 AM MST
Light Snow and Mist
Overcast 3,000'
Broken 2,000'
Scattered 1,500'
6sm
300° 6kts
TAF KSUN 040520Z 0406/0512 32006KT P6SM SCT200
   FM041800 15010KT P6SM VCSH FEW030 BKN050 OVC070
   FM050300 30006KT 6SM -SN BR SCT015 BKN020 OVC030 AMD LTD TO CLD VIS AND WIND TIL 041400
KSUN
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
0015Z
!SUN 03/019 SUN COM REMOTE COM OUTLET 122.4 U/S 2603040015-2604242000EST
1/15/26
2033Z
!SUN 01/068 SUN OBST TREE (ASN UNKNOWN) 433050N1141819W (0.095NM NNW APCH END RWY 13)
UNKNOWN (100FT AGL) NOT LGTD 2601152033-PERM
FDC
3/17/25
1442Z
!FDC 5/3801 SUN IAP FRIEDMAN MEML, HAILEY, ID.
RNAV (GPS) X RWY 31, ORIG...
RNAV (GPS) Y RWY 31, ORIG...
DISREGARD PLANVIEW NOTE: NO PT FOR ARRIVALS AT MENIN ON V500 WESTBOUND, V231 NORTHBOUND.
CHANGE PLANVIEW NOTE TO READ: PROCEDURE NA VIA V500 WESTBOUND, V231 NORTHBOUND WITHOUT HOLDING AT MENIN. ATC CLEARANCE REQUIRED.
2503171442-2703170500EST
Yes
0700-2300
CITY OF HAILEY
BLANE CO - BOX 400
HAILEY, ID 83333
Phone: 208-788-4221
TIM BURKE
1616 AIRPORT CIR
HAILEY, ID 83333
Phone: 208-720-5186
BOISE FSS (BOI)
Toll Free: 1-800-WX-BRIEF
SUN
--
WHEN ATCT CLSD ACTVT HIRL RWY 13/31 - CTAF. PAPI RWY 31 OPR CONSLY.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
High Pressure
Air Freight
Air Ambulance
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 13/31

7550 ft. x 100 ft.
ASPH
Good
GRVD
HIGH

68,000lbs
97,000lbs
162,000lbs
--
  Runway 13 Runway 31
True Heading 145°325°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD FAIR
Latitude 43° 30' 44"N 43° 29' 43"N
Longitude 114° 18' 14"W 114° 17' 14"W
Elevation 5,320' 5,262'
Threshold Crossing Height -- 55 ft. AGL
Visual Glide Path Angle -- 3.5°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-11APCH RWY 31 ALG E SIDE OF VALLEY; DEP RWY 13 ALG W SIDE OF VALLEY; WITH LNDG LGT ON; OPDT.
A110-12LOCKED BRAKE TURNS NA.
A110-18SFC COND UNMNT; ARFF UNAVBL 2300-0700.
A110-19ACR LTD PRKG AVBL.
A110-20RWY LTD TO 95000 LB OR LESS MAX TKOF WT. DUAL WHEEL WITH MAX TKOF WT GTR THAN 95000 LB 48 HR PPR - AMGR.
A110-23APU OPS LTD TO 30 MI.
A110-24TWY B5 & B6 RSTD TO WINGSPAN 79 FT OR LESS; DESIGN GROUP II ONLY.
A110-25GA TSNT LESS THAN 40 FT WINGSPAN PRKG ON SECT 2 APN BLUE TIE DOWN SPOTS. TSNT PRKG - 208-788-9511.
A110-26COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -13C.
A110-27TSNT HEL OPS - 208-720-5186. ARPT OPS - 208-788-9511 FOR PRKG. DEDICATED HEL PRKG PADS NA.
A110-28FOR CD IF UNA TO CTC ON FSS FREQ, CTC SALT LAKE ARTCC AT 801-320-2568.
A110-29WHEN ATCT CLSD ARR ANNC ON 125.6 AT 20, 15, 10, 5 MI OUT & SHORT FNA. PAEW ON RWY.
A110-30FUEL SVC AFT DUSK PPR - 208-788-9511.
A110-31PPR FOR WINGSPAN GTR THAN 100 FT.
A110-32ALL SFCS AVBL TO ACRS.
A110-33FLY QUIET VOLUNTARY CURFEW 2300-0700L. DEPART SOUTH. ARRIVE NORTH. CTC AMGR 208-720-5186 FOR NOISE ABATEMENT PROCS.
A110-4MTUS TRRN; NIGHT USE & WHEN WX MARGINAL NOT RCMDD. BIRD INVOF RWY.
A13208-788-5500.
A24LNDG FEE GTR THAN 6000 LB.
A26PPR FOR SKED ACR OPS 2300-0600 - AMGR.
A26-CAVBL 0700-2300.
A30-13/31WHEN ATCT CLSD LND RWY 31; TKOF RWY 13; OPDT IN PAT. ATCT 275 FT E OF CNTRLN.
A39-13/31PCR VALUE: 260/F/C/X/T
A57-13ROAD 65:1 TO DTHR; PRKD ACFT 0-225 FT L 0:1 TO DTHR.
A58-13+17 FT ROAD 450 FT FM THR 250 FT L; +15 FT PIPES 500 FT FM THR 180 FT R; +7 FT FENCE 550 FT FM THR 180 FT L; +17 FT ROAD 550 FT FM THR 190 FT L.
A81-APTWHEN ATCT CLSD ACTVT HIRL RWY 13/31 - CTAF. PAPI RWY 31 OPR CONSLY.
E111ESTABD PRIOR TO 1959.
FRIEDMAN MEML (ICAO: KSUN, IATA: SUN) is a public airport located in HAILEY, ID, US.
