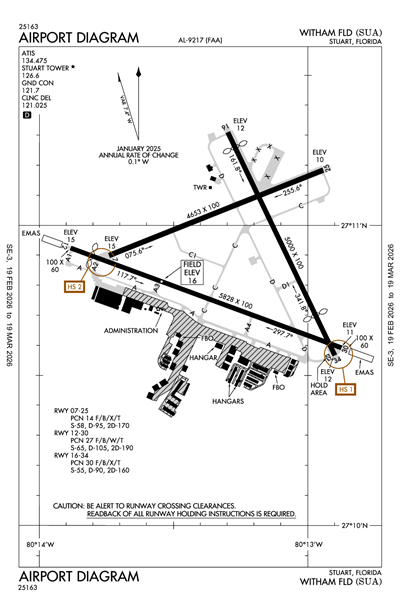

WITHAM FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSUA
WITHAM FLD
PublicPUB

1 miles SE of STUART, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
27° 10' 54"N 80° 13' 17"W
16' MSL
1016' MSL
07W
JET A, 100LL
MIAMI (MIA)
MIAMI
MIAMI (ZMA)
4/17/25-5/15/25
KSUA VFR
5:47 PM EST
Scattered 3,700'
10sm
75°F
70°F
30.10"Hg
070° 7kts
METAR KSUA 082247Z 07007KT 10SM SCT037 24/21 A3010
+ Add Your Business

KSUA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 134.475
AWOS-3 134.475
772-692-7399

Clearance

CD/P 121.025

Ground

GND/P 121.7

Tower

LCL/P 126.6

Emergency

EMERG 121.5

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Arrival Procedures

Instrument Approach

Hotspot

Terminal Area Forecast

KSUA
Thu, 1/8 12:23 PM EST
Thu, 1/8 1:00 PM EST - Fri, 1/9 1:00 PM EST
VFR
1:00 PM EST - 7:00 PM EST
Broken 5,000'
Scattered 3,000'
6sm
100° 9kts
VFR
7:00 PM EST - 1:00 AM EST
Scattered 25,000'
Scattered 5,000'
6sm
120° 6kts
VFR
1:00 AM EST - 10:00 AM EST
Showers in vicinity
Scattered 5,000'
Scattered 3,000'
6sm
VRB° 3kts
VFR
10:00 AM EST - 1:00 PM EST
Scattered 5,000'
Few 2,500'
6sm
130° 9kts
TAF KSUA 081723Z 0818/0918 10009KT P6SM SCT030 BKN050
   FM090000 12006KT P6SM SCT050 SCT250
   FM090600 VRB03KT P6SM VCSH SCT030 SCT050
   FM091500 13009KT P6SM FEW025 SCT050 AMD NOT SKED
KSUA
EffectiveExpiresCategoryNOTAM
Domestic
1/5/26
1525Z
1/9/26
0500Z
!MIA 01/062 SUA TWY A BTN TWY A2 AND TWY C WIP IRREGULAR SFC ADJ SOUTH SIDE LGTD AND BARRICADED 2601051525-2601090500
12/27/25
1647Z
1/27/26
0500Z
!MIA 12/403 SUA SVC PCL ALL U/S 2512271647-2601270500
12/22/25
0327Z
1/21/26
0130Z
!MIA 12/355 SUA OBST TOWER LGT (ASR 1059846) 270235.00N0801058.00W (8.4NM SSE SUA) 272.3FT (259.2FT AGL) U/S 2512220327-2601210130
12/5/25
1039Z
3/5/26
2359Z
!MIA 12/077 SUA OBST TOWER LGT (ASR 1209716) 270939.10N0801813.10W (4.6NM WSW SUA) 482.3FT (464.9FT AGL) U/S 2512051039-2603052359
11/29/25
1555Z
2/27/26
0500Z
!MIA 11/489 SUA OBST TOWER LGT (ASR 1058005) 271639.40N0802131.30W (9.2NM NW SUA) 232.0FT (211.0FT AGL) U/S 2511291555-2602270500
10/15/25
1315Z
1/14/26
0400Z
!MIA 10/237 SUA OBST TOWER LGT (ASR 1030234) 270151.40N0801508.50W (9.2NM S SUA) 540.0FT (521.0FT AGL) U/S 2510151315-2601140400
FDC
1/27/25
1454Z
!FDC 5/7045 SUA IAP WITHAM FLD, STUART, FL.
RNAV (GPS) RWY 30, AMDT 1B...
LPV DA NA ALL CATS.
2501271454-2701271454EST
10/21/24
1428Z
!FDC 4/1629 SUA IAP WITHAM FLD, STUART, FL.
RNAV (GPS) RWY 12, AMDT 2...
LPV DA 271/HAT 255 ALL CATS, VIS 7/8 ALL CATS.
2410211428-2610211428EST
Yes
0600-2200
MARTIN COUNTY
2401 SE MONTEREY RD
STUART, FL 34996
Phone: 772-221-2374
ANDREW MCBEAN
2011 SOUTHEAST AIRPORT ROAD
STUART, FL 34996
Phone: 772-221-1458
MIAMI FSS (MIA)
Toll Free: 1-800-WX-BRIEF
MIA
--
AFTER 2200 ACTVT REIL RWY 12 & 30; MIRL RWY 07/25 & 12/30- CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 07/25

4653 ft. x 100 ft.
ASPH
Fair
GRVD
MED
14 /F/B/X/T
58,000lbs
95,000lbs
170,000lbs
--
  Runway 07 Runway 25
True Heading 68°248°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 27° 10' 54"N 27° 11' 11"N
Longitude 80° 13' 44"W 80° 12' 57"W
Elevation 15' 10'
Threshold Crossing Height 42 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

5828 ft. x 100 ft.
ASPH
Good
GRVD
MED
27 /F/B/W/T
65,000lbs
105,000lbs
190,000lbs
--
  Runway 12 Runway 30
True Heading 110°290°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 27° 10' 56"N 27° 10' 36"N
Longitude 80° 13' 53"W 80° 12' 53"W
Elevation 15' 11'
Threshold Crossing Height 35 ft. AGL 28 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 16/34

5000 ft. x 100 ft.
ASPH
Good
GRVD

30 /F/B/X/T
55,000lbs
90,000lbs
160,000lbs
--
  Runway 16 Runway 34
True Heading 154°334°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 27° 11' 19"N 27° 10' 34"N
Longitude 80° 13' 18"W 80° 12' 54"W
Elevation 12' 12'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10ACFT WITH WING SPANS EXCEEDING 79 FT ARE PROHIBITED FROM OPERATING ON TWY 'A' BETWEEN TWY 'C' AND APCH END RY 12 WHEN ACFT WITH WING SPAN EXCEEDING 79 FT IS ON APCH TO, LNDG, OR TAKING OFF RY 12/30.
A110-11BIRDS ON & INVOF ARPT.
A110-12PAPI RESTRICTED TO 7.5 NM WEST OF RWY 25 DUE TO 1548' MSL TOWERS WITHIN 10 DEG OF EXT CNTLN.
A110-13WHEN ATCT CLSD, FOR CD CTC PALM BEACH APCH AT 561-684-9047.
A110-5NOISE SENSITIVE AREAS ALL QUADRANTS. NOISE ABATEMENT PROCEDURES IN EFFECT CALL AMGR 772-221-2374.
A110-6TOUCH & GO OPNS PERMITTED MON-SAT (EXCP NEW YEARS, CHRISTMAS & THANKSGIVING) 0900 UNTIL 2 HRS PAST SS AND ARE LIMITED TO 3 OPNS PER PILOT PER DAY.
A110-7STOP & GO OPNS AND INTXN TKOFS STRONGLY DISCOURAGED AT ALL TIMES.
A110-8STAGE 1 & 2 JET OPNS STRONGLY DISCOURAGED 2300-0800.
A110-9PPR FOR ACFT EXCEEDING RY WT CPTY.
A30-12/30ARRESTING GEAR/SYSTEM: ENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 502 FT IN LENGTH BY 109 FT IN WIDTH AT THE DEPARTURE END OF RWY 12. ARRESTING GEAR/SYSTEM: ENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 413 FT IN LENGTH BY 109 FT IN WIDTH AT THE DEPARTURE END OF RWY 30.
A57-12RWY 12 APCH SLP 34:1 TO DSPLCD THLD.
A57-16RWY 16 APCH SLP 30:1 TO DSPLCD THLD.
A57-30RWY 30 APCH SLP 34:1 TO AER.
A57-34RWY 34 APCH RATIO 35:1 TO DSPLCD THLD.
A58-34RWY 34 HAS 22 FT TREES AND 8 FT FENCE 200 FT FROM THE RWY END AND 150 FT LEFT.
A81-APTAFTER 2200 ACTVT REIL RWY 12 & 30; MIRL RWY 07/25 & 12/30- CTAF.
E111EXISTED PRIOR TO 1959.
E80US CUSTOMS USER FEE ARPT.
WITHAM FLD (ICAO: KSUA, IATA: SUA) is a public airport located in STUART, FL.
