KSTL
ST LOUIS LAMBERT INTL
PublicPUB

10 miles NW of ST LOUIS, MO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 44' 55"N 90° 22' 12"W
617' MSL
1617' MSL
01W
JET A, 100LL
SAINT LOUIS (STL)
ST LOUIS
KANSAS CITY (ZKC)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KSTL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Terminal Area Forecast

No TAF is available for this location.
KSTL
Domestic
1/16/251300Z !STL 01/399 STL NAV ILS RWY 29 U/S 2501161300-2501161900
1/16/251300Z !STL 01/398 STL NAV ILS RWY 11 U/S 2501161300-2501161900
1/15/251300Z !STL 01/646 STL NAV ILS RWY 30R UNUSABLE DA TO TDZ 2501151300-2501152100
1/15/251300Z !STL 01/645 STL NAV ILS RWY 12L U/S 2501151300-2501152100
1/14/252317Z !STL 01/650 STL RWY 24 FICON 10 PCT ICE, DRY, DRY OBS AT 2501142317. 2501142317-2501152317
1/14/251351Z !STL 01/640 STL TWY U BTN RWY 11/29 AND TWY A CLSD 2501141351-2501312359
1/14/250927Z !STL 01/636 STL RWY 24 PAPI U/S 2501140927-2501172000EST
1/14/250907Z !STL 01/635 STL RWY 30L PAPI U/S 2501140907-2501222000EST
1/14/250810Z !STL 01/633 STL TWY L EDGE LGT BTN RWY 12L/30R AND TWY E NOT STD 2501140810-2501312359
1/14/250805Z !STL 01/632 STL TWY N EDGE LGT BTN TWY N RUNUP PAD AND APCH END RWY 24 NOT STD 2501140805-2501312359
1/13/252046Z !STL 01/627 STL TWY A BTN TWY A3 AND TWY A5 CLSD 2501132046-2501312359
1/13/251920Z !STL 01/623 STL OBST CRANE (ASN 2024-ACE-4366-OE) 384617N0902320W (1.6NM NNW STL) 673FT (123FT AGL) FLAGGED AND LGTD 2501131920-2501312359
1/13/251336Z !STL 01/606 STL TWY ALL SIGNS NOT STD 2501131336-2502282359
1/13/251335Z !STL 01/605 STL TWY ALL EDGE LGT NOT STD 2501131335-2502282359
1/13/251328Z !STL 01/602 STL TWY A4 BTN RWY 11/29 AND TWY A CLSD 2501131328-2501162359
1/12/250912Z !STL 01/589 STL TWY Q EDGE LGT BTN RWY 12R/30L AND TWY E NOT STD 2501120912-2501312359
1/12/250803Z !STL 01/587 STL RWY 12L/30R REDL OBSC 2501120803-2501312359
1/11/250706Z !STL 01/535 STL TWY U HLDG PSN SIGN WEST SIDE FOR RWY 11/29 NOT STD 2501110706-2501312359
1/9/250243Z !STL 01/385 STL TWY F HLDG PSN SIGN SOUTHEAST SIDE FOR RWY 06/24 NOT STD 2501090243-2501312359
1/7/250744Z !STL 01/267 STL TWY C HLDG PSN SIGN SOUTHEAST SIDE FOR RWY 06/24 OBSC 2501070744-2501312359
1/7/250742Z !STL 01/265 STL TWY C7 LOCATION SIGN EAST SIDE OBSC 2501070742-2501312359
1/7/250630Z !STL 01/254 STL RWY 12L/30R RCLL NOT STD 2501070630-2501312359
1/7/250305Z !STL 01/237 STL TWY H HLDG PSN SIGN SOUTHWEST SIDE FOR RWY 12R/30L OBSC 2501070305-2501312359
12/27/240106Z !STL 12/399 STL TWY F DIRECTION MARKING FOR RWY 12L APP END NOT STD 2412270106-2501312359
12/27/240038Z !STL 12/394 STL TWY T CL MARKINGS BTN TWY B AND TWY C NOT STD 2412270038-2501312359
12/27/240037Z !STL 12/392 STL TWY B CL MARKINGS BTN RWY 06/24 AND TWY T OBSC 2412270037-2501312359
12/27/240036Z !STL 12/391 STL TWY D BTN TWY C5 AND TWY C4 SOUTH EDGE IRREGULAR SFC 2412270036-2501312359
12/27/240036Z !STL 12/390 STL TWY A CL MARKINGS BTN TWY A1 AND TWY A2 NOT STD 2412270036-2501312359
12/27/240036Z !STL 12/389 STL TWY L CL MARKINGS BTN RWY 12L/30R AND TWY E NOT STD 2412270036-2501312359
12/27/240035Z !STL 12/388 STL TWY H HLDG PSN MARKINGS BTN TWY D AND RWY 12R/30L NOT STD 2412270035-2501312359
12/27/240035Z !STL 12/387 STL TWY L EDGE MARKINGS BTN TWY E AND RWY 12R/30L NOT STD 2412270035-2501312359
12/27/240035Z !STL 12/386 STL TWY D BTN TWY D1 AND TWY C5 SOUTH EDGE IRREGULAR SFC 2412270035-2501312359
12/27/240034Z !STL 12/385 STL TWY V2 BTN JET CENTER RAMP AND TWY V CLSD 2412270034-2502282359
12/27/240033Z !STL 12/384 STL TWY Q BTN TWY E AND RWY 12R/30L EAST SIDE IRREGULAR SFC 2412270033-2501312359
12/27/240033Z !STL 12/383 STL TWY H EDGE MARKINGS AT RWY 12L/30R SOUTHEAST SIDE NOT STD 2412270033-2501312359
12/27/240032Z !STL 12/382 STL TWY D EDGE MARKINGS BTN TWY H AND TWY G NOT STD 2412270032-2501312359
12/27/240032Z !STL 12/381 STL TWY S EDGE MARKINGS BTN APCH END RWY 06 AND TWY B NOT STD 2412270032-2501312359
12/27/240032Z !STL 12/380 STL TWY S SFC PAINTED HLDG PSN SIGNS BTN APCH END RWY 12L AND TWY F NOT STD 2412270032-2501312359
12/27/240031Z !STL 12/379 STL TWY C CL MARKINGS BTN RWY 06/24 AND CHARLIE PAD NOT STD 2412270031-2501312359
12/27/240031Z !STL 12/378 STL TWY A CL MARKINGS BTN TWY U AND TWY T NOT STD 2412270031-2501312359
12/27/240030Z !STL 12/377 STL TWY S HLDG PSN MARKINGS BTN APCH END RWY 12L AND TWY F NOT STD 2412270030-2501312359
12/27/240030Z !STL 12/376 STL TWY N EDGE MARKINGS BTN APCH END RWY 24 AND TWY N RUNUP PAD NOT STD 2412270030-2501312359
12/27/240030Z !STL 12/375 STL TWY L EDGE MARKINGS BTN TWY E AND RWY 12R/30L NOT STD 2412270030-2501312359
12/27/240029Z !STL 12/374 STL TWY E SHOULDER MARKINGS BTN TWY S AND APCH END RWY 30R NORTH SIDE NOT STD 2412270029-2501312359
12/27/240028Z !STL 12/373 STL OBST RIG (ASN UNKNOWN) 384531N0902118W (0.85NM NW STL)
UNKNOWN (569FT AGL) FLAGGED AND LGTD 2412270028-2501312359
12/27/240027Z !STL 12/372 STL OBST CRANE (ASN 2023-ACE-4457-NRA) 384458N0902041W (1.2NM E STL) 836FT (250FT AGL) FLAGGED AND LGTD 2412270027-2501312359
12/27/240027Z !STL 12/371 STL OBST CRANE (ASN 2024-ACE-1147-NRA) 384513N0902303W (0.7NM WNW STL) 590FT (32FT AGL) FLAGGED AND LGTD 2412270027-2501312359
12/27/240025Z !STL 12/398 STL OBST CRANE (ASN 2022-ACE-8293-OE) 384511N902101W (0.4NM NNE STL) 675FT (115FT AGL) FLAGGED AND LGTD 2412270025-2501312359
12/27/240025Z !STL 12/370 STL OBST CRANE (ASN 2023-ACE-4474-NRA) 384521N0902145W (0.6NM NE STL) 780FT (250FT AGL) FLAGGED AND LGTD 2412270025-2501312359
12/27/240024Z !STL 12/397 STL OBST CRANE (ASN 2022-ACE-8293-OE) 384511N902101W (0.4NM NNE STL) 675FT (115FT AGL) FLAGGED AND LGTD 2412270024-2501312359
12/27/240024Z !STL 12/396 STL OBST CRANE (ASN 2022-ACE-8293-OE) 384511N902101W (0.4NM NNE STL) 675FT (115FT AGL) FLAGGED AND LGTD 2412270024-2501312359
12/27/240024Z !STL 12/369 STL OBST RIG (ASN 2021-ACE-4246-NRA) 384460N0902111W (0.8NM E STL) 806FT (250FT AGL) FLAGGED AND LGTD 2412270024-2501312359
12/27/240024Z !STL 12/368 STL OBST CRANE (ASN 2023-ACE-4475-NRA) 384518N0902206W (0.4NM NNE STL) 780FT (250FT AGL) FLAGGED AND LGTD 2412270024-2501312359
12/27/240023Z !STL 12/395 STL APRON M PAD CLSD 2412270023-2501312359
12/27/240023Z !STL 12/367 STL OBST CRANE (ASN 2024-ACE-4804-NRA) 384517N0902116W (0.8NM ENE STL) 630FT (80FT AGL) FLAGGED AND LGTD 2412270023-2501312359
12/27/240022Z !STL 12/366 STL APRON TXL C N EDGE IRREGULAR SFC 2412270022-2501312359
12/27/240022Z !STL 12/365 STL APRON TXL C SHOULDER MARKINGS N SIDE NOT STD 2412270022-2501312359
12/27/240020Z !STL 12/364 STL RWY 30L BAK-14 ARST SYSTEM U/S 2412270020-2501312359
12/27/240020Z !STL 12/363 STL RWY 11/29 SAFETY AREA N BTN TWY A5 AND TWY A6 NOT STD
2412270020-2501312359
12/27/240020Z !STL 12/362 STL RWY 12R BAK-14 ARST SYSTEM U/S 2412270020-2501312359
12/27/240019Z !STL 12/361 STL RWY 12R/30L SAFETY AREA NOT STD N SIDE 2412270019-2501312359
12/27/240019Z !STL 12/360 STL RWY 12R/30L SAFETY AREA NOT STD S SIDE 2412270019-2501312359
12/27/240018Z !STL 12/359 STL RWY 06/24 EDGE MARKINGS NW SIDE NOT STD 2412270018-2501312359
12/27/240018Z !STL 12/358 STL RWY 12L/30R CL MARKINGS NOT STD 2412270018-2501312359
12/27/240018Z !STL 12/357 STL RWY 11 LEAD OFF CL MARKINGS AT TWY A2 NOT STD 2412270018-2501312359
12/18/242043Z !STL 12/295 STL RWY 12L LEAD OFF CL MARKINGS AT TWY H NOT STD 2412182043-2504302359
12/18/242042Z !STL 12/294 STL RWY 30R LEAD OFF CL MARKINGS AT TWY K NOT STD 2412182042-2504302359
12/4/242144Z !STL 12/104 STL TWY E RUNUP PAD WIP HVY EQPT SOUTHEAST EDGE LGTD AND BARRICADED 2412042144-2503312359
7/29/241301Z !STL 07/540 STL NAV ILS RWY 06 GP U/S 2407291301-2507162000EST
FDC
11/19/241521Z !FDC 4/5959 STL IAP ST LOUIS LAMBERT INTL, ST LOUIS, MO.
RNAV (GPS) RWY 24, AMDT 1C...
LNAV/VNAV DA 1015/481 ALL CATS, VIS 1 1/8 ALL CATS.
2411191521-2611191521EST
10/22/241841Z !FDC 4/2365 STL IAP ST LOUIS LAMBERT INTL, ST LOUIS, MO.
ILS OR LOC RWY 11, AMDT 1...
ILS RWY 11 (CAT II-III), AMDT 1...
MISSED APPROACH: CLIMB TO 1060 THEN CLIMBING RIGHT TURN TO 3000 ON HEADING 130 AND ENL R-277 TO MOODS INT/ENL 42.16 DME AND HOLD,
FTZ VORTAC OUT OF SERVICE. 2410221841-2506031841EST
10/22/241841Z !FDC 4/2364 STL IAP ST LOUIS LAMBERT INTL, ST LOUIS, MO.
ILS OR LOC RWY 12R, AMDT 23...
RADAR OR DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
FTZ VORTAC OUT OF SERVICE. 2410221841-2506031841EST
10/22/241841Z !FDC 4/2363 STL IAP ST LOUIS LAMBERT INTL, ST LOUIS, MO.
ILS OR LOC RWY 24, AMDT 47...
MISSED APPROACH: CLIMB TO 1100 THEN CLIMBING LEFT TURN TO 3000 ON HEADING 200 AND STL R-170 TO MERAM INT AND HOLD,
FTZ VORTAC OUT OF SERVICE. 2410221841-2506031841EST
9/25/241921Z !FDC 4/0513 STL IAP ST LOUIS LAMBERT INTL,
ST LOUIS, MO.
RNAV (RNP) Z RWY 12R, ORIG-C...
PBN REQUIREMENTS NOTE: RNP AR APCH - GPS. AUTHORIZATION REQUIRED
FROM HRBEE OR RRIPP: RF.
EQUIPMENT REQUIREMENTS NOTE: RADAR REQUIRED FOR PROCEDURE ENTRY.
CHART PROFILE NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI
ANGLE 3.00/TCH 71.2).
CHANGE NOTE TO READ: FOR UNCOMPENSATED BARO-VNAV SYSTEMS, PROCEDURE
NA BELOW -16C OR ABOVE 54C.
CHANGE NOTE TO READ: FOR INOPERATIVE ALS, INCREASE RNP 0.30 ALL
CATS VISIBILITY TO 1 3/8 SM.
DELETE NOTE: GPS REQUIRED.
AIRPORT ELEVATION 617.
THIS IS RNAV (RNP) Z RWY 12R, ORIG-D. 2409251921-PERM
9/25/241921Z !FDC 4/0512 STL IAP ST LOUIS LAMBERT INTL,
ST LOUIS, MO.
ILS OR LOC RWY 30L, AMDT 13...
S-LOC 30L CAT A/B VISIBILITY RVR 4000.
CHART NOTE: LOC ONLY: RWY 30L HELICOPTER VISIBILITY REDUCTION BELOW
RVR 4000 NOT AUTHORIZED.
CHANGE NOTE TO READ: FOR INOPERATIVE ALS, INCREASE S-ILS 30L CAT E
VISIBILITY TO RVR 4000 AND S-LOC 30L CAT A/B VISIBILITY TO RVR 5500
AND CAT C/D/E VISIBILITY TO 1 3/8 SM.
AIRPORT ELEVATION 617.
THIS IS ILS OR LOC RWY 30L, AMDT 13A. 2409251921-PERM
9/25/241921Z !FDC 4/0511 STL IAP ST LOUIS LAMBERT INTL,
ST LOUIS, MO.
ILS OR LOC RWY 12R, AMDT 23...
CHART PROFILE NOTE: VGSI AND ILS GLIDEPATH NOT COINCIDENT (VGSI
ANGLE 3.00/TCH 71.2).
CHANGE NOTE TO READ: LOC ONLY: RWY 12R HELICOPTER VISIBILITY
REDUCTION BELOW RVR 4000 NOT AUTHORIZED.
DELETE PROFILE NOTE: *LOC ONLY. DELETE ASTERISK FROM VDP AT 3.04
DME.
AIRPORT ELEVATION 617.
THIS IS ILS OR LOC RWY 12R, AMDT 23A. 2409251921-PERM
9/25/241921Z !FDC 4/0510 STL IAP ST LOUIS LAMBERT INTL,
ST LOUIS, MO.
RNAV (RNP) Z RWY 30L, AMDT 1A...
DELETE RNP 0.15 DA LINE OF MINIMUMS.
PBN REQUIREMENTS NOTE: RNP AR APCH-GPS. AUTHORIZATION REQUIRED.
FROM FRDKO, JYAAR, KAACE, OR TEEBE, MIN RNP 0.30. FROM PEJAA OR
JYAAR: RF.
CHANGE NOTE TO READ: FOR INOPERATIVE ALS, INCREASE RNP 0.30 ALL
CATS VISIBILITY TO RVR 6000.
AIRPORT ELEVATION 617.
THIS IS RNAV (RNP) Z RWY 30L, AMDT 1B. 2409251921-PERM
9/5/240901Z !FDC 4/0261 STL SID ST LOUIS LAMBERT INTL, ST LOUIS, MO.
GATEWAY ONE DEPARTURE...
OZARK EIGHT DEPARTURE...
PLESS FIVE DEPARTURE...
CHANGE TAKEOFF MINIMUMS TO READ: RWY 6, 12L, 12R, 29: STANDARD. RWY 11: 300-1 OR STANDARD WITH MINIMUM CLIMB OF 365 FT/NM TO 900. RWY 24: 300-1 3/8 OR STANDARD WITH MINIMUM CLIMB OF 205 FT/NM TO 800 OR ALTERNATIVELY, WITH STANDARD TAKEOFF MINIMUMS AND A NORMAL 200 FT/NM CLIMB GRADIENT, TAKEOFF MUST OCCUR NO LATER THAN 1100 FEET PRIOR TO DER. RWY 30L: 300-1 1/4 OR STANDARD WITH MINIMUM CLIMB OF 250 FT/NM TO 800 OR ALTERNATIVELY, WITH STANDARD TAKEOFF MINIMUMS AND A NORMAL 200 FT/NM CLIMB GRADIENT, TAKEOFF MUST OCCUR NO LATER THAN 2000 FEET PRIOR TO DER. RWY 30R: 300-1 3/8 OR STANDARD WITH MINIMUM CLIMB OF 230 FT/NM TO 800 OR ALTERNATIVELY, WITH STANDARD TAKEOFF MINIMUMS AND A NORMAL 200 FT/NM CLIMB GRADIENT, TAKEOFF MUST OCCUR NO LATER THAN 1800 FEET PRIOR TO DER. 2409050901-2609050900EST
8/5/241650Z !FDC 4/3253 STL SID ST LOUIS LAMBERT INTL, ST LOUIS, MO.
LINDBERGH EIGHT DEPARTURE...
TAKEOFF MINIMUMS: RWY 24, 300-1 3/8 OR STANDARD WITH MINIMUM CLIMB OF 205 FT/NM TO 800.
TAKEOFF MINIMUMS: RWY 30L, 300-1 1/4 OR STANDARD WITH MINIMUM CLIMB OF 250 FT/NM TO 800.
ALL OTHER DATA REMAINS AS PUBLISHED. 2408051650-2608051645EST
2/1/241323Z !FDC 4/0254 STL IAP ST LOUIS LAMBERT INTL, ST LOUIS, MO.
RNAV (GPS) RWY 6, AMDT 2...
LNAV/VNAV DA NA ALL CATS.
NOTE: RWY 6 HELICOPTER VISIBILITY REDUCTION BELOW RVR 4000 NOT AUTHORIZED.
2402011323-2602011323EST
9/1/231613Z !FDC 3/4825 STL IAP ST LOUIS LAMBERT INTL, ST LOUIS, MO.
RNAV (GPS) Y RWY 12R, AMDT 1D...
LNAV MDA 1020/HAT 480.
2309011613-2509011613EST
7/5/231202Z !FDC 3/1141 STL IAP ST LOUIS LAMBERT INTL, ST LOUIS, MO.
RNAV (GPS) Y RWY 30R, AMDT 2A...
LNAV/VNAV DA 914/HAT 309 ALL CATS; LNAV MDA 1020/HAT 415 ALL CATS.
2307051202-2507051202EST
7/5/231154Z !FDC 3/1136 STL IAP ST LOUIS LAMBERT INTL, ST LOUIS, MO.
RNAV (RNP) Z RWY 11, ORIG-B...
RNP 0.30 DA 917/HAT 299 ALL CATS, VISIBILITY ALL CATS 3/4.
2307051154-2507051154EST
6/21/231320Z !FDC 3/4116 STL IAP ST LOUIS LAMBERT INTL, ST LOUIS, MO.
RNAV (GPS) Y RWY 30L, AMDT 2...
LNAV/VNAV VIS ALL CATS RVR 4000.
LNAV VIS CATS A/B RVR 4000.
CHANGE NOTE TO READ: FOR INOP ALS, INCREASE LPV CAT E VISIBILITY TO RVR 4000, LNAV/VNAV ALL CATS VISIBILITY TO RVR 6000, LNAV CATS A/B VISIBILITY TO RVR 5500, AND LNAV CATS C/D/E VISIBILITY TO 1 3/8 SM.
RWY 30L HELICOPTER VISIBILITY REDUCTION BELOW RVR 4000 NOT AUTHORIZED.
2306211320-2506211320EST
6/21/231320Z !FDC 3/4115 STL IAP ST LOUIS LAMBERT INTL, ST LOUIS, MO.
ILS OR LOC RWY 6, AMDT 3...
S-ILS 6 DA NA ALL CATS.
CHANGE NOTE TO READ: FOR INOP ALS, INCREASE S-LOC 6 CATS A/B VISIBILITY TO RVR 5000 AND CATS C/D/E VISIBILITY TO 1 3/8 SM.
RWY 6 HELICOPTER VISIBILITY REDUCTION BELOW RVR 4000 NOT AUTHORIZED.
2306211320-2506211320EST
6/21/231320Z !FDC 3/4114 STL IAP U.S. DOD ST LOUIS LAMBERT INTL, ST LOUIS, MO.
TACAN RWY 30L, AMDT 1...
RWY 30L HELICOPTER VISIBILITY REDUCTION BELOW RVR 5000 NOT AUTHORIZED.
DISREGARD ALTERNATE MINIMUMS NA ICON.
ALTERNATE MINIMUMS: STANDARD.
2306211320-2506211320EST
6/21/231320Z !FDC 3/4112 STL IAP U.S. DOD ST LOUIS LAMBERT INTL, ST LOUIS, MO.
TACAN RWY 12R, AMDT 1...
CHANGE NOTE TO READ: RWY 12R HELICOPTER VISIBILITY REDUCTION BELOW RVR 5000 NOT AUTHORIZED.
DISREGARD ALTERNATE MINIMUMS NA ICON.
ALTERNATE MINIMUMS: STANDARD.
2306211320-2506211320EST
6/7/231750Z !FDC 3/7240 STL SID ST LOUIS LAMBERT INTL, ST LOUIS, MO.
ROTRY FIVE DEPARTURE (RNAV)...
BRADFORD TRANSITION: ROTRY TO SKUTR MOCA 2300. SKUTR TO BDF VORTAC MOCA 2500. ALL OTHER DATA REMAINS AS PUBLISHED. 2306071750-2506301750EST
2/27/231729Z !FDC 3/0159 STL IAP ST LOUIS LAMBERT INTL, ST LOUIS, MO.
RNAV (RNP) Z RWY 12L, ORIG-C...
RNP 0.30 DA 1055/HAT 514 ALL CATS.
2302271729-2502271729EST
Yes
ALL
CITY OF ST LOUIS
1200 MARKET STREET
ST LOUIS, MO 63103
Phone: 314-622-4800
MS. RHONDA HAMM-NIEBRUEGGE
BOX 10212
ST LOUIS, MO 63145
Phone: 314-426-8000
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
STL
--
--
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 06/24

7603 ft. x 150 ft.
CONC
Fair
GRVD
HIGH
85 /R/B/W/T
75,000lbs
176,000lbs
280,000lbs
660,000lbs
  Runway 06 Runway 24
True Heading 63°243°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 44' 48"N 38° 45' 22"N
Longitude 90° 22' 52"W 90° 21' 27"W
Elevation 551' 533'
Threshold Crossing Height 51 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR MALS
Centerline Lights
Runway End Identifier Lights

Runway 11/29

9000 ft. x 150 ft.
CONC
Excellent
GRVD
HIGH
85 /R/B/W/T
75,000lbs
200,000lbs
325,000lbs
700,000lbs
  Runway 11 Runway 29
True Heading 122°302°
Traffic Pattern Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 45' 36"N 38° 44' 48"N
Longitude 90° 24' 36"W 90° 22' 59"W
Elevation 617' 555'
Threshold Crossing Height 67 ft. AGL 73 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights ALSF2 ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 12L/30R

9013 ft. x 150 ft.
CONC
Good
GRVD
HIGH
85 /R/B/W/T
75,000lbs
200,000lbs
350,000lbs
760,000lbs
  Runway 12L Runway 30R
True Heading 122°302°
Traffic Pattern Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 45' 06"N 38° 44' 19"N
Longitude 90° 21' 59"W 90° 20' 23"W
Elevation 528' 604'
Threshold Crossing Height 56 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4R
Approach Lights ALSF2 ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights No

Runway 12R/30L

11020 ft. x 150 ft.
CONC
Good
GRVD
HIGH
85 /R/B/W/T
75,000lbs
200,000lbs
350,000lbs
760,000lbs
  Runway 12R Runway 30L
True Heading 122°302°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 45' 14"N 38° 44' 16"N
Longitude 90° 22' 45"W 90° 20' 47"W
Elevation 541' 585'
Threshold Crossing Height 71 ft. AGL 58 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALSR MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No
A110-10WAIVER TO CONDUCT SIMUL APCHS TO PARL RYS SEPARATED BY 1,300 FT IN EFCT.
A110-15WG TIP CLNC WITH GND VEH NOT ADQT ALG N SIDE OF MAIN TRML APN.
A110-37A-GEAR: A-G ARE KEPT IN RECESSED POSN TIL REQ FOR USE. TWR MUST BE NOTIFIED AT LEAST 5 SEC PRIOR TO ENGAGEMENT SO THAT CABLE MAY BE RAISED.
A110-38TWY DELTA OR TAXILANE CHARLIE FM TWY SIERRA TO TWY GOLF, B-747S ARE NOT AUTH TO PASS OR BE PASSED BY B767 OR OTR LRGR ACFT OPRG ON THE PARL TWY/TAXILANE.
A110-39TWY NOVEMBER BTN RWY 24 AND FOXTROT, RSTRD TO ACFT WITH A WINGSPAN OF LESS THAN 79 FT (CRJ-900 OR SMLR) WHEN ACFT ARE PARKED ON THE NOVEMBER PAD. THIS AREA IS RSTRD TO ALL OPNS WHEN ACFT ARE PERFORMING END RUN-UPS IN THE NOVEMBER PAD.
A110-40TWY VICTOR, UNDERLYING THE RWY 12L FNA CRS, IS RSTRD TO ACFT WITH A TAIL HGT OF 25 FT OR LESS (CRJ-700 OR SMLR) WHEN ACFT ARE LNDG ON RWY 12L.
A110-42TWY CHARLIE, EAST OF TWY DELTA ONE TO THE AER 30L, RSTRD TO B-737 OR SMLR ACFT (WINGSPAN LESS THAN 118 FT) WHEN ACFT ARE PARKED ON THE HOTEL PAD.
A110-45TWY CHARLIE, FROM TWY CHARLIE SIX TO TWY DELTA FOUR, RSTRD TO B757-300 SERIES OR SMLR WHEN PASSING BHND ACFT THAT HAVE MADE THE INITIAL 10 FT PUSHBACK.
A110-46TWY ALPHA EAST OF TWY TANGO, TWY SIERRA AND RWY 6/24 SOUTH OF TWY BRAVO, NO ACFT OR VEHICLE OPNS WHEN ARRIVING OR DEPG RWY 11 OR ARRIVING RWY 29.
A110-47TWY LIMA, NORTH OF RWY 12L/30R, ACFT LRGR THAN A GULFSTREAM VI TAX NBND ARE PROHIBITED FM MAKING A RIGHT TURN EBND ON TWY FOXTROT.
A110-48TWY VICTOR 2 IS UNAVBL TO B-767 OR LRGR ACFT (WINGSPAN 118 FT OR GTR).
A110-49TWY VICTOR 2, B-737 (WINGSPAN GTR THAN 79 FT BUT LESS THAN 118 FT) MUST PERFORM JUDGMENTAL OVERSTEERING INSTEAD OF COCKPIT OVR CNTRLN STEERING WHEN TAX.
A110-50TWY KILO 1 IS UNAVBL TO B-767 OR LRGR ACFT (WINGSPAN 118 FT OR GTR).
A110-51TWY ECHO, BTN TWY NOVEMBER AND TWY LIMA RSTRD TO B-767 OR SMLR ACFT (WINGSPAN LESS THAN 171 FT) WHEN ACFT ARE PARKED ON THE ECHO PAD.
A110-52TWY CHARLIE, FM TWY SIERRA TO TWY CHARLIE SEVEN, RSTRD TO B-767 OR SMLR ACFT (156 FT AVBL) WHEN ACFT ARE PARKED IN THE CHARLIE PAD. RSTRN IS FOR TAX ACFT, LRGR ACFT MAY BE TOWED THRU AREA.
A110-53TWY CHARLIE, FROM TWY CHARLIE SEVEN TO TWY CHARLIE SIX, RSTRD TO A B757-300 SERIES OR SMLR.

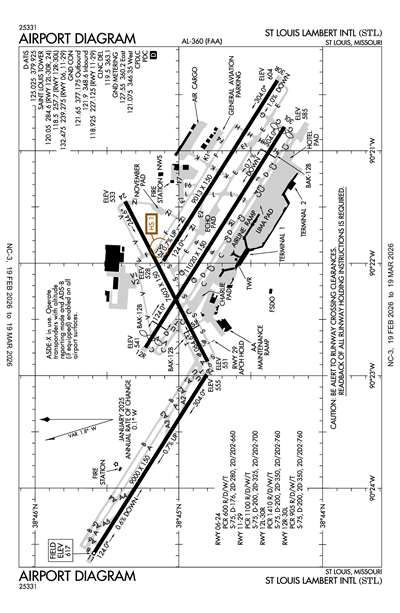

ST LOUIS LAMBERT INTL (ICAO: KSTL, IATA: STL) is a public airport located in ST LOUIS, MO.
