iFlightPlanner



...

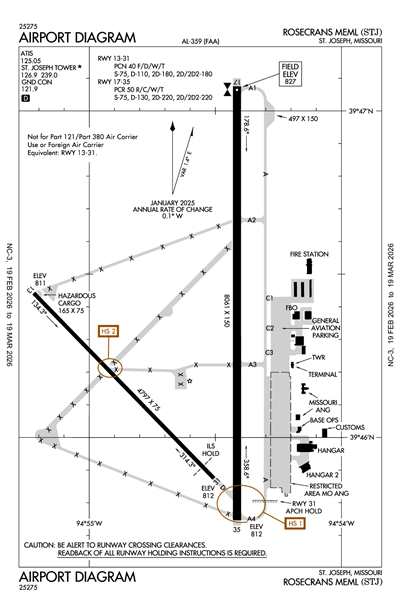

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSTJ
ROSECRANS MEML
PublicPUB

3 miles NW of ST JOSEPH, MO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 46' 19"N 94° 54' 35"W
826' MSL
1826' MSL
04E
JET A, 100LL
COLUMBIA (COU)
KANSAS CITY
KANSAS CITY (ZKC)
4/17/25-5/15/25
KSTJ VFR
1:53 AM CDT
Broken 3,300'
10sm
77°F
64°F
29.75"Hg
180° 9kts
AO2 LTG DSNT SW-NW SLP065 T02500178
KSTJ 030653Z AUTO 18009KT 10SM BKN033 25/18 A2975 RMK AO2 LTG DSNT SW-NW SLP065 T02500178
+ Add Your Business

KSTJ FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 126.9

ATIS

ATIS
 125.05

ASOS

ASOS
816-233-0666
 125.05

Approach/Departure

APCH/P DEP/P
 120.35

Emergency

EMERG
 121.5

Ground

GND/P IC
 121.9

Tower

LCL/P IC
 126.9

Terminal Area Forecast

KSTJ
Tue, 6/3 12:20 AM CDT
Tue, 6/3 1:00 AM CDT - Wed, 6/4 1:00 AM CDT
VFR
1:00 AM CDT - 3:00 AM CDT
Broken 5,000'
6sm
170° 11kts
VFR
3:00 AM CDT - 8:00 AM CDT
Light Thunderstorm and Rain
Broken 3,500'
6sm
180° 10kts
MVFR
8:00 AM CDT - 2:00 PM CDT
Light Showers and Rain
Overcast 1,500'
6sm
180° 11kts
MVFR
2:00 PM CDT - 5:00 PM CDT
Light Thunderstorm and Rain and Mist
Overcast 1,500'
5sm
300° 12kts
MVFR
5:00 PM CDT - 1:00 AM CDT
Light Showers and Rain and Mist
Overcast 1,200'
5sm
350° 11kts
KSTJ 030520Z 0306/0406 17011KT P6SM BKN050
   FM030800 18010KT 6SM -TSRA BKN035CB
   FM031300 18011KT P6SM -SHRA OVC015
   FM031900 30012KT 5SM -TSRA BR OVC015CB
   FM032200 35011KT 5SM -SHRA BR OVC012
KSTJ
Domestic
5/21/250854Z !STJ 05/024 STJ OBST TOWER LGT (ASR 1221379) 395828.10N0950157.30W (13.4NM NNW STJ) 1321.9FT (260.8FT AGL) U/S 2505210854-2508190400
5/19/250832Z !STJ 05/023 STJ OBST TOWER LGT (ASR 1003927) 394405.00N0944727.00W (5.9NM ESE STJ) 1528.9FT (504.9FT AGL) U/S 2505190832-2506192359
5/18/250443Z !STJ 05/022 STJ OBST TOWER LGT (ASR 1248132) 395338.60N0945151.60W (7.6NM NNE STJ) 1285.8FT (254.9FT AGL) U/S 2505180443-2506020343
5/13/250621Z !STJ 05/009 STJ OBST TOWER LGT (ASR 1000389) 394612.00N0944754.00W (5.1NM E STJ) 1527.9FT (507.9FT AGL) U/S 2505130621-2506132359
4/24/250913Z !STJ 04/026 STJ OBST TOWER LGT (ASR 1007080) 400057.00N0950834.00W (18.1NM NW STJ) 1438.6FT (310.7FT AGL) U/S 2504240913-2506080913
4/11/252013Z !STJ 04/018 STJ SVC PAR U/S 2504112013-2506142259
1/8/251438Z !STJ 01/069 STJ RWY 31 PAPI U/S 2501081438-2507082111EST
1/8/251435Z !STJ 01/068 STJ RWY 13 PAPI U/S 2501081435-2507082111EST
10/16/241446Z !STJ 10/022 STJ OBST CONTROL TOWER (ASN 2022-ACE-3719-NRA) 394614N0945409W (3125FT NE APCH END RWY 35) 919FT (101FT AGL) LGTD 2410161446-PERM
4/11/232055Z !STJ 04/030 STJ TWY B BTN RWY 17/35 AND RWY 13/31 CLSD 2304112055-PERM
FDC
5/20/251413Z !FDC 5/3165 STJ IAP ROSECRANS MEML, ST JOSEPH, MO.
RNAV (GPS) RWY 13, ORIG-A...
RNAV (GPS) RWY 31, ORIG-B...
PROCEDURE NA AT NIGHT.
2505201413-2705201413EST
7/8/241100Z !FDC 4/7447 STJ IAP ROSECRANS MEML, ST JOSEPH, MO.
RNAV (GPS) RWY 31, ORIG-B...
LNAV MDA 1320/HAT 508 ALL CATS. VIS CATS C/D 1 3/8.
VDP 1.47 NM TO RW31.
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE KANSAS CITY INTL ALTIMETER SETTING AND INCREASE ALL DA 97 FEET AND INCREASE LPV VISIBILITY 1/8 MILE AND LNAV/VNAV VISIBILITY 3/8 MILE ALL CATS; INCREASE ALL MDA 100 FEET AND LNAV CAT C/D VISIBILITY 3/8 SM AND CIRCLING CAT C 1/2 MILE, CAT D 1/4 MILE.
TEMPORARY CRANES, UP TO 1005 MSL, BEGINNING 2754FT NE OF RWY 31 (2024-ACE-3264 THRU 3268-NRA).
2407081100-2506151923EST
7/8/241100Z !FDC 4/7446 STJ IAP ROSECRANS MEML, ST JOSEPH, MO.
RNAV (GPS) RWY 17, AMDT 1A...
LNAV/VNAV DA 1143/HAT 316 ALL CATS. VIS 7/8 ALL CATS.
TEMPORARY CRANES, UP TO 1005 MSL, BEGINNING 5222FT SOUTH OF RWY 17 (2024-ACE-3264 THRU 3268-NRA).
2407081100-2506151923EST
7/8/241100Z !FDC 4/7445 STJ IAP ROSECRANS MEML, ST JOSEPH, MO.
RNAV (GPS) RWY 35, AMDT 2A...
LPV DA 1064/HAT 249 ALL CATS.
LNAV/VNAV DA 1172/HAT 357 ALL CATS. VIS RVR 5500 ALL CATS.
WHEN LOCAL ALTIMTERE SETTING NOT RECEIVED, USE KANSAS CITY INTL ALTIMETER SETTING AND INCREASE ALL DA 97 FEET AND INCREASE ALL CATS VISIBILITY TO RVR 5500, AND LNAV/VNAV ALL CATS VISIBILITY TO 1 3/8 SM, REST OF NOTE UNCHANGED.
TEMPORARY CRANE, UP TO 1005 MSL, BEGINNING 3192FT NE OF RWY 35 (2024-ACE-3264 THRU 3268-NRA).
2407081100-2506151923EST
7/8/241100Z !FDC 4/7444 STJ IAP ROSECRANS MEML, ST JOSEPH, MO.
ILS OR LOC RWY 35, AMDT 31C...
S-ILS 35 DA 1067/HAT 252 ALL CATS.
TEMPORARY CRANE, UP TO 1005 MSL, BEGINNING 3192FT NE OF RWY 35 (2024-ACE-3264 THRU 3268-NRA).
2407081100-2506151923EST
3/29/242000Z !FDC 4/4230 STJ STAR ROSECRANS MEML. ST JOSEPH, MO BRAYMER EIGHT
ARRIVAL..PROCEDURE AMEND SPINNER TRANSITION, MOCA 2700 SPI
VORTAC TO BQS VOR/DME. ALL OTHER DATA REMAINS AS PUBLISHED.

2403292000-2603190900
Yes
FRI-TUE 0800-1600
WED-THU 0800-0000
FOR SVCS AFT HRS CALL 816-271-3450 OR 816-262-4919.
CITY OF ST JOSEPH
11TH & FREDERICK
ST JOSEPH, MO 64501
Phone: 816-271-4653
JULIUS RICE
100B NW ROSECRANS DR
ST JOSEPH, MO 64503
Phone: 816-271-5374
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
STJ
--
HIRL RWY 17/35 PRESET ON LOW INTST; TO INCR INTST; ACTVT MIRL RWY 13/31 AND REIL RWYS 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
None
Air Freight
Crop Dusting
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 13/31

4797 ft. x 75 ft.
CONC
Excellent
NONE
MED
40 /F/D/W/T
75,000lbs
110,000lbs
180,000lbs
180,000lbs
  Runway 13 Runway 31
True Heading 136°316°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 46' 26"N 39° 45' 53"N
Longitude 94° 55' 13"W 94° 54' 30"W
Elevation 811' 812'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

8061 ft. x 150 ft.
CONC
Fair
GRVD
HIGH

75,000lbs
130,000lbs
220,000lbs
220,000lbs
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 39° 47' 04"N 39° 45' 45"N
Longitude 94° 54' 25"W 94° 54' 25"W
Elevation 826' 812'
Threshold Crossing Height 56 ft. AGL 64 ft. AGL
Visual Glide Path Angle 3° 2.8°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FOR ADVY & POSITION INFO CALL STJ ATCT OR MONTR ATCT FREQ WHEN CLSD.
A110-14CAUTION: AFLD SUR BY LAKES AND MISSOURI RIVER. MODERATE SMALL BIRD ACT MID-NOV THRU MID-MAR AND MAY THRU AUG AND INCREASED BIRD ACTIVITY MID-MAR THRU APR AND SEP THRU MID-NOV. INTS ANG TACTICAL TRNG WITHIN ARPT TFC AREA.
A110-15FUEL - A++ (MIL).
A110-16AIRFIELD CONDITIONS ARE NOT MONITORED BETWEEN THE HOURS OF 1600L-0700L
A110-17OPR 1300-2100Z++ MON-FRI, EXC HOL. PPR RQR FOR FULL STOP ONLY AND VALID +/- 30 MIN. TRAN ALERT SVC AND FAC AVBL 1330-2130Z++ MON-FRI, OT BY PPR APVL ONLY. NO TRAN ALERT MAINT AVBL, NON C130 CREW MUST BE PRESENT FOR REFUEL. LTD FUEL OPR AND EXTREMELY LTD PARK. 139 AW BASE OPS DSN 356-3596/3138/3260. IF NO ANSWER CTC COMD POST DSN 356-3224/3225, C816-236-3224/3225.
A110-18ANG: CREWS ATNDG AATTC COURSES CTC BRADY OPS 349.15.
A110-19ANG: CSTMS 1400-2200++ MON-FRI. AFT HRS ARR MUST BE SKED 48 HRS IN ADVN BY FONE DURG RGLR BUS HRS, CTC AFLD MGMT AT C816-236-3596. INSP NOT ALWAYS AVBL AFT HRS AND WKENDS.
A110-2ARPT CLSD TO ACFT OVR 350000 LBS EXCEPT PPR.
A110-20FOR CD IF UNA TO CTC ON FSS FREQ, CTC KANSAS CITY APCH AT 816-329-2710.
A110-21ANG: MODERATE SMALL BIRD ACT POSSIBLE SR TO SS. BASH II PERIOD (1 OCT-15 APR). MIL ACFT SEE AP/1 ENTRY FOR DETAILED BASH INFO.
A110-3ARFF AVBL BY ANG.
A110-7HIGH MIGRATORY BIRD ACTIVITY OCT THRU MAR ON & INVOF ARPT.
ROSECRANS MEML (ICAO: KSTJ, IATA: STJ) is a public airport located in ST JOSEPH, MO.
