KSSC
SHAW AFB
PrivatePVT

6 miles NW of SUMTER, SC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 58' 22"N 80° 28' 14"W
241' MSL
1241' MSL
08W
JET A+, CILI
ANDERSON (AND)
CHARLOTTE
JACKSONVILLE (ZJX)
7/11/24-8/8/24
KSSC VFR
6:24 AM EDT
Mist
Broken 9,000'
Scattered 6,000'
Few 300'
6sm
72°F
70°F
29.89"Hg
360° 3kts
SLP119 ALSTG/SLP ESTMD $
KSSC 191024Z 36003KT 6SM BR FEW003 SCT060 BKN090 22/21 A2989 RMK SLP119 ALSTG/SLP ESTMD $
Add Your Business

KSSC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
 132.125

Approach/Departure

APCH/P DEP/P
 125.4

Clearance Delivery

CD/P
 126.1

Emergency

EMERG
 121.5

Ground

GND/P
 126.1

Tower

LCL/P
 126.65

Other

CLASS C
 125.4
PTD
 139.6

FAA A/FD Pages

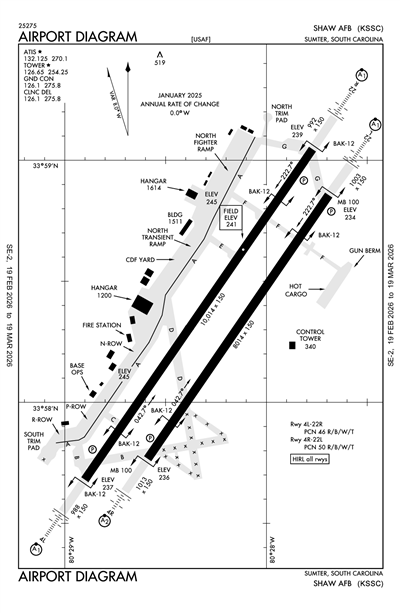

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSSC
Thu, 9/19 6:35 AM EDT
Thu, 9/19 6:00 AM EDT - Fri, 9/20 9:00 AM EDT
MVFR
6:00 AM EDT - 9:00 AM EDT
Mist
Broken 7,000'
Scattered 400'
4.97sm
29.88"Hg
020° 6kts
VFR
Becoming 6:00 AM EDT - 7:00 AM EDT
Broken 8,000'
6sm
29.88"Hg
020° 6kts
VFR
Becoming 7:00 AM EDT - 11:00 AM EDT
Scattered 8,000'
6sm
29.91"Hg
010° 6kts
VFR
Becoming 11:00 AM EDT - 3:00 PM EDT
Sky Clear
6sm
29.85"Hg
010° 6kts
VFR
Becoming 3:00 PM EDT - 5:00 PM EDT
Scattered 3,000'
6sm
29.82"Hg
020° 6kts
VFR
Becoming 5:00 PM EDT - 9:00 PM EDT
Showers in vicinity
Broken 4,000'
6sm
29.82"Hg
040° 9kts
VFR
Becoming 9:00 PM EDT - 5:00 AM EDT
Broken 6,000'
6sm
29.85"Hg
040° 6kts
MVFR
Becoming 5:00 AM EDT - 9:00 AM EDT
Mist
Broken 1,000'
4.97sm
29.88"Hg
030° 6kts
TAF AMD KSSC 191035Z 1910/2013 02006KT 8000 BR SCT004 BKN070 QNH2989INS
   BECMG 1910/1911 02006KT 9999 NSW BKN080 QNH2989INS
   BECMG 1911/1912 01006KT 9999 SCT080 QNH2990INS
   BECMG 1915/1916 01006KT 9999 SKC QNH2984INS
   BECMG 1919/1920 02006KT 9999 SCT030 QNH2981INS
   BECMG 1921/1922 04009KT 9999 VCSH BKN040 QNH2983INS
   BECMG 2001/2002 04006KT 9999 NSW BKN060 QNH2986INS
   BECMG 2009/2010 03006KT 8000 BR BKN010 QNH2987INS TX30/1920Z TN21/1910Z
KSSC
Military
9/18/240124Z M1323/24 NOTAMC M1300/24
9/18/240120Z AERODROME CONTROL TOWERS HOURS OF SERVICE ARE AS FOLLOWS: 17 SEP 1225Z - 18 SEP 0145Z, 18 SEP 1225Z - 19 SEP 0205Z, 19 SEP 0815Z - 20 SEP 0120Z, 20 SEP 0815Z - 21 SEP 0115Z.
9/18/240039Z M1321/24 NOTAMC M1274/24
9/17/242100Z M1320/24 NOTAMC M1317/24
9/17/242036Z M1318/24 NOTAMC M1311/24
9/17/241513Z M1316/24 NOTAMC M1305/24
9/17/241312Z AIRCRAFT RESCUE AND FIRE FIGHTING (ARFF) CAPABILITIES ARE: REDUCED LEVEEL OF SERVICE FOR SMALL AIRCRAFT, AND ARE CRITICAL LEVEL OF SERVICE FOR MEDIUM AND LARGE AIRCRAFT
9/17/241245Z M1314/24 NOTAMC M1306/24
9/17/241245Z M1313/24 NOTAMC M1309/24
9/17/240048Z M1312/24 NOTAMC M1098/24
9/17/240013Z M1310/24 NOTAMC M1308/24
9/16/242314Z 2ND OBSTACLE LIGHT ON RWY 04R 33.966287, -80.474326 AGM MARKER UNSERVICEABLE.
9/16/241835Z M1303/24 NOTAMC M1132/24
9/16/241833Z M1302/24 NOTAMC M1291/24
9/15/242200Z M1301/24 NOTAMC M1298/24
9/14/240119Z RWY 04R/22L RUNWAY DISTANCE REMAINING SIGN (RDR) 3/5 ON THE LEFT SIDE OF RWY 04R/22L NOT ILLUMINATED.
9/14/240117Z OBST SECOND OBSTACLE LIGHT FOR LEFT AGM MARKER ON RWY 22R APPROACH UNSERVICEABLE
9/4/240223Z TWY F CENTER CARGO DIRECTIONAL SIGN EXTREMELY DIM.
9/4/240222Z TWY F CENTER DIRECTIONAL SIGN UNSERVICEABLE.
9/4/240216Z NORTH WINDCONE UNSERVICEABLE.
7/31/242253Z RWY 22R OVERRUN BAK-12 LEFT OBSTRUCTION LIGHT UNSERVICEABLE.
Yes
ALL
OPR 1100-0300Z++ MON-FRI, 1300-2100Z++ SAT-SUN, CLSD WKEND, FED HOL AND ACC FAMILY DAYS.
SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
U.S. AIR FORCE
SHAW AFB
SUMTER, SC 29152
CHIEF AIRFIELD MANAGEMENT
SHAW AFB
SUMTER, SC 29152
Phone: 403-965-3338
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
SSC
--
--
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
5
0
Minor
Minor
None
Low Pressure
Cargo Handling

Runway 04L/22R

10014 ft. x 150 ft.

CONC
NONE
HIGH
46 /R/B/W/T
--
--
--
--
  Runway 04L Runway 22R
True Heading 35°215°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 57' 42"N 33° 59' 04"N
Longitude 80° 28' 53"W 80° 27' 46"W
Elevation 237' 239'
Threshold Crossing Height 35 ft. AGL 51 ft. AGL
Visual Glide Path Angle 2.8° 2.8°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No

Runway 04R/22L

8014 ft. x 150 ft.

CONC
NONE
HIGH
50 /R/B/W/T
--
--
--
--
  Runway 04R Runway 22L
True Heading 35°215°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 57' 48"N 33° 58' 53"N
Longitude 80° 28' 34"W 80° 27' 40"W
Elevation 236' 234'
Threshold Crossing Height 49 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights SALSF ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-1BEARING STRENGTH RWY 04L-22R: ST175; SBTT576, DDT745.
A110-10RSTD: OFFL BUS RSTD TO 20 FTR WG MSN SUPPORT. 20 FTR WG QUIET HR IN EFF 0300-1100Z++. PPR, 24 HR PN RQR, CTC AFLD MGMT 1145-0430Z++ DSN 965-2356, C803-895-2357. TRAN ACFT CTC BASE OPS PTD PRIOR ARR TO CONFIRM FM SVC RQR. DSN 965-2356, C803-895-2357, FAX 2360.
A110-11RSTD: ISSUED PPR VALID 1 HR +/- ETA, EARLY/LATE ARR/DEP MUST RE-COORD. TRAN ACFT CTC TWR PRIOR TO EXITING RWY.
A110-12CAUTION: TRAN PILOTS WILL NOT CLIMB ABV 1000 FT ON DEP DUR VFR COND TIL CLEAR OF ARPT BDRY UNLESS SPECIFICALLY CLEARED TO DO SO BY ATC. SPECIFIC TAXI INSTR FOR HVY ACFT CTC GND, MAY RQR BACK TAXIING ON RWY TO APROP LADDER TWY. UNCONTROLLED VEH TFC ON TWY AND APN.
A110-13TFC PAT: RECTANGULAR 1300 FT, OVERHEAD 2000 FT.
A110-14CSTMS/AG/IMG: 24 HR PN RQR FOR CSTMS AND AG.
A110-1845 FT OBSTN LCTD 140 FT S TWY CNTRLN.
A110-19MISC: ACC RSRS APPLIED TO ACC ACFT ONLY.
A110-2BEARING STRENGTH RWY 04R-22L: ST130; SBTT351; DDT490.
A110-20ACC RSRS APPLIED TO ACC ACFT ONLY.
A110-22TRAN-ALERT: TRANSIENT ALERT AFTER HOURS SUPPORT IS NOT AUTH UNLESS SUPPORTING HIGHER HQ DIRECTED MISSIONS.
A110-23TRAN ACFT CTC BASE OPS PTD PRIOR TO ARRIVAL TO CONFIRM SVC RQR.
A110-26RSTD: SOUTH TRIM PAD AND TEST CELL SW OF TWY A CLSD.
A110-28RSTD: AERODROME UNUSE AS WX ALTN OUTSIDE OF TRAN ALERT HR OF OPNS.
A110-3LGT: ALL RWY THR LGT GATED.
A110-31RSTD: HVY ACFT EXP ARR/DEP DELAYS DUR WING FLYING.
A110-32MISC: WX 965-2362, C803-895-2362, FORECASTER AVBL H24. TELEWORKING DUR AFLD CLOSURES. REMOTE BRIEFING SVC AVBL FR 26 OWS, BARKSDALE AFB, DSN 331-2651/2635/2636, C318-529-2651/2635/2636, WEBSITE: HTTPS://26OWS..US.AF.MIL.
A110-33MISC: WX OBS AVBL H24 VIA AN/FMQ-19 AUTOMATED OBSN SYS. AUGMENTED AN/FMQ-19 WHEN RQR DUR OPR HR AND RESOURCE PROTECTION. HUMAN OBSN SFC VIS LTD FROM 230-030 BY FLIGHTLINE HANGARS, BUILDINGS AND TREES.
A110-34RSTD: ONLY 20 FW LCL OPS APV TO FLY STR-IN APCH TO RWY 4L WITH VGSI INOP AT NGT.
A110-36ARFF CAPABILITIES ARE YELLOW (REDUCED LEVEL OF SVC) FOR LARGE FRAME ACFT.
A110-37MISC: ACFT DEP SHAW AFB CTC GRD CTL FOR CLNC.
A110-38MISC: AFLD COND, BASH, AND RWY SFC COND AVBL ON ATIS; TWR IF ATIS UNAVBL.
A110-39FOR AIR EVAC OR URGENT REQ DUR AFLD CLOSURE, AIRCREWS MUST CTC COMD POST DSN 312-965-5850 OR VIA UHF.
A110-4A-GEAR: NML BAK-12 CONFIGURATION: RWY 04R/22L: APCH DOWN, DEP UP. RWY 04L-22R: APCH DOWN, DEP UP. BOTH RWY 04L/22R OVERRUN A-G BAK-12S ARE IN RAISED POSN. BAK-12A ARE NSTD 900 FT RUN OUT, 1 1/4 IN CABLE AND 50000 LB WEIGHT SETTING. CALL TWR OR BASE OPS AT LEAST 20 MIN IN ADVN TO REQ OTHER CONFIGNS. RWY 22R DEP END BAK-12 1457 FT FR DEP END O/S.
A110-40MISC: ACFT THAT RQR IMMED ASSISTANCE AFTER DUTY HR, HOL, AND WKENDS, CTC COMD POST C803-895-5850, DSN 965-5850.
A110-41SERVICE-LGT: RWY 04R/22L PRE-THR BARS REMOVED.
A110-42RSTD: RWY 04R-22L AVBL FOR 20 FW USE ONLY.
A110-43OPR HR BY NOTAM, CLSD FED HOL AND ACC FAMILY DAYS.
A110-44MISC: CLASS C AIRSPACE EFF 1100-0300Z++ MON-FRI, CLSD WKEND, FED HOL AND ACC FAMILY DAYS.
A110-45MISC: COMSEC STOR AT COMD POST.
A110-5JASU: 2(M32A-60) 2(A/M32A-86).
A110-7FLUID: PRESAIR LPOX LOX. LOX - 24 HOURS PN.
A110-8OIL: O-128-133-148.
A110-9TRAN ALERT: NO FLEET SVC AVBL. EXP 2-3 HR SVC/REFUEL DELAYS WKENDS, HOL AND PEAK PERIODS; LTD MAINT. CONCURRENT REFUELING NOT AVBL. NO DE-ICE SVC AVBL. TRAN ACFT WILL RETAIN DRAG CHUTES TO PRK. TRAN ALERT SVC AVBL 1230-0030Z++ MON-FRI; CLSD WKEND AND HOL.
SHAW AFB (ICAO: KSSC, IATA: SSC) is a private airport located in SUMTER, SC.
