KSRB
UPPER CUMBERLAND RGNL
PublicPUB

9 miles NW of SPARTA, TN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 03' 24"N 85° 31' 48"W
1025' MSL
2025' MSL
03W
JET A (FSII), 100LL
NASHVILLE (BNA)
ST LOUIS
MEMPHIS (ZME)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KSRB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.975 122.975

AWOS-3P

AWOS-3P
931-738-3111
 128.25

FAA A/FD Pages

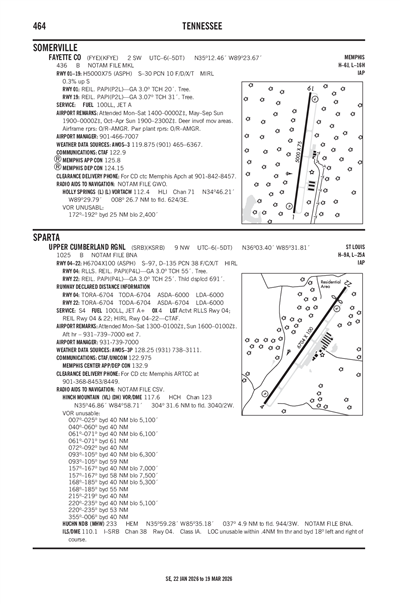

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KSRB
Domestic
1/13/251354Z !BNA 01/433 SRB RWY 04 RTHL U/S 2501131354-2503311700
1/7/250529Z !BNA 01/150 SRB OBST TOWER LGT (ASR 1048566) 360834.20N0852800.00W (6.1NM NNE SRB) 1671.9FT (252.0FT AGL) U/S 2501070529-2501220429
1/6/252219Z !BNA 01/146 SRB OBST TOWER LGT (ASR 1216011) 361208.00N0853058.60W (8.8NM NE SRB) 1373.0FT (265.1FT AGL) U/S 2501062219-2504071159
12/27/241554Z !BNA 12/503 SRB OBST TOWER LGT (ASR 1048567) 360948.60N0853128.90W (6.4NM NE SRB) 1353.0FT (275.9FT AGL) U/S 2412271554-2501272359
12/20/240858Z !BNA 12/421 SRB NAV ILS RWY 04 GP U/S 2412200858-2503262000EST
12/11/241111Z !BNA 12/211 SRB OBST TOWER LGT (ASR 1059110) 360951.30N0853002.80W (6.6NM NNE SRB) 1338.9FT (238.8FT AGL) U/S 2412111111-2503110500
1/16/241753Z !BNA 01/447 SRB NAV HEM NDB U/S 2401161753-2612302000EST
FDC
12/19/241701Z !FDC 4/8925 SRB IAP UPPER CUMBERLAND RGNL, SPARTA, TN.
ILS OR LOC RWY 4, AMDT 1E...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
HEM NDB OUT OF SERVICE. 2412191701-2612302000EST
11/19/242145Z !FDC 4/6311 SRB IAP UPPER CUMBERLAND RGNL, SPARTA, TN.
NDB RWY 4, AMDT 4E...
MAP: 4.39 NM AFTER HEM NDB. DISTANCE FAF TO MAP 4.39 NM.
TIME/DISTANCE TABLE: 60 KTS, 4:24; 90 KTS, 2:56; 120 KTS, 2:12; 150
KTS, 1:45; 180 KTS, 1:28.
THIS IS NDB RWY 4, AMDT 4F. 2411192145-PERM
No
MON-SAT 0700-1900
SUN 1000-1900
AFT HR - 931-739-7000 EXT 7.
UPPER CUMBERLAND ARPT AUTH
750 AIRPORT RD
SPARTA, TN 38583
Phone: 931-739-7000
DEAN SELBY
750 AIRPORT RD
SPARTA, TN 38583
Phone: 931-739-7000
NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF
BNA
--
ACTVT RLLS RWY 04; REIL RWY 04 & 22; HIRL RWY 04/22 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
Low Pressure
None
Air Freight
Air Ambulance
Avionics
Cargo Handling
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

6704 ft. x 100 ft.
ASPH
Good
NONE
HIGH
38 /F/C/X/T
75,000lbs
110,000lbs
160,000lbs
400,000lbs
  Runway 04 Runway 22
True Heading 35°215°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 02' 57"N 36° 03' 51"N
Longitude 85° 32' 12"W 85° 31' 25"W
Elevation 1,014' 1,024'
Threshold Crossing Height 55 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights RLLS
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
UPPER CUMBERLAND RGNL (ICAO: KSRB, IATA: SRB) is a public airport located in SPARTA, TN.
