KSPS
SHEPPARD AFB/WICHITA FALLS MUNI
PublicPUB

5 miles N of WICHITA FALLS, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 59' 20"N 98° 29' 31"W
1019' MSL
2019' MSL
05E
JET A, 100LL
FORT WORTH (FTW)
DALLAS-FT WORTH
FORT WORTH (ZFW)
4/17/25-5/15/25
KSPS VFR
2:52 PM CST
Clear
10sm
80°F
46°F
30.04"Hg
190° 17kts
AO2 PK WND 21026/1954 SLP162 T02670078 56036
METAR KSPS 042052Z 19017KT 10SM CLR 27/08 A3004 RMK AO2 PK WND 21026/1954 SLP162 T02670078 56036
+ Add Your Business

KSPS FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 119.75

ATIS

ATIS
Hours: OPR 1200-0200Z++
 132.05

Departure

DEP/P
 120.4

Approach/Departure

APCH/P DEP/P
 118.2

Clearance Delivery

CD/P
 121.2

Emergency

EMERG
 121.5

Ground

GND/P
 125.5

Tower

LCL/P
 119.75

FAA A/FD Pages

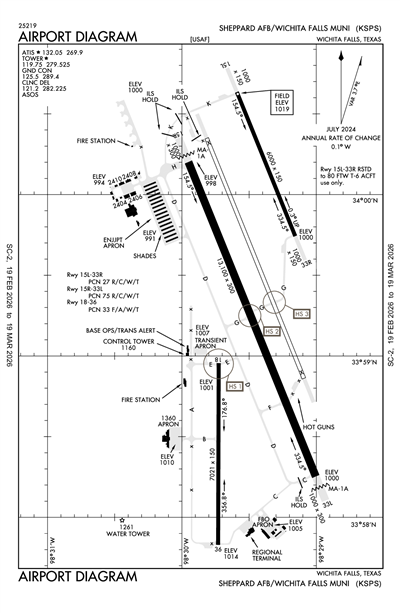

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSPS
Tue, 11/4 11:30 AM CST
Tue, 11/4 12:00 PM CST - Wed, 11/5 12:00 PM CST
VFR
6:00 PM CST - 12:00 PM CST
Few 25,000'
6sm
180° 12kts
VFR
12:00 PM CST - 6:00 PM CST
Few 25,000'
6sm
200° 18kts
Gusts 26kts
TAF KSPS 041730Z 0418/0518 20018G26KT P6SM FEW250
   FM050000 18012KT P6SM FEW250
KSPS
EffectiveExpiresCategoryNOTAM
Domestic
11/2/25
1730Z
11/2/25
1800Z
!SPS 10/056 SPS SVC SEE ZFW 10/710 SHEPPARD APP OPN 2511021730-2511021800
11/2/25
1700Z
11/2/25
1800Z
!SPS 10/057 SPS SVC TWR OPN 2511021700-2511021800
10/28/25
1603Z
!SPS 10/061 SPS NAV ILS RWY 33L DME U/S 2510281603-2511042000EST
10/8/25
2245Z
1/7/26
2200Z
Runway!SPS 10/037 SPS RWY 15C/33C WIP CONST ADJ 2510082245-2601072200
10/8/25
2243Z
1/7/26
2200Z
!SPS 10/036 SPS NAV ILS RWY 15C U/S 2510082243-2601072200
10/5/25
0012Z
1/4/26
1159Z
!SPS 10/016 SPS OBST TOWER LGT (ASR 1057534) 340228.00N0981456.00W (12.6NM ENE SPS) 1327.1FT (395.0FT AGL) U/S 2510050012-2601041159
9/19/25
1850Z
12/19/25
2359Z
!SPS 09/039 SPS NAV ILS RWY 33L DME NOT MNT 2509191850-2512192359
Military
11/2/25
1700Z
11/2/25
1800Z
BASE OPERATIONS OPN
10/27/25
2049Z
10/30/25
2049Z
M0278/25 NOTAMC M0277/25
10/26/25
2237Z
10/29/25
2237Z
M0276/25 NOTAMC M0275/25
10/8/25
2247Z
1/6/26
2200Z
MEN AND EQUIPMENT TRAVERSING NORTH OF RWY 15R APPROACH CORRIDOR
8/6/25
2214Z
11/5/25
2359Z
IAP HI-ILS OR LOC/DME Z RWY 33L, SIDESTEP RWY 33C N/A.
8/6/25
2208Z
11/5/25
2359Z
IAP ILS OR LOC/DME Y RWY 33L, SIDESTEP RWY 33C N/A
Yes
ALL
UNITED STATES AIR FORCE.
SHEPPARD AFB
WICHITA FALLS, TX 76311
ANDREW HOLLEY
4000 ARMSTRONG DR, STE 8
WICHITA FALLS, TX 76305
Phone: 940-855-3621
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
SPS
--
WHEN ATCT CLSD ACTVT MALSR RWY 33L - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
None

Runway 15C/33C

10003 ft. x 150 ft.
ASPH
CONC
GRVD
HIGH
27 /F/B/W/T
--
--
--
--
  Runway 15C Runway 33C
True Heading 158°338°
Traffic Pattern Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 00' 23"N 33° 58' 51"N
Longitude 98° 29' 50"W 98° 29' 06"W
Elevation 1,003' 989'
Threshold Crossing Height 46 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights
Runway End Identifier Lights

Runway 15L/33R

6000 ft. x 150 ft.
ASPH
CONC
GRVD
HIGH
27 /R/C/W/T
--
--
--
--
  Runway 15L Runway 33R
True Heading 158°338°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 00' 40"N 33° 59' 45"N
Longitude 98° 29' 36"W 98° 29' 09"W
Elevation 1,019' 1,000'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 15R/33L

13100 ft. x 300 ft.

CONC
NONE
HIGH
75 /R/C/W/T
--
--
--
--
  Runway 15R Runway 33L
True Heading 158°338°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 00' 14"N 33° 58' 13"N
Longitude 98° 29' 58"W 98° 29' 01"W
Elevation 998' 1,000'
Threshold Crossing Height 55 ft. AGL 56 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights
Runway End Identifier Lights

Runway 18/36

7021 ft. x 150 ft.

ASPH
GRVD
HIGH
33 /F/A/W/T
--
--
--
--
  Runway 18 Runway 36
True Heading 180°0°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 58' 57"N 33° 57' 47"N
Longitude 98° 29' 45"W 98° 29' 46"W
Elevation 1,001' 1,014'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-10CAUTION: "MIL ARPT CONDUCTS HI PERFORMANCE JET TRNG IN A HI DENSITY ENVIRONMENT WITHIN 95 NM OF KSPS, 1200-0200Z++ MON-FRI TO FL390, AND WHEN TWR HR EXTN BY NOTAM, OCCASIONALLY SAT AND SUN.
A110-11(A89) LC CALL TO FSS 855-5574.
A110-12A-GEAR: MA-1A RWY 15R-33L NOT RAISED, UNLESS 80TH FTW IS FLYING, RQR 30 MIN PN WHEN TWR OPR.
A110-14MISC: BASE OPS 1200-0200Z++ WKD; 1800-2300Z++ SUN; CLSD SAT AND HOL.
A110-15DUE TO CLOSE PROXIMITY OF RYS 33L & 33C USE VIGILANCE WITH MONITOR GND TRACK FOR THE HI-TACAN RY 33C APCH.
A110-16RSTD: SOLO STU N/A.
A110-18MISC: WX OBSERVATION LTD TO WEST DUE TO RSTD VIEW.
A110-2TRAN ALERT: OPR 1200-0200Z++ WKD; 1800-2300Z++ SUN, CLSD SAT AND HOL.
A110-22SERVICE-LGT: RWY 15R-33L PAPI RRP AND ILS RPI NOT COINCIDENTAL.
A110-23SERVICE-LGT: RWY 15C-33C PAPI GS AND ILS GS NOT COINCIDENTAL.
A110-24RSTD: ALL TRAN ACFT MUST BE CHOCKED 30 MIN PRIOR TO TRANS ALERT CLOSING; PPR EXPIRES 30 MIN PRIOR TO AFLD CLOSING.ALL TRAN ACFT RQRD TO ARR WITH CREW ORDERS FOR SECURITY FORCES
A110-25CAUTION: DO NOT CONFUSE PARL TWY WITH RWY 15R-33L.
A110-26MISC: AETC FTR ACFT EXP REDUCED RY SEPARATION: DAY/VFR, SIMILAR TYPE ACFT 3000 FT, DISSIMILAR TYPE ACFT 6000 FT, NIGHT 6000 FT ALL AETC ACFT. TRAN AETC ACFT NOTIFY TWR ON INITIAL CTC IF REDUCED RY SEPARATION IS NOT DESIRED.
A110-28MISC: MIL WX ADVSY/WARNING AVBL O/R-METRO.
A110-29SERVICE - TRAN ALERT: OPR 1130 -0300Z++ WKD; 1800-2300++ SUN; CLSD SAT AND HOL. QUALIFIED WEAPONS/MUNITIONS PERS NOT AVBL TO SAFE FTR TYPE ACFT.
A110-30JASU: 3(AM32-95) 1(MC-1) 3(AM/32A-86D).
A110-31FLUID: SP PRESAIR LOX.
A110-32SERVICE-OIL JOAP RESULTS AVBL 1345-2100Z++ WKD EXC HOL.
A110-35MISC: CLASS D AIRSPACE EFF 1130-0300Z++ MON-FRI; 1800-2300Z++ SUN; EXC HOL; OT CLASS E.
A110-36CAUTION: ATC PERS IAW THE COOPERATIVE WX WATCH (CWW) WILL ALERT WX PERS ON ANY UNREPORTED WX COND THAT COULD AFFECT FLT SAFETY.
A110-37CAUTION: MIL ARPT CONDUCTS HI PER JET TRNG IN A HI DENSITY ENVIRONMENT 1400-0400Z++ MON-FRI AND WHEN TWR HR EXTN BY NOTAM; OCNLY SAT. TRANS MIL ACFT NOT AUZD TO ARR/DEP OUTSIDE OF PUBL HR.
A110-39MISC: EXPECT NO AF SVC WHILE PRK AT THE RGN ARPT.
A110-4RSTD: PPR, 24 HR PN RQR, CTC AFLD OPS DSN 736-2180/6474, C940-676-2180/6474.
A110-44MISC: CTC BASE TAXI DSN 736-1843 C940-676-1843, OR U-DRIVE DSN 736-6813 C940-676-6813 PRIOR TO ARR.
A110-49SERVICE-FUEL: A++.
A110-50RSTD: TWY L AND K CLSD EXC FOR MIL BASE ASGND ACFT AND C-130 AND SMLR ACFT EXITING RWY 33C VIA TWY L AND K.
A110-51AFLD OPS FLT/COMMAND POST AT C940-676-2616.
A110-52RSTD: PAVEMENT NORTH OF TWY ECHO BTN RWY 18/36 AND AIRFIELD OPS CNTR APN UNUSBL. REMAIN ON TWY ECHO CNTRLN.
A110-53FOR CD IF UNA TO CTC ON FSS FREQ, CTC FORT WORTH ARTCC AT 817-858-7584.
A110-54SERVICE-LGT: RWY 15C SFL OTS UFN.
A110-55RSTD: RWY 15L/33R FOR 80 FTW T-6 ACFT USE ONLY.
A110-56SERVICE-LGT: RWY 33C SFL OTS UFN.
A110-6DURING PERIODS WHEN CTL TWR IS CLSD EXERCISE CAUTION WHEN TAXIING; THE CIVIL ARPT IS LCTD TO THE S AND THE MIL RAMP IS LCTD TO THE W OF THE RWYS. FLD COND NOTAM (FICON) (RSC/RCR) NOT RPRTD WHEN TWR CLSD.
A110-7RSTD: TRAN ACFT LTD TO ONE APCH TO A FULL STOP LDG AND MUST TAXI TO PRKG DURG STU TRNG.
A110-8MIGRATORY BIRD ACTIVITY ON & INVOF ARPT FM OCT-APR.
SHEPPARD AFB/WICHITA FALLS MUNI (ICAO: KSPS, IATA: SPS) is a public airport located in WICHITA FALLS, TX.
