KSPI
ABRAHAM LINCOLN CAPITAL
PublicPUB

3 miles NW of SPRINGFIELD, IL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 50' 41"N 89° 40' 39"W
598' MSL
1598' MSL
01W
JET A, 100LL, JP-8
SAINT LOUIS (STL)
ST LOUIS
KANSAS CITY (ZKC)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KSPI FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 121.3

ATIS

ATIS
 127.65

Clearance Delivery

CD/P
 121.7

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 121.3

FAA A/FD Pages

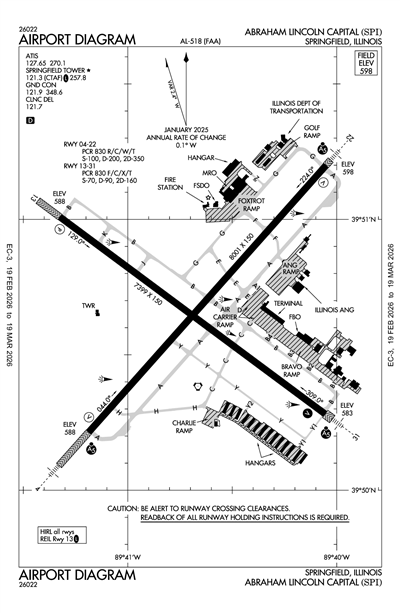

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KSPI
Domestic
1/9/250356Z !SPI 01/122 SPI OBST TOWER LGT (ASR 1016533) 393607.00N0894207.60W (14.6NM S SPI) 947.8FT (341.9FT AGL) U/S 2501090356-2502230356
1/2/251629Z !SPI 01/003 SPI AIRSPACE SEE ZKC 12/329 HIGH SPEED ACFT DLY SR-SS 2501021629-2512312359
1/1/250948Z !SPI 01/001 SPI RWY 22 VASI U/S 2501010948-2502112000EST
12/29/241930Z !SPI 12/173 SPI TWY E BTN RWY 04/22 AND TWY G CLSD 2412291930-2501312359
12/29/241929Z !SPI 12/172 SPI TWY G BTN TWY B AND TWY F CLSD 2412291929-2501312359
12/17/241954Z !SPI 12/111 SPI NAV ILS RWY 04 OM U/S 2412171954-2503172111EST
12/15/241518Z !SPI 12/100 SPI OBST TOWER LGT (ASN 2024-AGL-4959-OE) 395645N0894825W (8.5NM NW SPI) 882FT (280FT AGL) U/S 2412151518-2501291517
12/12/242051Z !SPI 12/072 SPI SVC AUTOMATED WX BCST SYSTEM CHANGED TO 217-360-2099 2412122051-PERM
12/12/242022Z !SPI 12/070 SPI OBST TOWER LGT (ASR 1008934) 394756.80N0892646.10W (11.0NM ESE SPI) 2049.2FT (1449.1FT AGL) U/S 2412122022-2502122359
11/25/240220Z !SPI 11/064 SPI OBST TOWER LGT (ASR 1008832) 395617.00N0893142.00W (8.9NM NE SPI) 1003.0FT (417.0FT AGL) U/S 2411250220-2502220500
FDC
12/17/241433Z !FDC 4/7805 SPI IAP ABRAHAM LINCOLN CAPITAL, SPRINGFIELD, IL.
VOR/DME RWY 22, ORIG-D...
PROCEDURE NA.
2412171433-2612201432EST
12/17/241432Z !FDC 4/7803 SPI IAP ABRAHAM LINCOLN CAPITAL, SPRINGFIELD, IL.
ILS OR LOC RWY 22, AMDT 9C...
FEEDER FROM SPI VORTAC TO LICOL LOM/IAF NA, PROCEDURE TURN NA.
2412171432-2612201432EST
8/19/241841Z !FDC 4/1830 SPI IAP ABRAHAM LINCOLN CAPITAL, SPRINGFIELD, IL.
RNAV (GPS) RWY 31, ORIG-A...
LNAV/VNAV DA 909/HAT 319 ALL CATS, VIS CAT A/B/C 3/4. TOWER 698 MSL 1.0NM SE OF RWY 31 (17-086450 PERMANENT).
2408191841-2608191841EST
Yes
0530-0000
SPRINGFIELD ARPT AUTH
1200 CAPITAL AIRPORT DR
SPRINGFIELD, IL 62707-8489
Phone: 217-788-1080
MARK HANNA
CAPITAL AIRPORT
SPRINGFIELD, IL 62707-8419
Phone: 217-788-1080
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
SPI
--
WHEN ATCT CLSD ACTVT HIRL RY 13/31; HIRL RY 04/22; MALSR RYS 04; 22 & 31; VASI RY 31; REIL RY 13 - CTAF. PAPI RY 13 & VASI RYS 04 & 22 OPER CONTINUOUSLY.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
High & Low Pressure
Charter Service
Pilot Instruction
Aircraft Rental

Runway 04/22

8001 ft. x 150 ft.
CONC
Fair
GRVD
HIGH

100,000lbs
200,000lbs
350,000lbs
--
  Runway 04 Runway 22
True Heading 42°222°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 50' 13"N 39° 51' 12"N
Longitude 89° 41' 11"W 89° 40' 03"W
Elevation 588' 598'
Threshold Crossing Height 56 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights MALSR MALSR
Centerline Lights No No
Runway End Identifier Lights No No

Runway 13/31

7400 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH

70,000lbs
90,000lbs
160,000lbs
--
  Runway 13 Runway 31
True Heading 127°307°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 51' 00"N 39° 50' 17"N
Longitude 89° 41' 19"W 89° 40' 03"W
Elevation 588' 583'
Threshold Crossing Height 50 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R V4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes
A110-10GENERAL AVIATION ACCESS TO & PARKING ON THE ACR RAMP IS PROHIBITED.
A110-14WX SVC AVBL H24.
A110-16DURING SNOW REMOVAL OPS EQUIPMENT OPERATORS WILL MONITOR CTAF WHEN THE TWR IS CLSD.
A110-19DASSP GATEWAY ARPT CALL 217-788-1080.
A110-21FOR CD IF UNA TO CTC ON FSS FREQ, CTC ST LOUIS APCH AT 314-890-1017.
A110-22100LL SELF SERVE AVBL 24HRS.
A110-23(OVERRUN LEN, RWY 22) 150 FT WIDTH.
A110-9TWY Y1, TWY Y2, AND TWY Y BTN TWY Y1 AND TWY A NOT AVBL FOR AIR CARRIER OPS WITH MORE THAN 9 PAX SEATS.
ABRAHAM LINCOLN CAPITAL (ICAO: KSPI, IATA: SPI) is a public airport located in SPRINGFIELD, IL.
