iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSPG
ALBERT WHITTED
PublicPUB

0 miles E of ST PETERSBURG, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
27° 45' 54"N 82° 37' 37"W
7' MSL
807' MSL
05W
JET A, JET A-1, 100LL
SAINT PETERSBURG (PIE)
MIAMI
MIAMI (ZMA)
7/11/24-8/8/24
KSPG VFR
6:53 AM EDT
Light Thunderstorm and Rain in vicinity
Overcast 10,000'
Broken 6,000'
Few 3,700'
10sm
80°F
78°F
29.87"Hg
Calm
AO2 LTG DSNT N AND NW RAB30 SLP113 P0002 T02670256 $
KSPG 191053Z 00000KT 10SM VCTS -RA FEW037 BKN060 OVC100 27/26 A2987 RMK AO2 LTG DSNT N AND NW RAB30 SLP113 P0002 T02670256 $
Add Your Business

KSPG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 127.4

ASOS

ASOS
727-821-4334
 118.875

Ground

GND/P
 121.8

Tower

LCL/P
 127.4

FAA A/FD Pages

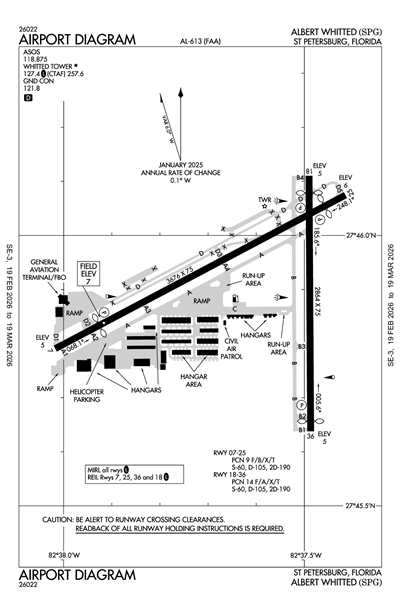

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KMCF (8nm)
Thu, 9/19 5:50 AM EDT
Thu, 9/19 5:00 AM EDT - Fri, 9/20 11:00 AM EDT
MVFR
5:00 AM EDT - 7:00 AM EDT
Light Thunderstorm and Rain
Broken 2,500'
Few 2,000'
5.59sm
29.85"Hg
150° 12kts
VFR
Becoming 7:00 AM EDT - 11:00 AM EDT
Few 5,000'
6sm
29.85"Hg
VRB° 6kts
VFR
Becoming 11:00 AM EDT - 9:00 PM EDT
Broken 21,000'
Scattered 4,000'
6sm
29.85"Hg
270° 9kts
VFR
Becoming 9:00 PM EDT - 10:00 AM EDT
Few 8,000'
6sm
29.79"Hg
VRB° 6kts
VFR
Becoming 10:00 AM EDT - 11:00 AM EDT
Scattered 3,000'
6sm
29.85"Hg
VRB° 6kts
TAF AMD KMCF 190950Z 1909/2015 15012KT 9000 -TSRA FEW020CB BKN025 QNH2984INS
   BECMG 1911/1912 VRB06KT 9999 NSW FEW050 QNH2984INS
   BECMG 1915/1916 27009KT 9999 SCT040 BKN210 QNH2985INS
   BECMG 2001/2002 VRB06KT 9999 FEW080 QNH2980INS
   BECMG 2014/2015 VRB06KT 9999 SCT030 QNH2986INS TX33/1921Z TN25/1909Z
KSPG
Domestic
9/11/241129Z !SPG 09/003 SPG SVC AUTOMATED WX BCST SYSTEM CEILING UNREL 2409111129-2409252359
9/3/241757Z !SPG 09/001 SPG OBST BLDG LGT (ASN 2022-ASO-39600-OE) 274634N0823801W (0.7NM NNW SPG) 318FT (297FT AGL) U/S 2409031757-2411152359
7/25/241826Z !SPG 07/002 SPG OBST TOWER LGT (ASR 1302893) 274623.30N0823913.10W
(1.5NM WNW SPG) 365FT (320FT AGL) OUT OF SERVICE 2407251826-2410312359
7/25/240752Z !SPG 07/001 SPG OBST TOWER LGT (ASR 1039086) 274741.10N0824006.50W (2.8NM NW SPG) 371.7FT (319.9FT AGL) U/S 2407250752-2410230400
5/13/221412Z !SPG 05/015 SPG RWY 36 THR DISPLACED 114FT. DECLARED DIST: TORA 2863FT TODA 2863FT ASDA 2674FT LDA 2559FT. 2205131412-PERM
5/13/221412Z !SPG 05/014 SPG RWY 18 THR DISPLACED 190FT. DECLARED DIST: TORA 2863FT TODA 2863FT ASDA 2749FT LDA 2559FT. 2205131412-PERM
FDC
7/17/241236Z !FDC 4/3610 SPG IAP ALBERT WHITTED, ST PETERSBURG, FL.
VOR RWY 18, AMDT 10...
CIRCLING CAT A/B MDA 900/HAA 893, VIS CAT A 1 1/4. TEMPORARY CRANES UP TO 649 MSL 3625FT W OF RWY 18 (2022-ASO-46313-OE/2023-ASO-30964-OE). TEMPORARY CRANES 638 MSL 4172FT NW OF SPG AIRPORT (2022-ASO-21770/21771-OE).
2407171236-2504151236EST
7/17/241236Z !FDC 4/3609 SPG IAP ALBERT WHITTED, ST PETERSBURG, FL.
RNAV (GPS) RWY 36, AMDT 2...
LNAV CAT A/B MDA 640/HAT 634. CIRCLING CAT A/B MDA 640/HAA 633. TEMPORARY CRANES UP TO 649 MSL 4946FT NW OF RWY 36 (2022-ASO-46313-OE/2023-ASO-30964-OE). TEMPORARY CRANES 638 MSL 4172FT NW OF SPG AIRPORT (2022-ASO-21770/21771-OE).
2407171236-2504151236EST
7/17/241236Z !FDC 4/3608 SPG IAP ALBERT WHITTED, ST PETERSBURG, FL.
RNAV (GPS) RWY 18, AMDT 1...
LNAV CAT A/B MDA 880/HAT 874. CIRCLING CAT A/B MDA 880/HAA 873, VIS CAT A 1 1/4. TEMPORARY CRANES UP TO 649 MSL 3625FT W OF RWY 18 (2022-ASO-46313-OE/2023-ASO-30964-OE). TEMPORARY CRANES 638 MSL 4172FT NW OF SPG AIRPORT (2022-ASO-21770/21771-OE).
2407171236-2504151236EST
7/17/241236Z !FDC 4/3607 SPG IAP ALBERT WHITTED, ST PETERSBURG, FL.
RNAV (GPS) RWY 7, AMDT 4...
LNAV CAT A/B/C MDA 900/HAT 893, VIS CAT A 1 1/4. CIRCLING CAT A/B/C MDA 900/HAA 893, VIS CAT A 1 1/4, CAT C 2 3/4. CHANGE ALTERNATE MINIMUMS TO READ: CATEGORY C, 900-2 3/4. TEMPORARY CRANES UP TO 649 MSL 2660FT NW OF RWY 7 (2022-ASO-46313-OE/2023-ASO-30964-OE). TEMPORARY CRANES 638 MSL 4172FT NW OF SPG AIRPORT (2022-ASO-21770/21771-OE).
2407171236-2504151236EST
7/17/241236Z !FDC 4/3606 SPG ODP ALBERT WHITTED, ST PETERSBURG, FL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 4...
TAKEOFF MINIMUMS: RWY 7, STANDARD WITH MINIMUM CLIMB OF 400 FT PER NM TO 800. RWY 18, 300-1 OR STANDARD WITH MINIMUM CLIMB OF 268 FEET PER NM TO 700. RWY 25, STANDARD WITH MINIMUM CLIMB OF 412 FT PER NM TO 900. RWY 36, 300-1 OR STANDARD WITH MINIMUM CLIMB OF 845 FT PER NM TO 800. TEMPORARY CRANES UP TO 649 MSL 3436FT NW OF SPG AIRPORT (2022-ASO-46313-OE/2023-ASO-30964-OE). TEMPORARY CRANES 638 MSL 4172FT NW OF SPG AIRPORT (2022-ASO-21770/21771-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2407171236-2504151236EST
7/11/241415Z !FDC 4/0757 SPG IAP ALBERT WHITTED, ST PETERSBURG, FL.
VOR RWY 18, AMDT 10...
S-18 MDA NA ALL CATS.
2407111415-2607111415EST
Yes
0700-2100
CITY OF ST PETERSBURG
107 8TH AVENUE, S.E.
ST PETERSBURG, FL 33701
Phone: 727-893-7654
RICH LESNIAK
ALBERT WHITTED AIRPORT, 107 8TH AVENUE SOUTHEAST
ST PETERSBURG, FL 33701
Phone: 727-893-7657
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
SPG
--
ACTVT MIRL RWY 18/36 & RWY 07/25 - CTAF, REIL RWYS 7, 25, & 36 ACTVT WHEN MIRL ACTVT, REIL RWY 18 ONLY ACTVT ON STEP 3 MIRL, PAPI RWYS 07, 25, 18 & 36 OPERATE CONTINUOUSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
158
26
2
7
0
1
Major
Major
None
None
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 07/25

3676 ft. x 75 ft.
ASPH
Excellent
NONE
MED
9 /F/B/X/T
60,000lbs
105,000lbs
190,000lbs
--
  Runway 07 Runway 25
True Heading 62°242°
Traffic Pattern Right Left
Markings NPI BSC
Markings Condition FAIR FAIR
Latitude 27° 45' 47"N 27° 46' 04"N
Longitude 82° 38' 01"W 82° 37' 25"W
Elevation 5' 6'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3.31° 3.9°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 18/36

2864 ft. x 75 ft.
ASPH
Excellent
NONE
MED
14 /F/A/X/T
60,000lbs
105,000lbs
190,000lbs
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 27° 46' 07"N 27° 45' 38"N
Longitude 82° 37' 29"W 82° 37' 29"W
Elevation 5' 5'
Threshold Crossing Height 48 ft. AGL 45 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P2R P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-10+/- 100 FT LIT/UNLIT BOAT MASTS IN RWY 18, 25 & 36 APCH AREA.
A110-11EMERG HELI WITH ROTG BCN 1/2 MI W OF ARPT.
A110-12WHEN ATCT CLSD; FOR CD CTC TAMPA APCH - 813-878-2528.
A110-3BANNER TOWING E OF RWY 18/36.
A110-7BIRDS ON & INVOF ARPT; GULLS ON RWY DURG INCLEMENT WX.
A110-8OCEAN VESSELS IN SHIP CHANNELS.
A110-9ALERT - HEAVY JET ACFT INVOF ARPT 1600 FT & ABV.
ALBERT WHITTED (ICAO: KSPG, IATA: SPG) is a public airport located in ST PETERSBURG, FL.
