No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSOW
SHOW LOW RGNL
PublicPUB

2 miles E of SHOW LOW, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 15' 56"N 110° 00' 20"W
6416' MSL
7216' MSL
10E
JET A, 100LL
PRESCOTT (PRC)
PHOENIX
ALBUQUERQUE (ZAB)
10/31/24-11/28/24
KSOW VFR
4:55 AM MST
Clear
10sm
25°F
18°F
30.14"Hg
Calm
AO2
KSOW 091155Z AUTO 00000KT 10SM CLR M04/M08 A3014 RMK AO2
Add Your Business

KSOW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3

AWOS-3
928-532-0379
 118.075

FAA A/FD Pages

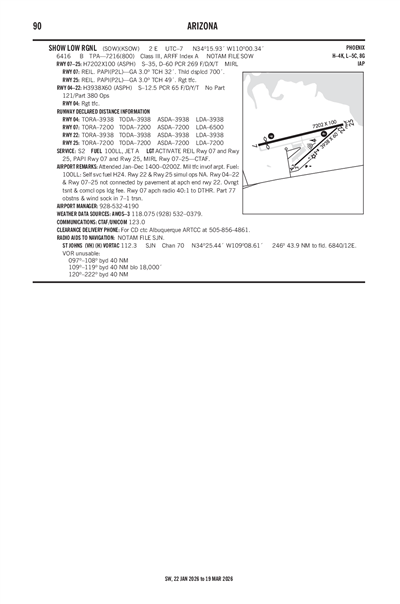

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KINW (58nm)
Sat, 11/9 4:37 AM MST
Sat, 11/9 5:00 AM MST - Sun, 11/10 5:00 AM MST
VFR
5:00 AM MST - 5:00 AM MST
Sky Clear
6sm
VRB° 4kts
KINW 091137Z 0912/1012 VRB04KT P6SM SKC
KSOW
Domestic
8/30/241743Z !SOW 08/012 SOW RWY 07 RWY END ID LGT U/S 2408301743-2412021900
8/30/241742Z !SOW 08/011 SOW RWY 25 RWY END ID LGT U/S 2408301742-2412021900
8/30/241741Z !SOW 08/010 SOW RWY 25 PAPI U/S 2408301741-2412021900
No
JAN-DEC 0700-1900
CITY OF SHOWLOW
180 N. 9TH PLACE
SHOW LOW, AZ 85901
Phone: (928) 532-4000
JACOB ALLEN
3150 AIRPORT LOOP, #100
SHOW LOW, AZ 85901
Phone: 928-532-4190
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
SOW
--
ACTVT REIL RWY 07 & 25; PAPI RWY 07 & 25; MIRL RWY 07/25 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Minor
None
None
Charter Service
Pilot Instruction
Aircraft Rental

Runway 04/22

3938 ft. x 60 ft.
ASPH
Good
NONE

7 /F/D/Y/T
12,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 48°228°
Traffic Pattern Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 34° 15' 38"N 34° 16' 04"N
Longitude 110° 00' 27"W 109° 59' 52"W
Elevation 6,413' 6,401'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 07/25

7202 ft. x 100 ft.
ASPH
Excellent
NONE
MED
7 /F/D/X/T
35,000lbs
60,000lbs
--
--
  Runway 07 Runway 25
True Heading 76°256°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 15' 50"N 34° 16' 07"N
Longitude 110° 01' 08"W 109° 59' 45"W
Elevation 6,399' 6,400'
Threshold Crossing Height 32 ft. AGL 49 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1PART 77 OBSTNS & WIND SOCK IN 7-1 TRSN.
A110-3MIL TFC INVOF ARPT.
A110-5OVNGT TSNT & COML OPS LNDG FEE.
A110-6RWY 04/22 & 07/25 NOT CONNECTED BY PAVEMENT AT APCH END RWY 22.
A110-7RWY 22 & 25 SIMUL OPS NA.
A110-9FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
SHOW LOW RGNL (ICAO: KSOW, IATA: SOW) is a public airport located in SHOW LOW, AZ.
