KSNY
SIDNEY MUNI/LLOYD W CARR FLD
Public
PUB
3 miles S of SIDNEY, NE
View on
Map
Status
Operational
Coordinates
41° 05' 59"N
102° 59' 06"W
Elevation
4314' MSL
Pattern Alt
5314' MSL
Mag Variation
11E
Fuel
JET A, 100LL
FSS
COLUMBUS (OLU)
Sectional
CHEYENNE
ARTCC
DENVER (ZDV)
Data Effective
7/11/24-8/8/24
KSNY
VFR
4:53 AM MDT
RAW
Clear
Viz
10sm
Temp
52°F
Dew
34°F
Pres
29.94"Hg
Wind
300° 9kts
RMK
AO2 SLP094 T01110011
KSNY 191053Z AUTO 30009KT 10SM CLR 11/01 A2994 RMK AO2 SLP094 T01110011
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KSNY FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.8
CTAF
122.8
ASOS
ASOS
308-254-3525
125.775

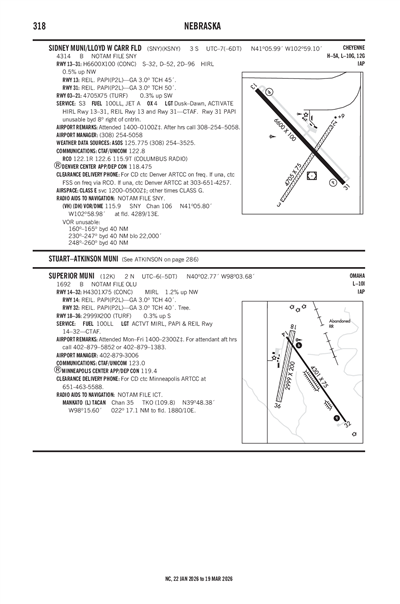

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 13
RNAV (GPS) RWY 31
VOR/DME RWY 13
VOR/DME RWY 31
Terminal Area Forecast
KSNY
RAW
Reported
Wed, 9/18 11:20 PM MDT
Valid
Thu, 9/19 12:00 AM MDT - Fri, 9/20 12:00 AM MDT
VFR
12:00 AM MDT - 8:00 AM MDT
Sky Clear
Viz
6sm
Wind
310° 10kts
VFR
8:00 AM MDT - 2:00 PM MDT
Sky Clear
Viz
6sm
Wind
310° 15kts
VFR
2:00 PM MDT - 6:00 PM MDT
Sky Clear
Viz
6sm
Wind
290° 10kts
VFR
6:00 PM MDT - 12:00 AM MDT
Sky Clear
Viz
6sm
Wind
VRB° 6kts
KSNY 190520Z 1906/2006 31010KT P6SM SKC
FM191400 31015KT P6SM SKC
FM192000 29010KT P6SM SKC
FM200000 VRB06KT P6SM SKC
KSNY
Domestic
9/18/24
0500Z
!SNY 09/008 SNY COM REMOTE COM OUTLET 122.6 U/S 2409180500-2409181100
8/22/24
2251Z
!SNY 08/009 SNY RWY 31 PAPI U/S 2408222251-2411011800
8/21/24
1720Z
!SNY 08/005 SNY OBST TOWER LGT (ASN 2023-ACE-2644-OE) 410155N1030445W (5.9NM SW SNY) 4737FT (349FT AGL) U/S 2408211720-2410312359
7/28/24
0237Z
!SNY 07/005 SNY OBST TOWER LGT (ASR 1214606) 411126.60N1031123.60W (10.8NM WNW SNY) 4768.0FT (330.1FT AGL) U/S 2407280237-2411250237
ATC Tower
No
Attendance
0700-1800
AFTER HRS CALL 308-254-5058.
Owner
SIDNEY AIRPORT AUTHORITY
PO BOX 490
SIDNEY, NE 69162-0490
Phone: (308) 254-5058
Manager
GEORGE LAPASEOTES
11149 ROAD 16
SIDNEY, NE 69162-4002
Phone: (308) 254-5058
FSS
COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF
NOTAM
SNY
Light Schedule
--
Lights
DUSK-DAWN. ACTVT HIRL RY 13/31 & REIL RYS 13 & 31 - CTAF.
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
Yes
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
22
# Multi Engine
1
# Jets
1
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Minor
Bottled Oxygen
Low Pressure
Bulk Oxygen
None
Other Services
Pilot Instruction
Aircraft Rental
Runway 03/21
Dimensions
4705 ft. x 75 ft.
Surface Type
TURF
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 03
Runway 21
True Heading
36°
216°
Traffic Pattern
Markings
Markings Condition
FAIR
FAIR
Latitude
41° 05' 33"N
41° 06' 10"N
Longitude
102° 59' 23"W
102° 58' 46"W
Elevation
4,298'
4,284'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway 13/31
Dimensions
6600 ft. x 100 ft.
Surface Type
CONC
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
HIGH
Pavement Class
Single Wheel
32,000lbs
Double Wheel
52,000lbs
Double Tandem
96,000lbs
Dual Dbl Tand
--
Runway 13
Runway 31
True Heading
135°
315°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
41° 06' 28"N
41° 05' 42"N
Longitude
102° 59' 38"W
102° 58' 37"W
Elevation
4,314'
4,282'
Threshold Crossing Height
45 ft. AGL
50 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
A110-1
FOR CD CTC DENVER ARTCC ON FREQ. IF UNA, CTC FSS ON FREQ VIA RCO. IF UNA, CTC DENVER ARTCC AT 303-651-4257.
SIDNEY MUNI/LLOYD W CARR FLD (ICAO: KSNY, IATA: SNY) is a public airport located in SIDNEY, NE.
