iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSNS
SALINAS MUNI
PublicPUB

3 miles SE of SALINAS, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 39' 45"N 121° 36' 26"W
84' MSL
884' MSL
13E
JET A, 100LL
OAKLAND (OAK)
SAN FRANCISCO
OAKLAND (ZOA)
7/11/24-8/8/24
KSNS LIFR
3:53 AM PDT
Overcast 300'
7sm
60°F
57°F
29.87"Hg
270° 5kts
AO2 LTG DSNT SE SLP122 T01560139
KSNS 191053Z AUTO 27005KT 7SM OVC003 16/14 A2987 RMK AO2 LTG DSNT SE SLP122 T01560139
Add Your Business

KSNS FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 119.525

ATIS

ATIS
 124.85

Ground

GND/P
 121.7

Tower

LCL/P
 119.525

FAA A/FD Pages

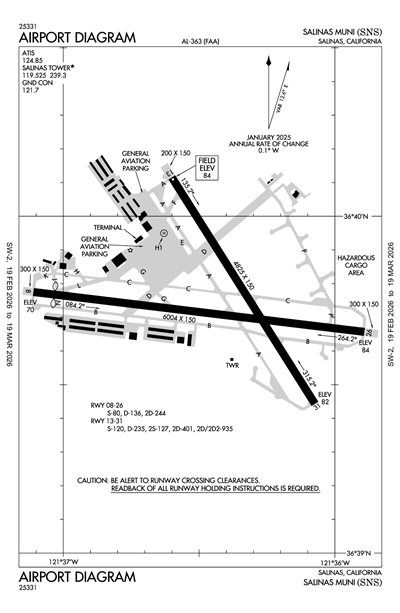

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSNS
Thu, 9/19 1:58 AM PDT
Thu, 9/19 2:00 AM PDT - Thu, 9/19 11:00 PM PDT
LIFR
2:00 AM PDT - 11:00 AM PDT
Mist
Overcast 1,500'
Broken 400'
3sm
VRB° 5kts
VFR
11:00 AM PDT - 8:00 PM PDT
Sky Clear
6sm
290° 11kts
IFR
8:00 PM PDT - 11:00 PM PDT
Overcast 900'
6sm
290° 8kts
KSNS 190858Z 1909/2006 VRB05KT 3SM BR BKN004 OVC015
   FM191800 29011KT P6SM SKC
   FM200300 29008KT P6SM OVC009
KSNS
Domestic
9/21/241400Z !SNS 09/027 SNS RWY 13 VASI U/S 2409211400-2410012359
9/21/241400Z !SNS 09/026 SNS RWY 31 ALS U/S 2409211400-2410012359
9/21/241400Z !SNS 09/025 SNS NAV ILS RWY 31 U/S 2409211400-2410012359
9/6/241341Z !SNS 09/004 SNS AIRSPACE UAS WI AN AREA DEFINED AS 1.5NM RADIUS OF
SNS029018 (3.9NM E CVH) SFC-400FT AGL DLY SR-SS
2409061341-2509010235
9/4/241730Z !SNS 09/005 SNS TWY D BTN RWY 13/31 AND TWY P CLSD 2409041730-2410012359
9/3/241400Z !SNS 08/067 SNS TWY P BTN TWY C AND TWY D CLSD 2409031400-2409302359
8/6/242212Z !SNS 08/008 SNS AIRSPACE UAS WI AN AREA DEFINED AS 5NM RADIUS OF SNS SFC-1000FT AGL 2408062212-2412312359
FDC
8/21/241720Z !FDC 4/3264 SNS ODP SALINAS MUNI, SALINAS, CA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SNS VOR OUT OF SERVICE. 2408211720-2409282000EST
8/21/241720Z !FDC 4/3263 SNS SID SALINAS MUNI, SALINAS, CA.
SALINAS THREE DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SNS VOR OUT OF SERVICE. 2408211720-2409282000EST
8/21/241720Z !FDC 4/3262 SNS IAP SALINAS MUNI, SALINAS, CA.
ILS RWY 31, AMDT 7...
LOC RWY 31, AMDT 6...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SNS VOR OUT OF SERVICE. 2408211720-2409282000EST
8/21/241720Z !FDC 4/3261 SNS SID SALINAS MUNI, SALINAS, CA.
CHALONE THREE DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SNS VOR OUT OF SERVICE. 2408211720-2409282000EST
Yes
ALL
CITY OF SALINAS
200 LINCOLN AVE
SALINAS, CA 93901
Phone: 831-758-7214
EARL PAISANT
30 MORTENSEN AVE
SALINAS, CA 93905
Phone: 831-758-7214
OAKLAND FSS (OAK)
Toll Free: 1-800-WX-BRIEF
SNS
--
WHEN ATCT CLSD ACTVT MALSR RWY 31; REIL RWY 13 & 26; PAPI RWY 31; HIRL RWY 13/31; MIRL RWY 08/26; H1 - CTAF. VASI RWY 08, 13, & 26 OPR CONSLY.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
143
10
5
8
0
0
Major
Major
High Pressure
None
Crop Dusting
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 08/26

6004 ft. x 150 ft.
ASPH
Good
NONE
MED

80,000lbs
136,000lbs
244,000lbs
--
  Runway 08 Runway 26
True Heading 97°277°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 39' 46"N 36° 39' 39"N
Longitude 121° 37' 07"W 121° 35' 54"W
Elevation 70' 84'
Threshold Crossing Height 53 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V2L V2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway 13/31

4825 ft. x 150 ft.
ASPH
Good
NONE
HIGH

120,000lbs
235,000lbs
401,000lbs
935,000lbs
  Runway 13 Runway 31
True Heading 148°328°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 40' 07"N 36° 39' 27"N
Longitude 121° 36' 36"W 121° 36' 04"W
Elevation 84' 82'
Threshold Crossing Height 50 ft. AGL 59 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L P2L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No

Runway H1

90 ft. x 90 ft.
ASPH
CONC
AFSC
FLD

--
--
--
--
  Runway H1 Runway
True Heading 70°250°
Traffic Pattern
Markings
Markings Condition
Latitude 36° 39' 57"N N/A
Longitude 121° 36' 36"W N/A
Elevation 78' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-4PORTIONS OF TWY B BETWEEN D & N LIMITED ATCT SERVICES PROVIDED
A110-56 FT TALL SECURITY FENCE 400 FT PRIOR TO RY 13 THLD ON CNTRLN AND STEEPLY DESCENDING TERRAIN 350 FT PRIOR TO RY 31 THLD ON CNTRLN BOTH IN RY 13/31 SAFETY AREA.
A110-6FOR CD WHEN ATCT IS CLSD CTC NORCAL APCH AT 916-361-3748.
SALINAS MUNI (ICAO: KSNS, IATA: SNS) is a public airport located in SALINAS, CA.
