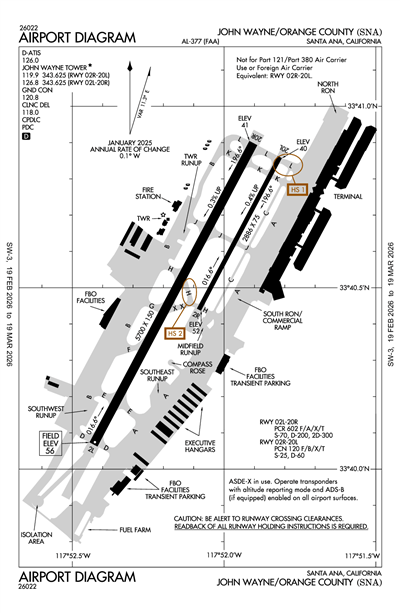

JOHN WAYNE/ORANGE COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSNA
ICAO KSNAIATA SNALocal SNA
JOHN WAYNE/ORANGE COUNTY
PublicPUB

4 miles S of SANTA ANA, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 40' 32"N 117° 52' 06"W
Elevation
56' MSL
Pattern Alt
1056' MSL
Mag Variation
11°E
Declination
12°E
Fuel
JET A, 100LL
FSS
RIVERSIDE (RAL)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
2/19/26-3/19/26
KSNA VFR
7:53 PM PST
Clear
9sm
60°F
55°F
30.00"Hg
210° 5kts
AO2 SLP159 T01560128
METAR KSNA 040353Z 21005KT 9SM CLR 16/13 A3000 RMK AO2 SLP159 T01560128
+ Add Your Business

KSNA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

Digital ATIS 126.0
(714) 338-2340
ASOS (714) 338-2330

Common

CTAF 126.8
WHEN ATCT CLSD ACTVT MALSR RY 20R & PAPI RYS 02L & 20R - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 118.0
Clearance Delivery 121.85
Secondary

Ground

JOHN WAYNE GROUND 120.8
0615-2300
JOHN WAYNE GROUND 132.25
0615-2300, Secondary, DO NOT PUBLISH ON APCH PLATES.

Tower

JOHN WAYNE TOWER 119.9
0615-2300 - RWY 02R/20L
JOHN WAYNE TOWER 126.8
Initial Contact, 0615-2300 - RWY 02L/20R
JOHN WAYNE TOWER 128.35
0615-2300, Secondary

Arrival

DSNEE STAR 134.0
EMMLN STAR 127.0
KAYOH STAR 133.85
OHSEA STAR 127.4
ROOBY STAR 134.0
RUKKI STAR 127.4
TANDY STAR 127.4

Approach

SOCAL APPROACH 121.3

Departure

ANAHEIM DP 125.35
RWY 20R HECTOR OR LAKE HUGHES TRANSITIONS
ANAHEIM DP 133.85
RWY 02L, 02R, HECTOR, LAKE HUGHES TRANSITION
ANAHEIM DP 133.85
RWY 2L/R, HECTOR, LAKE HUGHES TRANSITION
CHANNEL DP 128.1
FINZZ DP 128.1
HAWWC DP 125.35
HHERO DP 128.1
HOBOW DP 133.85
MIKAA DP 133.85
MUSEL DP 128.1
PIGGN DP 128.1
RWY 20R
PIGGN DP 133.85
RWY 02L
SOCAL DEPARTURE 128.1
SOCAL DEPARTURE 132.7
STAYY DP 128.1

Other

CLASS C 121.3
315-045 SNA, REFERENCE IS TO SNA ARPT.
CLASS C 124.1
045-130 SNA, REFERENCE IS TO SNA ARPT.
CLASS C 125.35
190-315 SLI
CLASS C 127.2
190-315 SNA ABV 3000 FT, REFERENCE IS TO SNA ARPT.
CLASS C 128.1
130-190 SNA, REFERENCE IS TO SNA ARPT.
CLASS C 132.7
045-130 SNA, REFERENCE IS TO SNA ARPT.

Terminal Area Forecast

KSNA
Tue, 3/3 3:37 PM PST
Tue, 3/3 4:00 PM PST - Wed, 3/4 4:00 PM PST
VFR
4:00 PM PST - 7:00 PM PST
Few 25,000'
6sm
230° 8kts
VFR
7:00 PM PST - 2:00 AM PST
Few 1,500'
6sm
VRB° 4kts
MVFR
2:00 AM PST - 10:00 AM PST
Broken 1,200'
6sm
VRB° 4kts
IFR
Temporary 6:00 AM PST - 8:00 AM PST
Mist
Broken 500'
6sm
Calm
VFR
10:00 AM PST - 4:00 PM PST
Broken 25,000'
6sm
200° 10kts
TAF KSNA 032337Z 0400/0424 23008KT P6SM FEW250
   FM040300 VRB04KT P6SM FEW015
   FM041000 VRB04KT P6SM BKN012
   TEMPO 0414/0416 6SM BR BKN005
   FM041800 20010KT P6SM BKN250
KSNA
EffectiveExpiresCategoryNOTAM
Domestic
3/2/26
0730Z
3/7/26
1415Z
!SNA 02/051 SNA AD AP CLSD DLY 0730-1415 2603020730-2603071415
2/27/26
0730Z
2/27/26
1415Z
!SNA 02/050 SNA AD AP CLSD 2602270730-2602271415
2/26/26
0730Z
2/28/26
1415Z
!SNA 02/048 SNA TWY C, TWY A BTN TWY H AND NORTH OVERNIGHT RAMP, TWY H BTN RWY 02L/20R AND TWY A, TWY J BTN RWY 02L/20R AND TWY A, TWY K BTN RWY 02L/20R AND TWY A, TWY L BTN APCH END RWY 20R AND TWY A CLSD DLY 0730-1415 2602260730-2602281415
2/25/26
1100Z
2/25/26
1400Z
!SNA 02/057 SNA SVC SMR U/S 2602251100-2602251400
2/25/26
1100Z
2/25/26
2030Z
Runway!SNA 02/055 SNA RWY 02L PAPI U/S 2602251100-2602252030
2/24/26
0741Z
3/31/26
1415Z
!SNA 02/054 SNA TWY A BTN TWY E AND ACI NORTH RAMP WIP CONST ADJ EAST SHOULDER LGTD AND BARRICADED 2602240741-2603311415
2/24/26
0741Z
3/31/26
1415Z
!SNA 02/053 SNA TWY E BTN RWY 02L/20R AND TWY A, TWY D BTN APCH END RWY 02L AND TWY A, TWY A BTN ACI SOUTH RAMP AND TWY H CLSD TO ACFT WINGSPAN MORE THAN 118FT 2602240741-2603311415
2/24/26
0730Z
2/25/26
1415Z
!SNA 02/046 SNA AD AP CLSD DLY 0730-1415 2602240730-2602251415
2/24/26
0630Z
3/1/26
1430Z
!SNA 02/040 SNA TWY E BTN RWY 02L/20R AND TWY A, TWY D BTN APCH END RWY 02L AND TWY A, TWY A BTN ACI SOUTH RAMP AND TWY H CLSD DLY 0630-1430 2602240630-2603011430
2/24/26
0555Z
!SNA 02/052 SNA SVC PCL RWY 02L PAPI U/S 2602240555-2603182359EST
2/9/26
1430Z
2/27/26
2230Z
!SNA 02/006 SNA OBST CRANE (ASN 2023-AWP-4794-NRA) 334031N1175219W (0.2NM W SNA) 198FT (140FT AGL) FLAGGED AND LGTD 2602091430-2602272230
1/13/26
0530Z
1/15/28
1415Z
!SNA 01/017 SNA OBST RIG (ASN 2025-AWP-1800-NRA) 334022N1175152W (0.3NM SE SNA) 125FT (78FT AGL) LGTD 2601130530-2801151415
12/17/25
2000Z
5/31/26
2359Z
!SNA 12/031 SNA AIRSPACE SEE ELB 12/116 UAS 2512172000-2605312359
12/17/25
1957Z
5/31/26
2359Z
!SNA 12/030 SNA AIRSPACE SEE ELB 12/115 UAS 2512171957-2605312359
12/17/25
1954Z
5/31/26
2359Z
!SNA 12/029 SNA AIRSPACE SEE ELB 12/114 UAS 2512171954-2605312359
10/30/25
1734Z
3/31/26
1315Z
!SNA 10/065 SNA APRON ACI NORTH RAMP, ACI SOUTH RAMP CLSD TO TRANSIENT EXC 24HR PPR 949-201-2550 2510301734-2603311315
10/21/25
2205Z
1/31/27
1415Z
!SNA 10/039 SNA APRON CLAY LACY RAMP CLSD TO ACFT WINGSPAN MORE THAN 49FT EXC GA AND TRANSIENT 24HR PPR 714-888-8000 2510212205-2701311415
FDC
2/25/26
1600Z
!FDC 6/9759 SNA SID JOHN WAYNE/ORANGE COUNTY, SANTA ANA, CA.
EL TORO FIVE DEPARTURE...
IMPERIAL TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MZB VORTAC OUT OF SERVICE. 2602251600-2603042351EST
2/25/26
1400Z
3/4/26
1648Z
!FDC 6/9323 SNA SID JOHN WAYNE/ORANGE COUNTY, SANTA ANA, CA.
EL TORO FIVE DEPARTURE...
IMPERIAL TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
IPL VORTAC OUT OF SERVICE. 2602251400-2603041648EST
1/26/26
1342Z
9/7/26
1342Z
!FDC 6/6816 SNA SID JOHN WAYNE/ORANGE COUNTY, SANTA ANA, CA.
CHANNEL THREE DEPARTURE...
IRVINE FIVE DEPARTURE...
SAN MARCUS TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
VTU VOR/DME OUT OF SERVICE. 2601261342-2609071342EST
1/26/26
1342Z
9/7/26
1342Z
!FDC 6/6815 SNA SID JOHN WAYNE/ORANGE COUNTY, SANTA ANA, CA.
ANAHEIM ONE DEPARTURE...
VENTURA TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
VTU VOR/DME OUT OF SERVICE. 2601261342-2609071342EST
12/3/25
1457Z
3/3/26
1457Z
!FDC 5/3706 SNA SID JOHN WAYNE/ORANGE COUNTY, SANTA ANA, CA.
CHANNEL THREE DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SXC VOR OUT OF SERVICE. 2512031457-2603031457EST
12/3/25
1457Z
3/3/26
1457Z
!FDC 5/3705 SNA SID JOHN WAYNE/ORANGE COUNTY, SANTA ANA, CA.
EL TORO FIVE DEPARTURE...
MUSEL EIGHT DEPARTURE...
THERMAL TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SXC VOR OUT OF SERVICE. 2512031457-2603031457EST
12/3/25
1457Z
3/3/26
1457Z
!FDC 5/3701 SNA SID JOHN WAYNE/ORANGE COUNTY, SANTA ANA, CA.
IRVINE FIVE DEPARTURE...
GORMAN TRANSITION... SAN MARCUS TRANSITION... SHAFTER TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SXC VOR OUT OF SERVICE. 2512031457-2603031457EST
10/30/25
2100Z
!FDC 5/8511 SNA IAP JOHN WAYNE/ORANGE COUNTY, SANTA ANA, CA.
RNAV (GPS) Y RWY 20R, AMDT 4...
LPV DA 316/HAT 262 ALL CATS. TEMPORARY CRANE 220 MSL 1951FT SW OF RWY 20R (2025-AWP-4216-OE).
2510302100-2610302049EST
10/17/25
1503Z
!FDC 5/2522 SNA SID JOHN WAYNE/ORANGE COUNTY, SANTA ANA, CA.
EL TORO FIVE DEPARTURE...
IMPERIAL TRANSITION,THERMAL TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
ELB VOR R-095 RESTRICTED. 2510171503-2710171502EST
9/29/25
1402Z
!FDC 5/1675 SNA SID JOHN WAYNE/ORANGE COUNTY, SANTA ANA, CA.
ANAHEIM ONE DEPARTURE...
LAKE HUGHES TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LHS VORTAC OUT OF SERVICE. 2509291402-2605111402EST
Yes
ALL
ORANGE COUNTY
3160 AIRWAY AVENUE
COSTA MESA, CA 92626
Phone: 949-252-5171
CHARLENE V. REYNOLDS
3160 AIRWAY AVE
COSTA MESA, CA 92626
Phone: 949-252-5171
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
SNA
--
WHEN ATCT CLSD ACTVT MALSR RY 20R & PAPI RYS 02L & 20R - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
None
Air Freight
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 02L/20R

5700 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

70,000lbs
200,000lbs
300,000lbs
--
  Runway 02L Runway 20R
True Heading 28°208°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 40' 04"N 33° 40' 54"N
Longitude 117° 52' 26"W 117° 51' 54"W
Elevation 56' 41'
Threshold Crossing Height 75 ft. AGL 68 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No No

Runway 02R/20L

2886 ft. x 75 ft.
ASPH
Good
GRVD
MED
120/F/B/X/T
25,000lbs
60,000lbs
--
--
  Runway 02R Runway 20L
True Heading 28°208°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 33° 40' 26"N 33° 40' 52"N
Longitude 117° 52' 05"W 117° 51' 49"W
Elevation 52' 40'
Threshold Crossing Height -- 26 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway 20X

0 ft. x 0 ft.





--
--
--
--
  Runway 20X Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-11MAINTAIN AT OR ABOVE 300 FT AGL UNTIL ESTABLISHED ON FINAL .
A110-14FBO GENERAL AVIATION APRONS LIMITED TO MAX GWT OF 100,000 LBS (DUAL GEAR) AND WITH WINGSPANS LESS THAN 100 FT. GENERAL AVIATION AIRCRAFT PROHIBITED FROM USING ANY PORTION OF THE AIR CARRIER COMMERCIAL RAMP.
A110-15NOISE ABATEMENT PROCEDURES IN EFFECT CTC ARPT NOISE OFFICE (949) 252-5185.
A110-16RWY 02L/20R TPA 1000 FT AGL SMALL ACFT; 1500 FT AGL TURBINE ACFT OVER 12500 LBS; RWY 02R/20L TPA 800 FT AGL SMALL SGL ENG ACFT; 1000 FT AGL TWIN ENG ACFT.
A110-18FOR CD WHEN ATCT CLSD CTC SOCAL APCH AT 800-448-3724.
A110-20ACFT LDG RWY 20L, USE CTN FOR JET BLAST FROM ACFT HLDG BTN RWY 20L AND RWY 20R AT TWY L AND CTN WAKE TURB FROM JET ACFT LDG RWY 20R.
A110-21VFR ACFT: TO AVOID OVERFLIGHT OF RWY 20R, RWY 20L ARRS FLY FINAL AT 15 DEG ANGLE TO RWY; RWY 20L DEPS TURN 15 DEGS LEFT AT DEP END OF RWY. TO AVOID OVERFLIGHT OF RWY 02L, RWY 02R DEPS TURN 15 DEGS RIGHT AT DEP END OF RWY.
A110-22CTC GND CTL PRIOR TO PUSHBACK ON TWY A AND TWY B.
A110-3WHEN ATCT CLSD NO LCL TRNG OR TOUCH & GO OPNS.
A110-4BE ALERT TO BIRDS ON AND IN VICINITY OF ARPT.
A110-6TWY C GWT LMTD 60000 LBS.
A14RON MCCLELLAN, MGR, AIRSIDE OPNS 949-252-5247.
A24OVERNIGHT TIE-DOWN FEE.
A30-02R/20LRWY 02R/20L NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS. RWY 02R/20L CLSD WHEN ATCT CLSD.
A30-20XRY 20X CREATED TO SUPPORT OJW LDA ASSOCIATED WITH SNA ILS RY 20R.
A39-02L/20RPCR VALUE: 602/F/A/X/T
A81-APTWHEN ATCT CLSD ACTVT MALSR RY 20R & PAPI RYS 02L & 20R - CTAF.
JOHN WAYNE/ORANGE COUNTY (ICAO: KSNA, IATA: SNA) is a public airport located in SANTA ANA, CA, US.
