iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSMX
SANTA MARIA PUB/CAPT G ALLAN HANCOCK FLD
PublicPUB

3 miles S of SANTA MARIA, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 53' 60"N 120° 27' 29"W
261' MSL
1261' MSL
14E
JET A, 100LL
HAWTHORNE (HHR)
LOS ANGELES
LOS ANGELES (ZLA)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KSMX FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.3

ATIS

ATIS
(805) 347-9136
 121.15

ASOS

ASOS
805-928-0384
 121.15

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 118.3

FAA A/FD Pages

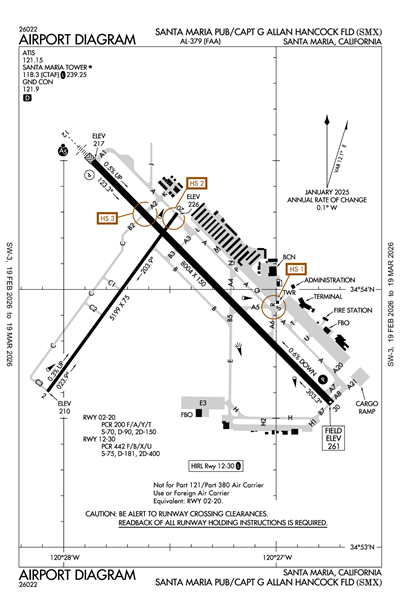

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KSMX
Domestic
1/15/252100Z !SMX 01/007 SMX RWY 12 PAPI U/S 2501152100-2501152300
1/15/251600Z !SMX 01/006 SMX RWY 30 PAPI U/S 2501151600-2501151800
12/12/242036Z !SMX 12/010 SMX SVC AUTOMATED WX BCST SYSTEM CHANGED TO 209-210-1160 2412122036-PERM
12/4/242026Z !SMX 12/003 SMX AD AP ALL SFC WIP CONST MAIN HANGAR MEN AND EQUIP
2412042026-2502260759
12/4/242018Z !SMX 12/002 SMX NAV ILS RWY 12 OM U/S 2412042018-2503042111EST
11/21/241318Z !SMX 11/020 SMX NAV ILS RWY 12 LOC UNUSABLE BEYOND 25 DEG LEFT OF COURSE 2411211318-PERM
11/8/241702Z !SMX 11/004 SMX TWY B2 CLSD 2411081702-2501310700
11/8/241702Z !SMX 11/003 SMX TWY C BTN TWY B2 AND TWY C1 CLSD 2411081702-2501311600
9/25/241844Z !SMX 09/020 SMX APRON CARGO RAMP CLSD 2409251844-2503311600
9/25/241830Z !SMX 09/019 SMX TWY A21 CLSD 2409251830-2503311600
9/23/222143Z !SMX 09/031 SMX RWY 02 DECLARED DIST: TORA 4249FT TODA 5199FT ASDA 5199FT LDA 5199FT. 2209232143-PERM
9/23/222141Z !SMX 09/030 SMX RWY 20 DECLARED DIST: TORA 5199FT TODA 5199FT ASDA 5199FT LDA 4249FT. 2209232141-PERM
FDC
1/15/251830Z !FDC 5/3226 SMX IAP SANTA MARIA PUB/CAPT G ALLAN HANCOCK FLD, SANTA MARIA, CA.
LOC/DME BC-A, AMDT 10F...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GLJ VOR OUT OF SERVICE. 2501151830-2501221532EST
1/15/251830Z !FDC 5/3224 SMX SID SANTA MARIA PUB/CAPT G ALLAN HANCOCK FLD, SANTA MARIA, CA.
BUELT FOUR DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GLJ VOR OUT OF SERVICE. 2501151830-2501221532EST
1/15/251830Z !FDC 5/3219 SMX ODP SANTA MARIA PUB/CAPT G ALLAN HANCOCK FLD, SANTA MARIA, CA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 6...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GLJ VOR OUT OF SERVICE. 2501151830-2501221532EST
1/13/251530Z !FDC 5/2632 SMX SID SANTA MARIA PUB/CAPT G ALLAN HANCOCK FLD, SANTA MARIA, CA.
BUELT FOUR DEPARTURE...
GAVIOTA TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GVO VORTAC OUT OF SERVICE. 2501131530-2501311326EST
4/18/241410Z !FDC 4/2564 SMX IAP SANTA MARIA PUB/CAPT G ALLAN HANCOCK FLD, SANTA MARIA, CA.
VOR RWY 12, AMDT 15B...
CIRCLING CAT D NA.
2404181410-2604201410EST
Yes
0600-2200
SANTA MARIA PUBLIC APT DIST
3217 TERMINAL DR
SANTA MARIA, CA 93455
Phone: 805-922-1726
MARTIN PEHL
3217 TERMINAL DR
SANTA MARIA, CA 93455
Phone: 805-922-1726
HAWTHORNE FSS (HHR)
Toll Free: 1-800-WX-BRIEF
SMX
--
WHEN ATCT CLSD ACTVT MALSR RWY 12; PAPI RWY 30; HIRL RWY 12/30; TWY LIGHTS - CTAF. PAPI RWY 12 OPER CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Air Freight
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 02/20

5199 ft. x 75 ft.
ASPH
Good
NONE

6 /F/B/Y/U
70,000lbs
90,000lbs
150,000lbs
--
  Runway 02 Runway 20
True Heading 36°216°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 34° 53' 36"N 34° 54' 18"N
Longitude 120° 28' 05"W 120° 27' 28"W
Elevation 210' 226'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 12/30

8004 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
56 /F/B/X/U
75,000lbs
181,000lbs
400,000lbs
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 54' 30"N 34° 53' 33"N
Longitude 120° 27' 52"W 120° 26' 44"W
Elevation 217' 261'
Threshold Crossing Height 55 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3.6°
Visual Slope Indicator P4R P4R
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No No
A110-1RUNUP APRON RY 30 GWT 110,000 LBS DW.
A110-12CAUTION PARALLEL LGTD ROAD LESS THAN 1/4 MILE NW OF RY 12/30.
A110-13TRANSIENT PILOTS REMAIN CLEAR OF COMMERCIAL RAMP AND TERMINAL.
A110-14SELF SERVE FUEL 100LL AVBL 24 HRS LOCATED NORTH OF TOWER.
A110-15RWY 2/20 NOT AVBL FOR ACR USE.
A110-3CALM WIND LESS THAN 8 KNOTS USE RWY 30.
A110-4NO TGL OPNS; LANDING PRACTICE OR PRACTICE INSTRUMENT APPROACHES 2200-0700.
A110-6PORTIONS OF TWY J NOT VISIBLE FM ATCT & UNLGTD.
A110-9NUMEROUS BIRDS ON AND INVOF ARPT.
SANTA MARIA PUB/CAPT G ALLAN HANCOCK FLD (ICAO: KSMX, IATA: SMX) is a public airport located in SANTA MARIA, CA.
