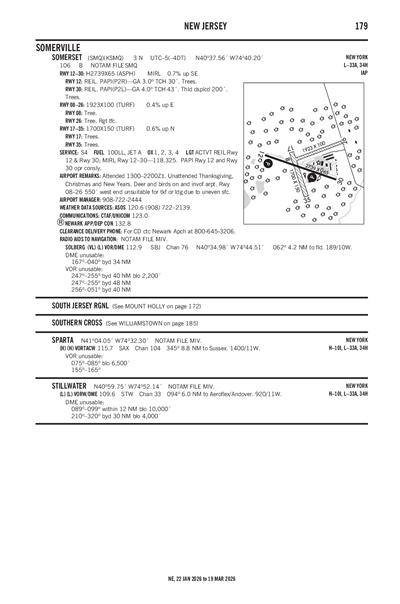

SOMERSET - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSMQ
ICAO KSMQLocal SMQ
SOMERSET
PublicPUB

3 miles N of SOMERVILLE, NJ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 37' 34"N 74° 40' 12"W
Elevation
106' MSL
Pattern Alt
1106' MSL
Mag Variation
12°W
Declination
13°W
Fuel
JET A, 100LL
FSS
MILLVILLE (MIV)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
2/19/26-3/19/26
KSMQ MVFR
2:53 AM EST
Mist
Overcast 3,000'
Few 2,100'
4sm
36°F
35°F
30.20"Hg
Calm
AO2 RAB05E16 SLP228 P0000 T00220017
METAR KSMQ 040753Z AUTO 00000KT 4SM BR FEW021 OVC030 02/02 A3020 RMK AO2 RAB05E16 SLP228 P0000 T00220017
+ Add Your Business

KSMQ FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 120.6
(908) 722-2139, COORDS & ELEV FM 3RD PARTY 14 MAR 2013.

Common

CTAF 123.0
UNICOM 123.0

Arrival

JAIKE STAR 132.8
WILKES-BARRE STAR 127.6

Approach

NEWARK APPROACH 132.8

Departure

NEWARK DEPARTURE 132.8

Terminal Area Forecast

KTTN (22nm)
Wed, 3/4 12:33 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 1:00 AM EST
IFR
1:00 AM EST - 3:00 AM EST
Mist
Overcast 600'
6sm
260° 5kts
LIFR
3:00 AM EST - 9:00 AM EST
Mist
Overcast 200'
3sm
VRB° 2kts
IFR
9:00 AM EST - 11:00 AM EST
Mist
Overcast 800'
5sm
VRB° 3kts
MVFR
11:00 AM EST - 6:00 PM EST
Mist
Overcast 1,500'
6sm
040° 3kts
IFR
6:00 PM EST - 11:00 PM EST
Mist
Overcast 800'
5sm
080° 3kts
IFR
11:00 PM EST - 1:00 AM EST
Mist
Overcast 500'
3sm
VRB° 2kts
TAF KTTN 040533Z 0406/0506 26005KT 6SM BR OVC006
   FM040800 VRB02KT 3SM BR OVC002
   FM041400 VRB03KT 5SM BR OVC008
   FM041600 04003KT 6SM BR OVC015
   FM042300 08003KT 5SM BR OVC008
   FM050400 VRB02KT 3SM BR OVC005
KSMQ
EffectiveExpiresCategoryNOTAM
Domestic
2/26/26
0426Z
4/12/26
0425Z
!SMQ 02/001 SMQ OBST TOWER LGT (ASR 1235009) 403623.80N0744208.00W (1.9NM SW SMQ) 361.9FT (153.9FT AGL) U/S 2602260426-2604120425
3/30/25
1841Z
Runway!SMQ 03/006 SMQ RWY 17/35 N 650FT CLSD 2503301841-PERM
FDC
2/11/26
1912Z
!FDC 6/2703 SMQ IAP SOMERSET, SOMERVILLE, NJ.
RNAV (GPS) RWY 30, AMDT 2B...
VOR RWY 8, AMDT 12C...
PROCEDURE NA AT NIGHT.
2602111912-2802091912EST
6/27/25
1328Z
!FDC 5/9759 SMQ ODP SOMERSET, SOMERVILLE, NJ.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
RWY 12 TAKEOFF MINIMUMS: STD. WITH MINIMUM CLIMB OF 400 PER NM TO 1000 OR 700-3 WITH MINIMUM CLIMB OF 285 PER NM TO 1400, OR 1100-3 FOR CLIMB IN VISUAL CONDITIONS.
RWY 30 TAKEOFF MINIMUMS: STD. WITH MINIMUM CLIMB OF 500 PER NM TO 600 OR 300-2 OR MINIMUM CLIMB OF 205 PER NM TO 1600, OR 1100-3 FOR CLIMB IN VISUAL CONDITIONS.
ALL OTHER DATA REMAINS AS PUBLISHED. 2506271328-2706281328EST
No
0800-1700
UNATTENDED THANKSGIVING, CHRISTMAS & NEW YEARS.
SOMERSET AIR SERVICE, INC
PO BOX 1007
BEDMINSTER, NJ 07921
Phone: 908-722-2444
CHRIS WALKER, PRES.
PO BOX 1007
BEDMINSTER, NJ 07921
Phone: 908-722-2444
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
SMQ
--
ACTVT REIL RWY 12 & 30; PAPI RWY 12 & 30; MIRL RWY 12/30 - 118.325.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 08/26

1923 ft. x 100 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 08 Runway 26
True Heading 69°249°
Traffic Pattern Left Right
Markings NONE NONE
Markings Condition
Latitude 40° 37' 35"N 40° 37' 41"N
Longitude 74° 40' 18"W 74° 39' 55"W
Elevation 95' 103'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

2739 ft. x 65 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 12 Runway 30
True Heading 109°289°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 37' 37"N 40° 37' 28"N
Longitude 74° 40' 31"W 74° 39' 57"W
Elevation 84' 102'
Threshold Crossing Height 30 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator P2R P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 17/35

1700 ft. x 150 ft.
TURF
Good
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading 161°341°
Traffic Pattern
Markings NONE NONE
Markings Condition
Latitude 40° 37' 38"N 40° 37' 22"N
Longitude 74° 40' 18"W 74° 40' 11"W
Elevation 97' 87'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10FOR CD CTC NEWARK APCH AT 800-645-3206.
A110-7DEER AND BIRDS ON AND INVOF ARPT
A110-9NO TGL.
A17-M1UNATTENDED THANKSGIVING, CHRISTMAS & NEW YEARS.
A30-08/26550 FT W END UNSUITABLE FOR TKOF OR LDG DUE TO UNEVEN SFC.
A57-30APCH RATIO 15:1 TO DTHR.
A81-APTACTVT REIL RWY 12 & 30; PAPI RWY 12 & 30; MIRL RWY 12/30 - 118.325.
E111EST 1946.
SOMERSET (ICAO: KSMQ, IATA: SMQ) is a public airport located in SOMERVILLE, NJ, US.
