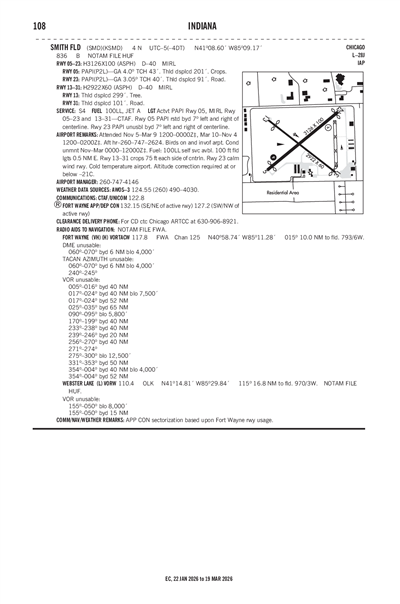

SMITH FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSMD
ICAO KSMDIATA SMDLocal SMD
SMITH FLD
PublicPUB

4 miles N of FORT WAYNE, IN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 08' 36"N 85° 09' 10"W
Elevation
836' MSL
Pattern Alt
1836' MSL
Mag Variation
6°W
Declination
5°W
Fuel
JET A, 100LL
FSS
TERRE HAUTE (HUF)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
2/19/26-3/19/26
KSMD LIFR
11:35 PM EST
Mist
Overcast 1,800'
Broken 300'
3sm
37°F
37°F
30.20"Hg
Calm
A01
METAR KSMD 040435Z AUTO 00000KT 3SM BR BKN003 OVC018 03/03 A3020 RMK A01
+ Add Your Business

KSMD FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 124.55
(260) 490-4030

Common

CTAF 122.8
ACTVT PAPI RWY 05; MIRL RWY 05/23 & 13/31 - CTAF.
UNICOM 122.8

Approach

FORT WAYNE APPROACH 127.2
Initial Contact - SW/NW OF ACTIVE RWY
FORT WAYNE APPROACH 132.15
SE/NE OF ACTIVE RWY

Departure

FORT WAYNE DEPARTURE 127.2
Initial Contact - SW/NW OF ACTIVE RWY
FORT WAYNE DEPARTURE 132.15
SE/NE OF ACTIVE RWY

Terminal Area Forecast

KFWA (11nm)
Tue, 3/3 7:14 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
MVFR
7:00 PM EST - 10:00 PM EST
Mist
Overcast 3,000'
Scattered 600'
4sm
070° 5kts
MVFR
10:00 PM EST - 3:00 AM EST
Mist
Overcast 2,500'
5sm
050° 3kts
MVFR
Temporary 11:00 PM EST - 3:00 AM EST
Broken 1,500'
N/A
Calm
LIFR
Temporary 3:00 AM EST - 6:00 AM EST
Mist
Broken 400'
2sm
Calm
MVFR
3:00 AM EST - 1:00 PM EST
Mist
Overcast 1,000'
5sm
070° 6kts
IFR
1:00 PM EST - 7:00 PM EST
Mist
Overcast 700'
4sm
090° 7kts
TAF KFWA 040014Z 0400/0424 07005KT 4SM BR SCT006 OVC030
   FM040300 05003KT 5SM BR OVC025
   TEMPO 0404/0408 BKN015
   FM040800 07006KT 5SM BR OVC010
   TEMPO 0408/0411 2SM BR BKN004
   FM041800 09007KT 4SM BR OVC007
KSMD
EffectiveExpiresCategoryNOTAM
Domestic
2/17/26
1451Z
4/17/26
2359Z
!HUF 02/553 SMD OBST TOWER LGT (ASR 1290648) 410435.00N0850242.60W (6.3NM SE SMD) 1138.1FT (375.0FT AGL) U/S 2602171451-2604172359
2/9/26
1646Z
4/10/26
2359Z
!HUF 02/402 SMD OBST TOWER LGT (ASR 1036256) 410501.00N0850432.00W (5.0NM SE SMD) 979.0FT (229.0FT AGL) U/S 2602091646-2604102359
No
5 NOV-9 MAR 0700-1900
10 MAR-4 NOV 0700-2100
AFT HR - 260-747-2624.
FT WAYNE ALLEN CO APT ATHRTY
3801 W FERGUSON ROAD-RM 209
FT WAYNE, IN 46809
Phone: 260-747-4146
SCOTT D. HINDERMAN, A.A.E.
3801 WEST FERGUSON ROAD, STE. 209
FORT WAYNE, IN 46809
Phone: 260-747-4146
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
HUF
--
ACTVT PAPI RWY 05; MIRL RWY 05/23 & 13/31 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 05/23

3126 ft. x 100 ft.
ASPH
Good
NONE
MED

--
40,000lbs
--
--
  Runway 05 Runway 23
True Heading 51°231°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 08' 27"N 41° 08' 47"N
Longitude 85° 09' 26"W 85° 08' 54"W
Elevation 827' 828'
Threshold Crossing Height 43 ft. AGL 40 ft. AGL
Visual Glide Path Angle 4° 3.05°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 13/31

2922 ft. x 60 ft.
ASPH
Excellent
NONE
MED

--
40,000lbs
--
--
  Runway 13 Runway 31
True Heading 128°308°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 08' 44"N 41° 08' 26"N
Longitude 85° 09' 25"W 85° 08' 55"W
Elevation 832' 825'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-10COND UNMNT NOV-MAR 1900-0700.
A110-11COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -21C.
A110-3100 FT FLD LGTS 0.5 NM E.
A110-6BIRDS ON & INVOF ARPT.
A110-9FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A17-M1AFT HR - 260-747-2624.
A30-05/23RWY 23 CALM WIND RWY.
A30-13/3175 FT CROPS EACH SIDE OF CNTRLN.
A43-05PAPI RSTRD BYD 7 DEGS LEFT & RIGHT OF CNTRLN.
A43-23PAPI UNUSBL BYD 7 DEGS LEFT & RIGHT OF CNTRLN.
A57-13APCH RATIO 24:1 AT DTHR.
A58-0510 FT CROPS 65 FT FM RWY END & 90 FT E & 115 FT W.
A58-1310 FT CROPS 60 FT FM RWY END
A58-2315 FT ROAD 185 FT FM RWY END 175 FT R.
A58-3115 FT ROAD 215 FT FM RWY END 185 FT L.
A70-100LLSELF SVC AVBL.
A81-APTACTVT PAPI RWY 05; MIRL RWY 05/23 & 13/31 - CTAF.
E111EXISTED PRIOR TO 1959.
SMITH FLD (ICAO: KSMD, IATA: SMD) is a public airport located in FORT WAYNE, IN, US.
