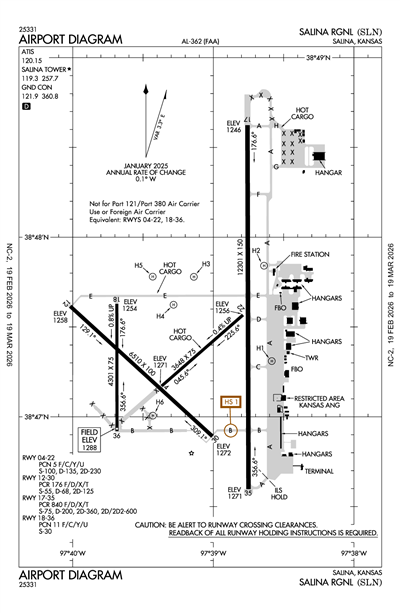

SALINA RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSLN
ICAO KSLNIATA SLNLocal SLN
SALINA RGNL
PublicPUB

3 miles SW of SALINA, KS, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 47' 26"N 97° 39' 08"W
Elevation
1288' MSL
Pattern Alt
2288' MSL
Mag Variation
3°E
Declination
7°E
Fuel
JET A, 100LL
FSS
WICHITA (ICT)
Sectional
WICHITA
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KSLN VFR
1:53 AM CST
Overcast 3,200'
9sm
44°F
40°F
30.13"Hg
020° 8kts
AO2 SLP206 T00670044
METAR KSLN 040753Z AUTO 02008KT 9SM OVC032 07/04 A3013 RMK AO2 SLP206 T00670044
+ Add Your Business

KSLN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 120.15
ASOS 120.15
(785) 823-3402

Common

CTAF 119.3
WHEN ATCT CLSD ACTVT MIRL RY 12/30; PAPI RYS 12 & 30; HIRL RY 17/35; MALS & PAPI RYS 17 & 35; MALSR RY 35 - CTAF.
UNICOM 122.95

Ground

SALINA GROUND 121.9
0700-2300

Tower

SALINA TOWER 119.3
0700-2300
SALINA TOWER 124.35
0700-2300, Secondary

Center

KANSAS CITY CENTER 134.9
LOW, APCH/DEP CTL SVC PRVDD BY KANSAS CITY ARTCC (ZKC) ON FREQS 134.9/363.2 (SALINA RCAG).

Flight Service

Flight Service 122.4
(ICT)

Military

NG OPS 41.7

Terminal Area Forecast

KSLN
Tue, 3/3 11:20 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
MVFR
12:00 AM CST - 4:00 AM CST
Overcast 1,300'
6sm
360° 5kts
IFR
4:00 AM CST - 11:00 AM CST
Mist
Overcast 700'
5sm
360° 5kts
MVFR
11:00 AM CST - 8:00 PM CST
Overcast 1,500'
6sm
VRB° 4kts
VFR
8:00 PM CST - 12:00 AM CST
Scattered 2,500'
6sm
150° 5kts
TAF KSLN 040520Z 0406/0506 36005KT P6SM OVC013
   FM041000 36005KT 5SM BR OVC007
   FM041700 VRB04KT P6SM OVC015
   FM050200 15005KT P6SM SCT025
KSLN
EffectiveExpiresCategoryNOTAM
Domestic
2/9/26
1400Z
3/13/26
2200Z
!SLN 02/012 SLN AIRSPACE UAS WI AN AREA DEFINED AS .25NM RADIUS OF SLN181007 (.5NM NE SLN) SFC-100FT AGL MON-FRI 1400-2200 2602091400-2603132200
2/5/26
1300Z
3/6/26
2359Z
!SLN 02/008 SLN OBST CRANE (ASN 2025-ACE-1932-OE) 384622N0973819W (1.2NM SSE SLN) 1383FT (100FT AGL) FLAGGED AND LGTD THU FRI SAT MON TUE WED 1300-2359 2602051300-2603062359
FDC
2/17/26
2017Z
!FDC 6/5296 SLN IAP SALINA RGNL, SALINA, KS.
ILS OR LOC RWY 35, AMDT 19C...
CHART ALTERNATE MINIMUMS: ILS STANDARD; LOC: STANDARD.
THIS IS ILS OR LOC RWY 35, AMDT 19D. 2602172017-PERM
11/10/25
2000Z
!FDC 5/4033 SLN ODP SALINA RGNL, SALINA, KS.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
ADD TAKEOFF OBSTACLE NOTES: RWY 04,
TEMPORARY CRANES BEGINNING 2850FT FROM DER, 102FT RIGHT OF CENTERLINE, UP TO 150 FT AGL/1396 FT MSL (2025-ACE-1870 THRU 1872-OE).
TEMPORARY CRANE 3204FT FROM DER, 146FT LEFT OF CENTERLINE, 150 FT AGL/1395 FT MSL (2025-ACE-1869-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2511102000-2604152000EST
5/12/25
1907Z
!FDC 5/9571 SLN IAP SALINA RGNL, SALINA, KS.
RNAV (GPS) RWY 12, ORIG-A...
LNAV HAT 432 ALL CATS.
2505121907-2705121907EST
Yes
ALL
SALINA ARPT AUTH
3237 ARNOLD AVENUE
SALINA, KS 67401
Phone: 785-827-3914
MR. PIETER MILLER
3237 ARNOLD AVENUE
SALINA, KS 67401
Phone: 785-827-3914
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
SLN
--
WHEN ATCT CLSD ACTVT MIRL RY 12/30; PAPI RYS 12 & 30; HIRL RY 17/35; MALS & PAPI RYS 17 & 35; MALSR RY 35 - CTAF.
N/A
Yes
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High Pressure
Air Ambulance
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

3648 ft. x 75 ft.
ASPH
Good
NONE

5/F/C/Y/U
100,000lbs
135,000lbs
230,000lbs
--
  Runway 04 Runway 22
True Heading 49°229°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 38° 47' 10"N 38° 47' 34"N
Longitude 97° 39' 22"W 97° 38' 47"W
Elevation 1,271' 1,256'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

6510 ft. x 100 ft.
ASPH
Excellent
NONE
MED

55,000lbs
68,000lbs
125,000lbs
--
  Runway 12 Runway 30
True Heading 132°312°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 47' 37"N 38° 46' 54"N
Longitude 97° 40' 01"W 97° 39' 00"W
Elevation 1,258' 1,272'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

12301 ft. x 150 ft.
ASPH CONC
Good
NONE
HIGH

75,000lbs
200,000lbs
360,000lbs
600,000lbs
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 48' 37"N 38° 46' 36"N
Longitude 97° 38' 45"W 97° 38' 45"W
Elevation 1,246' 1,271'
Threshold Crossing Height 52 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALS MALSR
Centerline Lights
Runway End Identifier Lights

Runway 18/36

4301 ft. x 75 ft.
ASPH
Excellent
NONE

11/F/C/Y/U
30,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 47' 38"N 38° 46' 55"N
Longitude 97° 39' 41"W 97° 39' 41"W
Elevation 1,254' 1,288'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

57 ft. x 57 ft.
CONC
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 38° 47' 19"N N/A
Longitude 97° 38' 35"W N/A
Elevation 1,260' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

29 ft. x 28 ft.
ASPH
Good
NONE


--
--
--
--
  Runway H2 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 38° 47' 51"N N/A
Longitude 97° 38' 38"W N/A
Elevation 1,260' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H3

30 ft. x 30 ft.
CONC
Good
NONE


--
--
--
--
  Runway H3 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 38° 47' 47"N N/A
Longitude 97° 39' 08"W N/A
Elevation 1,250' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H4

57 ft. x 43 ft.
ASPH
Good
NONE


--
--
--
--
  Runway H4 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 38° 47' 37"N N/A
Longitude 97° 39' 17"W N/A
Elevation 1,253' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H5

57 ft. x 57 ft.
CONC
Good
NONE


--
--
--
--
  Runway H5 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 38° 47' 47"N N/A
Longitude 97° 39' 26"W N/A
Elevation 1,250' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H6

29 ft. x 29 ft.
CONC
Good
NONE


--
--
--
--
  Runway H6 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 38° 47' 00"N N/A
Longitude 97° 39' 26"W N/A
Elevation 1,253' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10SVC: FLUID- LPOX, HPOX, LPNIT, LOX (72HR NOTICE) DEICING SERVICE TYPE 1& TYPE 4 OIL 0-128-148 AVBL IN QUART CANS TRANS SVC AVBL AT FBO. LOGISTICAL SVC AVBL FOR DETS AND RON AT FBO (AVFLIGHT SALINA, 785-825-6739/CELL 785-819-2236.)
A110-11ARNG: RAMP SPACE AVBL TO ACCOMMODATE UP TO 80 FIGHTERS. SMOKY HILL ANG WEAPONS RANGE 16 NM TO THE SW. COORD RANGE TIME AT DSN 743-7600 EXT 148. MILITARY BILLETING AVAILABLE 888-577-8257. LOGISTIC EQPT AVBL FOR USE. ORDNANCE STORAGE FOR CLASS 1.3 THRU 1.4.
A110-12ARNG: TSNT ARMY ACFT CTC SALINA GUARD OPS ON 229.80 OR 34.10 SC RED. LIMITED UH-60 SVC AND MAINT AVBL.
A110-13100LL SELF SVC FUELING STN LOCATED SOUTH OF KANSAS ANG.
A110-14GND SUPPORT AND LOGISTICS EQUIP AVBL INCL TUGS, BOBTAILS, TOW BARS AND AIRSTAIRS.
A110-16H1 INGRESS/EGRESS 070 DEG THROUGH 040 DEG TO AVOID CTL TWR.
A110-17ALL HELIPADS DALGT USE ONLY.
A110-18H3, H4, H5, H6 USED EXTSVLY FOR TRNG.
A110-19H2, H3 LTD TO 6,000 LBS; H4, H5 LTD TO 25,000 LBS.
A110-2NO LINE OF SIGHT, ALL RYS DUE TO GRADIENT, TOPOGRAPHY & TREES.
A110-20NOISE ABATEMENT: HEAVY & MIL ACFT TPA AT 2,800 MSL OR ABOVE.
A110-21FOR CD IF UNA TO CTC ON FSS FREQ, CTC KANSAS CITY ARTCC AT 913-254-8508.
A110-22BTN 0001-0459L ACR OPNS INVOLVING ACFT WITH MORE THAN 9 PSGRS SEATS ARE NOT AUTH IN EXCESS OF 15 MINS BFR OR AFT SKED ARR OR DEP TIMES WO PRIOR COORD WITH AMGR TO CFM THAT ARFF SVCS ARE AVBL PRIOR TO LNDG OR TKOF. CALL AMGR 785-827-3914.
A110-5SEASONAL MOWING OPNS ADJ TO RYS & TWYS.
A110-6CALM WND RY 35.
A110-8ARNG: OPR 1300-2300Z++ TUE-FRI; OCNL SAT EXC HOL. LTD MAINT UH-60. ARNG, AR AND A CTC ARNG OPS PRIOR TO LDG OR CALL 785 827 3914 FOR LIASON.
A110-9SVC: JASU- 2(A/M32-95) 2(A/M32-60B) 1(A/M32-86D).
A26PPR 24 HRS FOR UNSKED ACR OPNS WITH MORE THAN 30 PSGR SEATS CALL AMGR 785-827-3914. ARFF INDEX B PROVDD SUN-SAT 0600 TO 2200 (LOCAL). INDEX E AVBL UPON REQ.
A30-04/22RWY 04/22 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A30-18/36RWY 18/36 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A39-12/30PCR VALUE: 176/F/D/X/T
A39-17/35PCR VALUE: 840/F/D/X/T
A81-APTWHEN ATCT CLSD ACTVT MIRL RY 12/30; PAPI RYS 12 & 30; HIRL RY 17/35; MALS & PAPI RYS 17 & 35; MALSR RY 35 - CTAF.
SALINA RGNL (ICAO: KSLN, IATA: SLN) is a public airport located in SALINA, KS, US.
