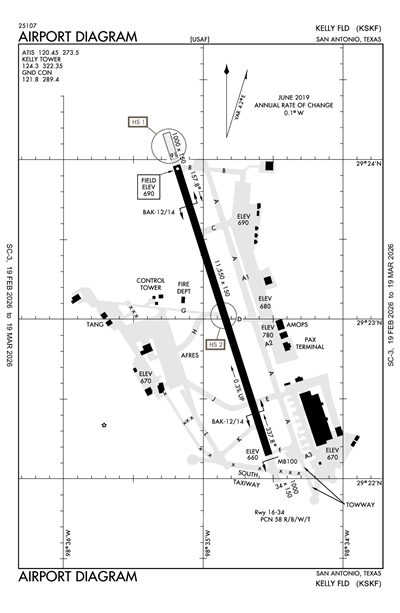

KELLY FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSKF
KELLY FLD
PublicPUB

4 miles SW of SAN ANTONIO, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
29° 23' 03"N 98° 34' 52"W
691' MSL
1691' MSL
04E
JET A (FSII), 100LL
SAN ANGELO (SJT)
SAN ANTONIO
HOUSTON (ZHU)
4/17/25-5/15/25
KSKF VFR
4:55 PM CST
Clear
9sm
76°F
60°F
29.74"Hg
140° 3kts
AO2 SLP065 T02470153 $
METAR KSKF 082255Z AUTO 14003KT 9SM CLR 25/15 A2974 RMK AO2 SLP065 T02470153 $
+ Add Your Business

KSKF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 120.45
Hours: 24 HRS.

Ground

GND/P 121.8

Tower

LCL/P 124.3

Emergency

EMERG 121.5

Other

AFRC COMD POST 138.6
PTD 122.95
AIRBAND
PTD 126.2

Terminal Area Forecast

KSKF
Thu, 1/8 12:00 PM CST
Thu, 1/8 12:00 PM CST - Fri, 1/9 6:00 PM CST
VFR
12:00 PM CST - 3:00 PM CST
Broken 20,000'
Broken 11,000'
Few 2,500'
6sm
29.73"Hg
220° 8kts
VFR
Becoming 3:00 PM CST - 5:00 AM CST
Broken 25,000'
Scattered 12,000'
6sm
29.73"Hg
290° 6kts
Light Turbulence: 9,000 - 5,000'
VFR
Becoming 5:00 AM CST - 9:00 AM CST
Overcast 25,000'
Broken 12,000'
Broken 6,500'
6sm
29.85"Hg
340° 5kts
Light Turbulence: 9,000 - 5,000'
MVFR
Becoming 9:00 AM CST - 3:00 PM CST
Overcast 12,000'
Broken 2,800'
6sm
29.88"Hg
040° 6kts
VFR
Becoming 3:00 PM CST - 6:00 PM CST
Overcast 25,000'
Broken 12,000'
Scattered 2,500'
6sm
29.91"Hg
020° 6kts
TAF KSKF 081800Z 0818/0924 22008KT 9999 FEW025 BKN110 BKN200 QNH2972INS
   BECMG 0821/0822 29006KT 9999 SCT120 BKN250 510005 QNH2972INS WND VRB03KT AFT 0823
   BECMG 0911/0912 34005KT 9999 BKN065 BKN120 OVC250 510005 QNH2986INS
   BECMG 0915/0916 04006KT 9999 BKN028 OVC120 QNH2987INS
   BECMG 0921/0922 02006KT 9999 SCT025 BKN120 OVC250 QNH2992INS TX28/0821Z TN17/0911Z
KSKF
EffectiveExpiresCategoryNOTAM
Domestic
1/6/26
1300Z
1/8/26
2100Z
!SKF 01/005 SKF AIRSPACE SEE SSF 01/005 UAS TUE THU 1300-2100
2601061300-2601082100
12/30/25
1332Z
3/31/26
2359Z
!SKF 12/051 SKF OBST POLE (ASN UNKNOWN) 292330N0983436W (0.67NM SE APCH END RWY 16)
790FT (100FT AGL) NOT LGTD 2512301332-2603312359
12/30/25
1318Z
3/31/26
2359Z
!SKF 12/048 SKF OBST POLE (ASN UNKNOWN) 292334N0983436W (.63NM SE APCH END RWY 16)
790FT (100FT AGL) NOT LGTD 2512301318-2603312359
12/30/25
1316Z
3/31/26
2359Z
!SKF 12/047 SKF OBST POLE (ASN UNKNOWN) 292344N0983437W (.53NM ESE APCH END RWY 16)
790FT (100FT AGL) NOT LGTD 2512301316-2603312359
12/30/25
1312Z
3/31/26
2359Z
!SKF 12/046 SKF OBST POLE (ASN UNKNOWN) 292348N0983437W (.52NM ESE APCH END RWY 16)
790FT (100FT AGL) NOT LGTD 2512301312-2603312359
Military
1/12/26
1200Z
1/13/26
0001Z
RunwayRWY 16/34 CLSD FOR PREVENTATIVE MAINTENANCE INSPECTION. FOR ANY UPDATES CONTACT AIRFIELD MANAGEMENT AT (210) 925-6803; 12 JAN 0600L - 12 JAN 1800L.
1/6/26
1851Z
1/9/26
1851Z
M0010/26 NOTAMC M0009/26
1/6/26
1533Z
1/9/26
1533Z
M0008/26 NOTAMC M0006/26
1/6/26
1509Z
1/9/26
2200Z
USE CAUTION: PERSONNEL AND EQUIPMENT ON THE INFIELD SOUTH OF TAXIWAY CHARLIE EAST OF THE RUNWAY
1/6/26
0057Z
1/9/26
0057Z
M0005/26 NOTAMC M0004/26
1/5/26
2126Z
1/8/26
2126Z
M0003/26 NOTAMC M0002/26
12/31/25
2108Z
1/31/26
2359Z
UP TO 200 FT CRANE .33 NM/2000 FT WEST OF ARP (MIDFIELD) (BEARING 070*)
12/23/25
0405Z
1/23/26
2359Z
ROTATING BEACON OTS
12/17/25
0212Z
1/15/26
2300Z
RunwayRWY 34 SEQUENCED FLASHING LIGHTS UNSERVICEABLE.
11/1/25
1759Z
1/29/26
2359Z
DUE TO TOWER CONSTRUCTION, THE 149 FW RAMP IS WITHIN THE ATCT VISUAL BLIND SPOT. AIRCRAFT LOCATED OR PARKING ON THE 149 FW RAMP MAY EXPERIENCE ADDITIONAL TAXI INSTRUCTIONS, ADVISORIES, AND/OR DELAYS
Yes
ALL
U.S. AIR FORCE
502 ABW & JOINT BASE SAN ANTONIO
SAN ANTONIO, TX 78234
Phone: (210) 808-7503
DANNY JONES
907 BILLY MITCHELL BLVD
SAN ANTONIO, TX 78226-9805
Phone: 210-362-7838
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
SKF
Sunset to Sunrise
--
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High & Low Pressure
Cargo Handling

Runway 16/34

11550 ft. x 150 ft.
CONC
Good
GRVD
HIGH
58 /R/B/W/T
--
--
--
--
  Runway 16 Runway 34
True Heading 162°342°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 29° 23' 58"N 29° 22' 09"N
Longitude 98° 35' 12"W 98° 34' 32"W
Elevation 690' 660'
Threshold Crossing Height 89 ft. AGL 93 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-10ACFT WITH WING SPAN LARGER THAN 93 FT NOT AUTHORIZED IN ARM/DEARM PADS.
A110-11CSTMS/AG/IMG: CSTMS, PLANT QUARANTINE AND IMG AVBL, CTC AMOPS BY FONE PATCH OR PTD RDO 2 HR BEFORE ARR. ALL PERS, EXCLD ACTIVE US MIL, MUST CLEAR IMG INBD.
A110-14BEARING STRENGTH RWY 16/34 - ST175 SBTT590 DDT870 TRT580.
A110-23MISC: ACFT WITH CODE 6 AND ABV CTC AMOPS FONE PATCH/PTD WITH BLOCK TIME AT LEAST 1 HR BEFORE LDG.
A110-27A-GEAR: BAK-12A(B) CABLES RAISED BY BAK-14 DEVICE O/R TO CTL TWR. POTENTIAL FOR HOOK SKIP AT BAK-12 CABLE SYS DUE TO IRREG EDGES AND UNEVEN DEPTHS WI 200 FT OF ARRESTING SYS
A110-28MISC: OFFICIAL POINT OF OBSERVATION DOES NOT ALLOW A CLEAR UNOBSTRUCTED VIEW OF RWY. WX TECHNICIAN VIEW FROM N TO SE IS PARTIALLY OBSTRUCTED BY TREES, BLDGS, & HANGARS. TECHNICIAN RELIES ON COOPERATIVE WX WATCH WITH TWR. HIGH INTENSITY SECURITY LGTS HINDER ABILITY TO DETERMINE SKY COND AT NIGHT.
A110-36RSTD: TRAN ACFT EXP DELAYS AND MAY BE LTD TO ONE APCH TO A FULL STOP FOR HOME STN FORMAL TRNG UNIT OPS AND TACTICAL ARR AND DEP TRNG MON-FRI 1500-0400Z ++.
A110-4CAUTION: PROBABILITY OF HYDROPLANING AT ALL SPEEDS ENTIRE RWY.
A110-40CIVILIAN RAMP LCTD NE OF RY. GA RAMP ACCESS VIA TWYS A1, B AND C.
A110-41CUSTOMS/AG/IMG RQR 72 HRS PN CTC FBO. J8-ATLANTIC AVN, 1200-0600Z++, 2 HR PN FOR DEFUELING AND RESERVICE.
A110-43RSTD: QUIET HRS 0500-1200++ DLY DEP AND FULL STOP LDG ONLY.
A110-47MILITARY SERVICE: FUEL- A++, A+. MIL FUEL UNAVBL SAT 0400-1200Z++.
A110-50WARNING: LARGE SUCCESSIVE FLOCKS OF CATTLE EGRETS, 5 TO 50 IN NO., HAVE BEEN OBSERVED FLYING BLW 300 FT AGL ACROSS N END OF RWY EV MORNING AT SR FOR UP TO 2 HRS, RETURNING WITHIN 2 HR OF SS. BASH PH II IN EFF 1 MAR-30 NOV. CAUTION: NORTH END UNDERRUN/OVRN 147' PAVED, 853' UNPAVED. RUNWAY AND MAJORITY OF TAXIWAY PAVEMENT SHOULDERS EXCEED STANDARD DIMENSIONS AND ARE NOT MARKED WITH YELLOW CHEVRON DECEPTIVE SURFACE MARKINGS TO INDICATE UNUSABLE.
A110-51USER FEES APPLICABLE TO CIVIL ACFT.
A110-53MILITARY SERVICE: TRAN ALERT - OPR 1130-0430Z++ MON-FRI, 1330-0230Z++ SAT-SUN, CLSD FEDERAL HOL; OT 2 HR PN RQR CTC AMOPS. 1 HR PN FOR ALL ACFT SVC; CTC AMOPS DSN 945-6802,C210-925-6802 OR PTD TO AVOID DELAYS. UNA TO SUPPORT TRAN ACFT LCL SORTIES.
A110-54MILITARY SERVICE: JASU -(A/M32A-86D, A/M32A-95 LASS).
A110-55MILITARY SERVICE: FLUID - SP PRESAIR LHOX LOX LHNIT.
A110-56MILITARY SERVICE: OIL - O-133-148-156; SOAP - AVBL 2000-0600Z++ MON; 1230-0600Z++ TUE-THUR; 1230 - 2230Z++ FRI.
A110-57MILITARY-MISC: USAF TRAN ACFT WILL USE TRAN ALERT SVC AND PARK ON MIL RAMP. NON-USAF TRAN ACFT MAY PRK AT MIL RAMP OR ATLANTIC AVIATION FBO ON CIV RAMP; FOR QNS CTC AFLD MGMT OPNS C210-925-6803.
A110-58CONTACT PORT SAN ANTONIO OPS 210-362-7837/7838.
A110-61SERVICE-LGT: RWY 34 PAPI LCTD NSTD ON RGT (EAST) SIDE OF RWY 34.
A110-62ACFT ARR BTN 0500-1200Z++ EXP FULL STOP LDG. NO AFTER BURNER TKOF DUR THESE TIMES WO PRIOR COORD AND APVL.
A110-63PORT OPERATIONS 210-362-7875.
A110-65CAUTION: HVY RUBBER DEPOSITS OBSCURING RWY MRKGS AT TDZS
A110-66TWY G WEST OF TWY H IS FOR 149FW USE.
A110-67RSTD:REQ FOR PPR WILL BE TAKEN NO EARLIER THAN 7 DAYS PRIOR TO PLANNED MISSION. AT LEAST 24 HR PN RQRD FOR PPR, EXC MEDEVAC, DV AND OTHER ACFT ON A CASE BY CASE BASIS APVD BY DO. CTC BASE OPS DSN 945-6803, C210-925-6803. PPR GOOD FOR +1/-1 HR PPR BLOCK TIME. COORD OF PPR OUTSIDE OF BLOCK TIME BY FONE IS RQRD.
A110-68MISC: RWY COND CODE (RWYCC) NOT RPRTD.
A110-69MISC: LTD CLASSIFIED MTRLS STORAGE: EXCESS AND TS MTRLS MUST GO TO 433 AW/CP.
A110-7ANG: OPR 1345-2230Z++ TUE-SAT. PPR FOR USE OF ANG RAMP, DSN 945-5934, C210-925-5934.
A110-70APN PSA RAMP CLSD IN BOTH DRCTNS AT TWY B AT APN ENTRANCE TO TWY C TO ALL ACFT UNLESS UNDER TOW.
A110-71MISC: TACAN CK POINT/ALTM SIGN ON TWY F AND B SITED OPPOSITE DRCTN OF TACAN.
A110-72SERVICE-LGT: TWY F: NO TWY END LGTS.
A110-73CAUTION: INST HOLD LINE MRK FADED ON TWY F.
A110-74RWY: ALL RWY GROOVED.
A110-8AFRC: PPR FOR USE OF AFRC RAMP, DSN 945-4330, C210-925-4330.
A14FOR CIVILIAN OPERATIONS, CONTACT PORT OPERATIONS 210-362-7875.
A24LANDING FEE FOR ALL ACFT EXCLUDING U.S. MIL AND ACFT LESS THAN 12,500LBS. INVOICED BY PSA AIRPORT DEPARTMENT, IAW JUA
A70-FUEL-100LL ACFT USING AVGAS SELF-SERVE: DO NOT DEVIATE FM TAX LNS TO/FM AVGAS SELF-SERVE TO ENSURE SAFE DSTC FM OTR OPNS. 100LL FUEL IS SELF SERVE AT PORT SAN ANTONIO AND FULL SERVICE AT FBO.
E147RECTANGULAR 1700 FT MSL, CONVL 2200 FT MSL, FTR TYPE/OVERHEAD 2700FT MSL. AETC ACFT EXP REDUCED RWY SEPARATION DAY/VFR. TRAN FTR ACFT MUST NOTIFY TWR ON INITIAL CTC OF REDUCED SEPARATION IS NOT DESIRED.
E60-16BAK-14 BAK-12A(B) (1853').
E60-34BAK-14 BAK-12A(B) (1677') HOOK MB100 (60' OVRN).
E80US CUSTOMS USER FEE ARPT.
E80ACSTMS; PLANT QUARANTINE & IMG SVC AVBL CTC BASE OPNS 2 HRS PN. ALL PSNL MUST CLEAR IMG INBD.
KELLY FLD (ICAO: KSKF, IATA: SKF) is a public airport located in SAN ANTONIO, TX.
