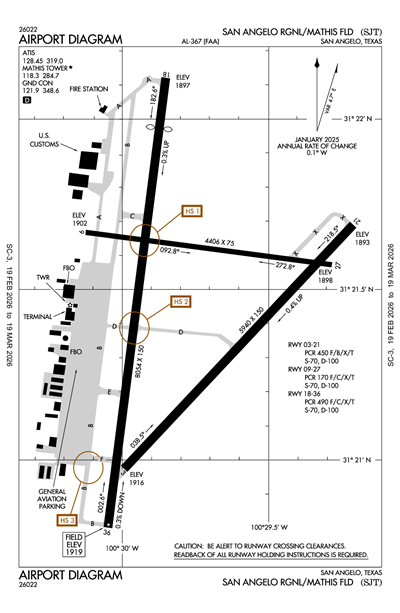

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSJT
SAN ANGELO RGNL/MATHIS FLD
PublicPUB

7 miles SW of SAN ANGELO, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 21' 28"N 100° 29' 47"W
1919' MSL
2919' MSL
05E
JET A, 100LL
SAN ANGELO (SJT)
SAN ANTONIO
FORT WORTH (ZFW)
7/11/24-8/8/24
KSJT VFR
5:51 AM CDT
Clear
10sm
75°F
66°F
29.89"Hg
160° 5kts
AO2 SLP095 T02390189
KSJT 191051Z AUTO 16005KT 10SM CLR 24/19 A2989 RMK AO2 SLP095 T02390189
Add Your Business

KSJT FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.3

ATIS

ATIS
 128.45

ASOS

ASOS
325-949-6686
 128.45

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 118.3

Terminal Area Forecast

KSJT
Thu, 9/19 12:20 AM CDT
Thu, 9/19 1:00 AM CDT - Fri, 9/20 1:00 AM CDT
VFR
1:00 AM CDT - 9:00 AM CDT
Sky Clear
6sm
160° 8kts
VFR
9:00 AM CDT - 11:00 AM CDT
Scattered 1,500'
6sm
180° 11kts
VFR
11:00 AM CDT - 6:00 PM CDT
Sky Clear
6sm
170° 10kts
Gusts 18kts
VFR
6:00 PM CDT - 1:00 AM CDT
Sky Clear
6sm
160° 7kts
KSJT 190520Z 1906/2006 16008KT P6SM SKC
   FM191400 18011KT P6SM SCT015
   FM191600 17010G18KT P6SM SKC
   FM192300 16007KT P6SM SKC
KSJT
Domestic
9/16/242347Z !SJT 09/192 SJT OBST TOWER LGT (ASR 1041533) 314200.00N1002631.00W (20.6NM NE SJT) 3018.0FT (620.1FT AGL) U/S 2409162347-2410020400
9/15/242030Z !SJT 09/180 SJT SVC SAN ANGELO APP CLSD CTC FORT WORTH ARTCC FOR CLR DELIVERY AT 817-858-7584 2409152030-2409182100
9/15/241100Z !SJT 09/120 SJT AIRSPACE SEE FDC 4/3392 ZFW 99.7 SECURITY 2409151100-2409210400
9/13/242338Z !SJT 09/158 SJT NAV ILS RWY 03 WOOLE LOM U/S 2409132338-2409252000EST
9/12/241300Z !SJT 09/121 SJT AIRSPACE SEE ZHU 09/222 UAS DLY 1300-0500 2409121300-2409190500
9/2/242217Z !SJT 09/015 SJT OBST TOWER LGT (ASR 1225759) 313150.00N1002906.30W (10.3NM NE SJT) 2427.8FT (500.3FT AGL) U/S 2409022217-2412312359
9/2/240502Z !SJT 09/006 SJT OBST WIND TURBINE LGT (ASN 2019-WTW-2355-OE) 313508N1005036W (22.5NM NW SJT) 2731FT (273FT AGL) U/S 2409020502-2410170814
8/31/240405Z !SJT 08/425 SJT OBST TOWER LGT (ASR 1324646) 311631.95N1003725.34W (8.2NM SW SJT) 2402FT (360FT AGL) U/S 2408310405-2410012300
8/1/242111Z !SJT 08/008 SJT OBST WIND TURBINE LGT (ASN 2020-ASW-16811-OE) 313823N1004117W (19.5NM NNW SJT) 2368FT (305FT AGL) U/S 2408012111-2412061700EST
9/6/232159Z !SJT 09/064 SJT TWY H BTN APCH END RWY 21 AND RWY 09/27 CLSD 2309062159-2412312300
FDC
9/13/242344Z !FDC 4/5286 SJT IAP SAN ANGELO RGNL/MATHIS FLD, SAN ANGELO, TX.
ILS Y OR LOC Y RWY 3, AMDT 22B...
S-LOC 3 MINIMUMS DME REQUIRED EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
WOOLE (SJ) LOM OUT OF SERVICE.
2409132344-2410132344EST
8/5/241434Z !FDC 4/3157 SJT ODP SAN ANGELO RGNL/MATHIS FLD, SAN ANGELO, TX.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
RWY 9/27 TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURE NA. ALL OTHER DATA REMAINS AS PUBLISHED. 2408051434-2608051434EST
7/9/241716Z !FDC 4/8858 SJT PART 1 OF 2 ODP SAN ANGELO RGNL/MATHIS FLD,
SAN ANGELO, TX.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKEOFF OBSTACLE NOTES: RWY 3: FENCE 8 FT FROM DER, 490 FT RIGHT OF
CENTERLINE, 4 FT AGL/1896 FT MSL.
TREE 155 FT FROM DER, 498 FT RIGHT OF CENTERLINE, 16 FT AGL/1902 FT
MSL.
TREE 429 FT FROM DER, 604 FT RIGHT OF CENTERLINE, 27 FT AGL/1910 FT
MSL.
TREE 559 FT FROM DER, 564 FT RIGHT OF CENTERLINE, 31 FT AGL/1912 FT
MSL.
RWY 9: TREE 724 FT FROM DER, 15 FT RIGHT OF CENTERLINE, 22 FT
AGL/1917 FT MSL.
RWY 18: TREE, POLE BEGINNING 112 FT FROM DER, 393 FT LEFT OF
CENTERLINE, UP TO 1948 FT MSL.
POLE BEGINNING 1050 FT FROM DER, 183 FT LEFT OF CENTERLINE, UP TO
44 FT AGL/1962 FT MSL.
POLE 1075 FT FROM DER, 313 FT RIGHT OF CENTERLINE, 31 FT AGL/1949
FT MSL.
POLE BEGINNING 1117 FT FROM DER, 115 FT RIGHT OF CENTERLINE, UP TO
46 FT AGL/1964 FT MSL.
POLE BEGINNING 1390 FT FROM DER, 590 FT LEFT OF CENTERLINE, UP TO
ALL OTHER DATA REMAINS AS PUBLISHED. 2407091716-2607091716EST
END PART 1 OF 2
!FDC 4/8858 SJT PART 2 OF 2 ODP SAN ANGELO RGNL/MATHIS FLD,
SAN ANGELO, TX.
55 FT AGL/1974 FT MSL.
POLE, CATENARY WIRES BEGINNING 1648 FT FROM DER, 389 FT RIGHT OF
CENTERLINE, UP TO 44 FT AGL/1965 FT MSL.
POLE 1942 FT FROM DER, 639 FT LEFT OF CENTERLINE, 55 FT AGL/1975 FT
MSL.
RWY 27: FENCE BEGINNING 76 FT FROM DER, 497 FT LEFT OF CENTERLINE,
UP TO 7 FT AGL/1910 FT MSL.
BUILDING 95 FT FROM DER, 323 FT LEFT OF CENTERLINE, 12 FT AGL/1915
FT MSL.
BUILDING 192 FT FROM DER, 541 FT RIGHT OF CENTERLINE, 13 FT
AGL/1912 FT MSL.
TREE, POLE BEGINNING 494 FT FROM DER, 75 FT LEFT OF CENTERLINE, UP
TO 39 FT AGL/1940 FT MSL.
TREE 496 FT FROM DER, 287 FT RIGHT OF CENTERLINE, 41 FT AGL/1941 FT
MSL.
RWY 36: TRAVERSE WAY BEGINNING 79 FT FROM DER, 483 FT LEFT OF
CENTERLINE, UP TO 1906 FT MSL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2407091716-2607091716EST
END PART 2 OF 2
4/4/241845Z !FDC 4/7045 SJT IAP U.S. DOD SAN ANGELO RGNL/MATHIS FLD, SAN ANGELO, TX.
HI-VOR/DME OR TACAN RWY 3, AMDT 5A...
CIRCLING CAT C MDA 2500/HAA 581, CAT D/E MDA 2700/HAA 781. VIS CAT C 1 3/4, VIS CAT D 2 1/2, CAT E 2 3/4. ALTERNATE MINIMUMS: STANDARD EXCEPT CAT D 800-2 1/2, CAT E 800-2 3/4. CHART CIRCLING ICON..
2404041845-2604041845EST
Yes
0600-2200
CITY OF SAN ANGELO
72 W COLLEGE ST
SAN ANGELO, TX 76903
Phone: 325-659-6409
JEREMY VALGARDSON
8618 TERMINAL DRIVE, SUITE 101
SAN ANGELO, TX 76904
Phone: 325-659-6409
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
SJT
--
DUSK-DAWN. WHEN ATCT CLSD MIRL RWY 18/36 PRESET LOW INTST. TO INCR INTST & ACTVT MALSR RWY 03; REIL RWY 18; PAPI RWYS 18 & 36; HIRL RWY 03/21; MIRL RWY 09/27 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
110
14
21
7
0
1
Major
Major
Low Pressure
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 03/21

5940 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
115/F/A/W/T
70,000lbs
100,000lbs
--
--
  Runway 03 Runway 21
True Heading 43°223°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 31° 20' 59"N 31° 21' 42"N
Longitude 100° 29' 60"W 100° 29' 13"W
Elevation 1,916' 1,893'
Threshold Crossing Height -- 52 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- V4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No

Runway 09/27

4406 ft. x 75 ft.
ASPH
Fair
NONE
MED
39 /F/A/W/T
70,000lbs
100,000lbs
--
--
  Runway 09 Runway 27
True Heading 97°277°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 31° 21' 40"N 31° 21' 35"N
Longitude 100° 30' 07"W 100° 29' 17"W
Elevation 1,902' 1,898'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

8054 ft. x 150 ft.
ASPH
Good
GRVD
MED
67 /F/A/W/T
70,000lbs
100,000lbs
--
--
  Runway 18 Runway 36
True Heading 187°7°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 22' 08"N 31° 20' 49"N
Longitude 100° 29' 51"W 100° 30' 03"W
Elevation 1,897' 1,919'
Threshold Crossing Height 45 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-1FOR CD IF UNA TO CTC ON FSS FREQ, CTC FORT WORTH ARTCC AT 817-858-7584.
SAN ANGELO RGNL/MATHIS FLD (ICAO: KSJT, IATA: SJT) is a public airport located in SAN ANGELO, TX.
