KSHV
SHREVEPORT RGNL
PublicPUB

4 miles SW of SHREVEPORT, LA
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 26' 47"N 93° 49' 34"W
258' MSL
1258' MSL
02E
JET A, 100LL
DE RIDDER (DRI)
MEMPHIS
FORT WORTH (ZFW)
12/26/24-1/23/25
No METAR is available for this location.

KSHV FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

ATIS
128.45

ASOS

ASOS
318-636-5767
128.45

Clearance Delivery

CD/P
124.65

Emergency

EMERG
121.5

Ground

GND/P
121.175

Tower

LCL/P
121.4

FAA A/FD Pages

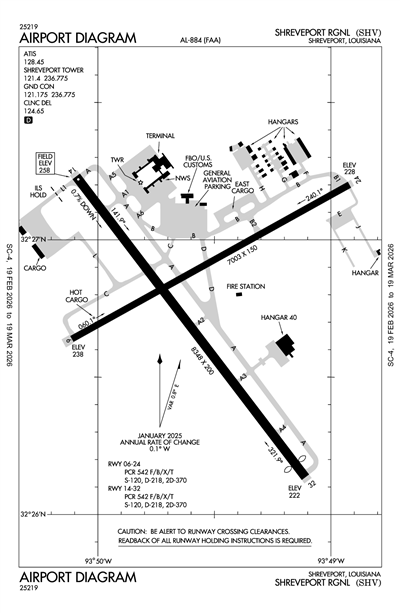

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Terminal Area Forecast

No TAF is available for this location.
KSHV
Domestic
1/13/251346Z !SHV 01/018 SHV TWY A BTN TWY A3 AND APCH END RWY 32 WIP HVY EQPT ADJ TAXIWAY SAFETY AREA 2501131346-2502282100
1/13/251340Z !SHV 01/017 SHV TWY A BTN TWY A3 AND APCH END RWY 32 CLSD 2501131340-2502282100
1/13/250432Z !SHV 01/016 SHV OBST TOWER LGT (ASR 1022585) 322119.60N0940529.60W (14.6NM WSW SHV) 661.1FT (331.0FT AGL) U/S 2501130432-2505130432
1/5/251458Z !SHV 01/007 SHV OBST TOWER LGT (ASR 1064500) 322821.20N0934900.30W (1.6NM NNE SHV) 442.9FT (189.0FT AGL) U/S 2501051458-2501210500
1/1/251111Z !SHV 01/002 SHV RWY 14 RTZL U/S 2501011111-2501310559
1/1/251110Z !SHV 01/001 SHV RWY 06 PAPI U/S 2501011110-2501310559
12/31/241117Z !SHV 12/042 SHV TWY A TWY DIRECTION SIGN NORTH SIDE FOR TWY A3 OBSC 2412311117-2501310459
12/31/241116Z !SHV 12/041 SHV TWY A CL MARKINGS FADED 2412311116-2501310459
12/31/241116Z !SHV 12/040 SHV TWY C HLDG PSN MARKINGS FOR RWY 14/32 EAST SIDE OBSC 2412311116-2501310459
12/31/241115Z !SHV 12/039 SHV RWY 06/24 CL MARKINGS OBSC 2412311115-2501310459
12/18/240710Z !SHV 12/020 SHV RWY 14 SEQUENCED FLG LGT U/S 2412180710-2502262000EST
12/12/240319Z !SHV 12/014 SHV SVC AUTOMATED WX BCST SYSTEM CHANGED TO 3182160546 2412120319-PERM
FDC
11/12/241827Z !FDC 4/2717 SHV IAP SHREVEPORT RGNL, SHREVEPORT, LA.
ILS OR LOC RWY 32, AMDT 6B...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
EIC VORTAC UNMONITORED. 2411121827-2502051827EST
8/27/241411Z !FDC 4/6389 SHV IAP SHREVEPORT RGNL, SHREVEPORT, LA.
LOC RWY 6, AMDT 4...
CIRCLING CAT A MDA 820/HAA 562. WOXAT FIX MINIMUMS: CIRCLING CAT A MDA 820/HAA 562. TEMPORARY CRANE 469 MSL 4947FT NW OF SHV AIRPORT (2023-ASW-5818-NRA).
2408271411-2504081411EST
8/27/241411Z !FDC 4/6387 SHV IAP SHREVEPORT RGNL, SHREVEPORT, LA.
ILS OR LOC RWY 14, AMDT 26B...
ILS OR LOC RWY 32, AMDT 6B...
RNAV (GPS) RWY 24, AMDT 2C...
RNAV (GPS) RWY 32, AMDT 2B...
CIRCLING CAT A MDA 820/HAA 562. TEMPORARY CRANE 469 MSL 4947FT NW OF SHV AIRPORT (2023-ASW-5818-NRA).
2408271411-2504081411EST
8/27/241411Z !FDC 4/6385 SHV IAP SHREVEPORT RGNL, SHREVEPORT, LA.
RNAV (GPS) RWY 14, AMDT 2C...
LNAV/VNAV DA 680/HAT 442 ALL CATS. LNAV MDA 780/HAT 522 ALL CATS, VIS CAT C/D RVR 5000. CIRCLING CAT A MDA 820/HAA 562. VDP 1.16NM TO RW14. TEMPORARY CRANE 469 MSL 4947FT NW OF SHV AIRPORT (2023-ASW-5818-NRA).
2408271411-2504081411EST
8/27/241411Z !FDC 4/6382 SHV IAP SHREVEPORT RGNL, SHREVEPORT, LA.
RNAV (GPS) RWY 6, AMDT 4...
LNAV MDA 780/HAT 522 ALL CATS. CIRCLING CAT A MDA 820/HAA 562. VDP 1.34NM TO RW06. TEMPORARY CRANE 469 MSL 4947FT NW OF SHV AIRPORT (2023-ASW-5818-NRA).
2408271411-2504081411EST
Yes
ALL
CITY OF SHREVEPORT
505 TRAVIS STREET
SHREVEPORT, LA 71101
Phone: 318-673-5050
LARRY BLACKWELL
5103 HOLLYWOOD AVE SUITE 300
SHREVEPORT, LA 71109
Phone: 318-673-5370
DE RIDDER FSS (DRI)
Toll Free: 1-800-WX-BRIEF
SHV
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High Pressure
None
Air Freight
Avionics
Cargo Handling
Charter Service

Runway 06/24

7003 ft. x 150 ft.
ASPH
Excellent
GRVD
MED

120,000lbs
218,000lbs
370,000lbs
--
  Runway 06 Runway 24
True Heading 61°241°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 26' 38"N 32° 27' 12"N
Longitude 93° 50' 07"W 93° 48' 55"W
Elevation 238' 228'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 14/32

8348 ft. x 200 ft.
ASPH
Excellent
GRVD
HIGH

120,000lbs
218,000lbs
370,000lbs
--
  Runway 14 Runway 32
True Heading 143°323°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 27' 14"N 32° 26' 08"N
Longitude 93° 50' 06"W 93° 49' 07"W
Elevation 258' 222'
Threshold Crossing Height 50 ft. AGL --
Visual Glide Path Angle --
Visual Slope Indicator P4R --
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights
A110-1FLIGHT NOTIFICATION SERVICE (ADCUS) AVBL MON-FRI 0800-1700; OTHER TIMES BY APPOINTMENT CALL 318-635-7873 OR 800-973-2867.
A110-4BIRD ACTIVITY INVOF ARPT.
SHREVEPORT RGNL (ICAO: KSHV, IATA: SHV) is a public airport located in SHREVEPORT, LA.
