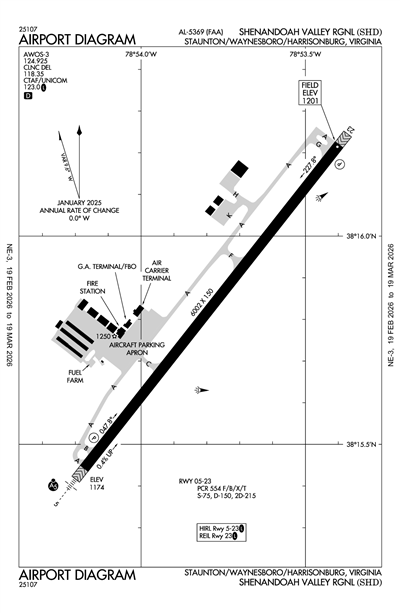

SHENANDOAH VALLEY RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSHD
ICAO KSHDIATA SHDLocal SHD
SHENANDOAH VALLEY RGNL
PublicPUB

10 miles NE of STAUNTON/WAYNESBORO/HARRISONBURG, VA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 15' 50"N 78° 53' 47"W
Elevation
1201' MSL
Pattern Alt
2201' MSL
Mag Variation
10°W
Declination
9°W
Fuel
JET A, 100LL
FSS
LEESBURG (DCA)
Sectional
WASHINGTON
ARTCC
WASHINGTON (ZDC)
Data Effective
2/19/26-3/19/26
KSHD VFR
10:55 PM EST
Broken 12,000'
10sm
43°F
42°F
30.24"Hg
180° 8kts
AO2 T00600056
METAR KSHD 040355Z AUTO 18008KT 10SM BKN120 06/06 A3024 RMK AO2 T00600056
+ Add Your Business

KSHD FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 124.925
(540) 234-0110

Common

CTAF 123.0
ACTVT MALSR RWY 05; REIL RWY 23; HIRL RWY 05/23 & TWY LGTS - CTAF. PAPI RWY 05 & 23 OPRS CONSLY.
UNICOM 123.0

Clearance

Clearance Delivery 118.35

Approach

POTOMAC APPROACH 132.85

Departure

POTOMAC DEPARTURE 132.85

Flight Service

Flight Service 122.1
(DCA), COMMUNICATIONS PRVDD BY LEESBURG RADIO 122.1R/115.3T (MONTEBELLO RCO).

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KCHO (22nm)
Tue, 3/3 9:19 PM EST
Tue, 3/3 9:00 PM EST - Wed, 3/4 7:00 PM EST
IFR
Temporary 9:00 PM EST - 1:00 AM EST
Broken 500'
N/A
Calm
MVFR
9:00 PM EST - 6:00 AM EST
Light Rain and Mist
Overcast 2,500'
Scattered 1,500'
6sm
190° 5kts
MVFR
6:00 AM EST - 1:00 PM EST
Overcast 3,500'
Broken 2,500'
6sm
050° 3kts
MVFR
7:00 AM EST - 1:00 PM EST
Light Showers and Rain
Broken 2,500'
6sm
Calm
MVFR
1:00 PM EST - 7:00 PM EST
Broken 1,200'
Scattered 600'
6sm
050° 3kts
IFR
1:00 PM EST - 7:00 PM EST
Light Showers and Rain
Overcast 600'
6sm
Calm
TAF KCHO 040219Z 0402/0424 19005KT 6SM -RA BR SCT015 OVC025
   TEMPO 0402/0406 BKN005
   FM041100 05003KT P6SM BKN025 OVC035
   PROB30 0412/0418 6SM -SHRA BKN025
   FM041800 05003KT P6SM SCT006 BKN012
   PROB30 0418/0424 6SM -SHRA OVC006
KSHD
EffectiveExpiresCategoryNOTAM
FDC
9/15/25
1542Z
!FDC 5/3811 SHD IAP SHENANDOAH VALLEY RGNL, STAUNTON/WAYNESBORO/HARRISONBURG, VA.
ILS OR LOC RWY 5, AMDT 9B...
AUTOPILOT COUPLED APPROACH NA BELOW 1600 FEET.
2509151542-2709151541EST
No
ALL
SHENANDOAH VAL REG ARPT COMM
77 AVIATION CIR.
WEYERS CAVE, VA 24486
Phone: 540-234-8304
LISA BOTKIN
77 AVIATION CIR.
WEYERS CAVE, VA 24486
Phone: 540-234-8304
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
SHD
--
ACTVT MALSR RWY 05; REIL RWY 23; HIRL RWY 05/23 & TWY LGTS - CTAF. PAPI RWY 05 & 23 OPRS CONSLY.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
None
Crop Dusting
Cargo Handling
Pilot Instruction
Aircraft Rental

Runway 05/23

6002 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

75,000lbs
150,000lbs
215,000lbs
--
  Runway 05 Runway 23
True Heading 38°218°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 38° 15' 27"N 38° 16' 13"N
Longitude 78° 54' 10"W 78° 53' 24"W
Elevation 1,174' 1,201'
Threshold Crossing Height 56 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-2FOR CD CTC POTOMAC APCH AT 866-640-4124.
A26-CPPR 12 HRS FOR UNSKED ACR OPNS WITH MORE THAN 30 PSGR SEATS CALL 540-234-8304.
A39-05/23PCR VALUE: 554/F/B/X/T
A81-APTACTVT MALSR RWY 05; REIL RWY 23; HIRL RWY 05/23 & TWY LGTS - CTAF. PAPI RWY 05 & 23 OPRS CONSLY.
E147TPA 800 FT PISTON ACFT, 1500 FT JET/TURBO ACFT.
SHENANDOAH VALLEY RGNL (ICAO: KSHD, IATA: SHD) is a public airport located in STAUNTON/WAYNESBORO/HARRISONBURG, VA, US.
