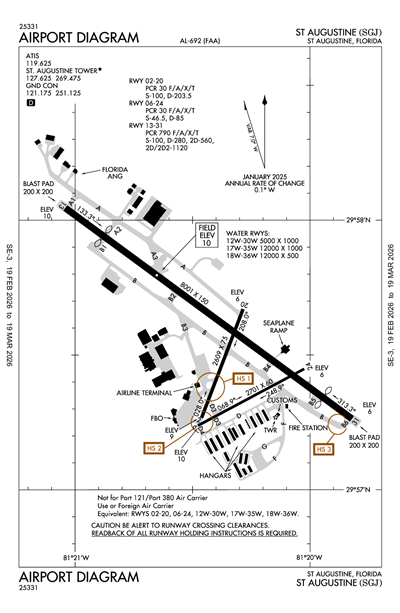

ST AUGUSTINE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSGJ
ICAO KSGJIATA USTLocal SGJ
ST AUGUSTINE
PublicPUB

4 miles N of ST AUGUSTINE, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
29° 57' 33"N 81° 20' 23"W
Elevation
10' MSL
Pattern Alt
1010' MSL
Mag Variation
7°W
Declination
4°W
Fuel
JET A, 100LL
FSS
GAINESVILLE (GNV)
Sectional
JACKSONVILLE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
2/19/26-3/19/26
KSGJ LIFR
3:56 AM EST
Fog
Overcast 200'
0.25sm
59°F
59°F
30.25"Hg
330° 5kts
AO2 SLP243 T01500150 56018 $
METAR KSGJ 040856Z AUTO 33005KT 1/4SM FG OVC002 15/15 A3025 RMK AO2 SLP243 T01500150 56018 $
+ Add Your Business

KSGJ FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 119.625
AWOS-3PT 119.625
(904) 824-7084

Common

CTAF 127.625
ACTVT MALSR RWY 31; HIRL RWY 13/31; MIRL RWY 06/24 & 2/20 - CTAF. PAPI RWY 06 & 31 AND VASI RWY 13 OPR CONSLY.
UNICOM 122.95

Ground

ST AUGUSTINE GROUND 121.175
0700-2100

Tower

ST AUGUSTINE TOWER 127.625
0700-2100

Approach

JACKSONVILLE APPROACH 120.75

Departure

JACKSONVILLE DEPARTURE 120.75

Flight Service

Flight Service 122.3
(GNV)

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Arrival Procedures

Instrument Approach

Hotspot

Terminal Area Forecast

KSGJ
Wed, 3/4 12:35 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 1:00 AM EST
LIFR
1:00 AM EST - 8:30 AM EST
Fog
Overcast 200'
0.5sm
360° 3kts
LIFR
8:30 AM EST - 9:00 AM EST
Mist
Overcast 400'
1sm
010° 6kts
IFR
9:00 AM EST - 10:00 AM EST
Mist
Overcast 900'
Broken 500'
3sm
020° 7kts
IFR
10:00 AM EST - 1:00 PM EST
Mist
Broken 900'
Scattered 500'
6sm
050° 8kts
MVFR
1:00 PM EST - 4:00 PM EST
Broken 1,500'
6sm
060° 11kts
MVFR
4:00 PM EST - 6:00 PM EST
Mist
Overcast 1,500'
Scattered 600'
5sm
090° 8kts
LIFR
6:00 PM EST - 1:00 AM EST
Fog
Broken 300'
0.5sm
070° 4kts
TAF KSGJ 040535Z 0406/0506 36003KT 1/2SM FG OVC002
   FM041330 01006KT 1SM BR OVC004
   FM041400 02007KT 3SM BR BKN005 OVC009
   FM041500 05008KT 6SM BR SCT005 BKN009
   FM041800 06011KT P6SM BKN015
   FM042100 09008KT 5SM BR SCT006 OVC015
   FM042300 07004KT 1/2SM FG BKN003
KSGJ
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
0500Z
3/4/26
1000Z
!SGJ 03/003 SGJ SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2603040500-2603041000
2/22/26
1049Z
!SGJ 02/016 SGJ NAV ILS RWY 31 NOT MNT 2602221049-2604302000EST
1/27/26
2315Z
4/27/26
0500Z
!SGJ 01/025 SGJ OBST TOWER LGT (ASR 1229699) 294933.30N0812315.20W (8.4NM SSW SGJ) 249.0FT (205.1FT AGL) U/S 2601272315-2604270500
1/9/26
2038Z
3/31/26
2359Z
!SGJ 01/006 SGJ OBST TOWER LGT (ASR 1028567) 295506.00N0812325.00W (3.7NM SW SGJ) 420.3FT (384.8FT AGL) U/S 2601092038-2603312359
1/9/26
2037Z
3/31/26
2359Z
!SGJ 01/005 SGJ OBST TOWER LGT (ASR 1027312) 295101.90N0811948.30W (6.5NM S SGJ) 478.0FT (445.9FT AGL) U/S 2601092037-2603312359
FDC
2/24/26
1430Z
4/2/26
1430Z
!FDC 6/9139 SGJ IAP NORTHEAST FLORIDA RGNL, ST AUGUSTINE, FL.
ILS OR LOC RWY 31, AMDT 1A...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CRG VORTAC OUT OF SERVICE. 2602241430-2604021430EST
9/9/25
1842Z
!FDC 5/0380 SGJ IAP NORTHEAST FLORIDA RGNL, ST AUGUSTINE, FL.
RNAV (GPS) RWY 13, ORIG-F...
LNAV/VNAV DA 395/HAT 385 ALL CATS.
CIRCLING CAT C MDA 680/HAA 670.
LNAV CAT C VIS 1 3/8.
CHANGE NOTE TO READ: RWY 13 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED.
STRAIGHT-IN MINIMUMS NA AT NIGHT.
CIRCLING RWY 2, 6 NA AT NIGHT.
2509091842-2709092359EST
4/23/24
1402Z
!FDC 4/4038 SGJ IAP NORTHEAST FLORIDA RGNL, ST AUGUSTINE, FL.
RNAV (GPS) RWY 31, AMDT 2A...
LPV DA 258/HAT 250 ALL CATS.
2404231402-2604031359EST
Yes
0600-2200
ST AUGUSTINE ARPT AUTH
4796 US 1 NORTH
ST AUGUSTINE, FL 32095
Phone: 904-209-0090
COURTNEY PITTMAN
4796 US 1 NORTH
ST AUGUSTINE, FL 32095
Phone: 904-209-0090
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
SGJ
--
ACTVT MALSR RWY 31; HIRL RWY 13/31; MIRL RWY 06/24 & 2/20 - CTAF. PAPI RWY 06 & 31 AND VASI RWY 13 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
None
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 02/20

2609 ft. x 75 ft.
ASPH
Good
NONE
MED

100,000lbs
204,000lbs
--
--
  Runway 02 Runway 20
True Heading 21°201°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 29° 57' 16"N 29° 57' 40"N
Longitude 81° 20' 28"W 81° 20' 17"W
Elevation 9' 6'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 06/24

2701 ft. x 60 ft.
ASPH
Good
NONE
MED

46,000lbs
85,000lbs
--
--
  Runway 06 Runway 24
True Heading 62°242°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 29° 57' 14"N 29° 57' 27"N
Longitude 81° 20' 29"W 81° 20' 02"W
Elevation 10' 6'
Threshold Crossing Height 47 ft. AGL --
Visual Glide Path Angle 3.25° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12W/30W

5000 ft. x 1000 ft.

WATER
NONE


--
--
--
--
  Runway 12W Runway 30W
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

8001 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

100,000lbs
280,000lbs
560,000lbs
1,120,000lbs
  Runway 13 Runway 31
True Heading 126°306°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 29° 58' 03"N 29° 57' 16"N
Longitude 81° 21' 03"W 81° 19' 49"W
Elevation 10' 6'
Threshold Crossing Height 44 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 17W/35W

12000 ft. x 1000 ft.

WATER
NONE


--
--
--
--
  Runway 17W Runway 35W
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18W/36W

12000 ft. x 500 ft.

WATER
NONE


--
--
--
--
  Runway 18W Runway 36W
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-4AEROBATIC ACT E SIDE OF RWY 13/31 CTC TWR FOR TFC & GNV RADIO FOR TIMES.
A110-5FICON NOT MNTD 2100 - 0700 LCL.
A110-6FOR CD IF UNA TO CTC ON FSS FREQ, CTC JACKSONVILLE APCH AT 904-741-0284.
A26PPR 24 HRS FOR UNSKED ACR OPS WITH MORE THAN 30 PAX SEATS CALL AMGR 904-209-0090.
A30-02/20RWY 02/20 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A30-06/24RWY 06/24 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A30-12W/30WRWY 12W/30W NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A30-17W/35WRWY 17W/35W NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A30-18W/36WRWY 18W/36W NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A39-02/20PCR VALUE: 30/F/A/X/T
A39-06/24PCR VALUE: 30/F/A/X/T
A39-13/31PCR VALUE: 790/F/A/X/T
A57-13RWY 13 APCH SLP 34:1 TO MKD DSPCD THR.
A58-13ROAD 15 FT TALL 200 FT BFR AER OF RWY 13 150 RIGHT OF CNTRLN.
A70-100LLJET SINGLE POINT REFUELING AVBL.
A70-ASELF SVC FUEL AVBL 24 HRS WITH CREDIT CARD.
A81-APTACTVT MALSR RWY 31; HIRL RWY 13/31; MIRL RWY 06/24 & 2/20 - CTAF. PAPI RWY 06 & 31 AND VASI RWY 13 OPR CONSLY.
E80AINTL LRA. USER FEE CTC U.S.CUSTOMS ON ARPT 904-209-0099.
ST AUGUSTINE (ICAO: KSGJ, IATA: SGJ) is a public airport located in ST AUGUSTINE, FL, US.
