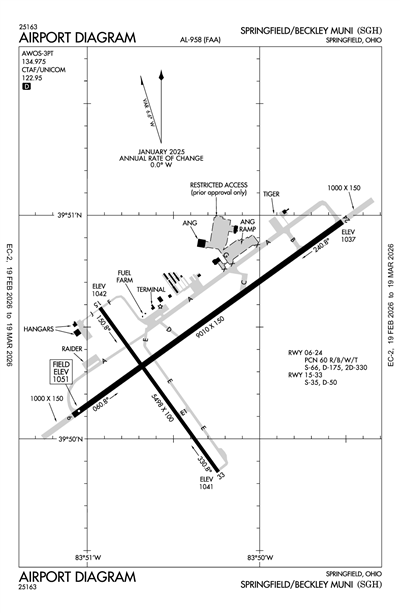

SPRINGFIELD/BECKLEY MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSGH
ICAO KSGHIATA SGHLocal SGH
SPRINGFIELD/BECKLEY MUNI
PublicPUB

5 miles S of SPRINGFIELD, OH, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 50' 25"N 83° 50' 25"W
Elevation
1051' MSL
Pattern Alt
2100' MSL
Mag Variation
7°W
Declination
4°W
Fuel
JET A (FSII), 100LL
FSS
DAYTON (DAY)
Sectional
CINCINNATI
ARTCC
INDIANAPOLIS (ZID)
Data Effective
2/19/26-3/19/26
KFFO (9nm) IFR
3:32 AM EST
Light Drizzle and Mist
Overcast 3,900'
Broken 1,800'
Broken 700'
2.25sm
48°F
46°F
30.14"Hg
240° 3kts
AO2A CIG 005 RWY23R SLP212
SPECI KFFO 040832Z 24003KT 2 1/4SM -DZ BR BKN007 BKN018 OVC039 09/08 A3014 RMK AO2A CIG 005 RWY23R SLP212
+ Add Your Business

KSGH FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 134.975
(937) 324-4532, (COMM_DECOMM_DATE) AWSS.

Common

CTAF 122.95
ACTVT WIND CONE; SSALR RWY 24; REIL RWY 06, 15, & 33; HIRL RWY 06/24; MIRL RWY 15/33 - CTAF. PAPI RWY 06, 24, 15, & 33 OPR CONSLY.
UNICOM 122.95

Arrival

DANEI STAR 134.45

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KFFO (9nm)
Wed, 3/4 3:36 AM EST
Wed, 3/4 3:00 AM EST - Thu, 3/5 4:00 AM EST
IFR
3:00 AM EST - 4:00 AM EST
Light Showers and Rain and Mist
Overcast 700'
2.49sm
30.15"Hg
VRB° 6kts
Moderate, Clear Air, Occasional: 700 - 5,700'
MVFR
Temporary 3:00 AM EST - 6:00 AM EST
Overcast 1,200'
Scattered 700'
N/A
Calm
LIFR
Becoming 4:00 AM EST - 10:00 AM EST
Light Showers and Rain and Mist
Overcast 400'
1.74sm
30.12"Hg
VRB° 6kts
Light Turbulence: 1,000 - 6,000'
IFR
Becoming 10:00 AM EST - 5:00 PM EST
Mist and Showers in vicinity
Overcast 800'
4.97sm
30.06"Hg
080° 9kts
Light Turbulence: 1,000 - 6,000'
IFR
Becoming 5:00 PM EST - 4:00 AM EST
Light Showers and Rain and Mist
Overcast 600'
2.98sm
29.97"Hg
160° 9kts
Light Turbulence: 1,000 - 6,000'
LIFR
Temporary 6:00 PM EST - 11:00 PM EST
Thunderstorm and Rain
Overcast 600'
Broken 300'
1.49sm
180° 15kts
Gusts 25kts
TAF AMD KFFO 040836Z 0408/0509 VRB06KT 4000 -SHRA BR OVC007 610909 520075 QNH3014INS
   TEMPO 0408/0411 SCT007 OVC012
   BECMG 0409/0411 VRB06KT 2800 -SHRA BR OVC004 610907 510105 QNH3013INS
   BECMG 0415/0417 08009KT 8000 BR VCSH OVC008 510105 QNH3007INS
   BECMG 0422/0423 16009KT 4800 -SHRA BR OVC006 510105 QNH2996INS
   TEMPO 0423/0504 18015G25KT 2400 TSRA BKN003 OVC006CB TX13/0419Z TN06/0412Z
KSGH
EffectiveExpiresCategoryNOTAM
Domestic
3/3/26
1734Z
!SGH 03/001 SGH SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2603031734-2603142359EST
2/18/26
1446Z
4/4/26
1445Z
!SGH 02/019 SGH OBST TOWER LGT (ASN 2024-AGL-10477-OE) 394728N0834909W (3.1NM SSE SGH) 1260FT (255FT AGL) U/S 2602181446-2604041445
2/18/26
0028Z
3/18/26
2359Z
!SGH 02/018 SGH OBST TOWER LGT (ASR 1017631) 394649.00N0835334.00W (4.4NM SW SGH) 1262.8FT (299.9FT AGL) U/S 2602180028-2603182359
FDC
6/25/25
1949Z
!FDC 5/8996 SGH IAP SPRINGFIELD/BECKLEY MUNI, SPRINGFIELD, OH.
RNAV (GPS) RWY 15, ORIG-A...
RNAV (GPS) RWY 33, ORIG...
PROCEDURE NA AT NIGHT.
2506251949-2706251949EST
No
MON-FRI 0730-1800
SAT-SUN 0900-1700
CITY OF SPRINGFIELD
76 E HIGH ST
SPRINGFIELD, OH 45502
Phone: 937-325-6108
SETH TIMMERMAN
1251 W BLEE RD
SPRINGFIELD, OH 45502
Phone: 937-325-6108
DAYTON FSS (DAY)
Toll Free: 1-800-WX-BRIEF
SGH
--
ACTVT WIND CONE; SSALR RWY 24; REIL RWY 06, 15, & 33; HIRL RWY 06/24; MIRL RWY 15/33 - CTAF. PAPI RWY 06, 24, 15, & 33 OPR CONSLY.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
High Pressure
Avionics
Pilot Instruction
Aircraft Sales

Runway 06/24

9010 ft. x 150 ft.
ASPH CONC
Fair
GRVD
HIGH
60/R/B/W/T
66,000lbs
175,000lbs
330,000lbs
--
  Runway 06 Runway 24
True Heading 54°234°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 50' 06"N 39° 50' 58"N
Longitude 83° 51' 05"W 83° 49' 31"W
Elevation 1,051' 1,037'
Threshold Crossing Height 45 ft. AGL 60 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights SSALR
Centerline Lights
Runway End Identifier Lights Yes

Runway 15/33

5498 ft. x 100 ft.
ASPH
Excellent
NONE
MED

35,000lbs
50,000lbs
--
--
  Runway 15 Runway 33
True Heading 144°324°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 50' 35"N 39° 49' 51"N
Longitude 83° 50' 56"W 83° 50' 14"W
Elevation 1,042' 1,041'
Threshold Crossing Height 36 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-18NOISE ABATEMENT: AVOID OVERFLYING YELLOW SPRINGS 2 NM SW BLW 4000 FT.
A110-22AVOID OVERFLYING ANG RAMP.
A110-26FOR CD CTC COLUMBUS APCH AT 614-338-8537.
A110-6OCNL DEER, BIRDS, & OTR WILDLIFE ON & INVOF ARPT.
A110-9HVY BIRD ACT DRG FALL & WINTER MONTHS.
A30A-24PREF RWY WIND 10 KT OR LESS.
A33-06/24_SURFNE 980 FT CONC, SW 1200 FT CONC, 6830 FT ASPH BTN.
A43-15PAPI UNUSBL BYD 9 DEGS RIGHT OF CNTRLN.
A49-24ALS UNMON INDEFLY.
A75-HPRIOR CDN RQRD.
A81-APTACTVT WIND CONE; SSALR RWY 24; REIL RWY 06, 15, & 33; HIRL RWY 06/24; MIRL RWY 15/33 - CTAF. PAPI RWY 06, 24, 15, & 33 OPR CONSLY.
E147OHD TPA 1549 FT AGL.
SPRINGFIELD/BECKLEY MUNI (ICAO: KSGH, IATA: SGH) is a public airport located in SPRINGFIELD, OH, US.
