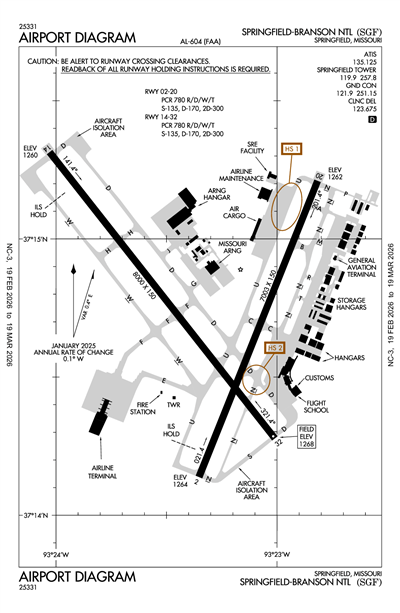

SPRINGFIELD-BRANSON NTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSGF
ICAO KSGFIATA SGFLocal SGF
SPRINGFIELD-BRANSON NTL
PublicPUB

5 miles NW of SPRINGFIELD, MO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 14' 44"N 93° 23' 19"W
Elevation
1268' MSL
Pattern Alt
2268' MSL
Mag Variation
1°E
Declination
3°E
Fuel
JET A, 100LL
FSS
COLUMBIA (COU)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KSGF VFR
10:52 PM CST
Clear
10sm
60°F
54°F
30.00"Hg
Calm
AO2 SLP155 T01560122
METAR KSGF 040452Z 00000KT 10SM CLR 16/12 A3000 RMK AO2 SLP155 T01560122
+ Add Your Business

KSGF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 135.125
ASOS (417) 869-4491

Common

UNICOM 122.95

Clearance

Clearance Delivery 123.675

Ground

SPRINGFIELD GROUND 121.9

Tower

SPRINGFIELD TOWER 119.9

Approach

SPRINGFIELD APPROACH 121.1
020-199
SPRINGFIELD APPROACH 124.95
Initial Contact - 200-019

Departure

SPRINGFIELD DEPARTURE 121.1
020-199
SPRINGFIELD DEPARTURE 124.95
Initial Contact - 200-019

Flight Service

Flight Service 122.2
(COU)

Military

ARNG OPS 38.525
BEARS DEN
ARNG OPS 138.75
BEARS DEN

Other

CLASS C 121.1
020-199
CLASS C 124.95
200-019

Terminal Area Forecast

KSGF
Tue, 3/3 5:23 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
VFR
6:00 PM CST - 11:00 PM CST
Broken 6,000'
6sm
190° 8kts
VFR
11:00 PM CST - 6:00 AM CST
Broken 8,000'
6sm
010° 6kts
MVFR
3:00 AM CST - 6:00 AM CST
Thunderstorm and Rain
Overcast 2,500'
4sm
Calm
MVFR
6:00 AM CST - 10:00 AM CST
Showers and Rain
Overcast 3,000'
6sm
180° 5kts
MVFR
Temporary 6:00 AM CST - 10:00 AM CST
Thunderstorm and Rain
Overcast 1,500'
4sm
Calm
IFR
Temporary 10:00 AM CST - 2:00 PM CST
Thunderstorm and Rain
Overcast 700'
4sm
Calm
IFR
10:00 AM CST - 6:00 PM CST
Showers and Rain
Overcast 700'
6sm
240° 7kts
TAF KSGF 032323Z 0400/0424 19008KT P6SM BKN060
   FM040500 01006KT P6SM BKN080
   PROB30 0409/0412 4SM TSRA OVC025CB
   FM041200 18005KT 6SM SHRA OVC030
   TEMPO 0412/0416 4SM TSRA OVC015CB
   FM041600 24007KT 6SM SHRA OVC007
   TEMPO 0416/0420 4SM TSRA OVC007CB
KSGF
EffectiveExpiresCategoryNOTAM
Domestic
2/26/26
1400Z
2/26/26
2100Z
Runway!SGF 02/042 SGF RWY 02/20 CLSD 2602261400-2602262100
2/25/26
1600Z
2/25/26
1900Z
Runway!SGF 02/044 SGF RWY 32 PAPI U/S 2602251600-2602251900
2/25/26
1600Z
2/25/26
2000Z
!SGF 02/038 SGF AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 371048N0931927W (5NM SE SGF) TO 370430N0931318W (13NM SE SGF) TO 365954N0932042W (15NM SSE SGF) TO 370530N0933806W (15NM SW SGF) TO 371254N0933927W (13NM W SGF) TO 371402N0932931W (5NM W SGF) TO 371223N0932851W (5NM WSW SGF) TO 371101N0932730W (5NM SW SGF) TO 371006N0932539W (5NM SSW SGF) TO 370945N0932332W (5NM S SGF) TO 370959N0932122W (5NM SSE SGF) TO POINT OF ORIGIN 1000FT-2000FT AGL INCLUDING SGF RWY 02 FINAL AND 60DEG EITHER SIDE, ACFT CS FLC68
2602251600-2602252000
2/25/26
1400Z
2/25/26
2100Z
Runway!SGF 02/041 SGF RWY 14/32 CLSD 2602251400-2602252100
2/25/26
1400Z
2/25/26
2100Z
!SGF 02/040 SGF NAV ILS RWY 02 U/S 2602251400-2602252100
2/6/26
1300Z
5/6/26
1300Z
!SGF 02/006 SGF AIRSPACE UAS WI AN AREA DEFINED AS 1NM RADIUS OF 371952N0931446W (5.6NM N 3DW) SFC-1200FT AGL 2602061300-2605061300
2/3/26
2018Z
3/20/26
2017Z
!SGF 02/003 SGF OBST TOWER LGT (ASR 1307752) 371527.05N0933432.54W (9.0NM W SGF) 1451FT (315FT AGL) U/S 2602032018-2603202017
2/3/26
1200Z
4/1/26
0100Z
!SGF 02/002 SGF OBST CRANE (ASN UNKNOWN) 371331N0932347W (.70NM SSW APCH END RWY 02)
UNKNOWN (85FT AGL) FLAGGED AND LGTD DLY 1200-0100 2602031200-2604010100
1/26/26
1641Z
4/6/26
2300Z
!SGF 01/151 SGF OBST CRANE (ASN UNKNOWN) 371439N0932359W (0.63NM SSE APCH END RWY 14)
UNKNOWN (80FT AGL) FLAGGED AND LGTD 2601261641-2604062300
1/20/26
1254Z
4/3/26
2300Z
!SGF 01/039 SGF TWY E TWY DIRECTION SIGN EAST SIDE BTN AIRLINE TERMINAL RAMP AND TWY U MISSING 2601201254-2604032300
1/20/26
1253Z
4/3/26
2300Z
!SGF 01/038 SGF APRON AIRLINE TERMINAL RAMP EDGE LGT NOT STD 2601201253-2604032300
FDC
2/19/25
1742Z
!FDC 5/4314 SGF IAP SPRINGFIELD-BRANSON NTL, SPRINGFIELD, MO.
VOR/DME OR TACAN RWY 2, ORIG-D...
ALTERNATE MINIMUMS CAT E 900-3.
2502191742-2702191739EST
4/9/24
1647Z
!FDC 4/8550 SGF IAP U.S. DOD SPRINGFIELD-BRANSON NTL, SPRINGFIELD, MO.
HI - TACAN RWY 20, AMDT 1...
CIRCLING CAT D MDA 1920/HAA 652, CAT E MDA 2080/HAA 812.
MONETT ALTIMETER CIRCLING CAT D MDA 2020/HAA 752, CAT E MDA 2180/HAA 912.
2404091647-2604091639EST
Yes
ALL
CITY OF SPRINGFIELD
2300 N AIRPORT BLVD, SUITE 100
SPRINGFIELD, MO 65802
Phone: 417-868-0500
MR. BRIAN C WEILER, A.A.E.
2300 N AIRPORT BLVD, SUITE 100
SPRINGFIELD, MO 65802
Phone: 417-868-0500
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
SGF
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 02/20

7003 ft. x 150 ft.
CONC
Good
GRVD
HIGH

135,000lbs
170,000lbs
300,000lbs
--
  Runway 02 Runway 20
True Heading 22°202°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 37° 14' 08"N 37° 15' 13"N
Longitude 93° 23' 21"W 93° 22' 49"W
Elevation 1,264' 1,262'
Threshold Crossing Height 54 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L P4L
Approach Lights MALSR MALS
Centerline Lights
Runway End Identifier Lights

Runway 14/32

8000 ft. x 150 ft.
CONC
Excellent
GRVD
HIGH

135,000lbs
170,000lbs
300,000lbs
--
  Runway 14 Runway 32
True Heading 142°322°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 37° 15' 19"N 37° 14' 17"N
Longitude 93° 24' 02"W 93° 23' 01"W
Elevation 1,260' 1,268'
Threshold Crossing Height 56 ft. AGL 35 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No Yes
A110-1BE ALERT FOR POWERED PRCHT ACT INVOF DOWNTOWN ARPT (7 MI ENE OF SGF) AT OR BLO 1,000 FT.
A110-11ARNG - MO-AVCRAD FAC OPR 1300-2100Z++ MON-FRI EXC HOL. MAINT ASST AVBL DUR NML DUTY HR. FLT ACT OPR 1400-2130Z++ MON-FRI EXC HOL. EXTN HR ON TUES, WED, THU 1400-0200Z++. DUR DST EXTN HR ONLY ON WED, THUR 1400-0500Z++. ARNG-24 HR PPR REQ, VALID 1 HR +/- ETA. FOR PPR, CTC FLT OPS AT C417-874-8460 DUR NML DUTY HR. ALL ACFT RQR CTC BEARS DEN ON 38.525, 138.75 AND 245.6 DEP ACFT RQR TO CTC BEARS DEN TO ADHERE TO ARPT SECURITY MEASURES. TRAN ACFT SHALL ARR AND DEP FR TWY G OR TWY J. A++ FUEL AVBL FOR SUPPORTED AVCRAD ACFT. RWY - ALL RWY GROOVED. RWY 02 RVR-T. TWY 20 RVR-R. RWY 14 RVR-T. RWY 32 RVR-R.
A110-2BIRDS & WILDLIFE ON & INVOF ARPT.
A110-5TWY N SOUTH OF RY 14-32 CLSD TO A-321, B727-200, ALL MD 80 SERIES, B-757 AND LARGER ACFT.
A110-8COMPASS ROSE NORTH OF TWY D AT THE APCH END RWY 32 RESTRICTED TO ACFT WITH FLUX VALVE & STBY COMPASS OF 5.5 FT IN HGT OR HYR.
A110-9GROUP IV ACFT OR LRGR ON TWY D FROM THE AER 32 TO TWY N AND TWY U ALG CARGO APN MUST PERFORM JUDGMENTAL OVERSTEERING INSTEAD OF COCKPIT OVER CNTRLN WHEN TAX.
A14DIRECTOR OF AVIATION.
A26PPR 24 HRS FOR UNSKED ACR OPNS WITH MORE THAN 30 PSGR SEATS CALL SGF 417-868-0590. ARFF INDEX C & D AVBL ON REQUEST.
A39-02/20PCR VALUE: 780/R/D/W/T
A39-14/32PCR VALUE: 780/R/D/W/T
A74OXYGEN AVBL MON-FRI 0800-1700.
SPRINGFIELD-BRANSON NTL (ICAO: KSGF, IATA: SGF) is a public airport located in SPRINGFIELD, MO, US.
