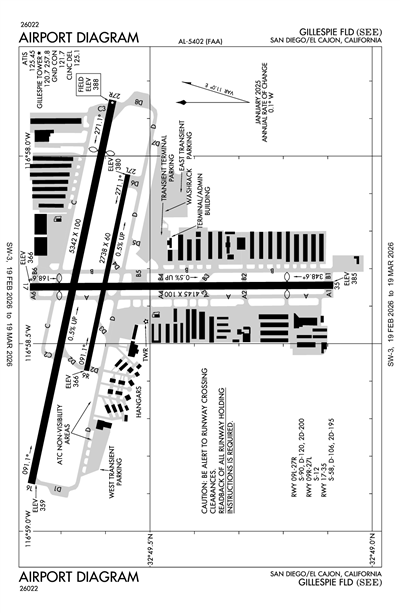

GILLESPIE FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSEE
ICAO KSEEIATA SEELocal SEE
GILLESPIE FLD
PublicPUB

10 miles NE of SAN DIEGO/EL CAJON, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 49' 34"N 116° 58' 21"W
Elevation
388' MSL
Pattern Alt
1388' MSL
Mag Variation
11°E
Declination
13°E
Fuel
JET A, 100LL
FSS
SAN DIEGO (SAN)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
2/19/26-3/19/26
KSEE VFR
12:55 AM PST
Clear
10sm
54°F
50°F
30.02"Hg
300° 4kts
AO2
METAR KSEE 040855Z AUTO 30004KT 10SM CLR 12/10 A3002 RMK AO2
+ Add Your Business

KSEE FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 125.45
(619) 449-1228
AWOS-3P 125.45
(619) 449-1228

Common

CTAF 120.7
WHEN ATCT CLSD ACTVT REIL RWY 27R; PAPI RWYS 09L, 27R, 17 & 35; MIRL RWY 09L/27R & RWY 17/35 - CTAF.; WHEN TWR CLSD, ACFT MUST SELF-ANNOUNCE ON CTAF PRIOR TO LDG OR DEP.

Clearance

Clearance Delivery 125.1

Ground

GILLESPIE GROUND 121.7
0700-2100

Tower

GILLESPIE TOWER 120.7
0700-2100
GILLESPIE TOWER 123.8
0700-2100, Secondary

Approach

SOCAL APPROACH 124.35

Departure

CWARD DP 119.6
PADRZ DP 119.6
SOCAL DEPARTURE 124.35

Other

CLASS B 124.35
062-109 SAN 14,000 FT & BLW
CLASS B 132.2
029-061 SAN 14,000 FT & BLW
CLASS B 132.2
333-028 SAN 7,000 FT-11,000 FT

Terminal Area Forecast

KNKX (9nm)
Tue, 3/3 7:09 PM PST
Tue, 3/3 7:00 PM PST - Wed, 3/4 7:00 PM PST
VFR
7:00 PM PST - 12:00 AM PST
Sky Clear
6sm
30.00"Hg
VRB° 5kts
MVFR
Becoming 12:00 AM PST - 7:30 AM PST
Overcast 1,000'
6sm
30.00"Hg
VRB° 5kts
VFR
7:30 AM PST - 9:00 AM PST
Sky Clear
6sm
30.03"Hg
VRB° 5kts
VFR
Becoming 9:00 AM PST - 4:00 PM PST
Sky Clear
6sm
30.00"Hg
240° 8kts
VFR
Becoming 4:00 PM PST - 7:00 PM PST
Sky Clear
6sm
29.94"Hg
VRB° 5kts
TAF KNKX 0403/0503 VRB05KT 9999 SKC QNH3001INS
   BECMG 0408/0410 VRB05KT 9999 OVC010 QNH3000INS
   FM041530 VRB05KT 9999 SKC QNH3003INS
   BECMG 0417/0419 24008KT 9999 SKC QNH2999INS
   BECMG 0500/0502 VRB05KT 9999 SKC QNH2994INS TX20/0422Z TN09/0413Z
KSEE
EffectiveExpiresCategoryNOTAM
Domestic
3/5/26
0500Z
3/5/26
1200Z
Runway!SEE 02/022 SEE RWY 09L/27R CLSD EXC XNG 2603050500-2603051200
2/25/26
0141Z
3/19/26
1353Z
Runway!SEE 02/018 SEE RWY 09R/27L CLSD DLY SS-SR 2602250141-2603191353
2/25/26
0141Z
3/19/26
1353Z
Runway!SEE 02/017 SEE RWY 09L/27R OPN DLY SS-SR 2602250141-2603191353
2/24/26
2012Z
3/24/26
2359Z
!SEE 02/016 SEE OBST TOWER LGT (ASR 1014526) 325035.00N1170129.00W (2.9NM WNW SEE) 651.6FT (321.5FT AGL) U/S 2602242012-2603242359
2/23/26
0552Z
!SEE 02/014 SEE SVC PCL RWY 27R PAPI U/S 2602230552-2603182359EST
12/31/25
2123Z
3/31/26
2359Z
!SEE 12/021 SEE OBST TOWER LGT (ASN 2016-AWP-1152-OE) 324951N1165920W (0.9NM WNW SEE) 436FT (44FT AGL) U/S 2512312123-2603312359
FDC
2/28/26
2300Z
!FDC 6/1504 SEE ODP GILLESPIE FLD, SAN DIEGO/EL CAJON, CA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 7...
MISSION BAY TWO DEPARTURE...
ADD TAKEOFF OBSTACLE NOTE: RWY 27R, TEMPORARY CRANE 1408FT FROM DER, 656FT RIGHT OF CENTERLINE, 60FT AGL/ 400FT MSL (2025-AWP-3046-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2602282300-2606261622EST
2/28/26
2300Z
!FDC 6/1502 SEE ODP GILLESPIE FLD, SAN DIEGO/EL CAJON, CA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 7...
MISSION BAY TWO DEPARTURE...
ADD TAKEOFF OBSTACLE NOTE: RWY 27R, TEMPORARY CRANE 1408FT FROM DER, 656FT RIGHT OF CENTERLINE, 60FT AGL/ 400FT MSL ((2025-AWP-3046-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2602282300-2606261622EST
2/18/26
1224Z
!FDC 6/5644 SEE IAP GILLESPIE FLD, SAN DIEGO/EL CAJON, CA.
LOC-D, AMDT 11D...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MZB VORTAC UNMONITORED. 2602181224-2603181224EST
2/12/26
1320Z
!FDC 6/3063 SEE SID GILLESPIE FLD, SAN DIEGO/EL CAJON, CA.
CWARD TWO DEPARTURE (RNAV)...
PADRZ TWO DEPARTURE (RNAV)...
TAKEOFF MINIMUMS: RWY 17, 300-1 WITH A MINIMUM CLIMB OF 480FT PER NM TO 2200. ADD TAKEOFF OBSTACLE NOTE: RWY 17, TEMPORARY CRANE 4701FT FROM DER, 1619FT LEFT OF CENTERLINE, 275FT AGL/682FT MSL (2022-AWP-15741-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2602121320-2609242355EST
2/12/26
1316Z
!FDC 6/3059 SEE ODP GILLESPIE FLD, SAN DIEGO/EL CAJON, CA.
MISSION BAY TWO DEPARTURE ...
TAKEOFF MINIMUMS: RWY 17, 300-1 WITH A MINIMUM CLIMB OF 440FT PER NM TO 1800, OR 4400-3 FOR VCOA. ADD TAKEOFF OBSTACLE NOTE: RWY 17, TEMPORARY CRANE 4701FT FROM DER, 1619FT LEFT OF CENTERLINE, 275FT AGL/682FT MSL (2022-AWP-15741-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2602121316-2609242355EST
12/9/25
1437Z
!FDC 5/6389 SEE SID GILLESPIE FLD, SAN DIEGO/EL CAJON, CA.
PADRZ TWO DEPARTURE (RNAV)...
TAKE-OFF MINIMUMS RWY 27L: STANDARD WITH MINIMUM CLIMB OF 320 FT/NM TO 1400.
ALL OTHER DATA REMAINS AS PUBLISHED. 2512091437-2712091437EST
12/9/25
1353Z
!FDC 5/6364 SEE ODP GILLESPIE FLD, SAN DIEGO/EL CAJON, CA.
DIVERSE VECTOR AREA (RADAR VECTORS), ORIG ...
RWY 27L: HEADING AS ASSIGNED BY ATC; REQUIRES MINIMUM CLIMB OF 320 FT/NM TO 1400.
ALL OTHER DATA REMAINS THE SAME. 2512091353-2712091353EST
7/31/25
1410Z
!FDC 5/8599 SEE SID GILLESPIE FLD, SAN DIEGO/EL CAJON, CA.
CWARD TWO DEPARTURE (RNAV)...
TAKE-OFF MINIMUMS RWY 27L: STANDARD WITH MINIMUM CLIMB OF 320 FT PER NM TO 1400..
ALL OTHER DATA REMAINS AS PUBLISHED. 2507311410-2707311410EST
Yes
0700-2100
COUNTY OF SAN DIEGO
DEPT PUBLIC WORKS-AIRPORTS 1960 JOE CROSSON DR
EL CAJON, CA 92020
Phone: 619-956-4800
CATHE JOHNSON
1960 JOE CROSSON DR
EL CAJON, CA 92020
Phone: 619-956-4800
SAN DIEGO FSS (SAN)
Toll Free: 1-800-WX-BRIEF
SEE
--
WHEN ATCT CLSD ACTVT REIL RWY 27R; PAPI RWYS 09L, 27R, 17 & 35; MIRL RWY 09L/27R & RWY 17/35 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
No
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 09L/27R

5342 ft. x 100 ft.
ASPH
Good
NONE
MED

90,000lbs
120,000lbs
200,000lbs
--
  Runway 09L Runway 27R
True Heading 102°282°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 49' 46"N 32° 49' 35"N
Longitude 116° 58' 53"W 116° 57' 51"W
Elevation 359' 388'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3.75° 4.5°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 09R/27L

2738 ft. x 60 ft.
ASPH
Good
NONE


12,000lbs
--
--
--
  Runway 09R Runway 27L
True Heading 102°282°
Traffic Pattern Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 32° 49' 39"N 32° 49' 33"N
Longitude 116° 58' 34"W 116° 58' 03"W
Elevation 366' 380'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

4145 ft. x 100 ft.
ASPH
Good
NONE
MED

58,000lbs
106,000lbs
195,000lbs
--
  Runway 17 Runway 35
True Heading 179°359°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 32° 49' 46"N 32° 49' 05"N
Longitude 116° 58' 21"W 116° 58' 21"W
Elevation 366' 385'
Threshold Crossing Height 31 ft. AGL 19 ft. AGL
Visual Glide Path Angle 3.7° 3.5°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-11W TRNT RAMP AND PTNS OF TWY DELTA BTN D2 AND W TSTN RAMP NOT VISIBLE FROM ATCT.
A110-14WHEN TWR CLSD, ACFT MUST SELF-ANNOUNCE ON CTAF PRIOR TO LDG OR DEP.
A110-15COYOTES AND BIRDS OCCASIONALLY ON AND IN VCNTY OF ARPT.
A110-16SIMULATED ENG FAILURES PROHIBITED OVER RESIDENTIAL AREAS.
A110-17PPR FOR ALL MIL ACFT, AND ALL MIL/CIV VFR LOW APCHS BLO 1000 FT AGL CTC ARPT OPS 619-956-4800.
A110-18NOISE ABATEMENT PROCS IN EFFECT. RWY 17 PREFERRED NOISE ABATEMENT DEP WHEN ATCT CLSD. TGL AND JET DEPS STRONGLY DISCOURAGED 2200-0700. NOISE SENSITIVE AREAS ALL QUADS. NOISE ABATEMENT PATTERN INFO AVBL AT SDCOUNTYAIRPORTS.COM OR CTC ARPT OPS 619-956-4800. COPTER PIONEER NOISE ABATEMENT PATTERN ALT 700 FT MSL; DEP S FR RWY 35 NRS, CROSSWIND BTN BRADLEY AND VERNON WAY, DOWNWIND AT WING AVE, TURN BASE LEG TO FLY OVR E/W TAXI LINE ON E TSNT RAMP, DO NOT OVRFLY TWY D, THEN VIA RWY 17 TO RWY 35 NRS. RMN S OF TWY B4 DUE TO XNG GND TFC. DO NOT OVRFLY PRKD OR TAX ACFT.
A110-19RWYS 9L/27R & 9R/27L HEL SKID/RUN-ON LDG PROHIBITED.
A110-20FOR CD WHEN ATCT CLSD CTC SOCAL APCH AT 800-448-3724.
A110-4RWY 17-35 TPA 1188 (800) SR-SS, 1388 (1000) SS-SR.
A110-5RWY 27R CNTRLN IN CLOSE ALNMT WITH TRRN, USE OF LOC/DME HIGHLY RCMDD.
A110-6FORMATION FLT AVBL AS TFC PERMITS, LTD TO NO MORE THAN 3 ACFT PER FORMATION.
A110-8RWY 27R TPA 1588 (1200) RIGHT TFC SR-SS; TPA 1388 (1000) LEFT TFC SS-SR DUE TO 893 FT AGL MOUNTAIN 2.1 NM ENE OF ARPT. RWY 27L 1388 (1000) LEFT TFC SR-SS.
A14ARPT OPNS, 619-956-4800.
A30-09R/27LRWY UNLGTD; CLSD SS-SR.
A40-17/35RWY 17 END LGTS NON-STD, SPREAD LESS THAN RWY PAVEMENT WIDTH.
A43-27RPAPI UNUSBL BYD 6 DEGS RIGHT OF CRS.
A43-35UNUSBL BYD 4 DEGS LEFT OF CNTRLN.
A57-17RWY 17 APCH RATIO 20:1 TO DSPLCD THLD.
A57-27RRWY 27R APCH RATIO 30:1 TO DSPLCD THR.
A57-35RWY 35 APCH RATIO TO DSPLCD THLD OVER +30 FT POLE 1203 FT FM DSPLCD THLD 40 FT LEFT 40:1.
A58-17RWY 17 +8 FT FENCE AT 30 FT FM RWY END, 85 FT LEFT.
A58-35RWY 35 UNLIT 8 FT FENCE 1 FT SOUTH OF RWY END; +20 FT TREES AT 100-200 FT FM RWY END 130 FT LEFT.
A70-100LLFOR FUEL SVC OR ASSISTANCE DRG BUS HRS, CTC (619) 449-0611, (619) 448-5991, OR (619) 981-5000. 100LL SELF SVC AVBL 24 HRS.
A81-APTWHEN ATCT CLSD ACTVT REIL RWY 27R; PAPI RWYS 09L, 27R, 17 & 35; MIRL RWY 09L/27R & RWY 17/35 - CTAF.
GILLESPIE FLD (ICAO: KSEE, IATA: SEE) is a public airport located in SAN DIEGO/EL CAJON, CA, US.
