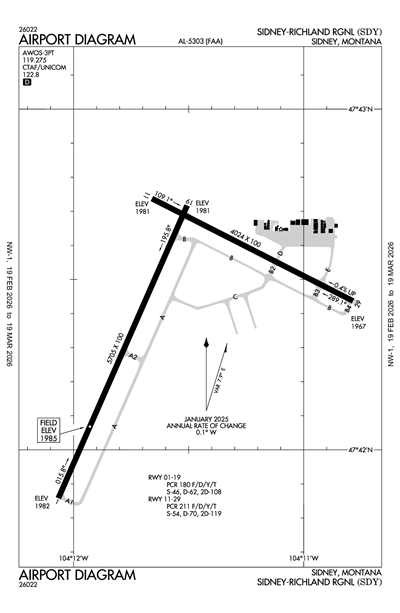

SIDNEY-RICHLAND RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSDY
ICAO KSDYIATA SDYLocal SDY
SIDNEY-RICHLAND RGNL
PublicPUB

1 miles W of SIDNEY, MT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
47° 42' 25"N 104° 11' 33"W
Elevation
1985' MSL
Pattern Alt
2985' MSL
Mag Variation
8°E
Declination
9°E
Fuel
JET A, 100LL
FSS
GREAT FALLS (GTF)
Sectional
BILLINGS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
2/19/26-3/19/26
KSDY VFR
11:56 PM MST
Clear
10sm
30°F
26°F
29.91"Hg
170° 4kts
AO2 SLP148 T10111033 401501061 FZRANO $
METAR KSDY 040656Z AUTO 17004KT 10SM CLR M01/M03 A2991 RMK AO2 SLP148 T10111033 401501061 FZRANO $
+ Add Your Business

KSDY FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.275
(406) 482-7323

Common

CTAF 122.8
ACTVT MIRL RYS 01/19 & 11/29; REIL RYS 01 & 19, 11 & 29; PAPI RYS 01 & 19, 11 & 29 - CTAF.
UNICOM 122.8

Center

SALT LAKE CENTER 126.85
LOW, APCH/DEP CTL SVC PRVDD BY SALT LAKE ARTCC (ZLC) ON 126.85/305.2 (WATFORD CITY RCAG).

Flight Service

Flight Service 122.3
(GTF), COMMUNICATIONS PRVDD BY GREAT FALLS RADIO ON FREQ 122.3 (SIDNEY RCO).

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSDY
Tue, 3/3 10:20 PM MST
Tue, 3/3 11:00 PM MST - Wed, 3/4 11:00 PM MST
VFR
11:00 PM MST - 2:00 AM MST
Few 14,000'
6sm
210° 9kts
VFR
2:00 AM MST - 5:00 AM MST
Scattered 13,000'
6sm
210° 9kts
VFR
5:00 AM MST - 7:00 PM MST
Scattered 20,000'
6sm
230° 7kts
VFR
7:00 PM MST - 11:00 PM MST
Broken 13,000'
6sm
080° 13kts
Gusts 21kts
TAF KSDY 040520Z 0406/0506 21009KT P6SM FEW140
   FM040900 21009KT P6SM SCT130 WS020/24040KT
   FM041200 23007KT P6SM SCT200
   FM050200 08013G21KT P6SM BKN130
KSDY
No NOTAM Available
No
0600-1900
ON CALL 24 HOURS A DAY
SIDNEY RICHLAND APT AUTHORITY
PO BOX 1050 540 AIRPORT ROAD
SIDNEY, MT 59270
Phone: 406-480-1820
RYAN HUOTARI
540 AIRPORT ROAD P.O. BOX 1050
SIDNEY, MT 59270
Phone: (406) 480-1820
GREAT FALLS FSS (GTF)
Toll Free: 1-800-WX-BRIEF
SDY
--
ACTVT MIRL RYS 01/19 & 11/29; REIL RYS 01 & 19, 11 & 29; PAPI RYS 01 & 19, 11 & 29 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
None
Air Freight
Crop Dusting
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 01/19

5705 ft. x 100 ft.
ASPH
Good
GRVD
MED

46,000lbs
62,000lbs
108,000lbs
--
  Runway 01 Runway 19
True Heading 24°204°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 47° 41' 51"N 47° 42' 43"N
Longitude 104° 12' 04"W 104° 11' 30"W
Elevation 1,982' 1,981'
Threshold Crossing Height 33 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 11/29

4024 ft. x 100 ft.
ASPH
Good
GRVD
MED

54,000lbs
70,000lbs
119,000lbs
--
  Runway 11 Runway 29
True Heading 117°297°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 47° 42' 44"N 47° 42' 26"N
Longitude 104° 11' 40"W 104° 10' 47"W
Elevation 1,981' 1,966'
Threshold Crossing Height 40 ft. AGL 22 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FOR ARPT CONDITIONS, CTC ARPT MGT - 406-480-1820. SFC CONDITIONS UNMONITORED 0400-1300Z++
A110-2FLOCKS OF WATER FOWL IN VICINITY OF ARPT.
A110-3FOR CD IF UNA TO CTC ON FSS FREQ, CTC SALT LAKE ARTCC AT 801-320-2568.
A16OR 406-480-1820
A17-H1ON CALL 24 HOURS A DAY
A39-01/19PCR VALUE: 180/F/D/Y/T
A39-11/29PCR VALUE: 211/F/D/Y/T
A81-APTACTVT MIRL RYS 01/19 & 11/29; REIL RYS 01 & 19, 11 & 29; PAPI RYS 01 & 19, 11 & 29 - CTAF.
SIDNEY-RICHLAND RGNL (ICAO: KSDY, IATA: SDY) is a public airport located in SIDNEY, MT, US.
