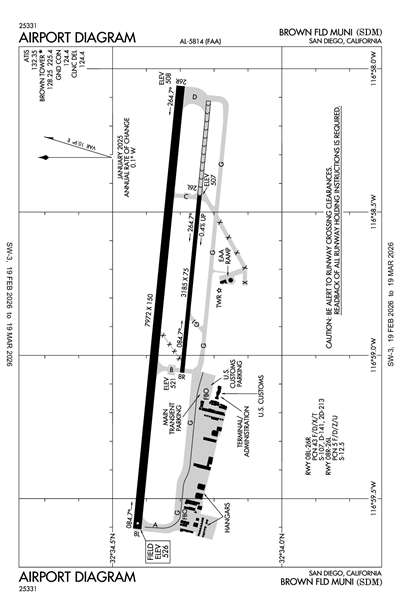

BROWN FLD MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSDM
ICAO KSDMIATA SDMLocal SDM
BROWN FLD MUNI
PublicPUB

13 miles SE of SAN DIEGO, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 34' 20"N 116° 58' 49"W
Elevation
526' MSL
Pattern Alt
1526' MSL
Mag Variation
11°E
Declination
14°E
Fuel
JET A, JET A (FSII), 100LL
FSS
SAN DIEGO (SAN)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
2/19/26-3/19/26
KSDM VFR
5:53 PM PST
Clear
10sm
59°F
52°F
29.99"Hg
280° 4kts
AO2 SLP153 T01500111
METAR KSDM 040153Z 28004KT 10SM CLR 15/11 A2999 RMK AO2 SLP153 T01500111
+ Add Your Business

KSDM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 132.35
(619) 661-0152
ASOS 132.35
(619) 333-1055

Common

CTAF 128.25
ACTVT REIL RWY 08L, PAPI RWY 08L & RWY 26R, HIRL RWY 08L/26R, AND MIRL RWY 08R/26L - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 124.4

Ground

BROWN GROUND 124.4
0800-2000

Tower

BROWN TOWER 128.25
0800-2000

Arrival

CHASR STAR 124.35

Approach

SOCAL APPROACH 124.35

Departure

CWARD DP 119.6
PADRZ DP 119.6
SOCAL DEPARTURE 125.15

Other

CLASS B 124.35
062-109 SAN 14,000 FT & BLW

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Arrival Procedures

Instrument Approach

Terminal Area Forecast

MMTJ
Tue, 3/3 5:56 PM PST
Tue, 3/3 4:00 PM PST - Wed, 3/4 4:00 PM PST
VFR
4:00 PM PST - 7:00 PM PST
Sky Clear
6sm
240° 5kts
MVFR
7:00 PM PST - 8:00 AM PST
Haze
Scattered 1,500'
3sm
250° 5kts
LIFR
Temporary 12:00 AM PST - 4:00 AM PST
Mist
Broken 300'
1sm
Calm
MVFR
8:00 AM PST - 12:00 PM PST
Haze
Broken 24,000'
Scattered 2,000'
5sm
300° 5kts
VFR
12:00 PM PST - 4:00 PM PST
Scattered 24,000'
6sm
250° 8kts
TAF COR MMTJ 040156Z 0400/0500 24005KT P6SM SKC TX19/0420Z TN10/0412Z
   FM040300 25005KT 3SM HZ SCT015
   TEMPO 0408/0412 1SM BR BKN003
   FM041600 30005KT 5SM HZ SCT020 BKN240
   FM042000 25008KT P6SM SCT240
KSDM
EffectiveExpiresCategoryNOTAM
Domestic
2/23/26
2257Z
1/21/27
2200Z
!SDM 02/014 SDM TWY G EAST OF TWY C CLSD TO ACFT MORE THAN 12500LB 2602232257-2701212200
2/23/26
2252Z
3/9/26
2359Z
!SDM 02/013 SDM TWY G BTN TWY G1 AND EAA RAMP CLSD 2602232252-2603092359
2/14/26
0800Z
8/15/26
0659Z
!SDM 02/007 SDM AIRSPACE SEE FDC 6/4160 ZLA 99.7 SECURITY 2602140800-2608150659
FDC
2/25/26
1600Z
!FDC 6/9764 SDM IAP BROWN FLD MUNI, SAN DIEGO, CA.
VOR OR TACAN-A, ORIG-A...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MZB VORTAC OUT OF SERVICE. 2602251600-2603042351EST
2/25/26
1600Z
!FDC 6/9757 SDM ODP BROWN FLD MUNI, SAN DIEGO, CA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 4...
DEPARTURE PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MZB VORTAC OUT OF SERVICE. 2602251600-2603042351EST
Yes
0900-1700
CITY OF SAN DIEGO
1424 CONTINENTAL ST
SAN DIEGO, CA 92154
Phone: 619-424-0455
ANDY SCHWARTZ
1424 CONTINENTAL ST
SAN DIEGO, CA 92154
Phone: 619-424-0456
SAN DIEGO FSS (SAN)
Toll Free: 1-800-WX-BRIEF
SDM
--
ACTVT REIL RWY 08L, PAPI RWY 08L & RWY 26R, HIRL RWY 08L/26R, AND MIRL RWY 08R/26L - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Parachute Jump Activity
Aircraft Rental
Aircraft Sales

Runway 08L/26R

7972 ft. x 150 ft.
ASPH CONC
Good
NONE
HIGH
43/F/D/X/T
107,000lbs
141,000lbs
213,000lbs
--
  Runway 08L Runway 26R
True Heading 96°276°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 34' 26"N 32° 34' 18"N
Longitude 116° 59' 36"W 116° 58' 04"W
Elevation 526' 508'
Threshold Crossing Height 52 ft. AGL 73 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 08R/26L

3185 ft. x 75 ft.
ASPH
Good
NONE
MED
5/F/D/Z/U
12,000lbs
--
--
--
  Runway 08R Runway 26L
True Heading 96°276°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 32° 34' 18"N 32° 34' 15"N
Longitude 116° 59' 04"W 116° 58' 27"W
Elevation 521' 507'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1BE ALERT TO ARPT BDRY ONE MILE NORTH FM MEXICAN/USA INTL BORDER.
A110-15PARA JUMPING ON AIRPORT AND 3 MILES EAST.
A110-16BE ALERT TO HIGH TERRAIN 3,566 FT. MSL SIX MILES EAST OF AIRPORT.
A110-17BE ALERT WHEN DEPARTING ON RY 08L AT NIGHT DUE TO RISING TERRAIN TO THE EAST.
A110-18NOISE SENSITIVE AREAS APPROX 1 MILE WEST OF AIRPORT, 1/2 MILE NORTHWEST, AND 2 MILES NORTH.
A110-19TWY G WEST OF TWY B RESTRICTED TO AIRCRAFT WITH WINGSPANS OF 133 FT OR LESS.
A110-20AVOID DCT OVERFLIGHT OF PIO PICO ENERGY CENTER BLO 2000 FT AGL, 3 NM EAST OF AP.
A110-21FOR CD WHEN ATCT CLSD CTC SOCAL APCH AT 800-448-3724.
A110-4NO ENGINE OPNS ON RAMPS EXCEPT AS NECESSARY FOR ARRIVALS/DEPARTURES.
A35-08R/26LOPERATOR PERMITS ONLY 12500 LBS.
A43-26RRWY 26R PAPI UNUSABLE BYD 3 NM.
A70-A+FOR JET FUEL AFT HRS CALL FBO AT 619-671-9222; FEE FOR CALLOUT. MIL FUEL AVBL BY CALLING 619-671-9222.
A81-APTACTVT REIL RWY 08L, PAPI RWY 08L & RWY 26R, HIRL RWY 08L/26R, AND MIRL RWY 08R/26L - CTAF.
E147<TPA: RWY 8L-26R 1000'AGL; 8R-26L 600'AGL.
BROWN FLD MUNI (ICAO: KSDM, IATA: SDM) is a public airport located in SAN DIEGO, CA, US.
